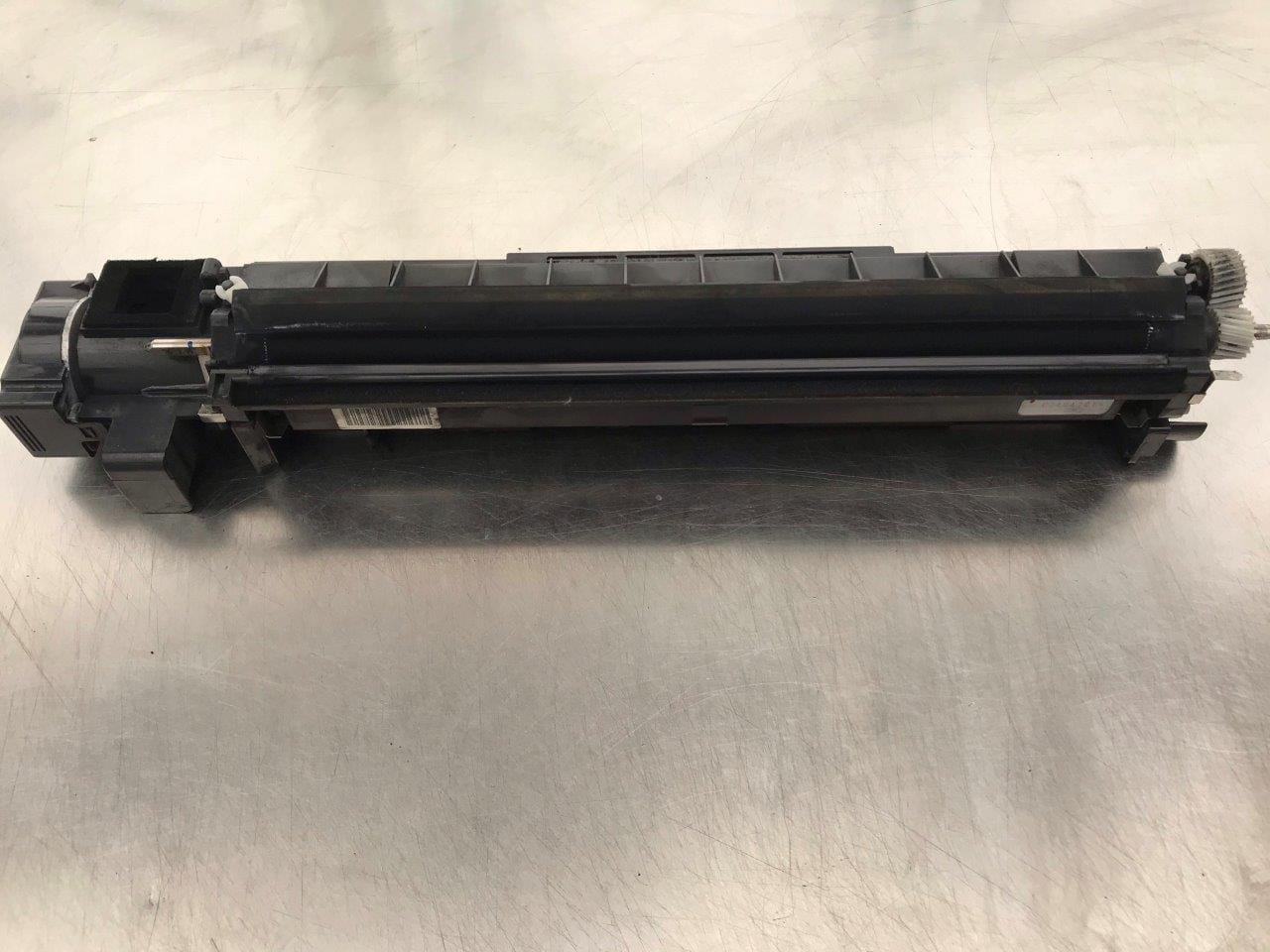

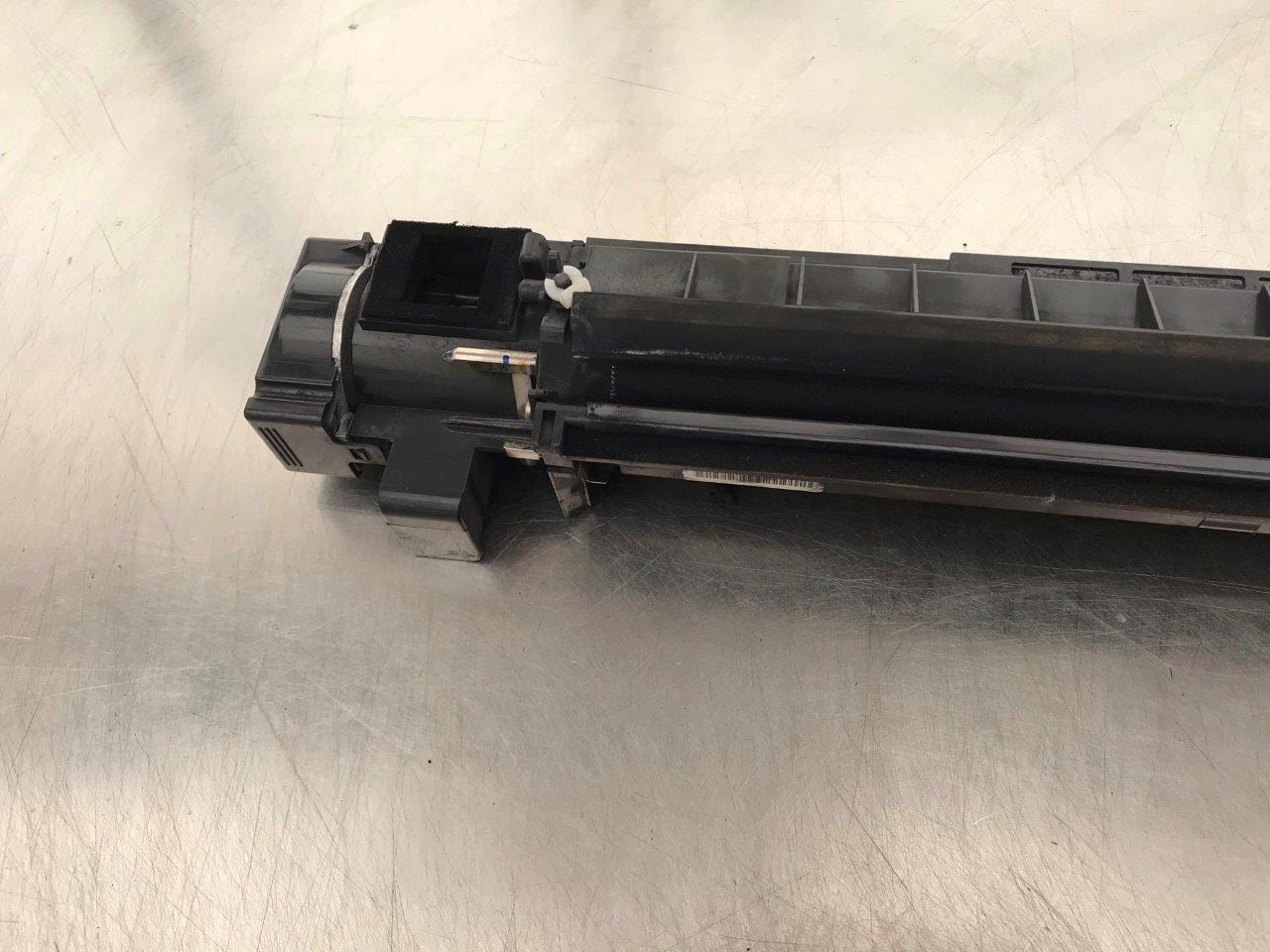

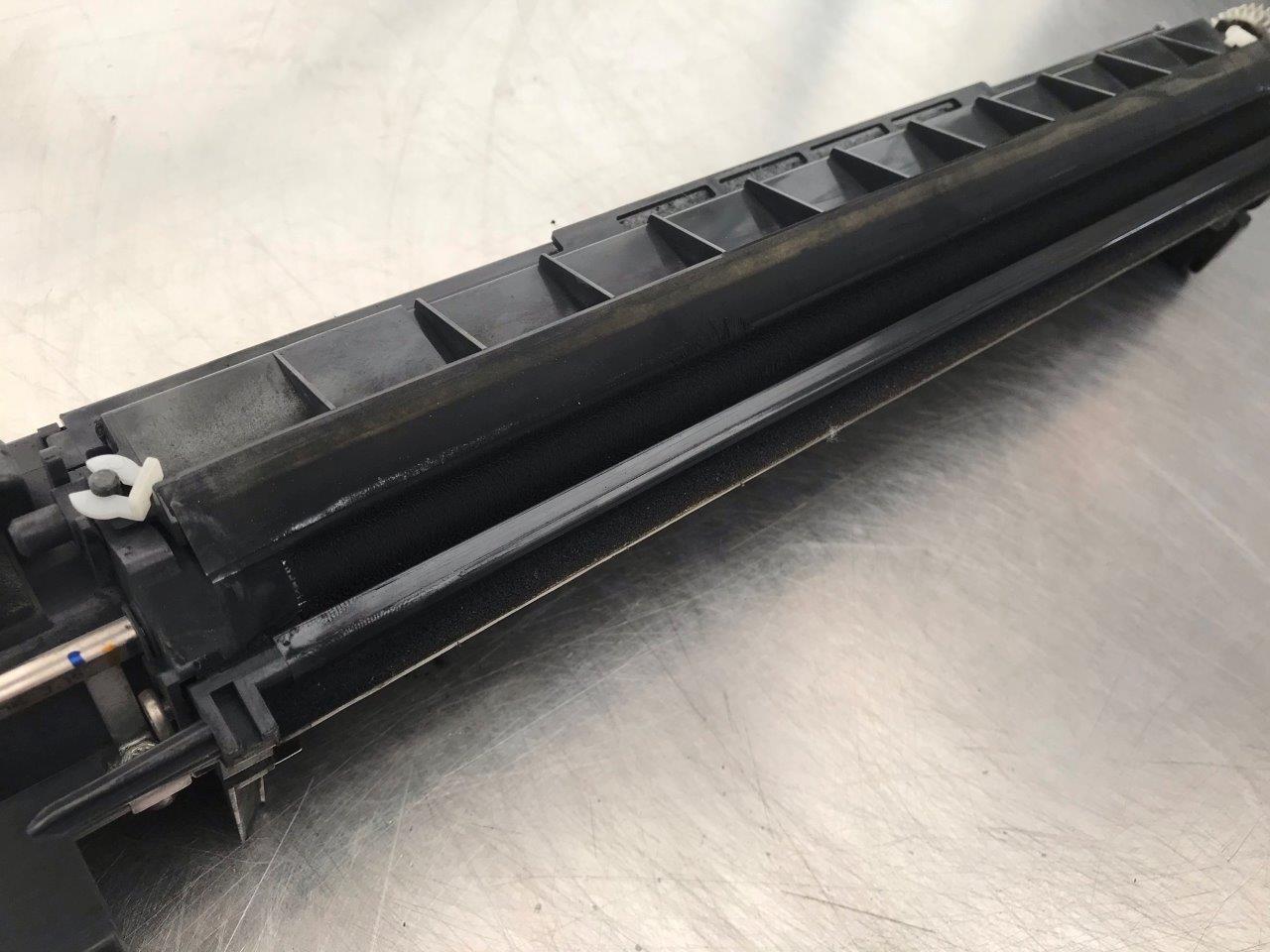

Deweloper RICOH MP3500 MP4500 2035 2045 3035 3045 DEVELOPMENT UNIT B2133010

Deweloper RICOH Aficio MP3500 MP4500 2035 2045 3035 3045 / Nashuatec 3545 4545 DSM735 DSM745 / Rex Rotary 3518 4518 DSM735 DSM745 / Gestetner 3532 4532 DSM735 DSM745 / Infotec IS2035 IS2045 IS2235 IS2245 / Lanier LD035 LD045 LD235 LD245 DEVELOPMENT UNIT B2133010

używany proszek dewelopera traktujemy jako zużyty

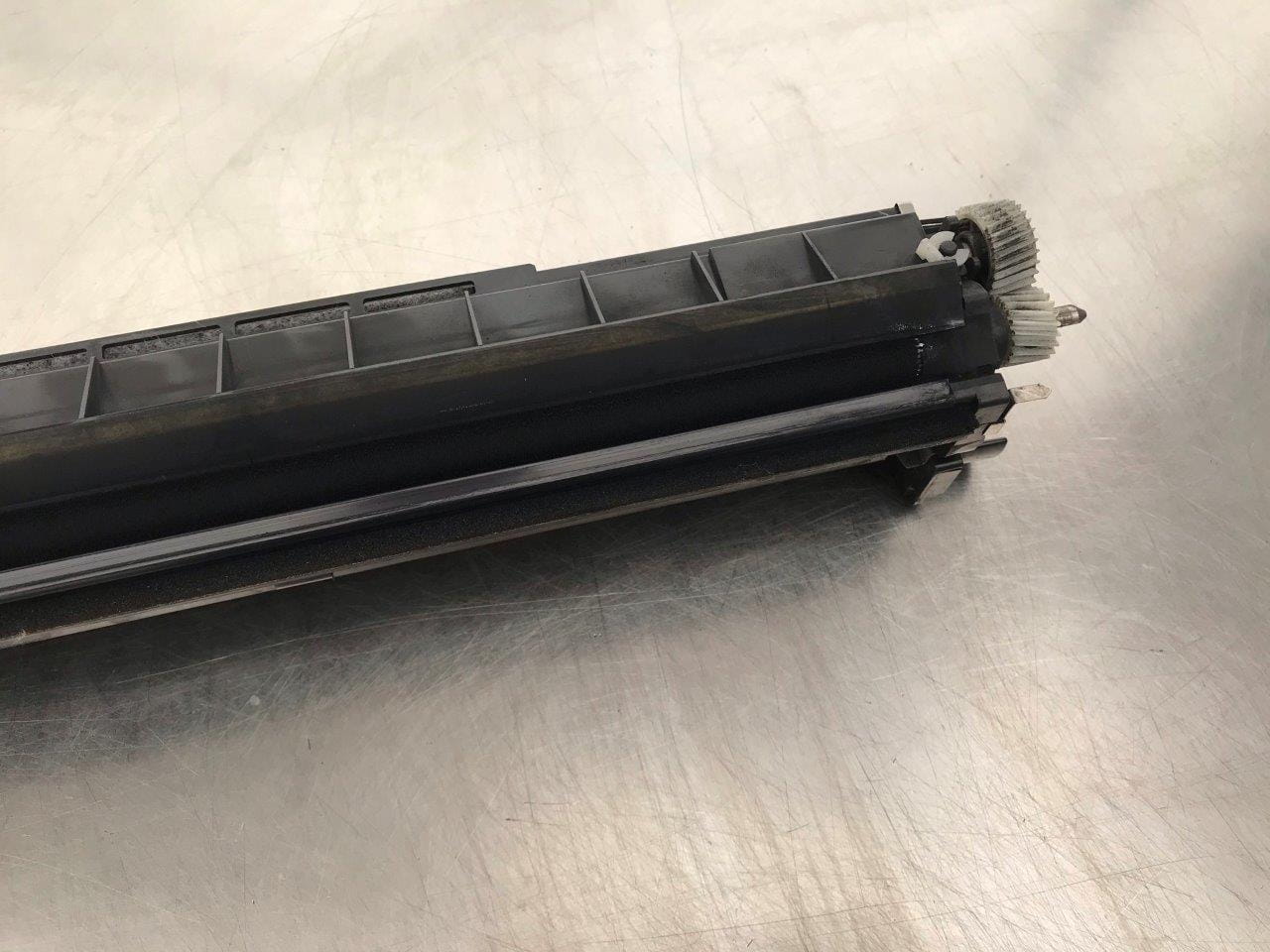

Koła i tryby chodzą lekko

zawiera:

1 B2133010 Development Unit 1
2 52062686 Snap Ring 2
3 A2323150 Entrance Seal Ass'y 1
4 B0823100 Development Sleeve:Ass'y 1
5 B0823121 Shield:Development Sleeve:Front:C3 1
6 B0823122 Shield:Development Sleeve:Rear:C3 1
7 AB011386 Development Sleeve Gear 1
8 AB011446 Gear - 29Z 1
9 AA143219 Stepped Screw 2
10 A2323155 Front Cover - Development Unit 1
11 AB014061 Gear - 13Z 1
12 A2323077 Spacer - M5 1
13 AB014060 Gear - 21Z 1
14 AA153443 Mylar -Development Unit-Right 1
15 AB014062 Gear - 17Z/25Z 1
16 G0653066 Entrance Shield - Toner Supply 1
17 AA153054 Sponge - 17x7x5 2
18 AA153095 Shield - Development - Center 2
19 AA153053 Sponge - 317x5x5 1
20 AA012131 Filter:Development 1
21 G0653067 Coupling Shield 1
22 A2323069 Rear Bias Terminal - Development 1
23 B0043078 Joint - Paddle 1
24 B0823123 Shield:Case:Development:Front Rear:C3 2
25 A2323067 Tape - TD Sensor 1
26 B2133065 Density Sensor 1
27 A2323068 Front Bias Terminal - Development 1
28 B0043062 Ground Plate- Doctor Blade 1
29 G0123897 Film - Toner End Sensor Harnes 1
30 AA030281 Bushing - 12x18x5.5 1

LOK:K195
