FUSER UNIT CANON iR2230 iR2270 iR2870 iR2230 iR2830 iR3025 230V FIXING FM3-1279-000 FM31279000

Dostępność: DOSTĘPNY
Wysyłka w: 24 godziny
Cena: 400,00 zł 400.00
Cena netto: 325,20 zł
quantity szt.
dodaj do przechowalni
Ocena: 0 (Ilość ocen: 0)
Producent: CANON
Kod produktu: FM3-1279-000

Opis

FUSER UNIT CANON iR2230 iR2270 iR2870 iR2230 iR2830 iR3025 230V FIXING FM3-1279-000 FM31279000 Zespół grzejny, grzejnik, piec, grzałka

Zespół grzejny, grzejnik, piec, grzałka

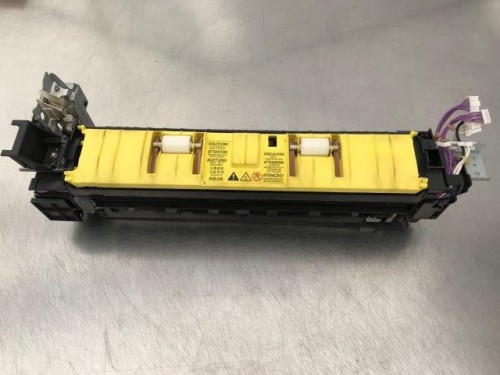

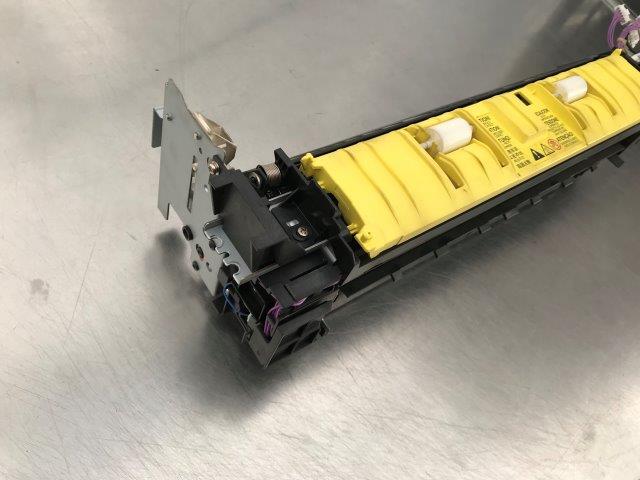

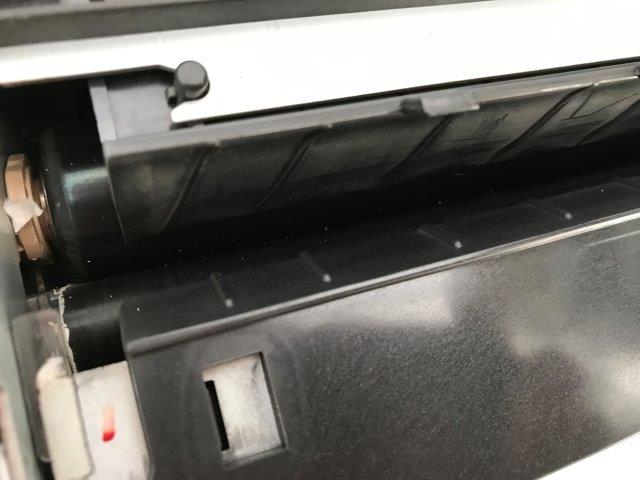

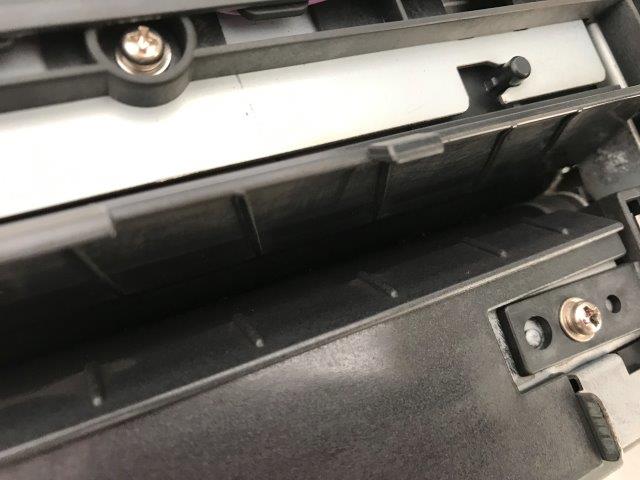

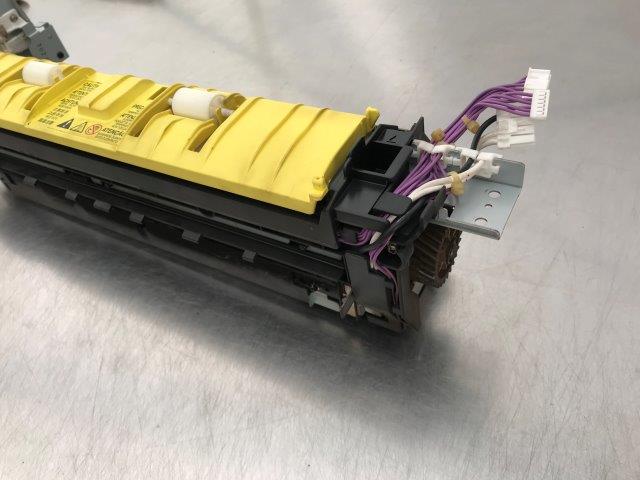

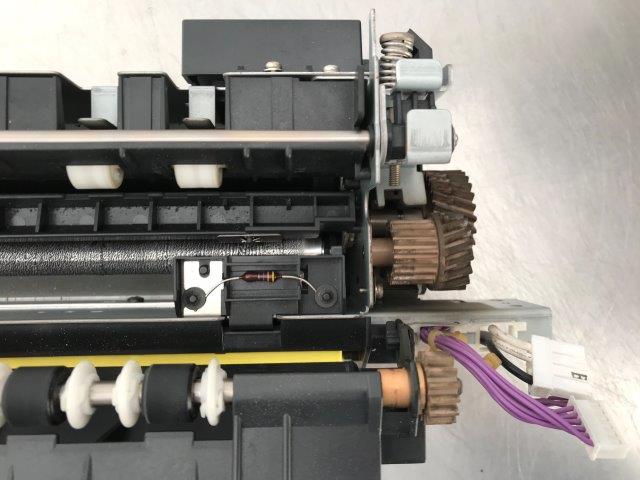

Element używany, dobry wałek i folia, kompletny, stan jak na zdjęciach, zawiera:

1 FB5-4931-000 1 ROLLER, FIXING HEATSINK
2 FC5-1131-000 1 GUIDE, FIXING CABLE, LOWER
3 FC5-1341-000 1 GUIDE, FIXING CABLE, FRONT
4 FC5-1351-000 1 GUARD, FILM SENSOR
5 FC6-2942-000 1 ROLLER, PRESSURE
6 FC5-1358-000 6 COLLAR, FIXING DELIVERY
7 FC5-1360-000 1 ELIMINATOR, STATIC CHARGE
8 FC5-1367-000 1 SPRING,SENSOR LEVER
9 FC5-1368-000 6 SPRING
10 FC5-1383-000 1 BRUSH, FILM BIAS
11 FC5-1384-000 1 GUIDE, FILM BIAS
12 FC5-7160-000 1 LEVER, SENSOR
13 FC6-2920-000 1 COVER, AC CONNECTOR
14 FC6-2924-000 1 GUIDE, RELEASE
15 FC6-2925-000 1 PLATE, PRESSURE ADJUST, SMALL
16 FC6-2927-000 1 PLATE, RACK AUXILIARY
17 FC6-2929-000 1 RACK, PRESSURE RELEASE
18 FK2-0149-000 1 PHTO-INTERRUPTER, TLP1253(C6)
19 FM2-0359-000 1 FIXING FILM UNIT
20 FC6-5085-000 7 CAP, DUST
21 FC5-1356-000 1 GUIDE, FIXING DELIVERY, LOWER
22 FC6-2941-000 24 ROLLER
23 FC6-2943-000 1 ROLLER, FIXING DELIVERY
24 FU6-0023-000 1 GEAR, 15T
25 RS1-1087-000 1 BUSHING
26 FC5-0655-000 1 LABEL, HIGH TEMP. CAUTION
27 FS1-9009-020 1 SCREW, STEPPED, M3
28 FM2-0296-000 1 RESISTOR HOLDER MOUNTING UNIT
29 FC6-4015-000 4 SPRING, LEAF
30 FB5-4773-000 2 ROLLER, DUPLEXING
31 XA9-0702-000 20 SCREW, W/WASHER, M3X6
32 FC5-0697-000 1 GUIDE, DUPLEXINNG FEEDER, UPPE
33 FC5-7156-000 1 MOUNT, DUPLEXING FEEDER
34 FU5-2073-000 3 SPRING, COMPRESSION
35 FM2-0299-000 1 CLEANING ROLLER MOUNT UNIT,F.
36 FS5-1945-000 2 BUSHING
37 FU5-2102-000 2 SPRING
38 FM2-0300-020 1 CLEANING ROLLER MOUNT UNIT,R.
40 FM2-2769-000 1 FIXING SPEED SENSOR PCB UNIT
41 RS5-1446-000 2 BUSHING
43 FM2-2847-000 1 CABLE, THERMISTOR CONNECTING J1010,J1005
44 FM2-2857-000 1 CABLE, FIXING J1006,J1007,J1008
45 FC6-2928-000 1 GEAR, 36T
46 FU5-0129-000 1 GEAR, 17T/19T
47 FU6-2021-000 1 SPRING, FIXING GUIDE, LOWER
48 FU5-0127-000 1 GEAR, 27T
49 FC6-4627-000 1 COVER, SENSOR
50 FC5-1346-000 1 ELIMINATOR, STATIC CHARGE
51 FC5-1348-000 1 GUIDE, FIXING INLET
52 FC5-1353-000 1 GUIDE, FIXING DELIVERY, UPPER
53 FC5-1382-000 1 GUIDE, FIXING DELIVERY FIX, L.
54 FC5-1343-000 1 COVER, FIXING FRAME
55 FS1-1512-000 3 BUSHING, PL
57 FC5-1345-000 1 LEVER, PRESSURE
58 FC5-1340-000 1 GUIDE, INLET

Element używany, LOK:K96
