FUSER UNIT RICOH MPC305 MPC305SP MPC305SPF D1174026 D117-4026 D1174096 D117-4096

FUSER UNIT RICOH MPC305 MPC305SP MPC305SPF D1174026 D117-4026 D1174096 D117-4096

zawiera:

D1174026 FUSING UNIT:EU:SERVICE:ASS'Y
07200030E (x4)RETAINING RING -M3
AW100149 THERMISTOR:SLEEVE:FUSING
09544012N (x2)SCREW:POLISHED ROUND/SPRING:M4X12
07200040E (x2)RETAINING RING -M4
AA061088 TORSION SPRING:STRIPPER PLATE:REAR
AA061087 TORSION SPRING:STRIPPER PLATE:FRONT
AA061086 (x2)COIL SPRING:PRESSURE
07330406 (x2)BUSHING - 4X6
AA143861 SCREW - DIA5
AE030056 (x2)BALL BEARING - 8X16X5
AB012072 GEAR:PRESSUREROLLER:Z29
AA061089 (x2)COIL SPRING:GUIDE PLATE:FUSINGEXIT
AB012077 GEAR:IDLER:PRESSURE:Z17
AB012076 GEAR:DRIVE:Z21
08046128 (x3)HEXAGONAL BOLT:DOUBLE SCREW:M3X10
AA143870 STEPPED SCREW
AE020204 PRESSURE ROLLER:DIA25
08046123 HEXAGONAL BOLT:W/WASHER:M3X8
AW100147 (x2)THERMISTOR:PRESSURE
03603006 N(x5)SCREW - M3X6
D1174026 FUSING UNIT:EU:SERVICE:ASS'Y
D1174231 STRIPPER PLATE:COAT
D1174050 SLEEVE:FUSING:EU/AP:ASS'Y
D1054303 ELECTRODE PLATE:FUSING:NEUTRAL
D1174174 TERMINAL:HEATER:REAR
D1174236 SHEET:C:LEVER
D1174177 HOUSING:THERMOSTAT
AW110110 THERMOSTAT
D1174153 LEVER:PRESSURERELEASE:FRONT:ASS'Y
D1054168 (x2)LEVER:LOCK:PRESSURE
D1174155 LEVER:PRESSURE:FRONT
D1174163 LEVER:PRESSURERELEASE:REAR:ASS'Y
D1174238 (x4)GUIDE:FUSING EXIT:ETFE
D1174199 BRACKET:THERMISTOR:SLEEVE:EU
D1174165 LEVER:PRESSURE:REAR
D1441085 (x8)STEPPED SCREW:M3
D1174124 DISCHARGE BRUSH:PRESSURE ROLLER
D1174251 FUSING COVER:LOWER
D1174241 FUSING ENTRANCE GUIDE PLATE
D1174235 GUIDE PLATE:FUSING EXIT

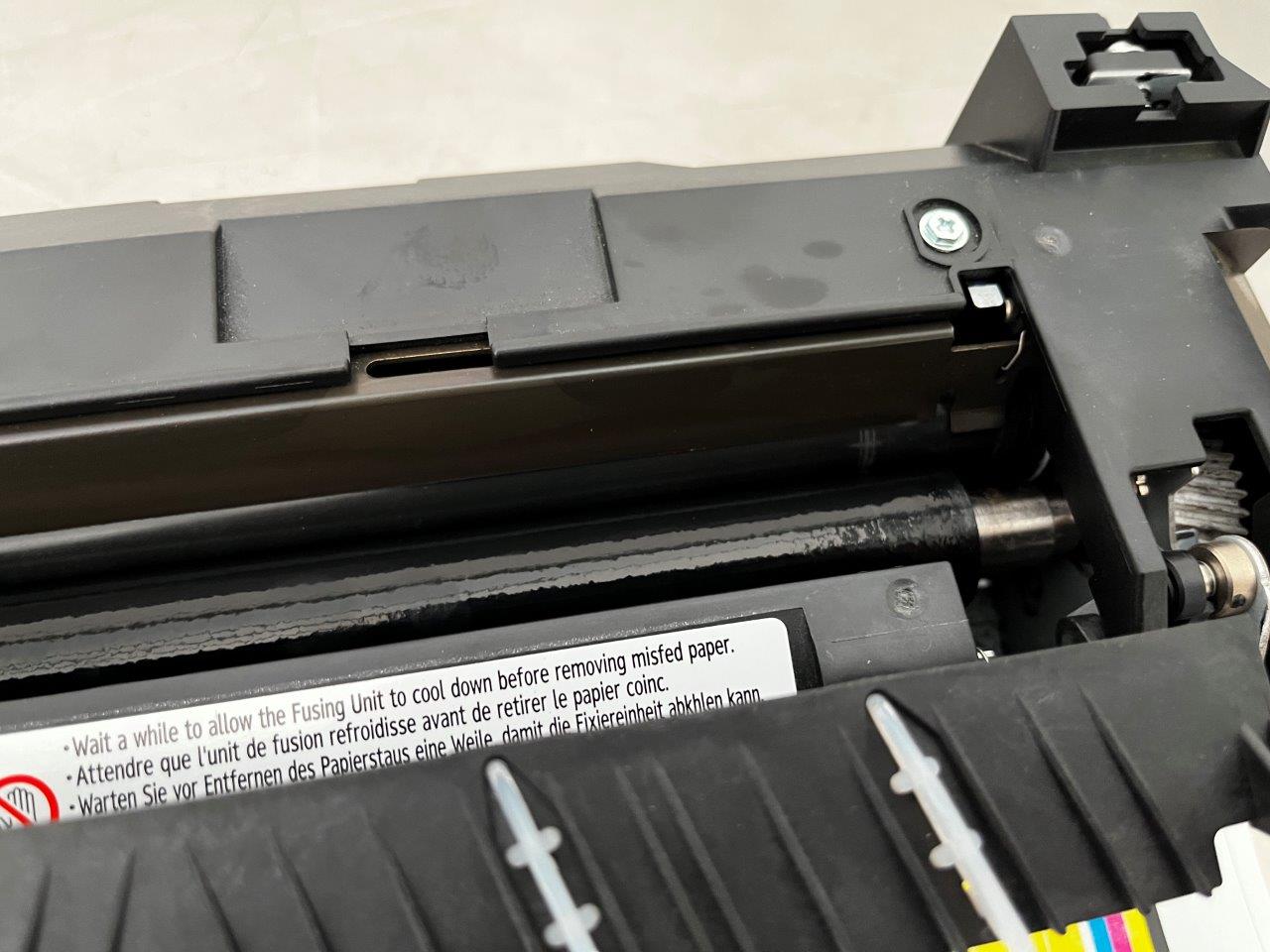

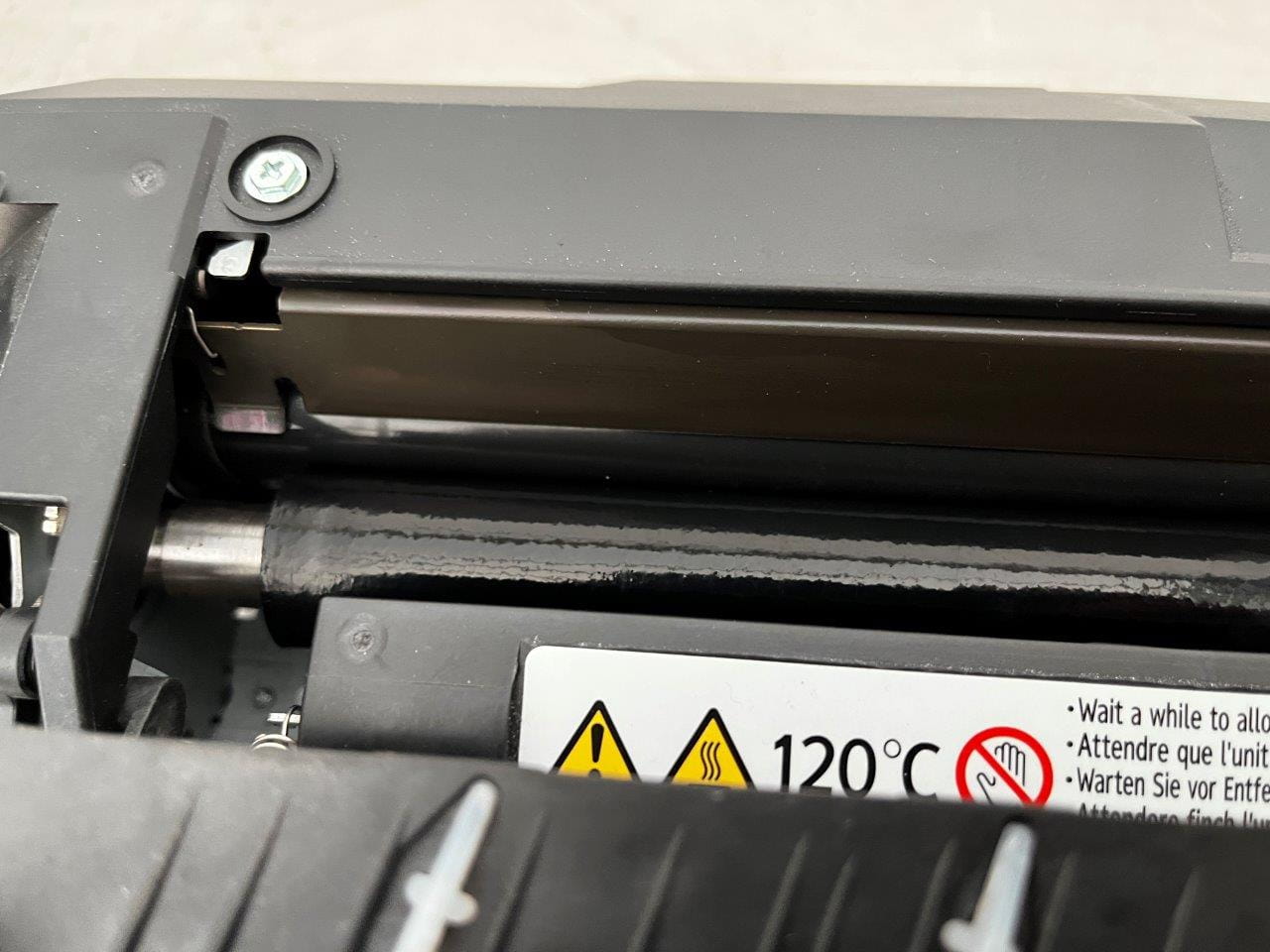

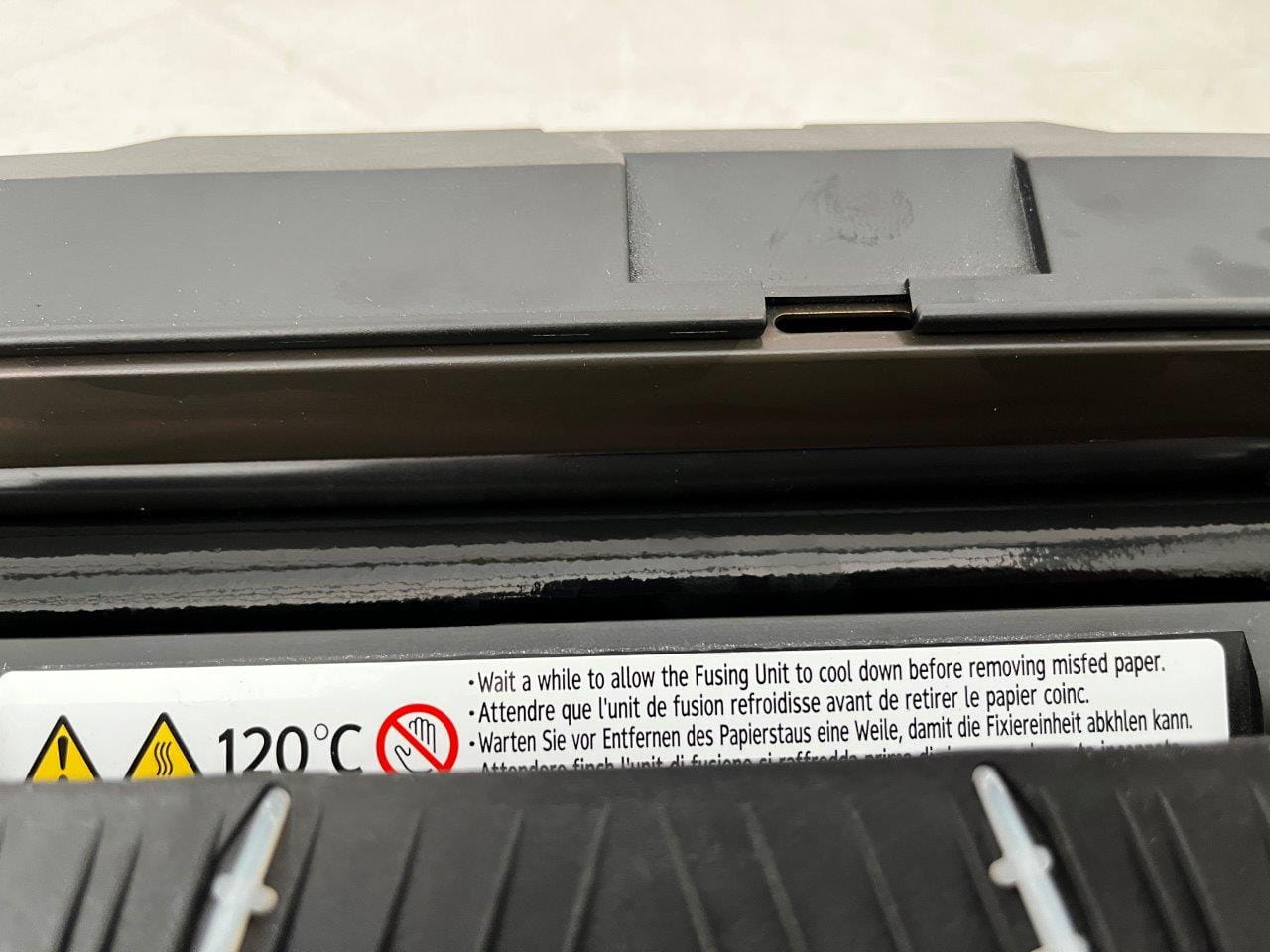

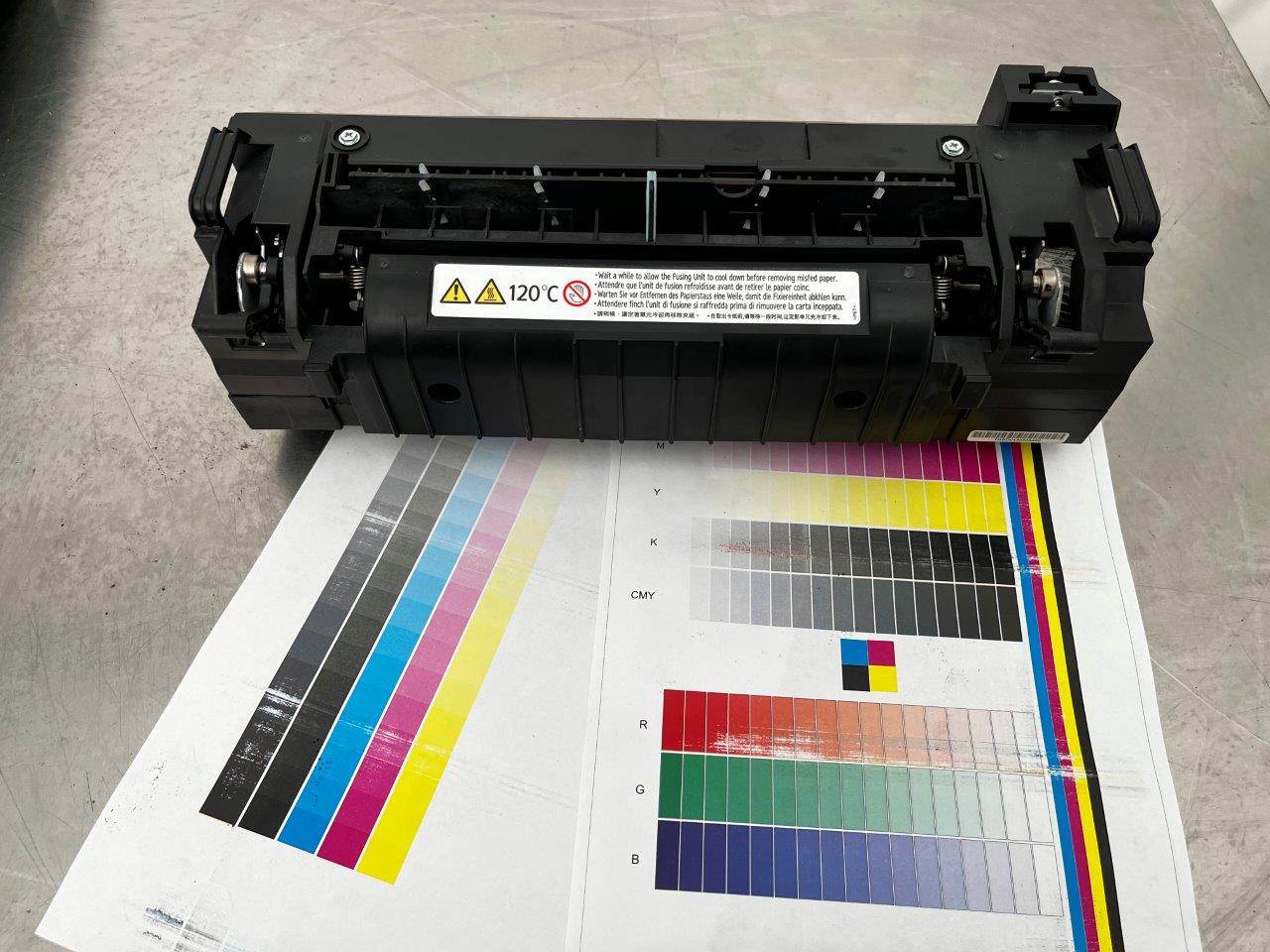

Element używany chodził bez kodów, ale folia jest porysowana więc powtarza obraz.

LOK:K200 x1
