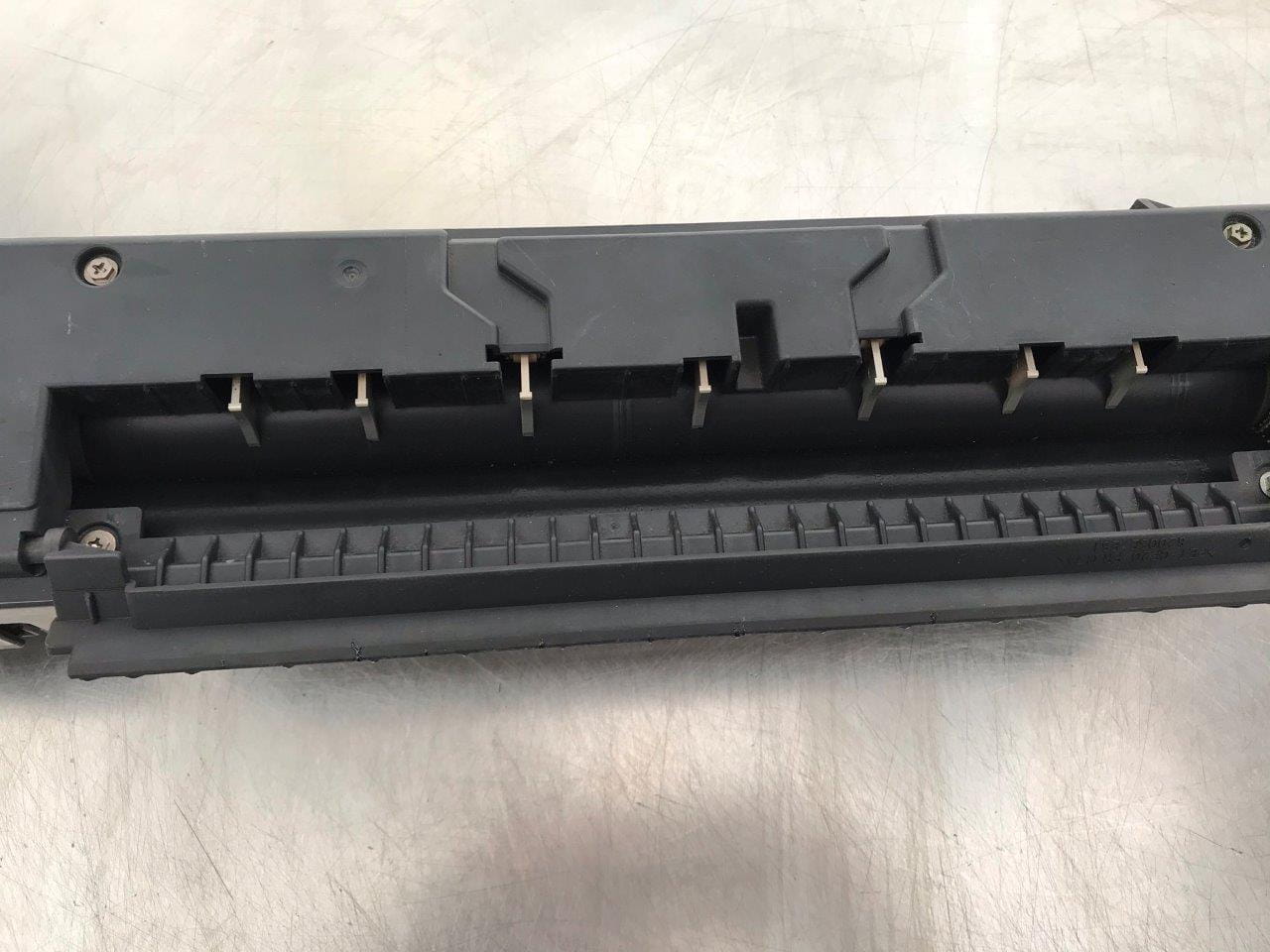

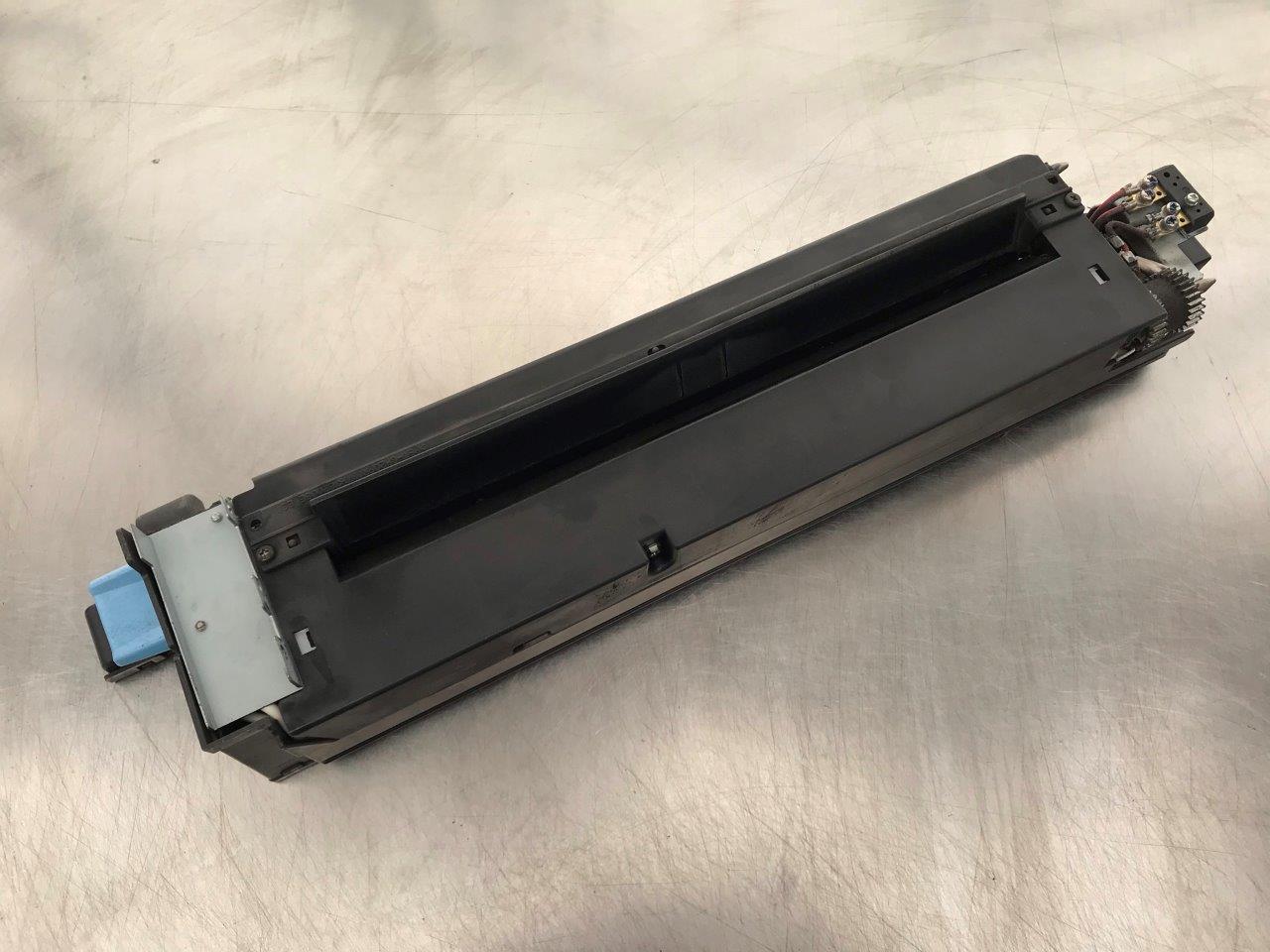

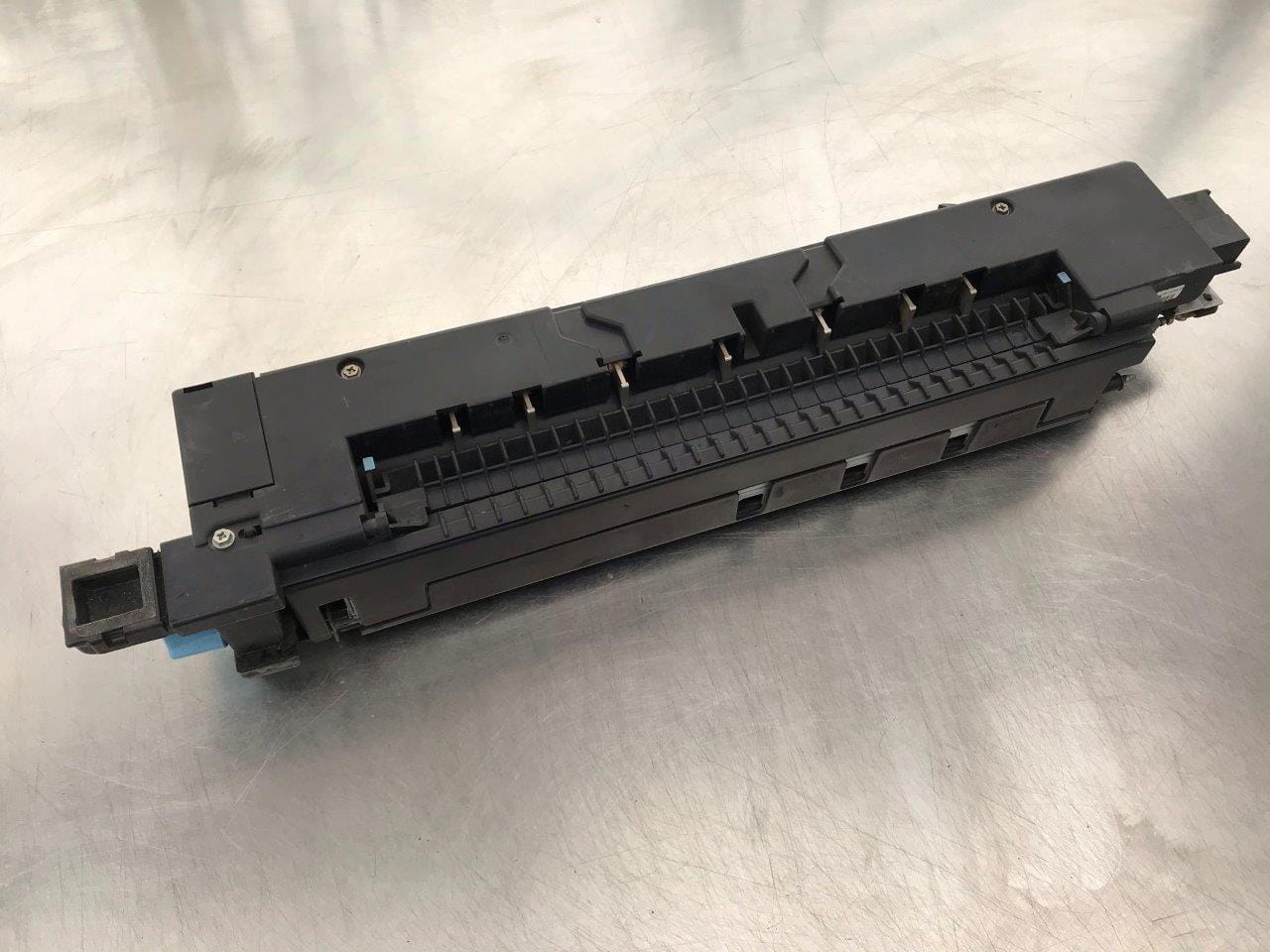

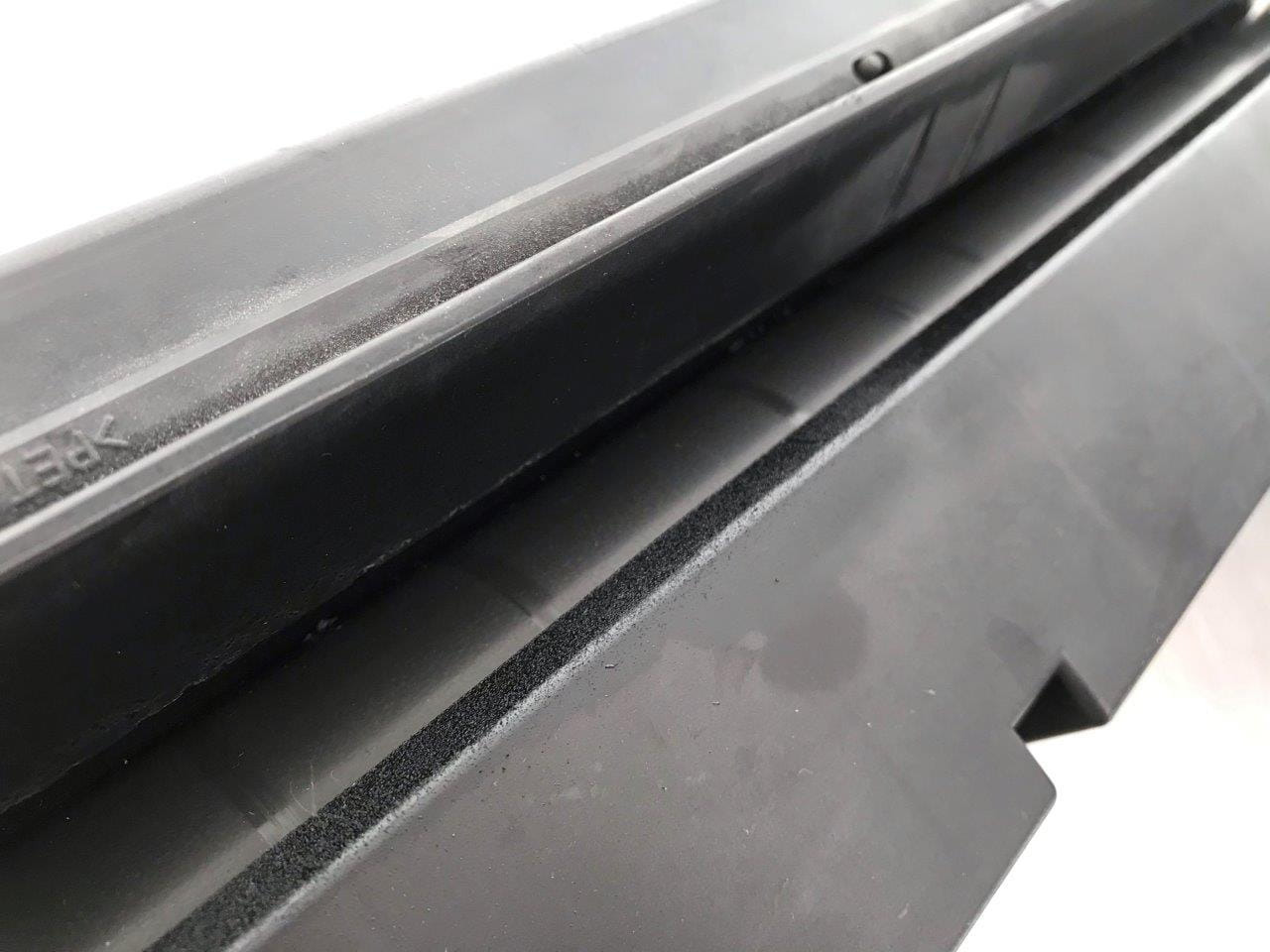

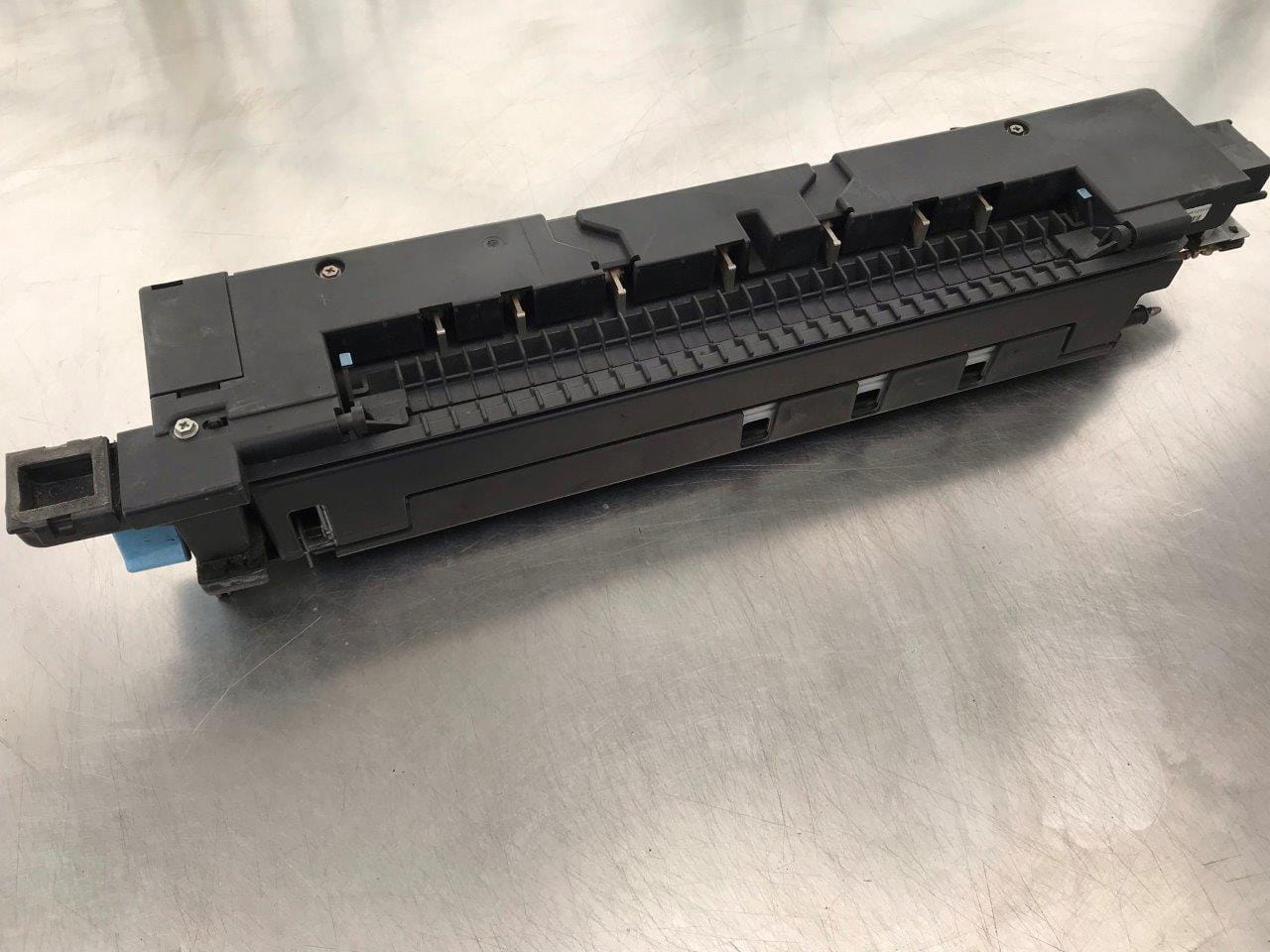

Piec FUSER UNIT Ricoh Aficio 2035 2045 3035 3045 B0827720 (2)

Piec FUSER UNIT RICOH Aficio 2035 2045 3035 3045 / Nashuatec 3545 4545 DSM735 DSM745 / Rex Rotary 3518 4518 DSM735 DSM745 / Gestetner 3532 4532 DSM735 DSM745 / Infotec IS2035 IS2045 IS2235 IS2245 / Lanier LD035 LD045 LD235 LD245 B0827720 B082-7720

Element używany wałki, separatory, termistory należy traktować jako zużyte czyli doskonały dawca części. Kompletny moduł

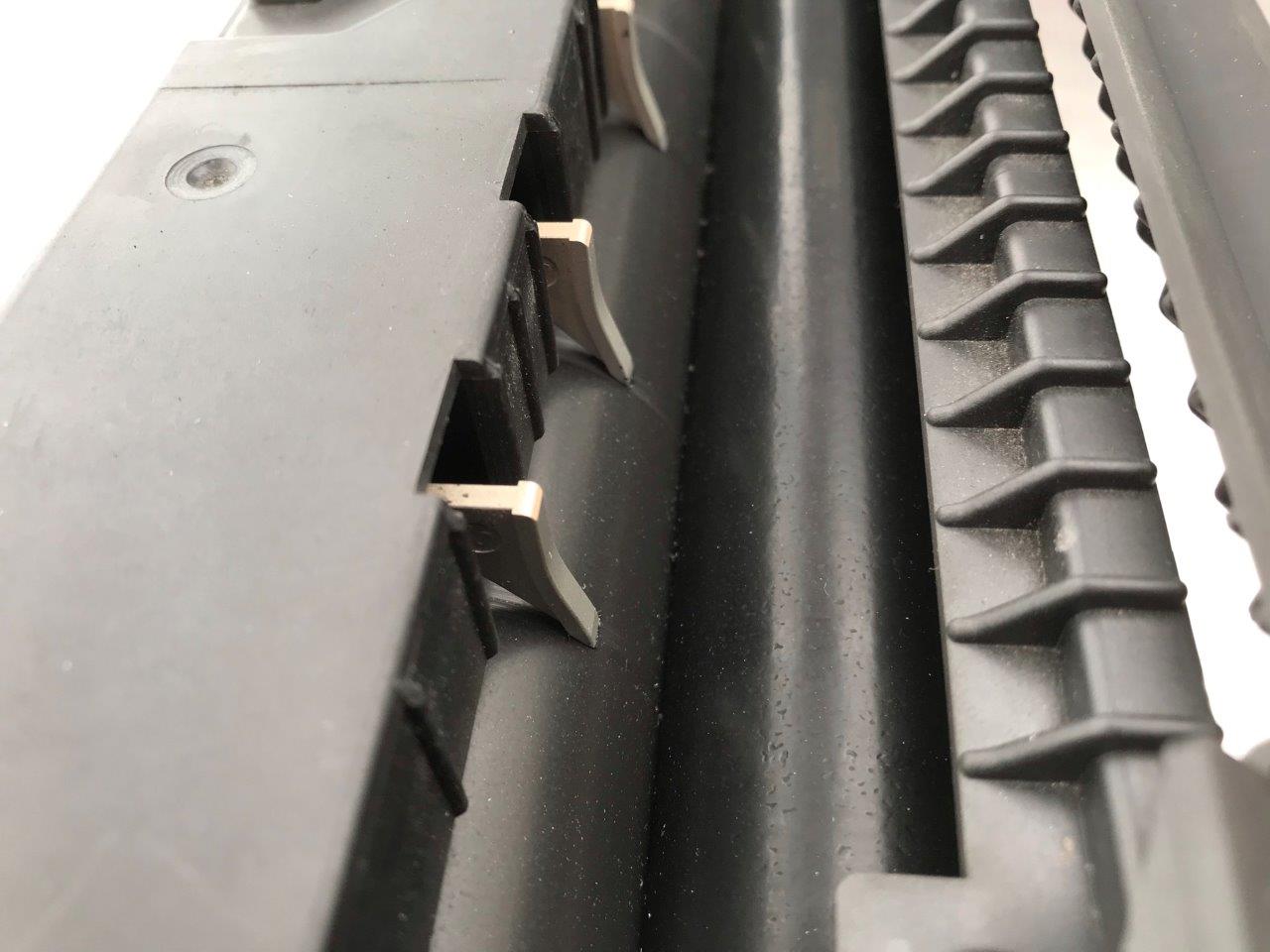

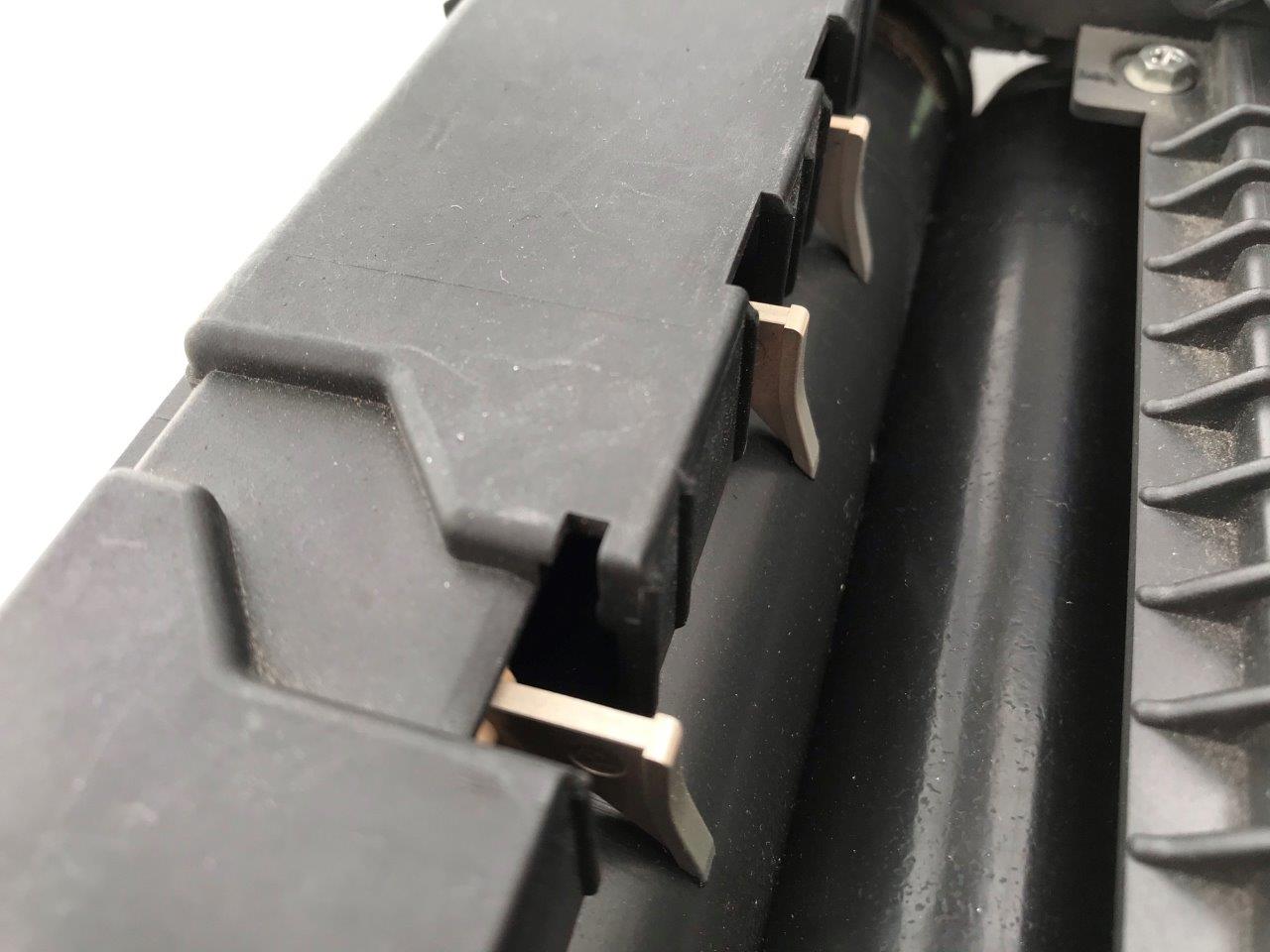

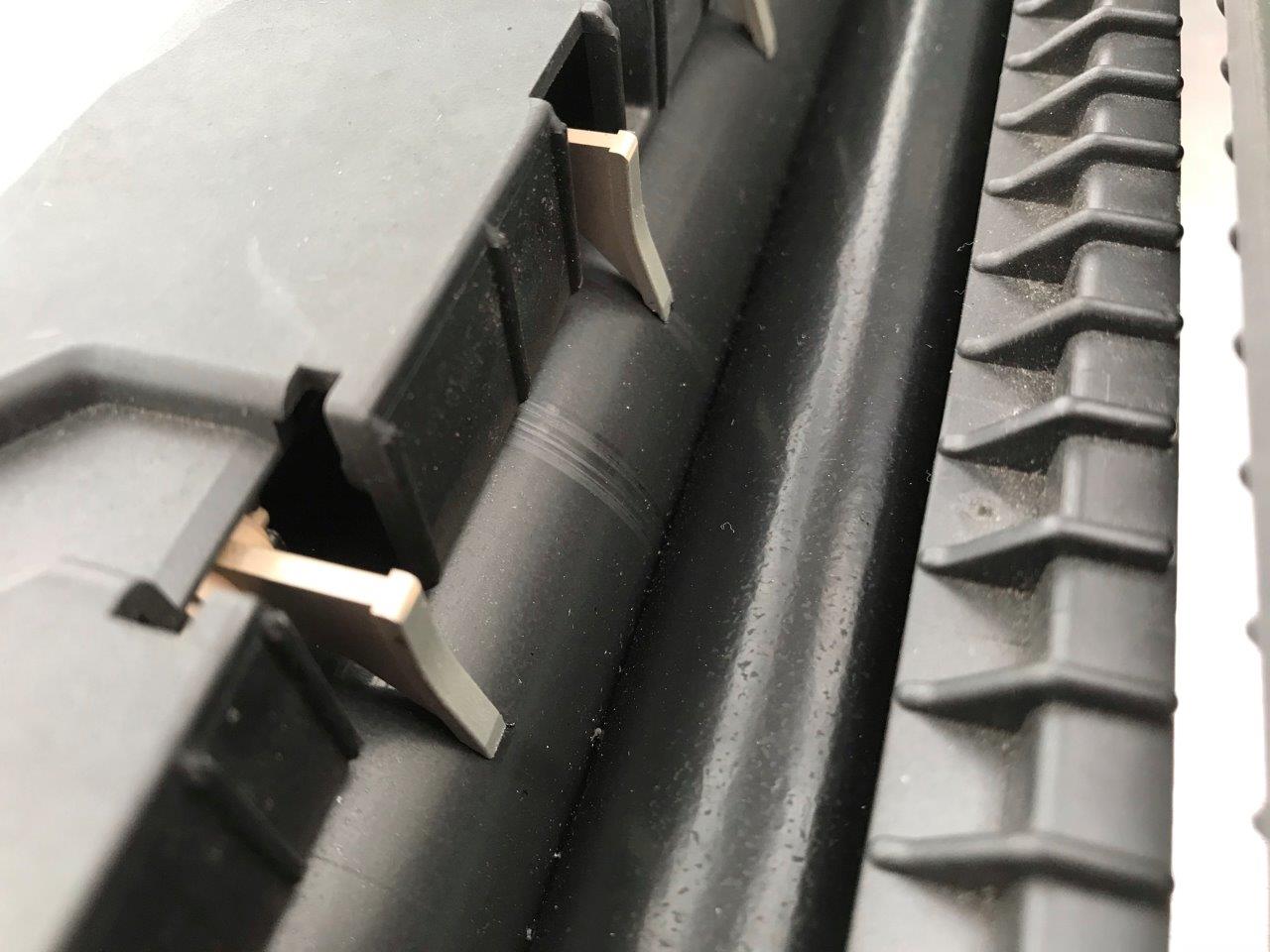

Tak naprawdę to wałek dociskowy może być odkształcony bo maszyna stała, reszta wygląda przyzwoicie.

Zawiera:

1 B0827321 Fusing Unit:NA:Ass'y 1
1 B0827720 Fusing Unit:EU:Ass'y 1
2 B0044133 Cap- Fusing Cover 1
3 B0044135 Guide Plate-fusing Exit 1
4 AA143520 Shoulder Screw - M3 3
5 B0824131 Fusing Cover:Printing 1
6 B0824144 Shield:Fusing Cover 1
7 B0824148 Shield:Cover:Upper 1
8 B0824147 Cover:Duct:Fusing:Front 1
9 B0824149 Shield:Cover:Lower 1
10 B0824142 Duct:Fusing:Front 1
11 B0824145 Shield:Duct:Front Lower 1
12 B0824152 Duct:Fusing:Front Lower 1
13 B0824153 Shield:Duct:Fusing:Front Lower:Long 1
14 B0774092 Bracket:Drawer:Fusing:Welding 1
15 B0044095 Terminal Plate - Fusing Unit 1
16 G0654117 Harness - Fusing Unit(120V) 1
16 G0654127 Harness - Fusing Unit(230V) 1
17 AE042054 Fusing Cleaning Roller: Ass'y 1
17 AE042084 Fusing Cleaning Roller [TSB#020R] 1
18 AA082073 Roller Busing 2
19 AA063668 Spring:Fusing Cleaning Roller:8n [TSB#039] 2
20 B0824123 Fusing Entrance Guide Plate:Upper 1
21 B0044126 Lower Entrance Guide Plate 1
22 AA140140 Screw - M3X4.5 2

oraz:

1 G0654106 Thermostat 2
2 G0654105 Housing - Thermostat 2
3 B0044087 Plate- Thermistor 2
4 AW100085 Thermistor – Center [TSB#039] 1
5 AW100086 Thermistor – Rear [TSB#039] 1
6 B0774055 Stay:Fusing:Thermostat 1
7 B0824111 Socket:Heater:Front 1
8 B0774081 Frame:Fusing:Upper 1
9 AA060948 Tension Spring 7
10 AE044056 Hot Roller Stripper 7
11 B0774115 Socket:Heater:Rear 1
12 A2324064 C Ring - Hot Roller 2
13 AB013882 Gear - 40Z 1
14 AE030047 Ball Bearing - 30x42x7 2
15 AE011092 Hot Roller - 39.8mm T0.4 [TSB#026] 1
16 AX430090 Heater:120V:550W:215mm 1
16 AX430091 Heater:230V:550W:215mm 1
17 AX440173 Heater:120V:650W:335mm 1
17 AX440174 Heater:230V:650W:335mm 1
18 AG050094 Knob:Fusing 1
19 AE030048 Ball Bearing - 8x22x7 2
20 AE020125 Pressure Roller:Mm32:Ass'y 1
21 B0824054 Positioning Plate Front 1
22 A2324057 Front Collar - Pressure Lever 1
23 B0844160 Lever:Pressure [TSB#034] 2
24 AA060840 Pressure Spring - 29n 2
25 B0824051 Frame:Fusing:Assy 1
26 AB014046 Gear - 25Z 1
27 A2324058 Rear Collar - Pressure Lever 1
