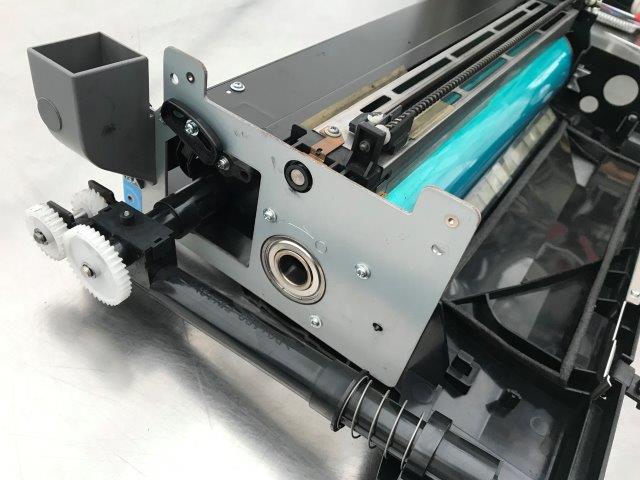

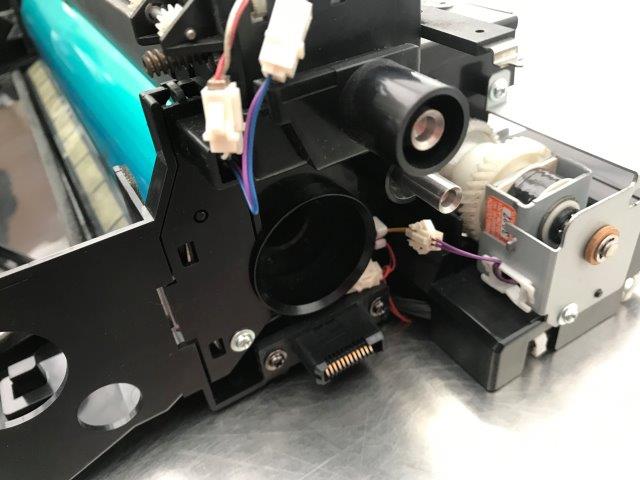

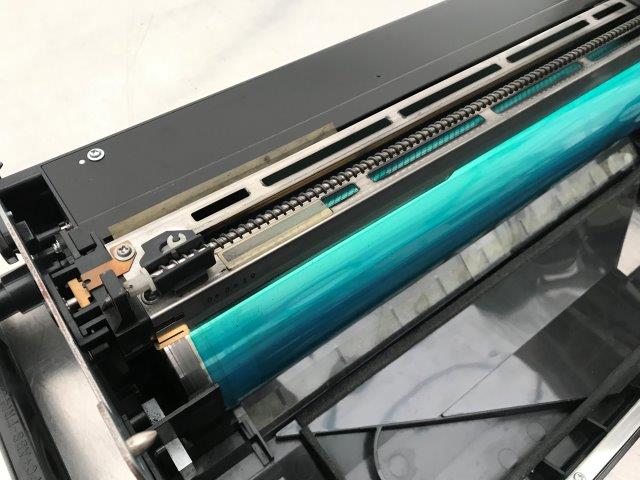

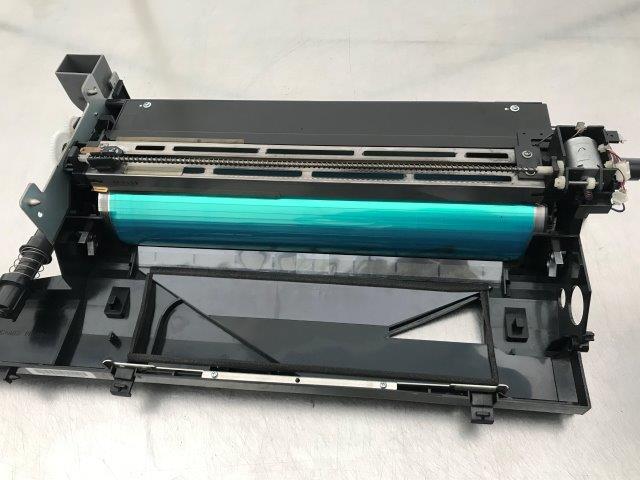

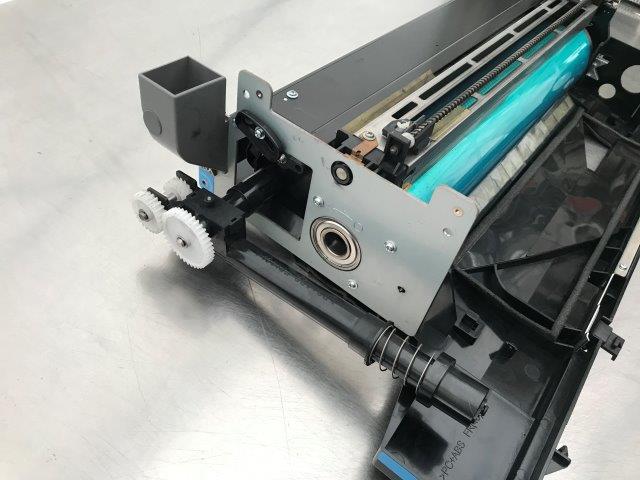

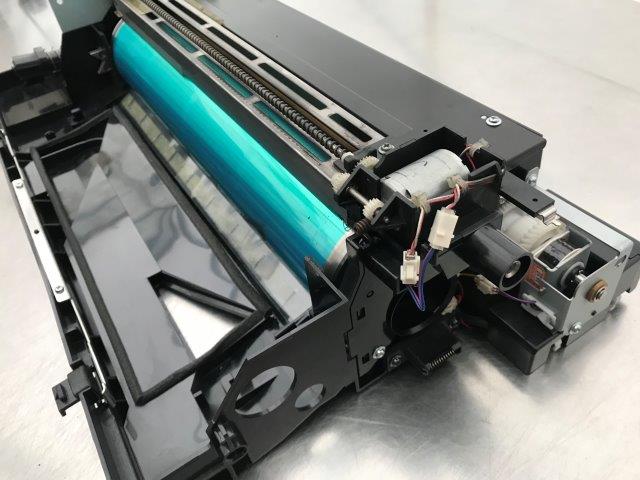

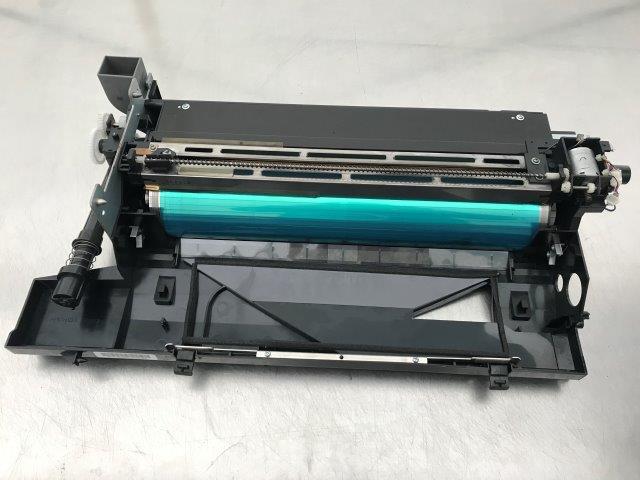

BĘBEN UNIT MINOLTA Bizhub 600 601 750 751 DRUM CARTRIDGE 02XL, DR710 57AAR71000

BĘBEN UNIT + CHARGING UNIT MINOLTA Bizhub 600 601 750 751 DRUM CARTRIDGE 02XL, DR710, 57AAR71000, 57AA-R710-00

Element używany, wałek bębna traktujemy jako zużyty, doskonały dawca części zawiera:

57AAR71000 DRUM CARTRIDGE UNIT
392015650 SLIDE SHAFT HOLDER
56AAR70600 CLUTCH CONNECTING GEAR ASSY
56AA82022 CLEANER CLUTCH
56QA97860 GUIDE LABEL
57AA20250 CLEANER COOLING DUCT
56AA75040 DRUM ROTARY SHAFT HOLDER
25SA20640 TONER COLLECTION BLOCK
56AA20760 TONER AGITATING SHEET
56QA97870 GUIDE LABEL
56AA17520 PIN A D3X10
56AA20520 TONER RECYCLING SCREW
25SA77180 TONER CONVEYANCE GEAR B 26T
56AA21071 DRUM FIXING COUPLING
56AA77260 TONER RECYCLING GEAR 17T
55WA30010 DEVELOPING SHAFT HOLDER 現像軸受C 2
08AA76010 DRUM DRIVING SHAFT HOLDER
25SA77170 TONER CONVEYANCE GEAR A 38T
56AA20510 TONER RECYCLING BLOCK
56QAR70200 TONER COLLECTING PIPE
56AA17030 OPEN CLOSE SPRING
56AA20810 TONER RECYCLING SCREW
56AA20560 TONER SLIDE COVER
25SA20670 TONER CONVEYANCE SHAFT HOLDER
56AA21061 DRUM FIXING COUPLING
57AA20220 CLEANER COOLING SHEET
56QA20230 CLEANER SUCTION SEAL
25HA15210 SPACER
56AA17410 BLADE ROTARY SCREW
57AA20060 CLEANER AUXILIARY SEAL
56AA21160 HINGE
25SA20280 BLADE POSITION BLOCK
57AA20040 BLADE SUPPORT SPACER
57AA20030 BLADE TENSION PLATE
56AA21150 BLADE FULCRUM SHAFT HOLDER
57AA20080 CLEANER BLADE
56QA97850 GUIDE LABEL
56QA20040 DEVELOPING BASE PART
57AAR71300 CLEANER COVER ASSY
56AA21130 BLADE RELEASE CAM
56AA17390 STANDARD SCREW
56AA21120 BLADE RELEASE LEVER
57AAR71200 BLADE SUPPORT PLATE CAULKING
56AA20770 DEVELOPING STOPPER
56AA20400 SHAFT POSITIONING PART
57AAR71100 COLLECTING ROLLER ASSY
56AA77081 CLEANER IDLING GEAR 21T
56AA20170 CONTACT PRESSING SPRING
56AA77100 SEPARATION DRIVING GEAR 26T 18T
56AA20750 SEPARATION FULCRUM SHAFT HOLDER
56AA77110 SEPARATION IDLING GEAR 40T
56AA17531 PIN A D2X10
56AA77250 SEPARATION ROCKING GEAR 41T
56AA21250 SHAFT STOPPER
57AA20201 DEVELOPING COOLING SEAL RIGHT
55VA20680 SEPARATION POSITIONING SCREW
56AA20980 SEPARATION PRESSING SPRING
56AA21260 SPACER
56AA20700 DRUM SEPARATING CLAW
56AA20750 SEPARATION FULCRUM SHAFT HOLDER
56AA20030 SEPARATION GUIDE PART
56AA20960 SOLENOID RELEASE SPRING
56AA17420 SEPARATE SCREW
56AA20441 ROCKING CAM
56AA20460 RELEASE PLATE
45AA20400 STOPPER PART
56AA17100 SEPARATION ROCKING SPRING
56AA20430 RELEASE CAM
56AA9102E TONER CONTROL SENSOR ASSY
26NA82513 PAPER FEED SOLENOID
07BA54721 PAPER HOLDING CLAW
56AA21080 FIXING PART
56AA21190 SEPARATION GUIDE SEAL
56AA21200 SEPARATION GUIDE SEAL
56AA21210 SEPARATION GUIDE SEAL

CHARGING UNIT 57AAR71400 zawiera:

57AAR71400 CHARGING CORONA UNIT
56AA25301 PCL COVER
56AA83071 PCL
45AA20400 STOPPER PART
56AA25380 CHARGE SLIDE PART
56AA25400 CHARGE CLEANING BASE PLATE
56AA77910 CHARGE CLEANING GEAR 4 28T
56AA25150 ELECTRODE CLEANING JOINT
25SA25180 CHARGING SLIDE COLLAR
56AA25450 CHARGE SLIDE COLLAR
56AA25230 CHARGE TENSION SPRING
56AAR70700 CHARGE CLEANER BLOCK U ASSY
56AA77890 CHARGE CLEANING GEAR 2 15T
56AAR70800 CHARGE CLEANER BLOCK L ASSY
56AA77900 CHARGE CLEANING GEAR 3 18T
56AA25330 SPARK PREVENTING PART FRONT
56AA25340 SPARK PREVENTING PART REAR
56AA25170 ELECTRODE CLEANING SPRING
56AA25090 CHARGE WIRE
56AA17160 CHARGING CONTROL SPRING
56AA25030 CHARGE CONTROL PLATE
56AAR70900 CHARGE CLEANING MOTOR ASSY
56AA25141 ELECTRODE CLEANING JOINT FRONT
56QA25010 CHARGE SEAL

 LOK: R3/1
