Bęben RICOH Aficio 1060 1075 F5EA-84559

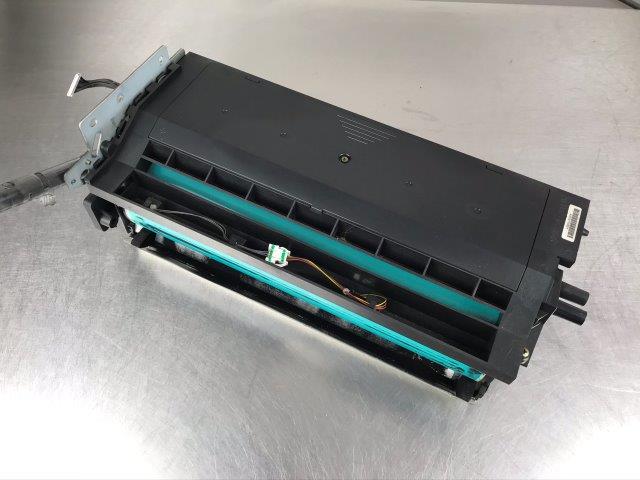

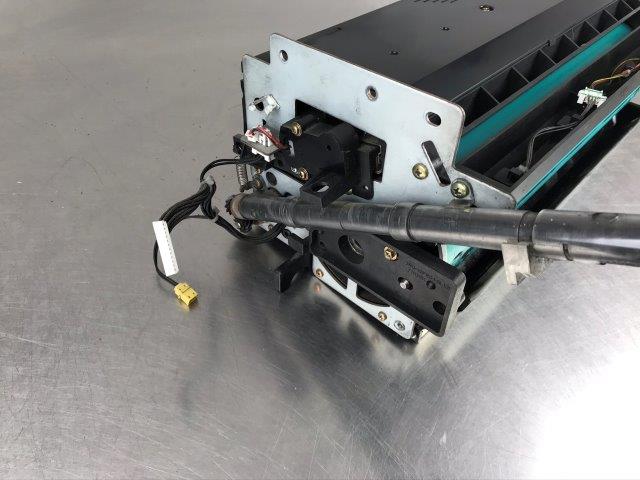

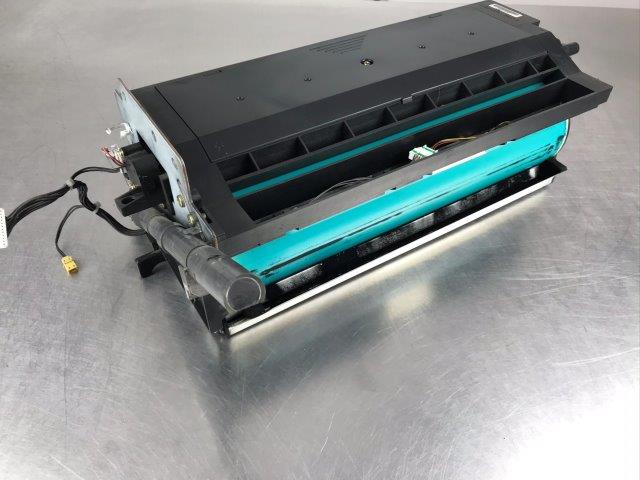

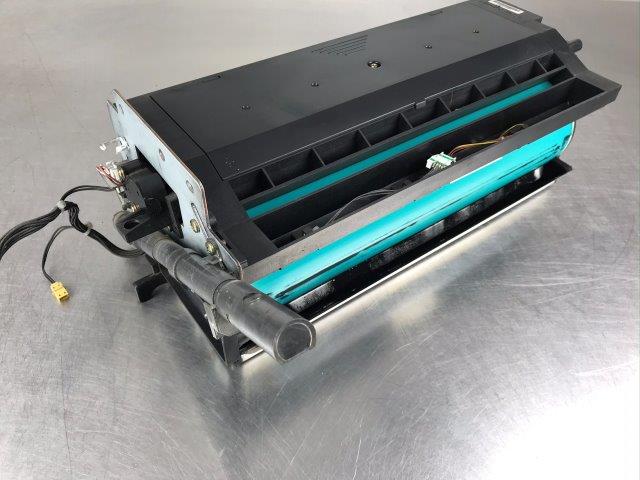

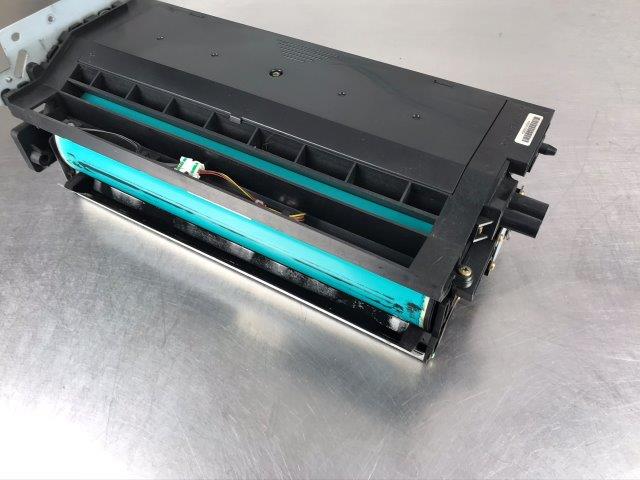

Moduł bębna z elektrodą Ricoh Aficio 1060 1075

Bęben listwa traktujemy jako zużyte reszta części kompletna.

LOK:R7/2x1

Zawiera:

1 B0652410 Drum Shaft Knob 1
2 B0653258 Development Drum Stay 1
3 AD004091 Charge Corona Unit 1
4 A0962053 Cleaner Motor Cover 1
5 AA080147 Front Bushing 1
6 A1762054 Grounding Plate 1
7 A0962063 Corona Wire Cleaner 1
8 A0962062 Wire Cleaner Slider 1
9 A0962065 Slider Ring 1
10 A1762061 Screw Shaft 1
11 AA161105 Cleaner Cushion 1
12 AA080148 Rear Bushing 1
13 AD023106 Charge Corona Casing 1
14 AA063248 Charge Terminal Spring 1
15 AA063249 Grid Terminal Spring 1
16 AD022285 Rear End Block 1
17 AD022307 Cover - Rear End Block 1
18 A0962051 Rear Grid Anchor 1
19 AD020053 Charge Corona Wire 1
20 AA062284 Pressure Spring 1
21 AD022283 Front End Block 2
22 AA161119 Cushion - Wire 1
23 AX040061 Cleaner Motor - DC 0.5W 1
24 AB010087 Gear - 20Z 1
25 AD022306 Cover - Front End Block 1
26 A1342363 Terminal Plate 1
27 A0962052 Front Grid Anchor 1
28 A0962057 Charge Corona Grid 1

1 A2932418 Upper Unit Cover 1
2 B0652391 Upper PCU Casing 1
3 B0652494 Upper PCU Harness 1
4 A0965320 Quenching Lamp 1
5 A0962301 Grounding Plate 1
6 AW330003 Drum Potential Sensor 1
7 B0652392 Receptacle 1
8 B0652270 Upper PCU Ass'y 1
9 AA012060 Development Filter 1
10 B0652426 Pressure Release Lever 1
11 AA060891 Spring 1
12 AB011461 Toner Recycling Connecting Gear 1
13 AB011462 Toner Recycling Gear 2
14 B0652377 Toner Recycling Connecting Shaft 1
15 AA082122 Bushing 1
16 B0652371 Drum Stay 1
17 AA132024 Spacer - M6 2
18 AA080176 Bushing 1
19 AA153157 Joint Seal 1
20 B0652400 Toner Recycling Joint 1
21 B0652401 Toner Recycling Pipe 1
22 B0652399 Joint - Toner Separation 1
23 B0652406 Toner Separation Shutter 1
24 AD043078 Toner Collection Coil 1
25 B0649510 Drum 1
26 B0651957 Shield Glass Cover 1
27 B0652423 Release Cam - Cleaning Blade 1
28 B0652424 Cam Spring 1
29 AA132208 Spacer - M6 1

1 AD043077 Toner Collection Coil 1
2 B0652421 Agitator Shaft 1
3 AA082121 Toner Collection Coil Bushing 2
4 B0652428 Agitator Gear 1
5 B0652425 Brush Roller Gear 1
6 AA082119 Roller Bushing 1
7 B0652347 Cleaning Brush 1
8 B0652366 Front Shaft 1
9 AA132024 Spacer - M6 1
10 AA082101 Bushing - 6x10x6 1
11 AA082094 Bushing - Brush Roller 1
12 AA152431 Front Drum Seal 1
13 AA153085 Inner Case Seal 2
14 AA153088 Cleaning Entrance Seal - 3x345x2 1
15 B0652300 Lower PCU Casing 1
16 B0652353 Blade Bracket 1
17 AB011459 Toner Collection Coil Gear 1
18 A2943572 Rear Drum Seal 1
19 B0652413 Entrance Transfer Stay 1
20 AB017612 Gear 1
21 AB011460 Idler Gear 1
22 B0652427 Cam - Blade 1
23 B0652422 Agitator Cleaning 1

1 G0203566 Nut - 2.4mm 2
2 A0482276 Ring - Transport Bracket 2
3 AA060892 Pick-off Pawl Spring 2
4 AD025023 Pick-off Pawl 2
5 AA143523 Shoulder Screw - M3 2
6 B0652337 Pick-off Pawl Holder 1
7 AB017611 Pick-off Pawl Cam 1
8 AD041083 Cleaning Blade 1
9 AA132024 Spacer - M6 1
10 AA063610 Spring - 4060mN 1
11 B0652316 Front Blade Seal 1
12 B0652314 Blade Bracket 1
13 B0652317 Rear Blade Seal 1
14 AA082120 Bushing 1
15 B0652386 Middle PCU Casing 1
16 B0652389 Shaft Bracket 1
17 B0652342 Pick-off Pawl Shaft 1
18 AB011459 Toner Collection Coil Gear 2
19 AA082101 Bushing - 6x10x6 1
20 B0652495 Lower PCU Harness 1
21 A1345251 ID Sensor 1
22 B0652364 Pick-off Pawl Positioning Plate 1
23 B0652361 Entrance Seal Holder 1
24 B0652362 Cleaning Entrance Seal 1
25 B0652381 Grounding Plate 1
26 B0652344 Pick-off Pawl Bracket 1
27 AB011460 Idler Gear 1
28 AA082121 Toner Collection Coil Bushing 1
29 B0652369 Grounding Plate - Entrance Seal 1
30 AA063576 Spring 1
31 AA143432 Stepped Screw - M3 1
32 B0652358 Bracket Grounding Bracket 1
