Bęben + developer unit RICOH Aficio MP4000 MP4001 MP5000 MP5001 D0092105 + D0092301 1822-706DC

Bęben + developer unit RICOH Aficio MP4000 MP4001 MP5000 MP5001 D0092105 + D0092301

Bęben Unit RICOH Aficio MP4000 MP4001 MP5000 MP5001 D0092105 + Developer Unit RICOH Aficio MP4000 MP4001 MP4002 MP5000 MP5001 MP5002 D0092301

Moduł bębna Black Photoconductor Unit D009-2110, D0092110, D009-2105, D009-2200, D0092105, D0092200

RICOH Aficio MP4000 MP4000B MP4001 MP4001G MP4002 MP4002SP MP5000 MP5000B MP5001 MP5001G MP5002 MP5002SP
Lanier LD040B LD040SP LD040SPF LD050B LD050SP LD050SPF LD140G LD140SP LD150G LD150SP

Moduł bębna zawiera:

D0092211 D009-2211 Frame PCU Upper
D0092389 D009-2389 Rear Side Plate Coupling
D0092390 D009-2390 Idler Bracket
D0092317 D009-2317 Electrode Plate Charge
D0092445 D009-2445 Handle PCU
D0092380 D009-2380 Front Side Plate Coupling
D0092279 D009-2279 Seal Toner Supply Entrance Upper
D0093267 D009-3267 Seal Toner Supply Entrance Front
D0092633 D009-2633 Cap Toner Supply
A2322399 A232-2399 Seal Blade 13x9.5x3
D0092205 D009-2205 Seal Blade Upper Rear Small
D0092201 D009-2201 Seal Drum Front
D0092203 D009-2203 Seal Drum Entrance
D0092202 D009-2202 Seal Drum Rear
D0092204 D009-2204 Seal Blade Upper Case
B2132316 B213-2316 Stud: Contact Point Cleaning
G0652354 G065-2354 Electrode Plate Charge Front
G0652681 G065-2681 Snap Ring M6
D0092331 D009-2331 Front Arm Pressure/Charge
AA063648 AA06-3648 Pressure Spring
A2322421 A232-2421 Bushing 6x10x3
A2322315 A232-2315 Front Bushing Cleaning Bracket
B2132312 B213-2312 Bracket Cleaning Blade
D0092351 D009-2351 Cleaning Blade
D0092318 D009-2318 Spring Plate Electrode
AA062348 AA06-2348 Pressure Spring
AA062300 AA06-2300 Tension Spring
AB011380 AB01-1380 Cam Cleaning Blade
AB011379 AB01-1379 Gear 19Z
D0092336 D009-2336 Rear Arm Pressure/Charge
G0652308 G065-2308 Electrode Plate Charge Rear
B0822333 B082-2333 Terminal Brush Roller
A2322318 A232-2318 Collar Cleaning
D0092426 D009-2426 Seal 24.5x68.5
AD027012 AD02-7012 Roller Charge Apply
D0092303 D009-2303 Drum Hold Plate
AA143549 AA14-3549 Screw DIA10 M3x8
A2323553 A232-3553 Ball Bearing - 8x16x5
D0099510 D009-9510 OPC Drum
AA062310 AA06-2310 Pressure Spring
A2322340 A232-2340 Holder - Pick-Off Pawl
A2322339 A232-2339 Spur
G7902329 G790-2329 Brush Roller Cleaner Charge
D0093104 D009-3104 Seal Level
D0092214 D009-2214 Separation Plate Case Blade Upper

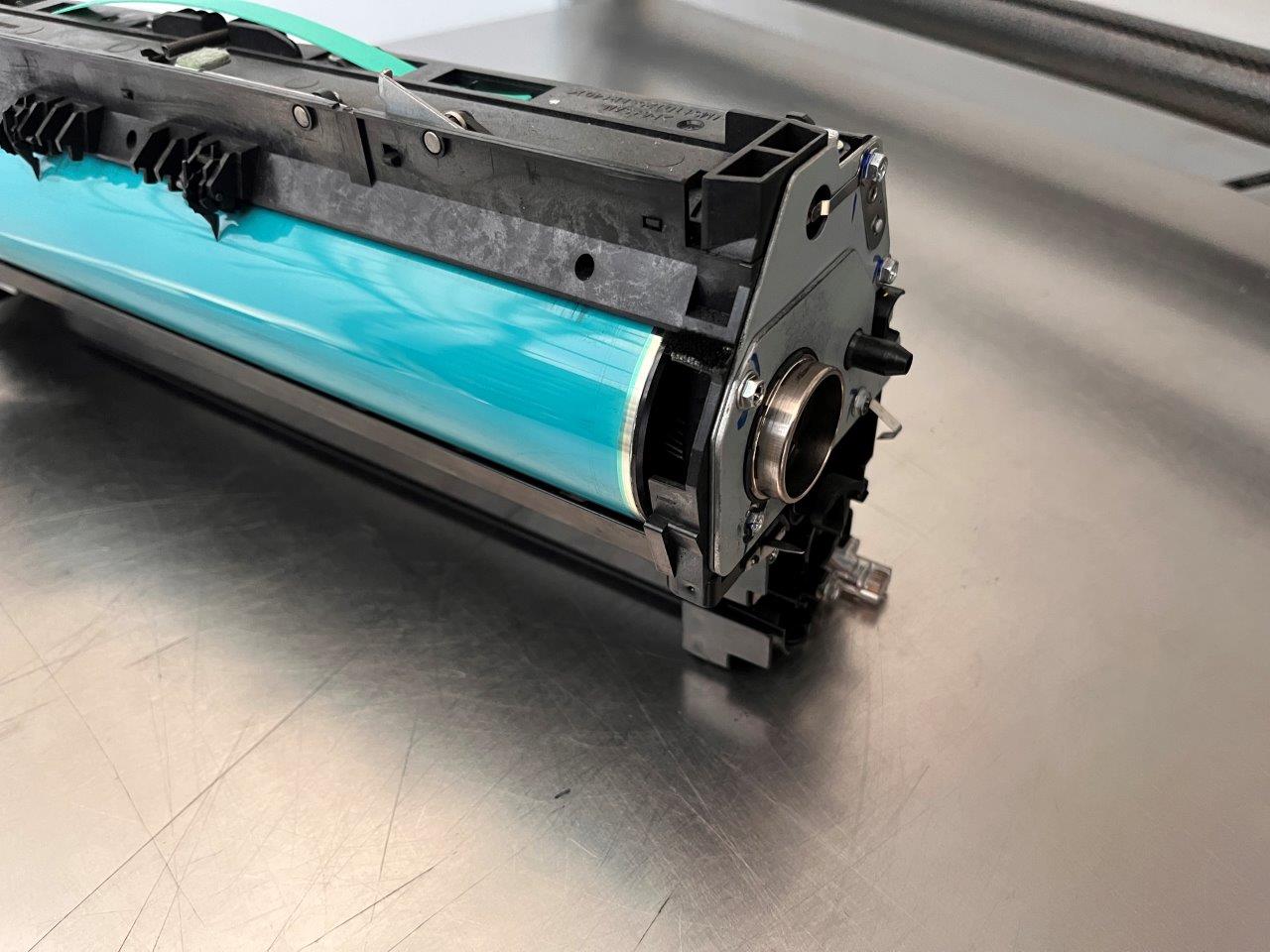

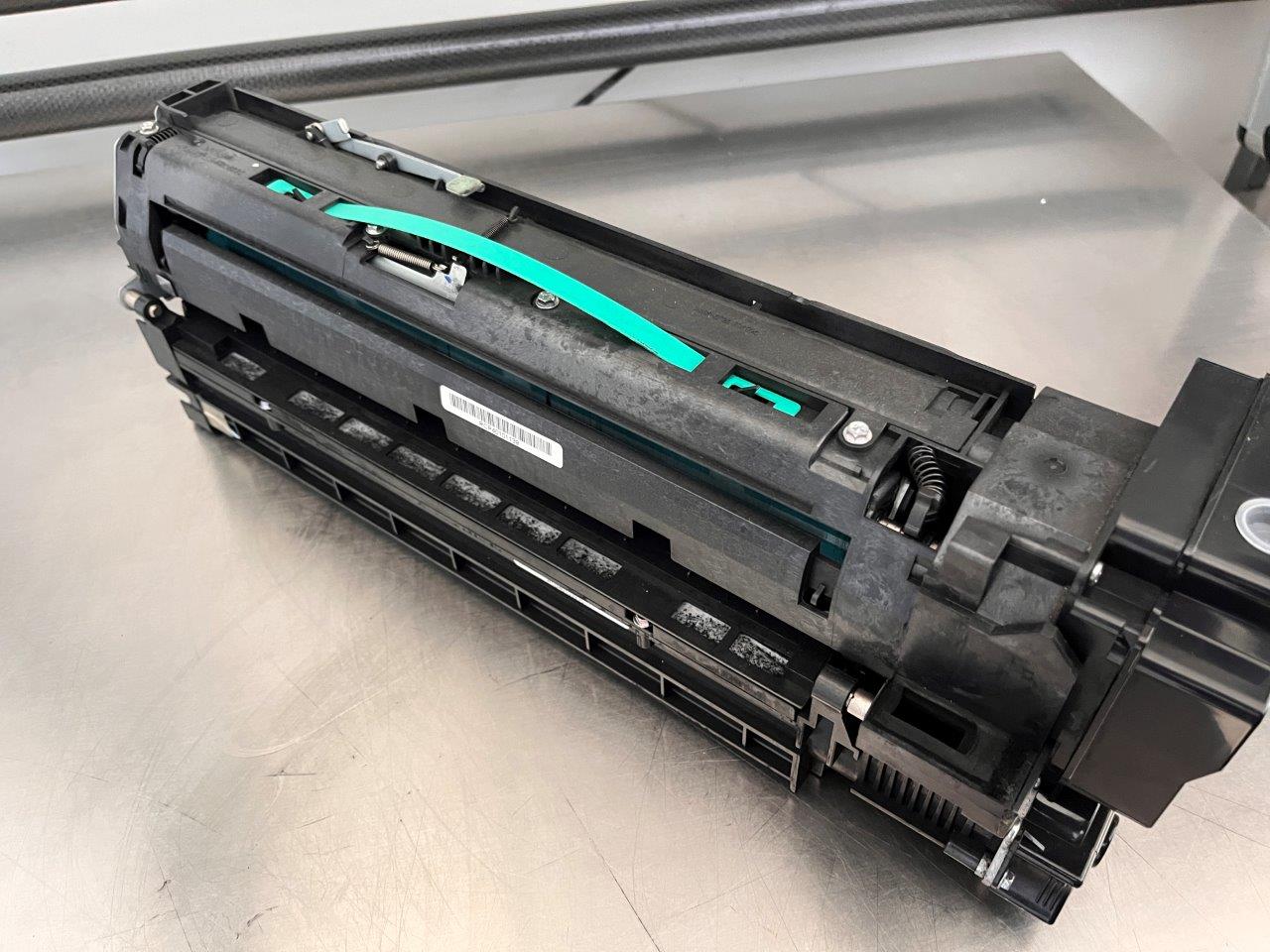

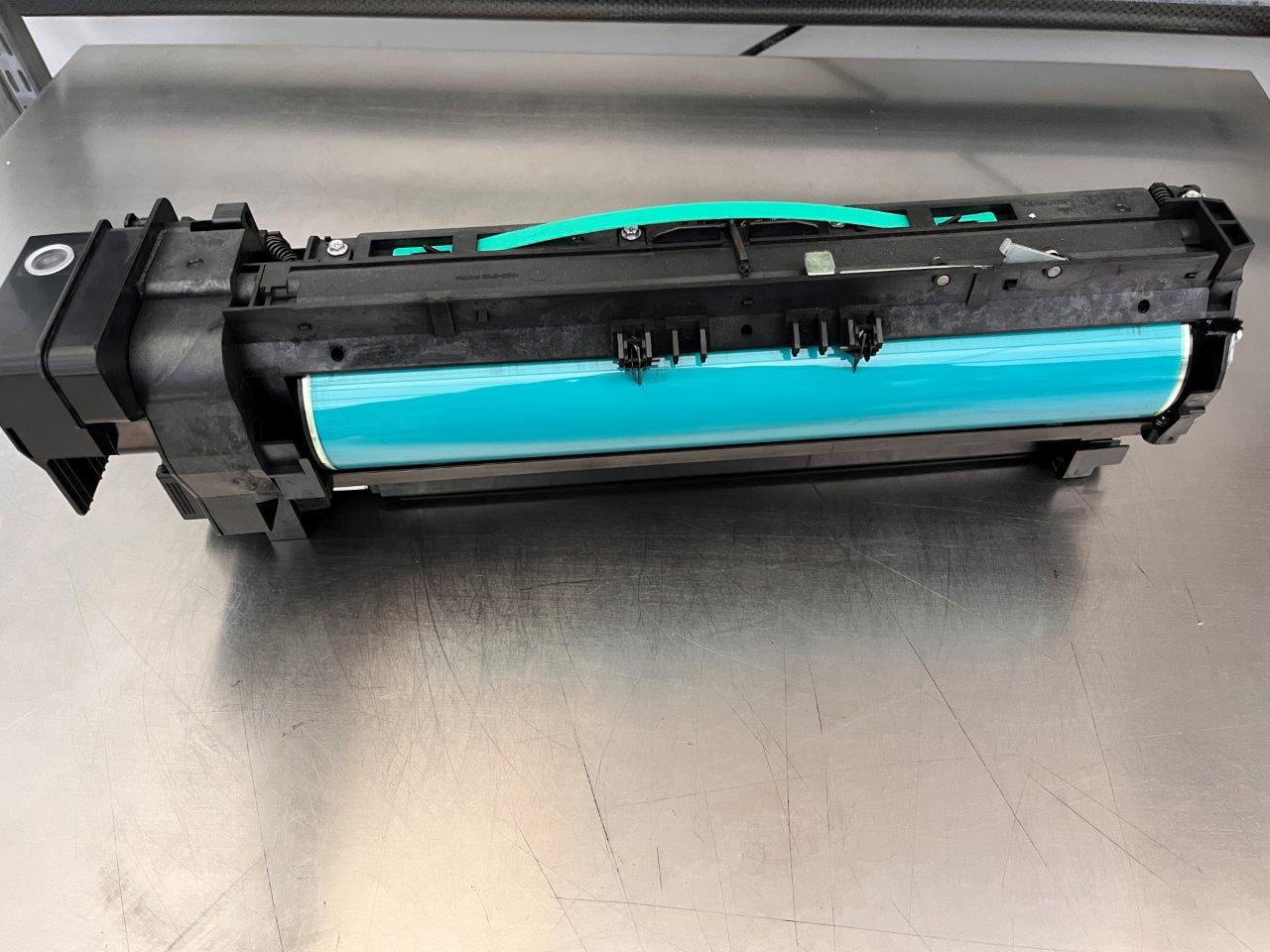

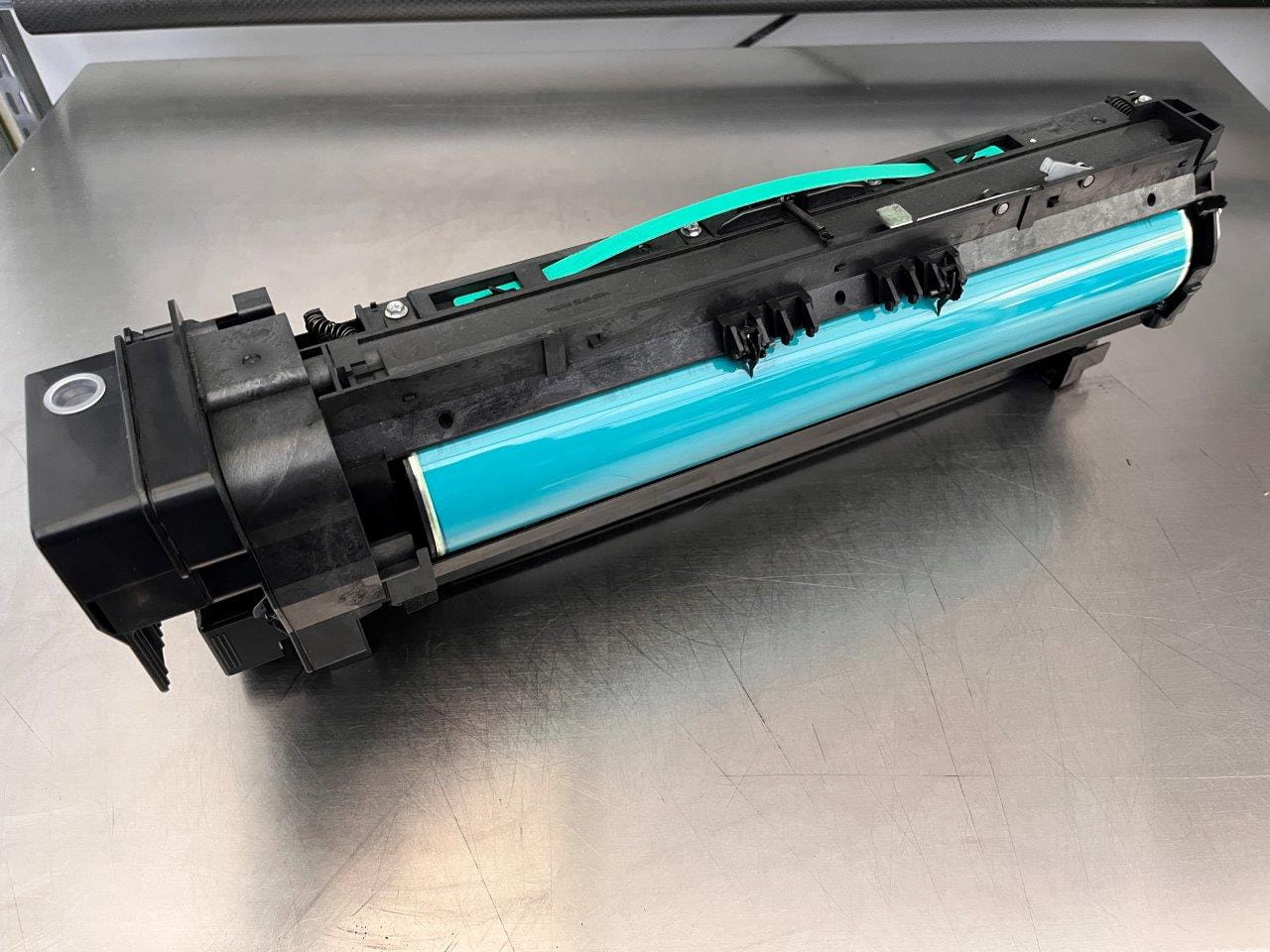

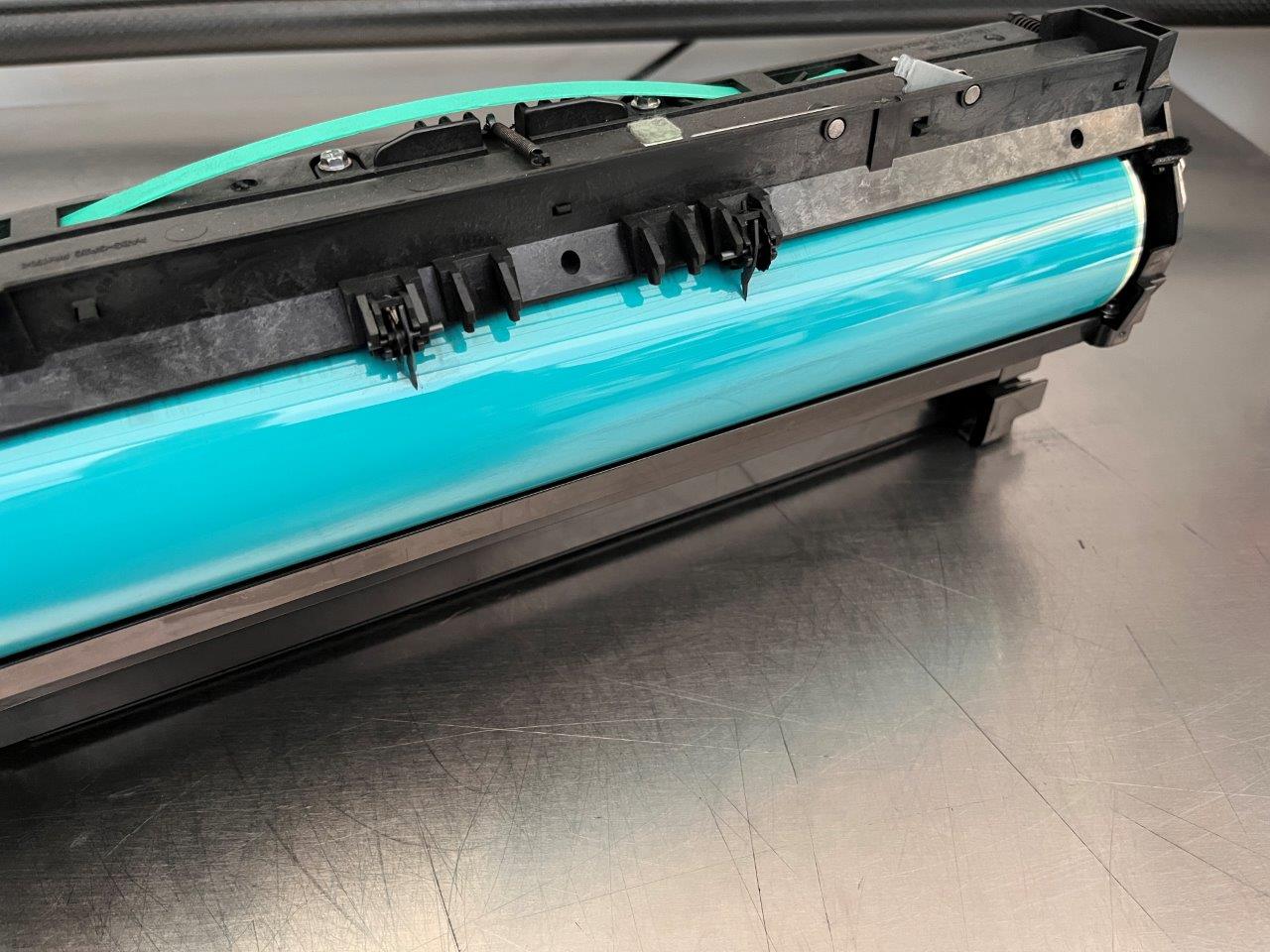

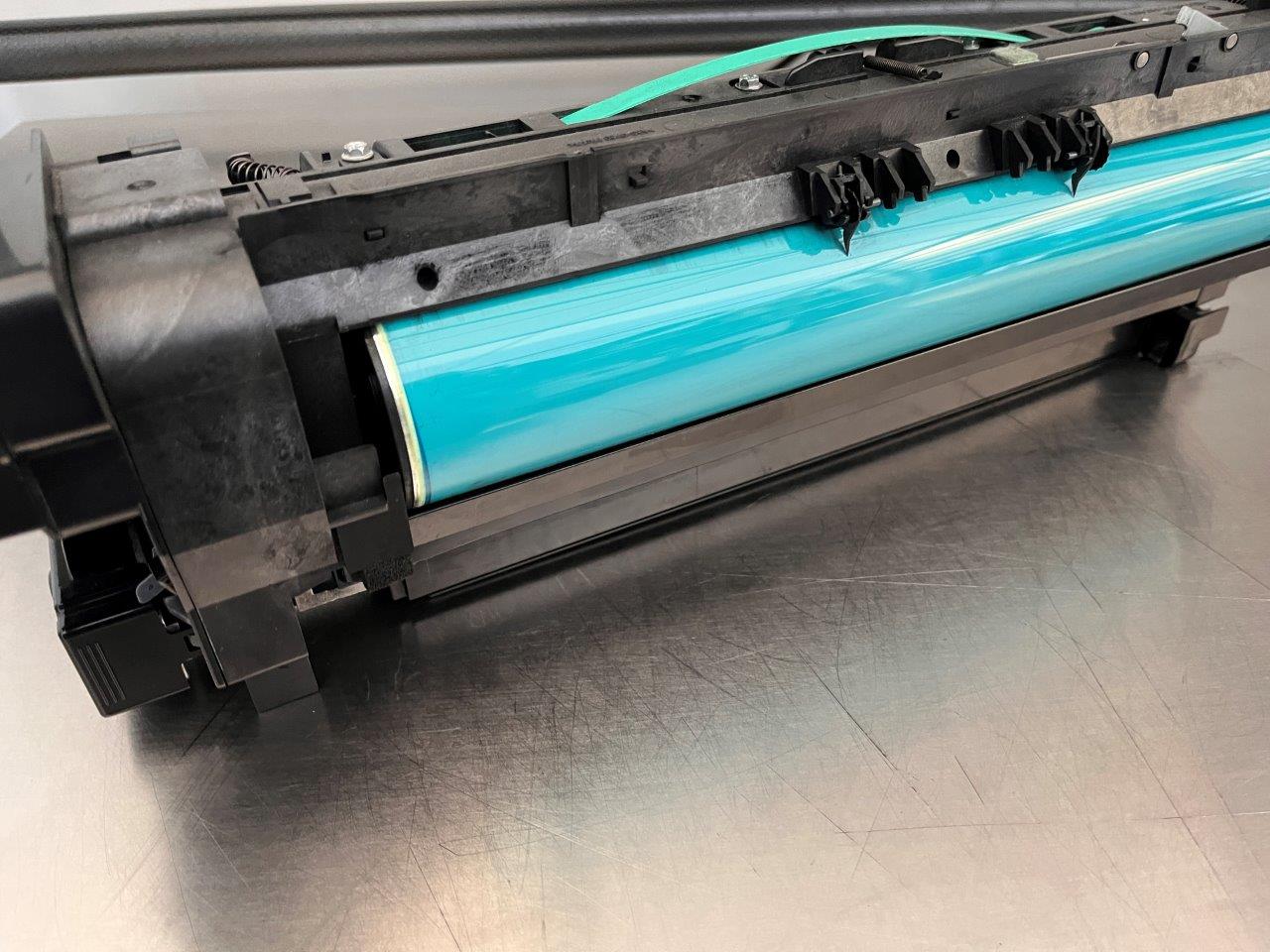

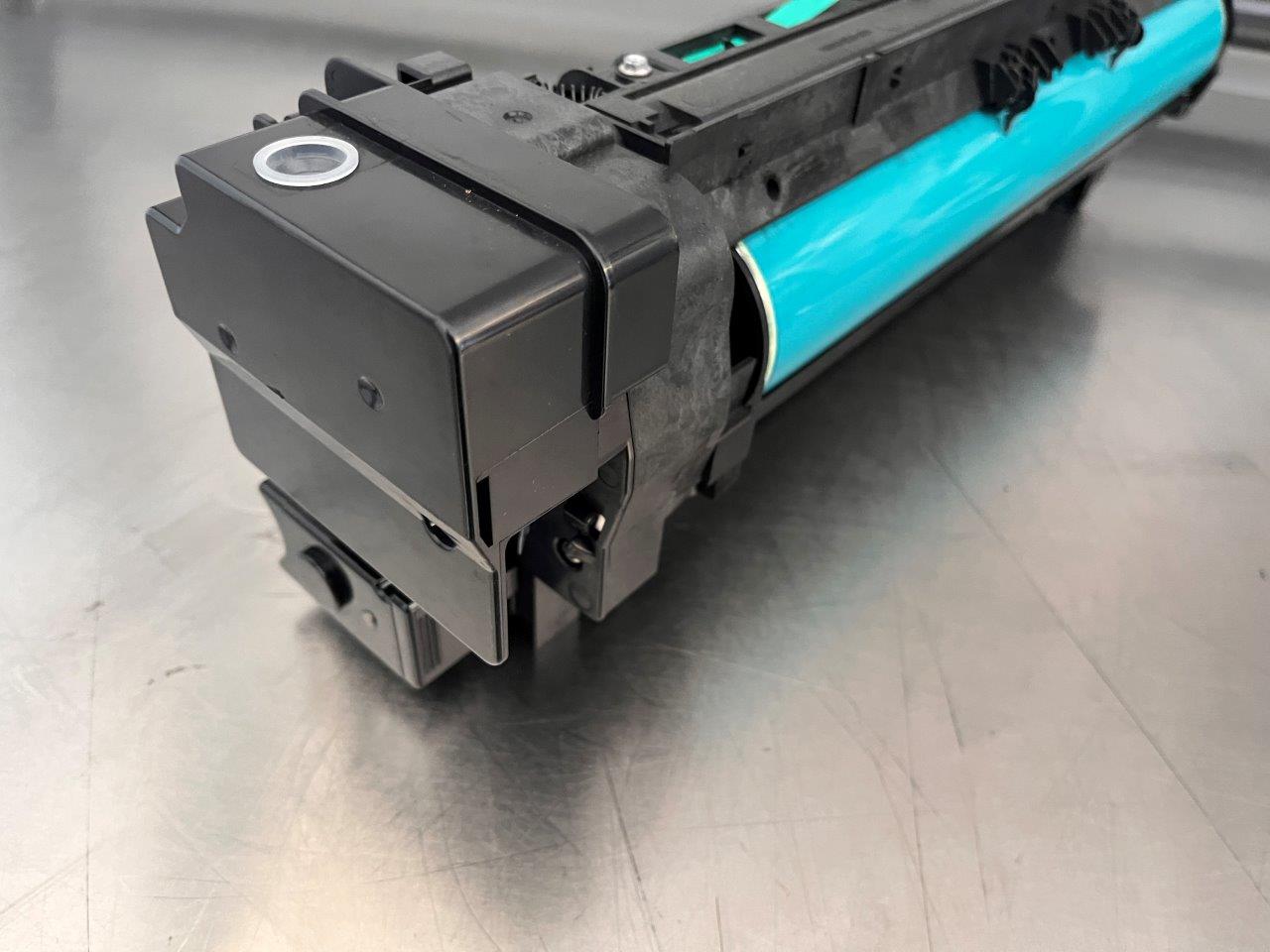

Moduł używany, do ostatniej chwili maszyna pracowała ładnie. Wszystko lekko się kręci, koła w ładnym stanie.
Wałek bębna traktujemy jako zużyty, ale bęben wygląda wzorowo - zrobił ok60k od wymiany. Ale nie przyjmujemy na niego reklamacji - traktujemy jako dawcę części lub moduł do regeneracji.


Developer Unit RICOH Aficio MP4000 MP4001 MP4002 MP5000 MP5001 MP5002 D0092301


Developer Unit D009-3000, D009-2301, D009-3010, D0092301, D0093010 w module jest Black Developer B296-9640, B2969640

RICOH Aficio MP4000 MP4000B MP4001 MP4001G MP4002 MP4002SP MP5000 MP5000B MP5001 MP5001G MP5002 MP5002SP
Lanier LD040B LD040SP LD040SPF LD050B LD050SP LD050SPF LD140G LD140SP LD150G LD150SP

Moduł Developer Unit PCDU zawiera:

A2323155 A232-3155 Front Cover Development Unit
AB014061 AB01-4061 Gear 13Z
A2323077 A232-3077 Spacer M5
AB014060 AB01-4060 Gear 21Z
AB014062 AB01-4062 Gear 17Z/25Z
D0093068 D009-3068 Front Bias Terminal
D0093069 D009-3069 Rear Bias Terminal
A2323067 A232-3067 Tape TD Sensor
B2133065 B213-3065 Density Sensor Development
D0093078 D009-3078 Joint Paddle
D0093066 D009-3066 Entrance Seal Toner Supply
D0093205 D009-3205 Seal Side Plate Front
AA153095 AA15-3095 Shield Development Center
B0823123 B082-3123 Shield Case Development Front Rear
D0093206 D009-3206 Seal Side Plate Rear
D0093072 D009-3072 Seal Density Sensor Harness
D0093053 D009-3053 Upper Case Seal
D0093070 D009-3070 Upper Cover Development Unit
D0093204 D009-3204 Front Seal Upper Cover
D0093086 D009-3086 Development Filter
D0093162 D009-3162 Ground Plate Doctor Blade
B0823122 B082-3122 Shield Development Sleeve Rear
B0823121 B082-3121 Shield Development Sleeve Front
D0093152 D009-3152 Entrance Seal
52062686 5206-2686 Snap Ring
D0092480 D0092480 Screw M3x10
D0093203 D0093203 Rear Seal Upper Cover
D0093102 D0093102 Upper Cap Development Case
AA080281 AA080281 Bushing 12x18x5.5
D0093101 D0093101 Seal Development
D0093106 D0093106 Sponge
D0093178 D0093178 Seal Slide
D0093084 D0093084 Development Filter Front
D0093085 D0093085 Development Filter Rear
D0093124 D0093124 Joint Development Sleeve

Moduł używany, do ostatniej chwili maszyna pracowała ładnie. Wszystko lekko się kręci, koła w ładnym stanie.

Deweloper unit wyczyszczony, bez dewelopera
