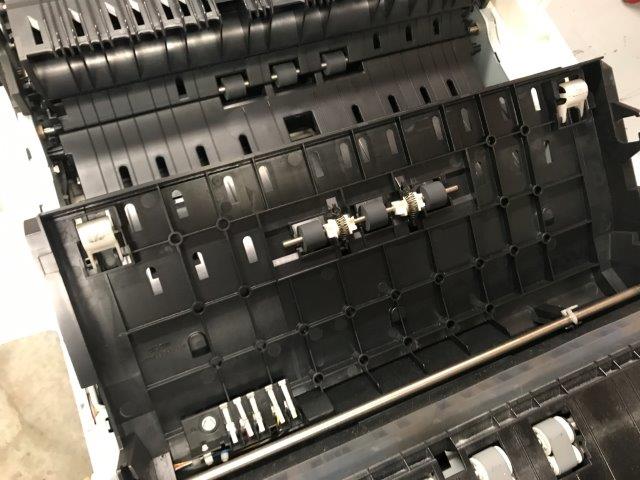

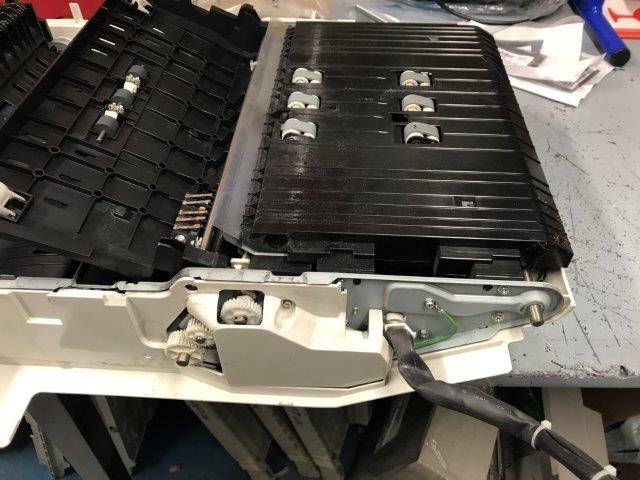

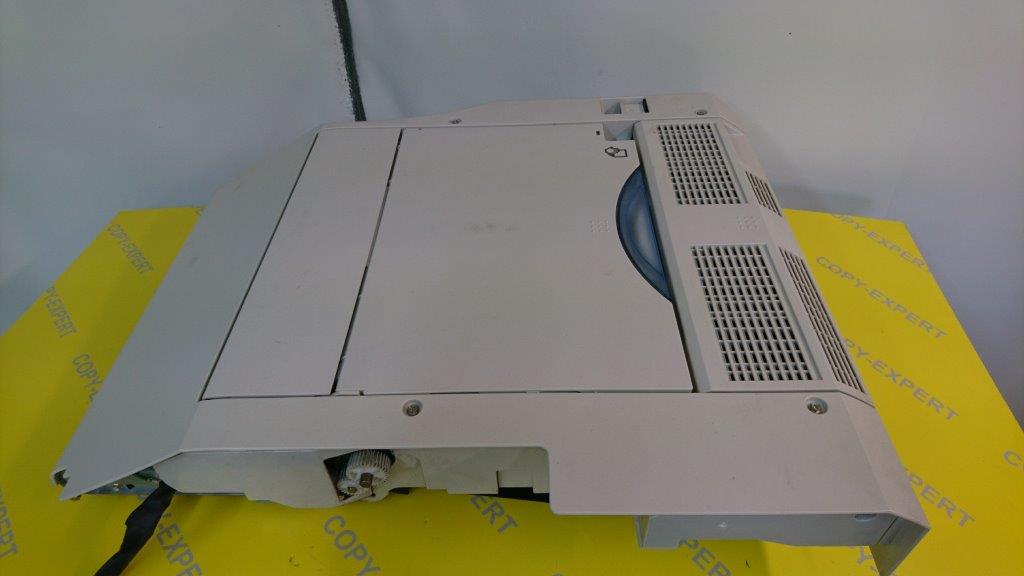

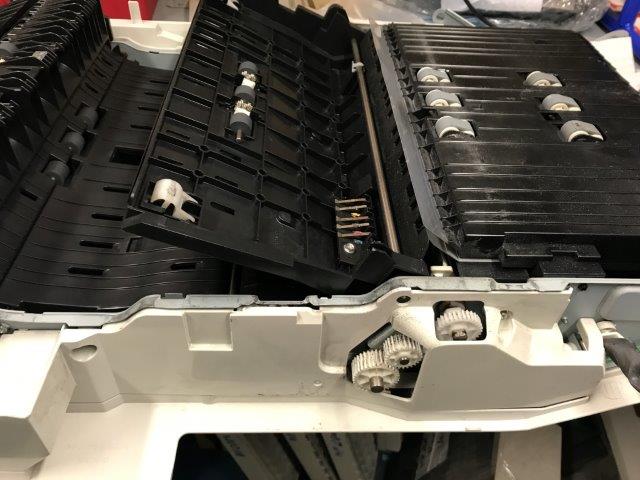

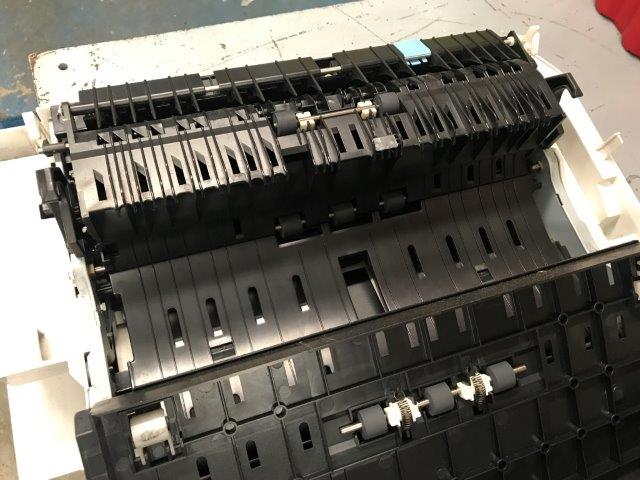

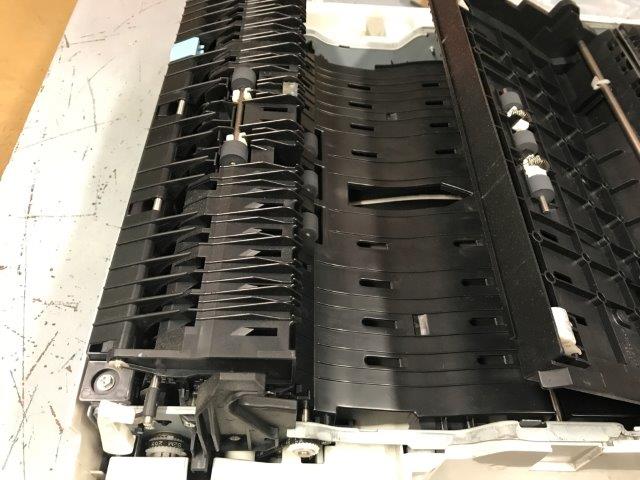

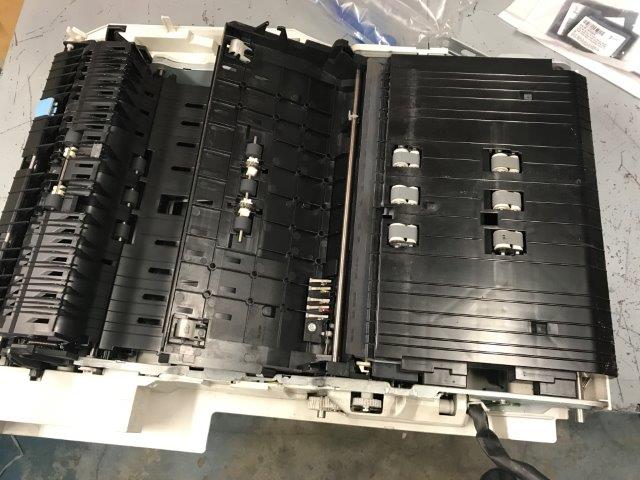

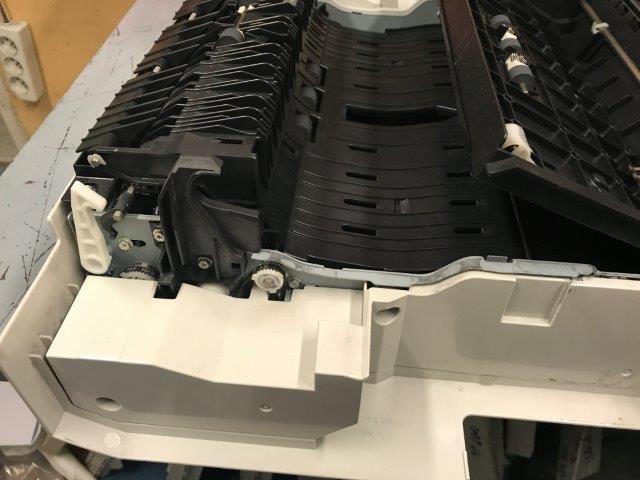

DUPLEX UNIT RICOH Aficio MP4000 MP4001 MP5000 MP5001 + B2232700 BYPASS Manual Feed/ DUMP4000

DUPLEX UNIT RICOH Aficio MP4000 MP4001 MP5000 MP5001 / DUMP4000

używany

zawiera elementy:

B2234560 Tension Spring: Driven Roller 2
B2234552 Bushing: DIA4 2
AW020145 Photointerruptor: Flat 1
D0094661 Reverse Roller - Feed 2
AB014161 Reverse Roller Gear 1
B2234562 Tightener 1
B0441847 Shoulder Screw 1
B2234564 Spring: Tightener 1
B2234526 Timing Belt: 30S2M268 1
B2234586 Pulley: T30 2
B2234572 Stepper Motor: DC4.29V 1.7W 1
AA101021 Rubber Bushing - 6 45HS 4
B2234575 Bracket: Stepper Motor 1
B2234571 Gear: Pulley: Z24/T40 1
B2234573 Timing Belt: 30S2M128 1
B0441825 Collar 4
B2234501 Guide Plate: Right 1
D0094521 Harness Bracket 1
D0094497 Decal - Right Guide 1
D0094652 Motor Harness 1
B2234567 Stay: Transport: Upper: Peen 1
D0094662 Transport Roller 1 1
D0094663 Transport Roller 2 1
B2234512 Timing Belt: 30S2M182 1
B2234536 Timing Belt: 30S2M234 1
B2234511 Timing Belt: 30S2M312 1
B2234529 Roller Clutch: T24 1
B2234544 Pulley: T35/T33 1
B2234527 Pulley: T26/T24 1
B2234535 Roller Clutch: T26 1
AA082101 Bushing - 6x10x6 5
B2234514 Roller Clutch: T24 1
B2234502 Guide Plate: Left Lower 1
B2234553 Tension Spring: Driven Roller 2
B2234552 Bushing: DIA4 2
D0094664 Driven Roller 2
D0093860 Spring Cover - Transfer Unit 2
AA063448 Pressure Spring - Transfer Unit 2
D0094551 Guide Plate - Holder 1
D0093861 Terminal Holder - Transfer Unit 1
D0093884 Sensor Harness 1
D0094541 Front Torsion Spring 1
AA100014 Retaining Ring C - Separate 1
D0094545 Holder Shaft - Transfer Unit 1
AA063303 Pressure Spring 2
AA080254 Bushing - M4 2
B2343177 Decal: Positioning Display: Development 1
D0092554 Guide Sheet - Vertical Transport 1
D0092563 Guide Plate - Vertical Transport 1
G0602652 Bushing - M4 6
B2232676 Spring - 11N 4
D0092571 Holder - Vertical Transport 1
D0092572 Transport Belt 1
D0092574 Pulley - Idler 1
D0092573 Pulley - Vertical Transport 1
D0092576 Shaft - Vertical Transport 1
D0092575 Shaft - Idler 1
D0092511 Guide Plate: Feed Paper Again: Exit: A 1
B2234524 Wire: Stopper: DIA1.5 1
B2232648 Guide Plate: Transport Unit: Exit 1
D0092560 Driven Roller 1
B2232649 Spring: Pressure: 5N 2
D0094535 Harness Guide 1
D0094651 Harness - Duplex Unit 1
B2234595 Pulley: DIA13 1
D0094597 Bracket - Wire Pulley Shaft 1
B2234594 Shaft: Pulley: Wire 1
D0094599 Shaft - Duplex Unit 1
D0094598 Spring - Set Shaft 1
D0094589 Guide - Set Shaft 1
D0094588 Stopper Bracket - Spring 1
AA143183 Stepped Screw 1
D0094593 Stepped Screw - M3 1
D0094587 Tension Spring - Release Bracket 1
B2234522 Spacer: Wire: Stopper 1

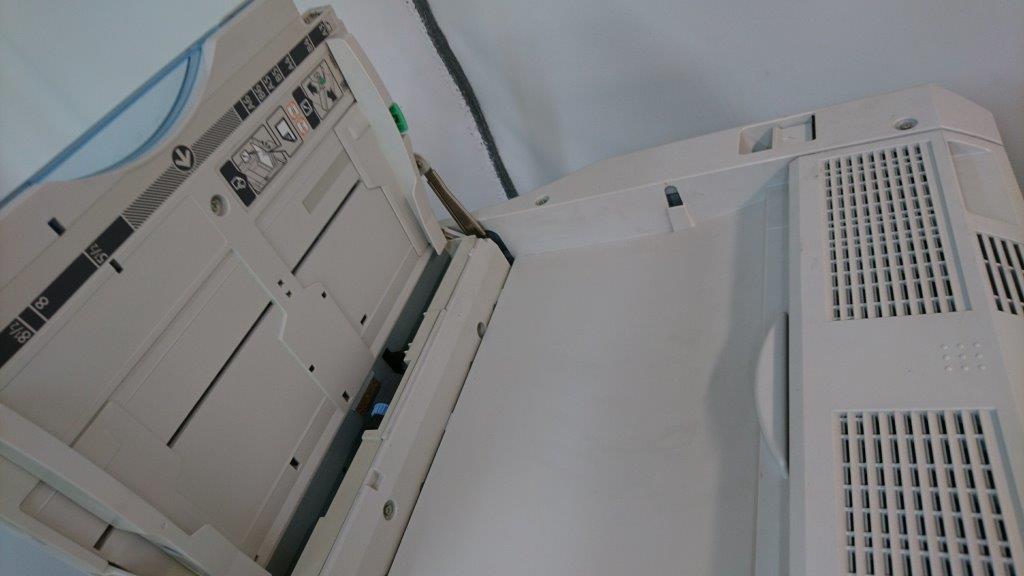

+ B2232700 Manual Feed Table czyli ByPass

zawiera:

B2232700 Manual Feed Table: Exp: Ass'y 1
B2232674 Side Fence: Front 1
B2232673 Side Fence: Rear 1
B2232726 Grip: Side Fence: Manual Feed 1
B2232668 Spring Plate: Stopper 1
B2232645 Decal: Side Fence 1
B2232729 Decal: Paper Set Direction: Manual Feed: EXP 1
B2232661 Cover: Manual Feed 1
B2232644 Decal: Scale 1
B2232669 Harness: Paper Size Sensor 1
AW500031 Paper Size Sensor 1
B2232713 Rack: Manual Feed 2
B2232666 Gear: 16Z 1
B2232663 Extension Tray 1
B2232662 Manual Feed Table 1
D0292662 Manual Feed Table 1
