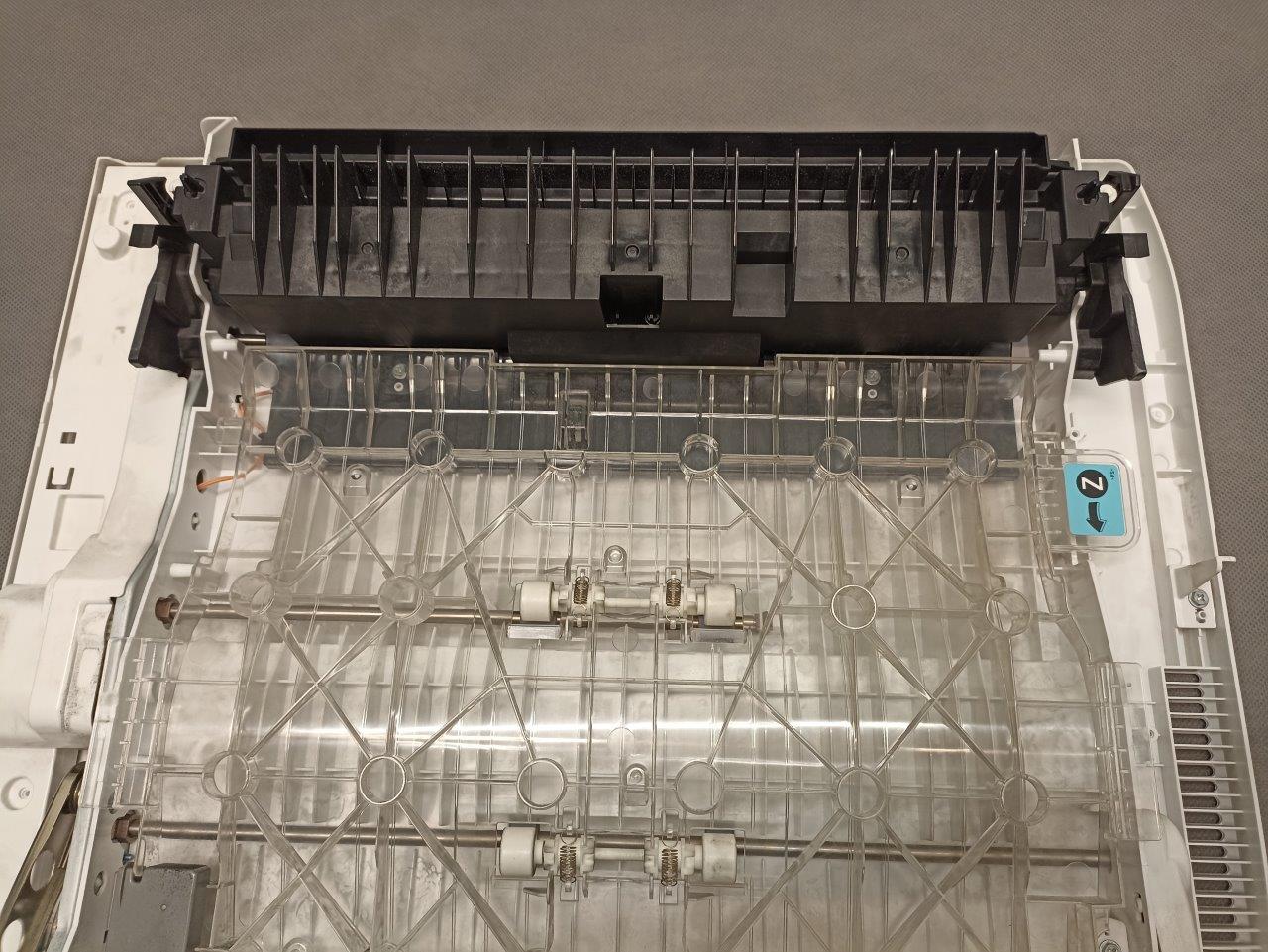

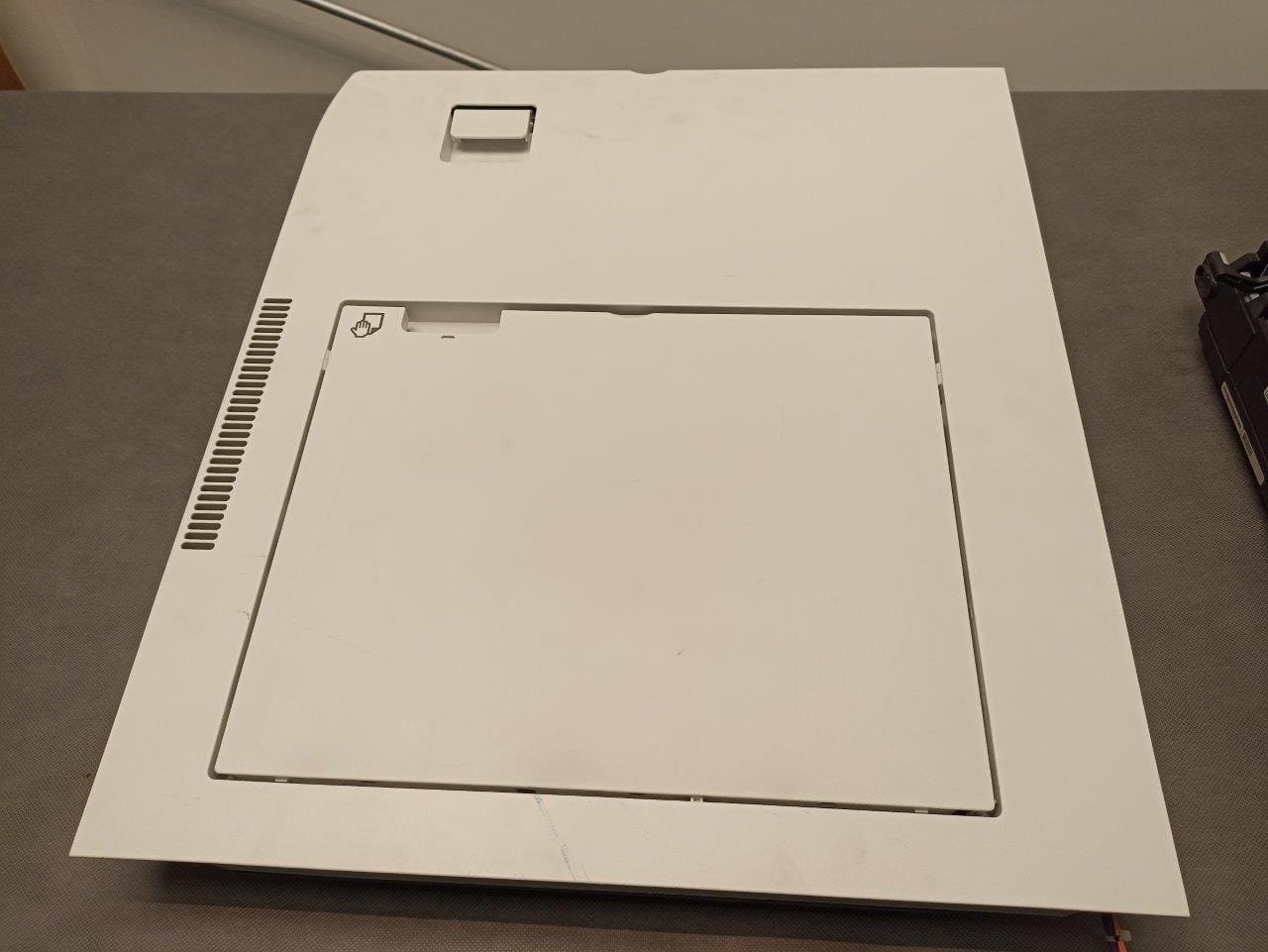

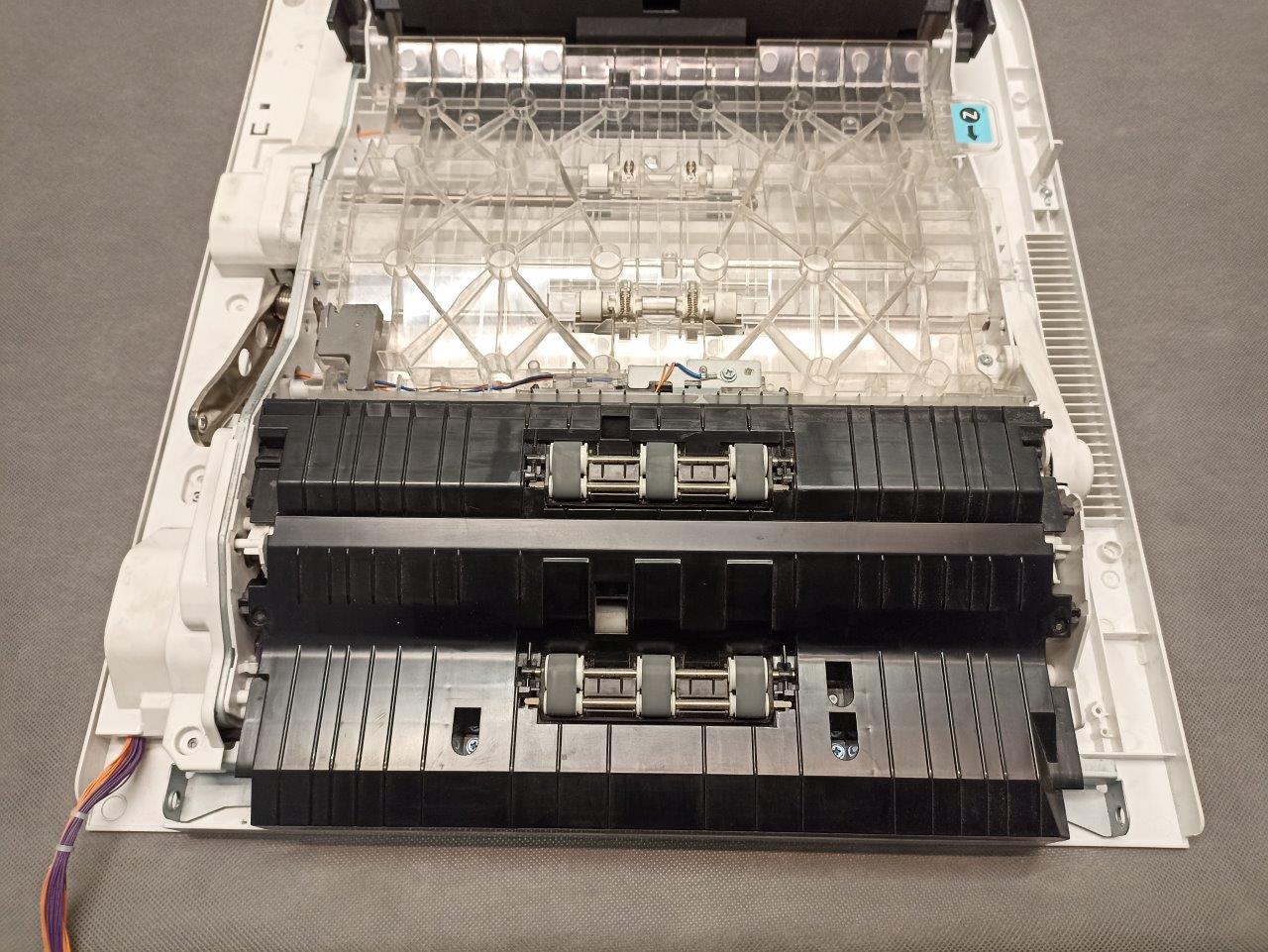

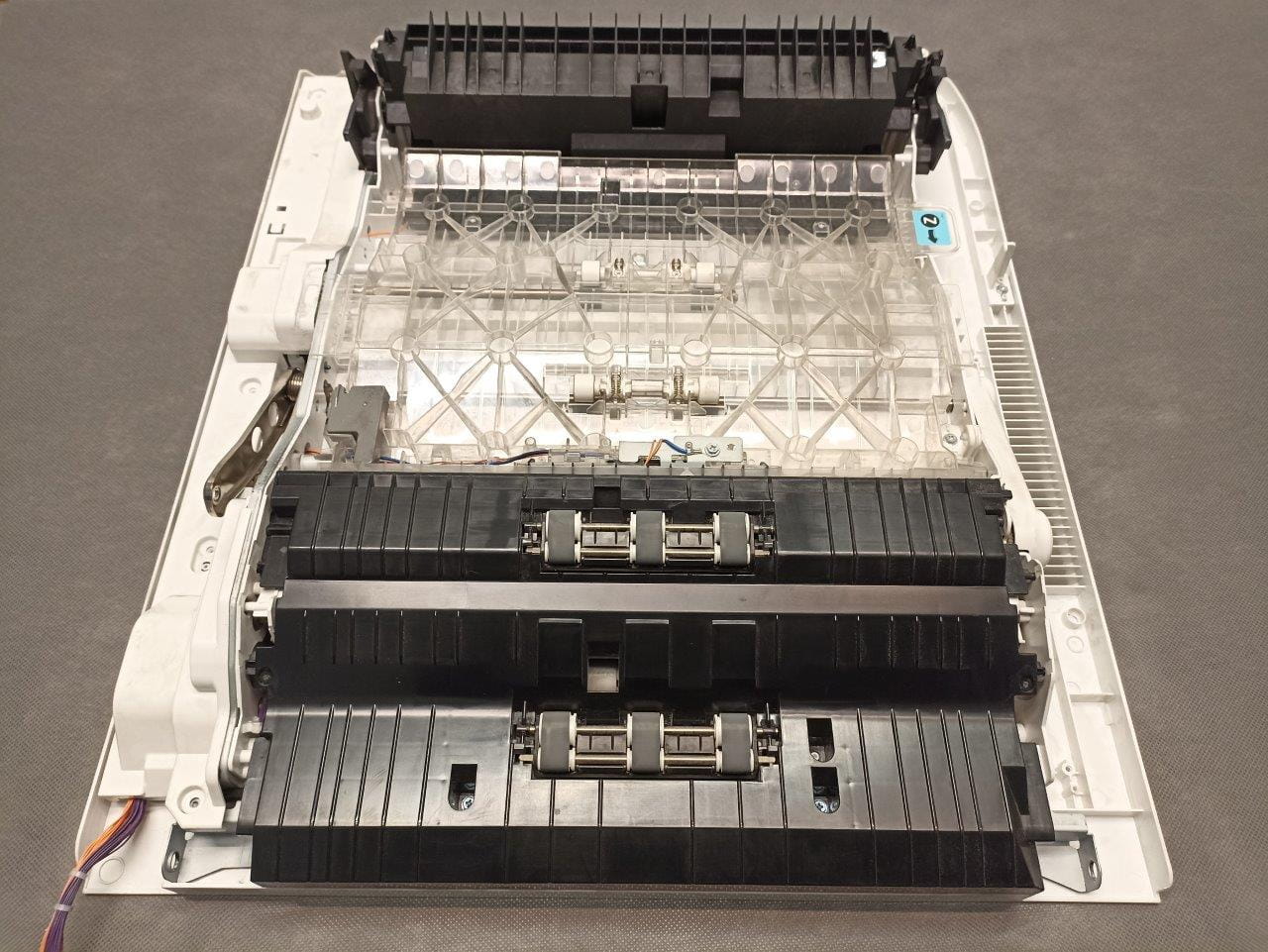

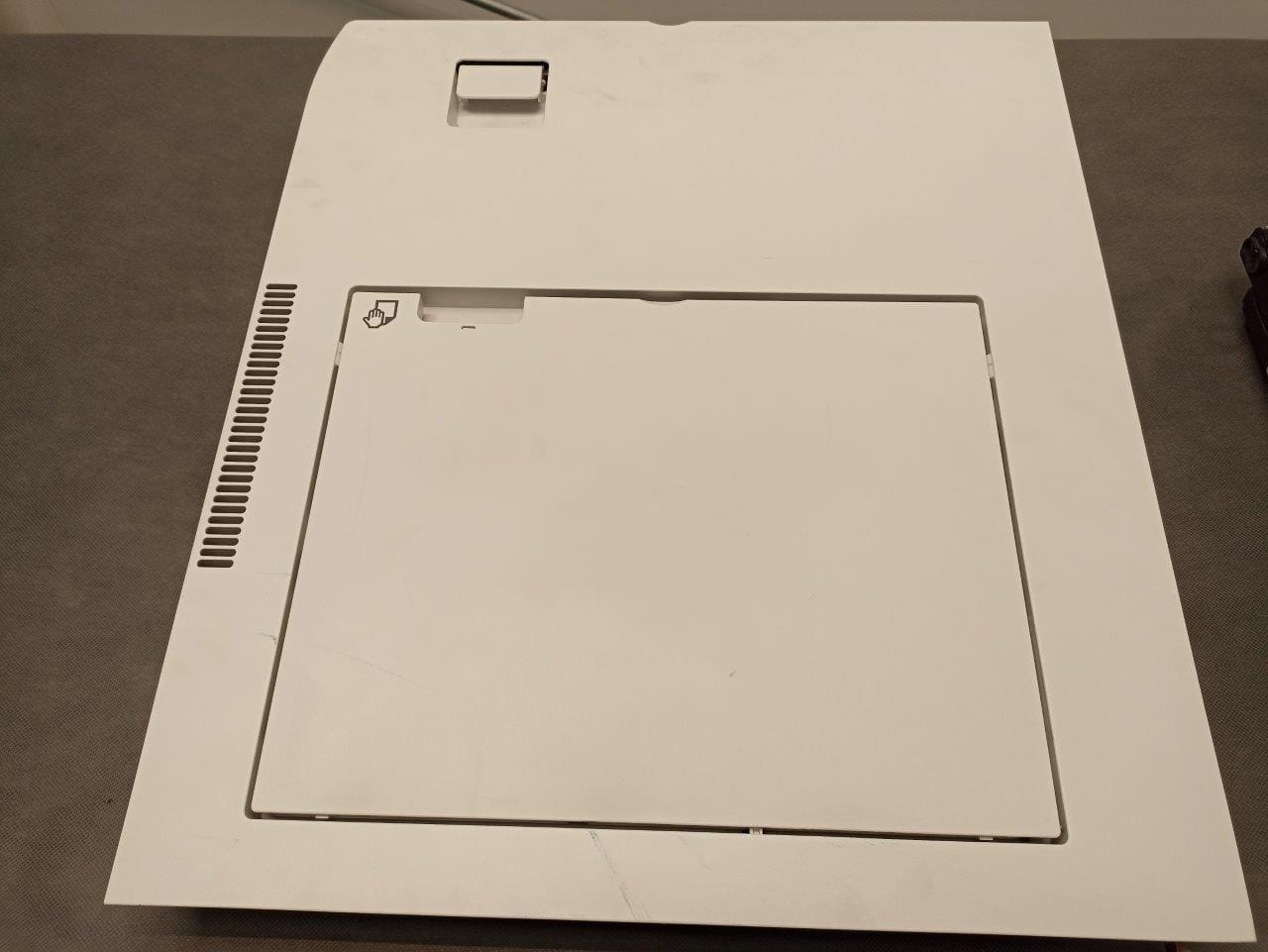

DUPLEX UNIT RICOH MP2555 MP3055 MP4055 MP5055 MP6055 D2894511

DUPLEX UNIT RICOH MP2555 MP3055 MP4055 MP5055 MP6055 D2894511

Moduł zawiera:

D2894698 MECHANICAL DRIVE SECTION:DUPLEX:ENTRANCE:KIT
D2894699 TRANSPORT ROLLER:DUPLEX:ENTRANCE:KIT
D2894696 TRANSPORT ROLLER:DUPLEX:LOWER:KIT
D2892699 MECHANICAL DRIVE SECTION:MANUAL FEED:KIT
D2022651 MANUAL FEED TABLE
D2894697 TRANSPORT ROLLER:DUPLEX
D2892957 MANUAL FEED UNIT


D2894511 DUPLEX UNIT
D0094485 BUSHING - GATE
D0094487 COMPRESSION SPRING - GATE
D1494655 GRIP:DUPLEX UNIT
D1494658 COIL SPRING:LEVER:DUPLEX
D0094455 CUSHION - DC SOLENOID
D1494657 HOOK:STOPPER:DUPLEX UNIT:REAR
D0394597 TENSION SPRING:DRIVEN ROLLER
D1484690 TORSION SPRING:LINK
D1494638 GUIDE:WIRE
D1494675 COVER:PUSH SWITCH
D0394529 STOPPER:GUIDE PLATE:ROLLER:DRIVEN
D1494646 SYNCHRONOUS BELT:30S2M262
B2234552 BUSHING:DIA4
D1494645 SYNCHRONOUS BELT:30S2M118
D0092573 PULLEY - VERTICAL TRANSPORT
D1444489 STOPPER:DRIVENROLLER
D0292677 TRANSPORT BELT:DRIVEN:VERTICAL TRANSPORT
D0092574 PULLEY - IDLER
D1494672 COMPRESSION SPRING:DRIVEN
D1492678 SHAFT:FLAT CONVEYER BELT:DRIVEN
D2894511 DUPLEX UNIT
D1754654 SHAFT:LEVER:LOCK
D2024671 GUIDE PLATE:DUPLEX:ENTRANCE
D1494715 DECAL:GRIP:Z
D2024661 HOOK:STOPPER:DUPLEX UNIT:FRONT
D2024634 ARM:PRESSURE RELEASE:FRONT
D2024673 FEELER:DUPLEX:ENTRANCE SENSOR
D2024635 ARM:PRESSURE RELEASE:REAR
D2024630 COVER:DUPLEX
D2024667 GUIDE PLATE:DUPLEX:EXIT
D1494688 LINK:DUPLEX:MAIN
D1494695 LINK:FRONT
D2024669 GUIDE:REGISTRATION:ENTRANCE:FRONT
D1494737 PLAIN SHAFT BEARING:DUPLEX:EXIT
D1494777 COMPRESSION SPRING:FLAT CONVEYER BELT:DRIVEN
D2022691 bGUIDE PLATE:VERTICAL TRANSPORT:NO.1:DRIVEN
D1494787 GUIDE:HARNESS:MANUAL FEED:CONNECTING
D2024668 GUIDE:REGISTRATION:ENTRANCE:REAR
D2022673 GUIDE PLATE:VERTICAL TRANSPORT:NO.2:DRIVEN
D2022697 HOLDER:DRIVEN:BELT
D2022694 SHAFT:FLAT CONVEYER BELT:PULLEY
D2414635 SHEET:CUSHION
D2024674 TORSION SPRING:DUPLEX:ENTRANCE SENSOR
D2414762 DRIVEN ROLLER:DIA18
D2024690 GUIDE PLATE:UPPER
D2024692 SHAFT:PRESSURE:GUIDE PLATE:UPPER
D2024691 COMPRESSION SPRING:SHAFT:GUIDE PLATE:UPPER
D2024677 GUIDE PLATE:DRIVEN
D2024730 INNER COVER:REAR:DUPLEX
D2024722 LINK:DUPLEX
D2024726 TORSION SPRING:LINK:CONTACT POINT
D2024732 ARM:PUSH SWITCH
D2024731 INNER COVER:FRONT:DUPLEX
D2414761 DRIVEN ROLLER:DIA16
D2024683 COVER:GUIDE PLATE:DRIVEN
GW010007 PHOTO REFLECTION SENSOR:EXIT
D2414681 BRACKET:MOTOR:PEEN
D2024721 BRACKET:LINK:DUPLEX
D2024679 DRIVEN ROLLER:DIA16:DUPLEX
D2024680 BRACKET:DRIVENROLLER:PRESSURE
D2024682 DRIVEN ROLLER:DIA16
D2022651 MANUAL FEED TABLE
D1492693 STOPPER:MANUAL FEED TABLE
AW020224 PHOTOINTERRUPTOR:GP1A173LCSVF
D1494717 PLATE:SIDE FENCE:FRONT
D1494718 TORSION SPRING:SIDE FENCE:FRONT
D1492694 COMPRESSION SPRING:STOPPER:MANUAL FEED TABLE
D1492688 TENSION SPRING:WIRE
D1494721 TORSION SPRING:SIDE FENCE:REAR
D1494720 PLATE:SIDE FENCE:REAR
D1492686 WIRE:MANUAL FEED TABLE:TC075
D1494731 COMPRESSION SPRING:RACK:MANUAL FEED
D1492692 ARM:MANUAL FEED:FRONT UPPER
D1492683 ARM:MANUAL FEED:FRONT LOWER
D1502666 GEAR:SIDE FENCE:MANUAL FEED TABLE
AW500042 ROTARY SWITCH:PAPER SIZE SENSOR
D1494711 DECAL:SIDE FENCE:MANUAL FEED
D1492684 ARM:MANUAL FEED:REAR LOWER
AF013016 BOTTOM PLATE PAD
D2022651 MANUAL FEED TABLE
D2022638 FEELER:PAPER SIZE SENSOR:MANUAL FEED
D2022640 EXTENSION TRAY:NO.1
D2022641 EXTENSION TRAY:NO.2
D2022676 DECAL:SCALE:MANUAL FEED:MIDDLE
D2022675 DECAL:SCALE:MANUAL FEED:FRONT
D2412685 DECAL:PAPER SET DIRECTION:MANUAL FEED
D2022677 DECAL:SCALE:MANUAL FEED:REAR
D2022642 PULLEY:WIRE:MANUAL FEED TABLE
D2022633 SIDE FENCE:REAR
D2022669 OVER:MANUAL FEED TABLE
D2022670 MANUAL FEED TABLE
D2022631 SIDE FENCE:FRONT
M0662743 FRICTION PAD:MANUAL FEED TABLE:18X7.5
D1494706 PIN:ARM:FRONT LOWER
D2022646 ARM:MANUAL FEED:REAR UPPER
D202265 SHEET:RACK:MANUAL FEED
D2022634 RACK:MANUAL FEED
D2892957 MANUAL FEED UNIT
AB010157 GEAR:SEPARATE:DRIVEN
AF030049 PICK-UP ROLLER
AB011252 GEAR - 20Z
AB010156 GEAR:SEPARATE:DRIVE
AF031046 FEED ROLLER - MANUAL FEED
D2892957 MANUAL FEED UNIT
D1492644 TORSION SPRING:LINK:PAPER STOPPER
D1492642 SHAFT:LINK:PAPER STOPPER
D1492638 LINK:PAPER STOPPER:MANUAL FEED
D1492658 COVER:PAPER FEED ROLLER
D1492656 SPRING:PAPER END SENSOR
D1492639 SHAFT:PAPER STOPPER
D2022612 DC SOLENOID:PICKUP:ASS'Y
D1492633 SHAFT:FEED:MANUAL FEED
D1494770 SHAFT:SEPARATOR:DRIVEN:ASS'Y
D1492619 SHAFT:SEPARATOR:DRIVE
AW020224 PHOTOINTERRUPTOR:GP1A173LCSVF
D1492655 FEELER:PAPER END SENSOR
D1492612 ROLLER:GRIP:DRIVEN
D1492614 TENSION SPRING:GRIP:PRESSURE
D1492613 SHAFT:GRIP:DRIVEN
D1492635 TRANSPORT ROLLER:MANUAL FEED
D1292783 TORQUE LIMITER
D1492652 GROUND PLATE:SHAFT:FEED
AF032046 SEPARATION ROLLER - MANUAL FEED
D1494815 GUIDE PLATE:SEPARATOR
D2892957 MANUAL FEED UNIT
D2022619 TORSION SPRING:PICKUP
D2022618 SHEET:PICKUP
D2022653 ARM:LINK:PAPERSTOPPER
D2892617 ARM:PICKUP:MANUAL FEED
D2022616 COVER:PAPER STOPPER:MANUAL FEED
D2022620 SHOE:TORSION SPRING:PICKUP
D2022621 COVER:DAMPER
M0662749 OIL DAMPER:STRAIGHT:30N
D2022624 COVER:PAPER END
D2022654 CUSHION:GUIDE PLATE:SEPARATOR
D2022614 COIL SPRING:RELEASE:PICKUP:MANUAL FEED
D2412653 COIL SPRING:PRESSURE:SEPARATOR
D2024802 PAPER STOPPER:MANUAL FEED
