Deweloper + Toner Supply Unit RICOH Aficio MP6001 MP6002 MP7001 MP7502 MP8001 MP9001 MP9002 DEV7001SUPL

Deweloper Unit D0623050 D062-3050 + Toner Supply Unit B2473200 B247-3200

RICOH Aficio MP6001 MP6002 MP7001 MP7502 MP8001 MP9001 MP9002 DEV7001SUPL

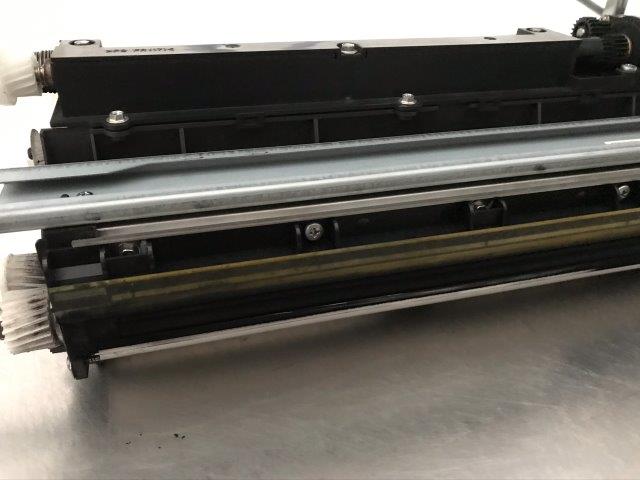

Development Unit Assy D0623051 D062-3051 D0623050 D062-3050

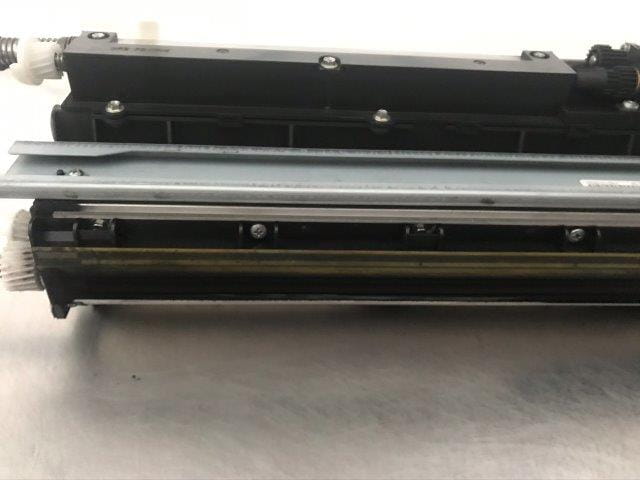

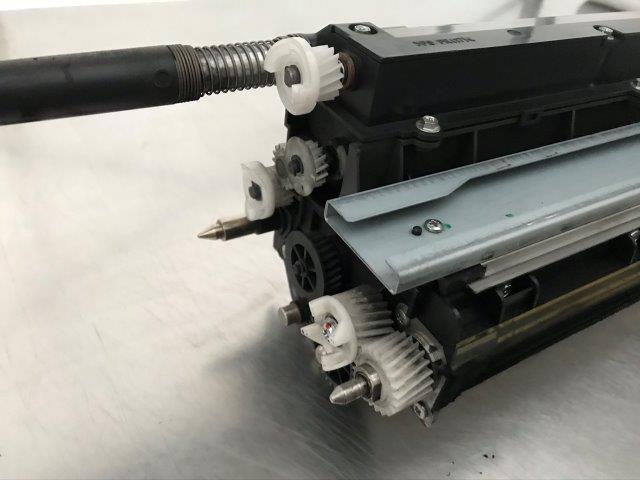

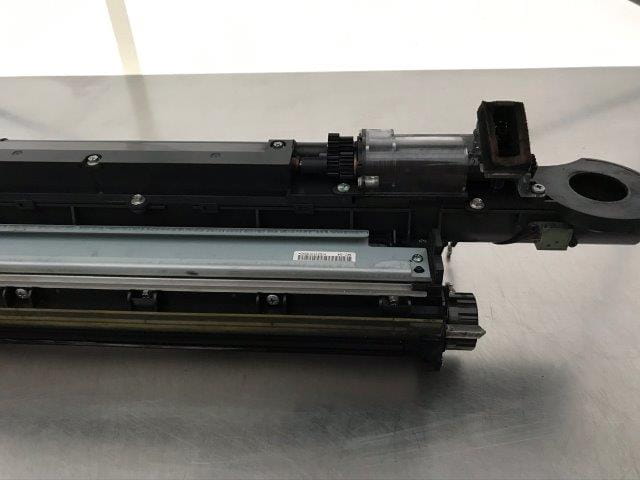

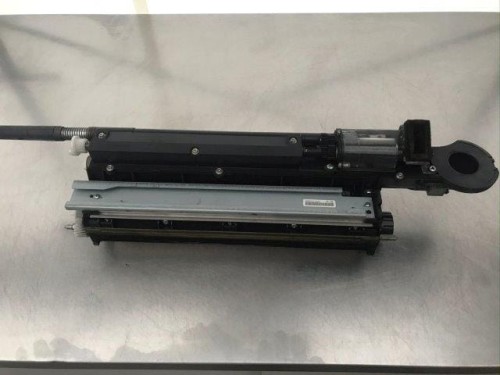

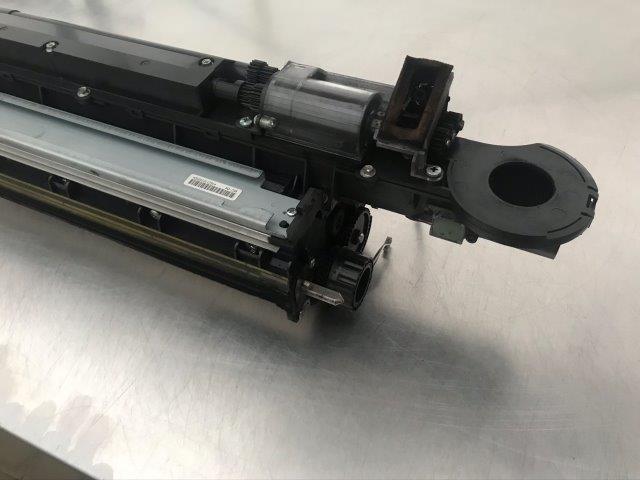

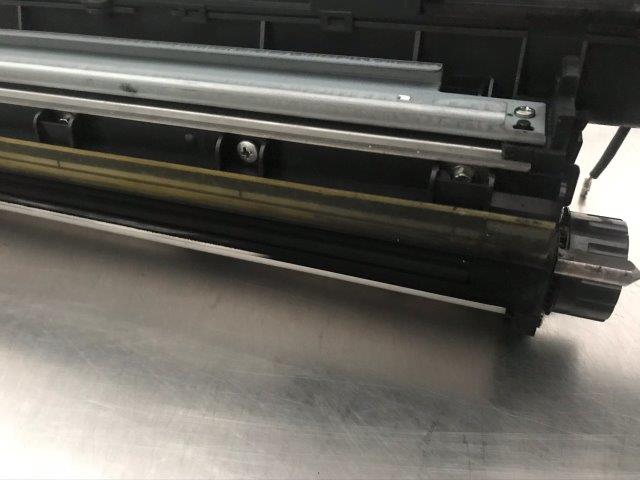

Element używany stan bardzo dobry, wałek magnetyczny w całości ładnie kryty developerem. Moduł wyczyszczony bez developera.

Developer unit zawiera:

B0653108 B065-3108 Filter Plate
B2473340 B247-3340 Filter Development
A0963141 A096-3141 Development Filter Case
D0623108 D062-3108 Plate Filter
D0623340 D062-3340 Filter Development MC4-90
D0663045 D066-3045 Duct Development Ass'y
B0653095 B065-3095 Development Guide Rail
D0623099 D062-3099 Seal Drum Front
D0623100 D062-3100 Seal Drum Rear
B1103091 B110-3091 Entrance Seal Ass'y (Uszczelka dewelopera RICOH AF 1060 1075 2060 2075 MP5500 MP5500SP MP6500 MP6500SP MP7500 MP7500SP / Lanier LD060 LD075 / Gestetner 6002 7502 / IBM Infoprint 2060ES 2075ES B065-3091 B0653091 B110-3091 B1103091 ENTRANCE SEAL)
B0653082 B065-3082 Development Bias Plate
B0653071 B065-3071 Development Knob
B0653076 B065-3076 Gear 41Z
B0653065 B065-3065 Toner Sensor Guide
B2475310 B247-5310 Toner Density Sensor (Toner Density Sensor RICOH Aficio 1060 1075 2051 2060 2075 MP6000 MP6000SP MP7000 MP7000SP MP8000 MP8000SP / Nashuatec 6005 7505 DSm660 DSm675 DSm651 / Rex Rotary 6008 7508 DSM660 DSM675 DSM651 / Gestetner 6005 7502 DSM620 DSM675 DSM660SP DSM675SP DSM651 DSM651SP / Infotec IS2060 IS2075 / Lanier LD060 LD075 LD160 LD175 LD160SO LD175SP LD151 LD151SP B2475310 AW23-0015, B247-5310, AW230015, B2475310)
B0653079 B065-3079 Ball Bearing Bracket
B0653081 B065-3081 Gear 21Z
B0653096 B065-3096 Gear 20Z
AB013790 AB01-3790 Gear 25Z
B0653073 B065-3073 Gear 31Z
B0653098 B065-3098 Gear 17Z

B0653062 B065-3062 Development Roller
B0653080 B065-3080 Ball Bearing - 12x21x5
B0653077 B065-3077 Development Roller Adjuster
B0653069 B065-3069 Bushing - 8mm
B0703115 B070-3115 Bushing: 4mm
03540200N Screw: M4x20

Toner Supply Unit zawiera:

B2473161 Classification Ass'y 1
D0663161 Case: Classification: M-C4: 90: Ass'y 1
B0653122 Toner Separation Joint Seal 1
B0653123 Rear Toner Separation Joint Seal 1
B0653125 Toner Separation Drive Shaft 1
50530447 Bushing - 6mm 2
B2473720 Transport Screw 1
B0653138 Idle Gear 1
B0653139 Toner Collection Gear 1
B2475311 Toner End Sensor: Ass'y 1 AW230024 AW310003 AW230009 B247-5311 AW23-0024 AW31-0003 AW23-0009
A0963181 Slitter 1
B0653146 Nut 1
B0653152 Lower Front Case Seal - Rear 2
B0653153 Lower Filter Case Filter 1
B0653151 Lower Right Case Seal 1
AA060291 Spring 2
AB013748 Joint Gear - 15Z 2
B2473176 Boss: Bearing: Agitator: Press Fit 1
AB013749 Gear - 15Z 1
AB013747 Gear - 16Z 1
B2473175 Bushing 8x14x8 1
B0653140 Upper Cover 1
B0653141 Exit Toner Pipe 1
B0653143 Toner Separation Spring 1
B0653142 Toner Separation Shutter 1
A2293154 Case Seal 1

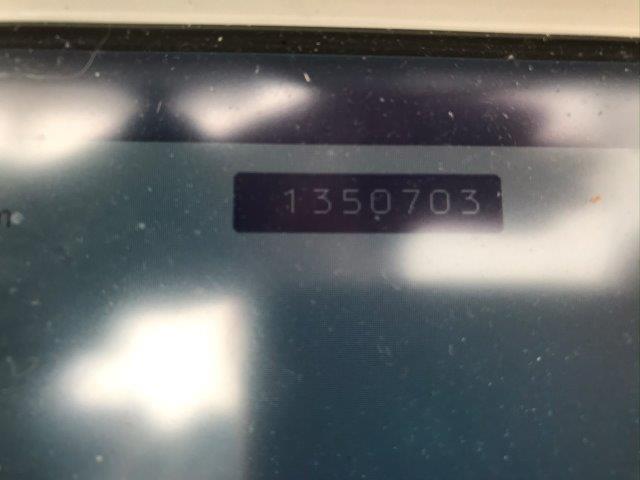

Element używany, przebieg kopiarki 1.350.000 kopii LOK:K174
