Exit Unit RICOH MP4002 MP5002 D0094420

Dostępność: brak towaru

Cena brutto: 200,00 zł 200.00

Cena netto: 162,60 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Producent: RICOH

Kod produktu: D0094420

Opis

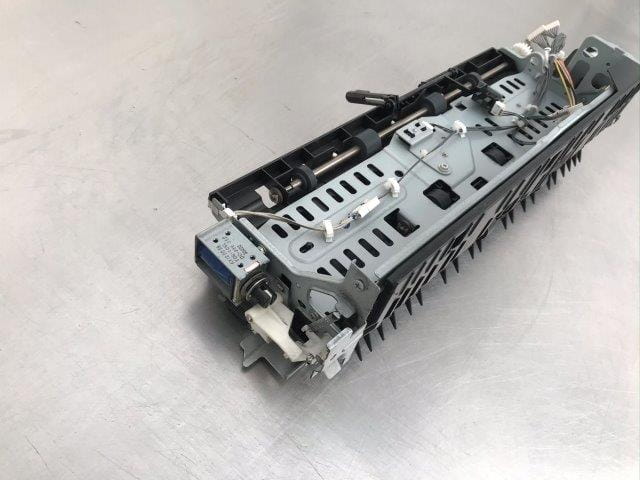

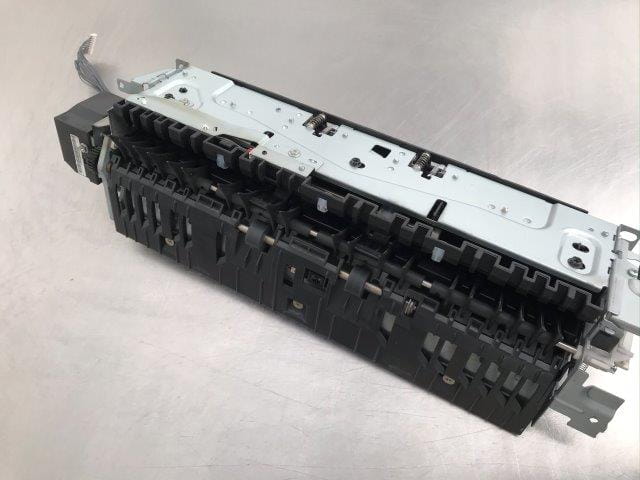

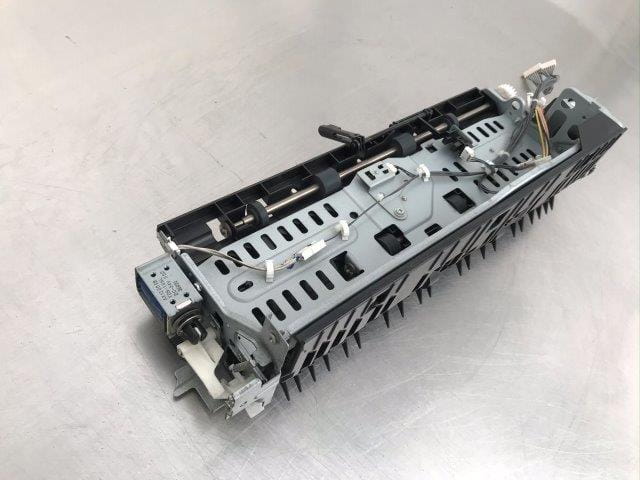

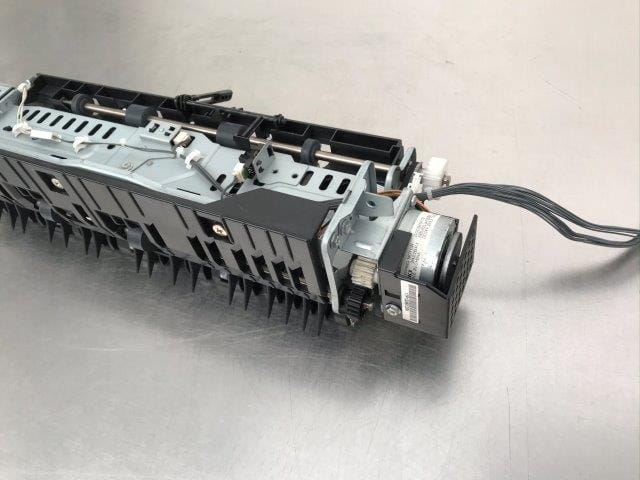

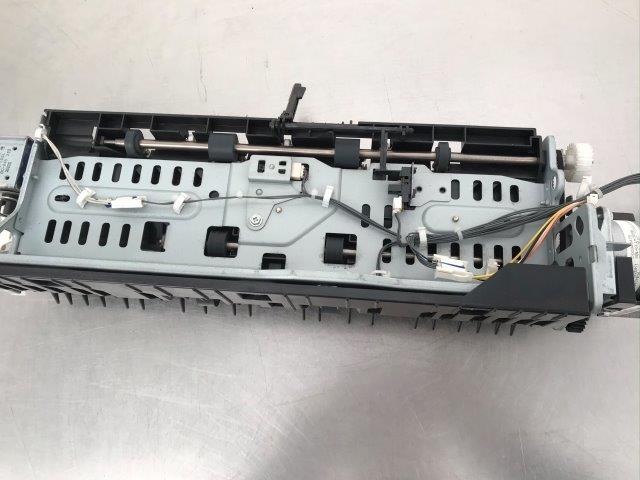

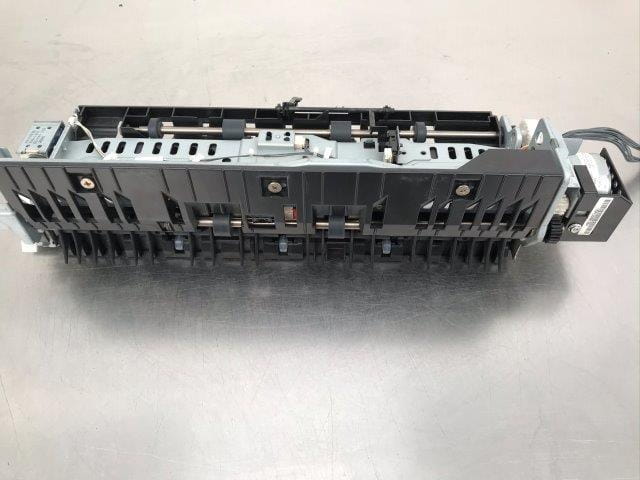

Exit Unit RICOH Aficio MP4002 MP5002 D0094420

zawiera:

* D0094420 Paper Exit Unit: Main: Ass'y 1
1 D0094430 DC Solenoid - Exit 1
2 D0094457 Tension Spring Release 1
3 D0094438 Lever - Entrance Gate 1
4 D0094439 Bushing - 4mm 2
5 D0094455 Cushion - DC Solenoid 1
6 AW010107 Paper Feed Sensor 2
7 D0094436 Entrance Gate 1
8 H0532208 Bushing - M4 2
9 D0094445 Transport Roller 1
10 D0094441 Exit Guide Plate - Upper Right 1
11 D0094418 Stepped Tapping Screw - M3 3
12 D0094408 Bracket - Fusing Exit Sensor 1
13 AW010127 Paper Feed Sensor 1
14 D0094464 Gear - 22Z 1
15 D0094447 Exit Sensor Bracket 1
16 D0094499 Harness - Paper Exit Unit 1
17 D0094407 Feeler - Overflow 1
18 B2234497 Shaft: Feeler: Overflow 1
19 AW020145 Photointerruptor: Flat 1
20 D0094461 Gear - 17Z 1
21 D0094469 Gear - 17Z 1
22 D0094471 Stepper Motor Bracket 1
23 D0094490 Exit Motor Cover 1

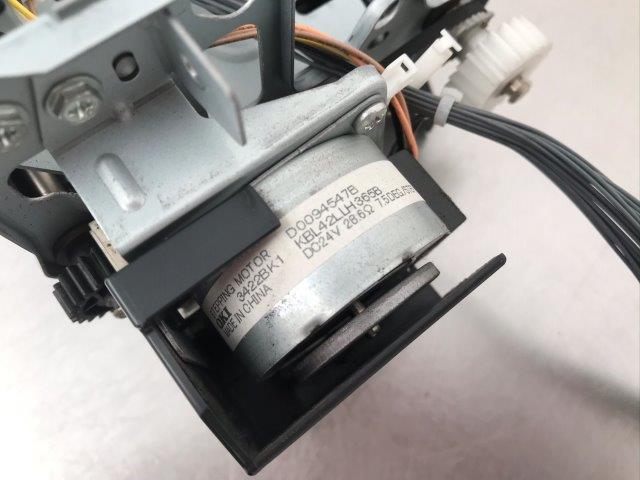

24 D0094547 Stepper Motor - DC 5.79W 1
25 D0094448 Tension Spring - Gate Pawl 1

LOK:K120
