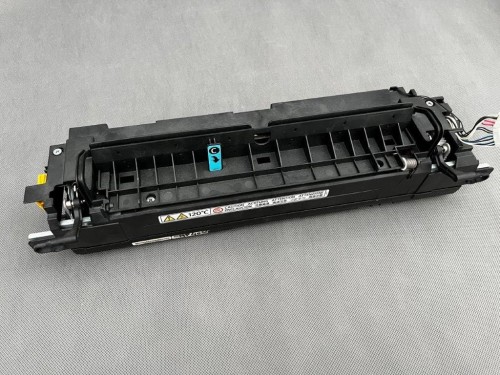

FUSER RICOH MP2554 MP3054 MP3554 MP4054 MP5054 MP6054 230v D8694054

FUSER RICOH MP2554 MP3054 MP3554 MP4054 MP5054 MP6054 230v D8694054 stary numer: D8694052

Element używany po pełnej regeneracji. Sprawdzony w Ricoh MP4054

Zainstalowano nowe elementy:

FOLIA GRZEJNA

PAD OLEJOWY

NOWY OLEJ

WAŁEK DOCISKOWY

BEZPIECZNIK PICO do resetu błędu SC544 i podobnych

Pasuje do urządzeń:

Ricoh MP-2554SP
Ricoh MP-3054SP
Ricoh MP-3554SP
Ricoh MP-4054SP
Ricoh MP-5054SP
Ricoh MP-6054SP

TEN MODUŁ ZAWIERA:

AW100173 NON-CONTACT TYPE THERMISTOR HOT ROLLER
AW110101 THERMOSTAT LOWER
AA061182 TORSION SPRING STRIPPER PLATE REAR
AA061181 TORSION SPRING
AA061180 COIL SPRING PRESSURE
AE030092 RADIAL BALL BEARING
AA120149 DISCHARGE BRUSH PRESSURE ROLLER
AB015035 GEAR PRESSURE ROLLER
AB012231 GEAR DRIVE Z20
AB012232 GEAR IDLER Z19
D1444484 SHOULDER
D2024146 PLAIN SHAFT BEARING
AW100172 THERMISTOR PRESSURE ROLLER wersja Europa (numer AW100171 jest na Amerykę)
D2024224 STRIPPER PLATE FUSING EXIT
D2024386 ELECTRODE PLATE FRONT
D2024215 GUIDE PLATE FUSING EXIT
D2024313 PRESSURE ROLLER
D2024234 LEVERPRESSURE RELEASE FRONT
D2024233 LEVER LOCK PRESSURE
D2024374 COVER HARNESS
D2024236 LEVER PRESSURE FRONT PEEN
D2024266 BRACKET PRESSURE ROLLER FRONT
D2024244 LEVER PRESSURE RELEASE REAR
D2024246 LEVER PRESSURE REAR PEEN
D2024256 BRACKET PRESSURE ROLLER REAR
D2024258 STAY GEAR
D2024309 FLAT NUT THERMISTOR PRESSURE ROLLER
D2024252 FUSING ENTRANCE GUIDE PLATE
D2024262 FUSING COVER UPPER
D2024335 ELECTRODE PLATE MIDDLE
D2024337 ELECTRODE PLATE REAR

REGHx1
