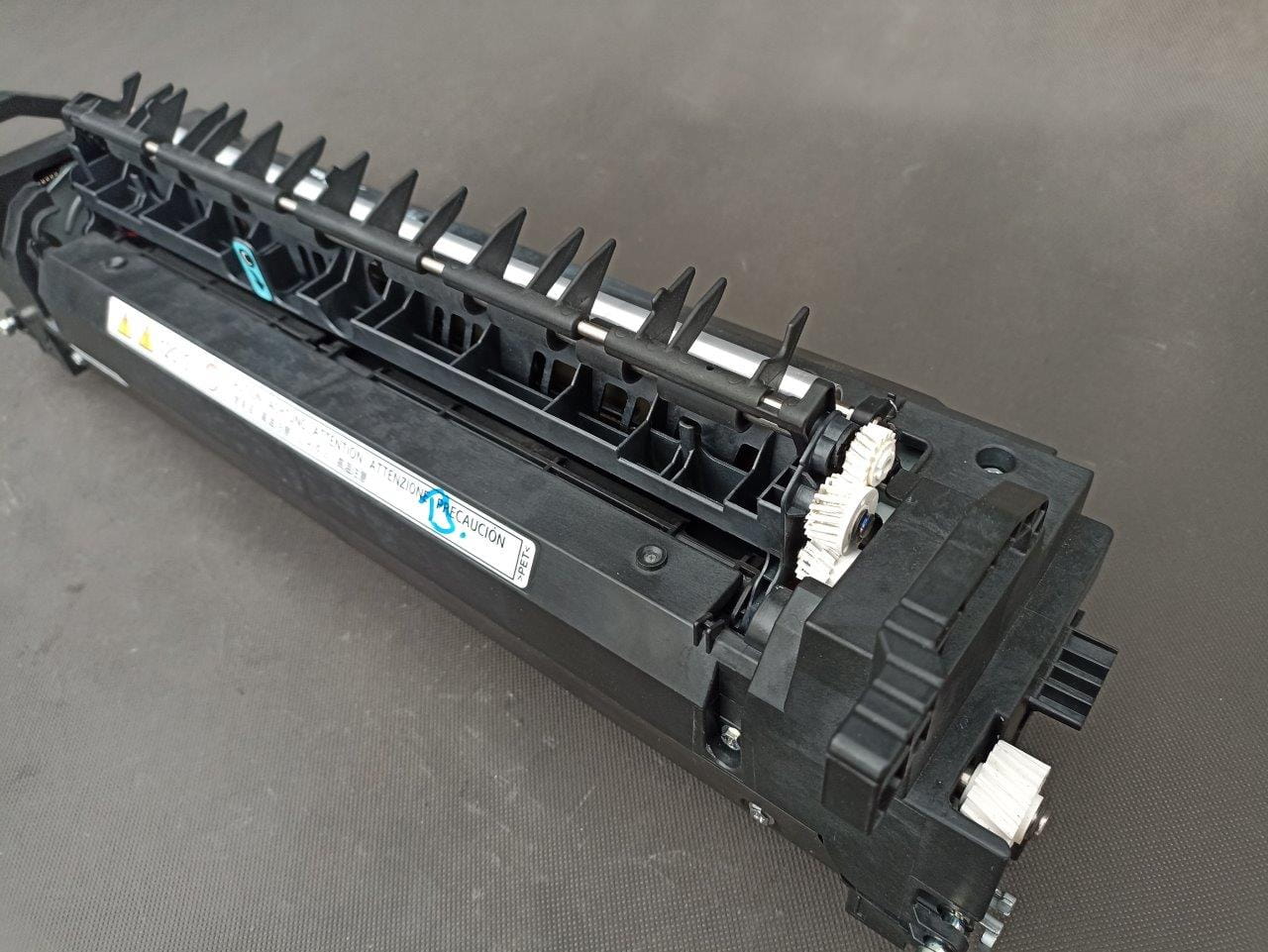

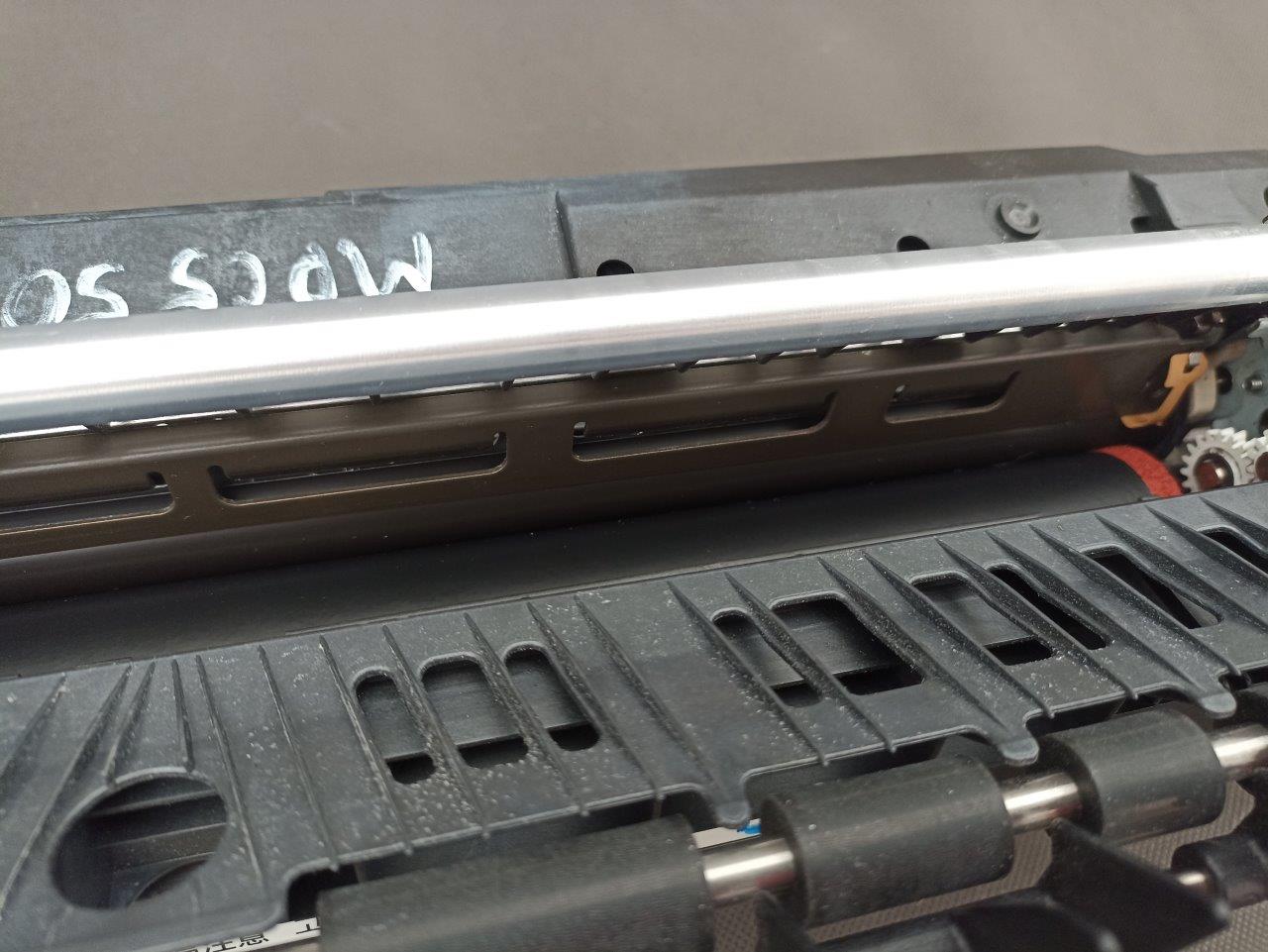

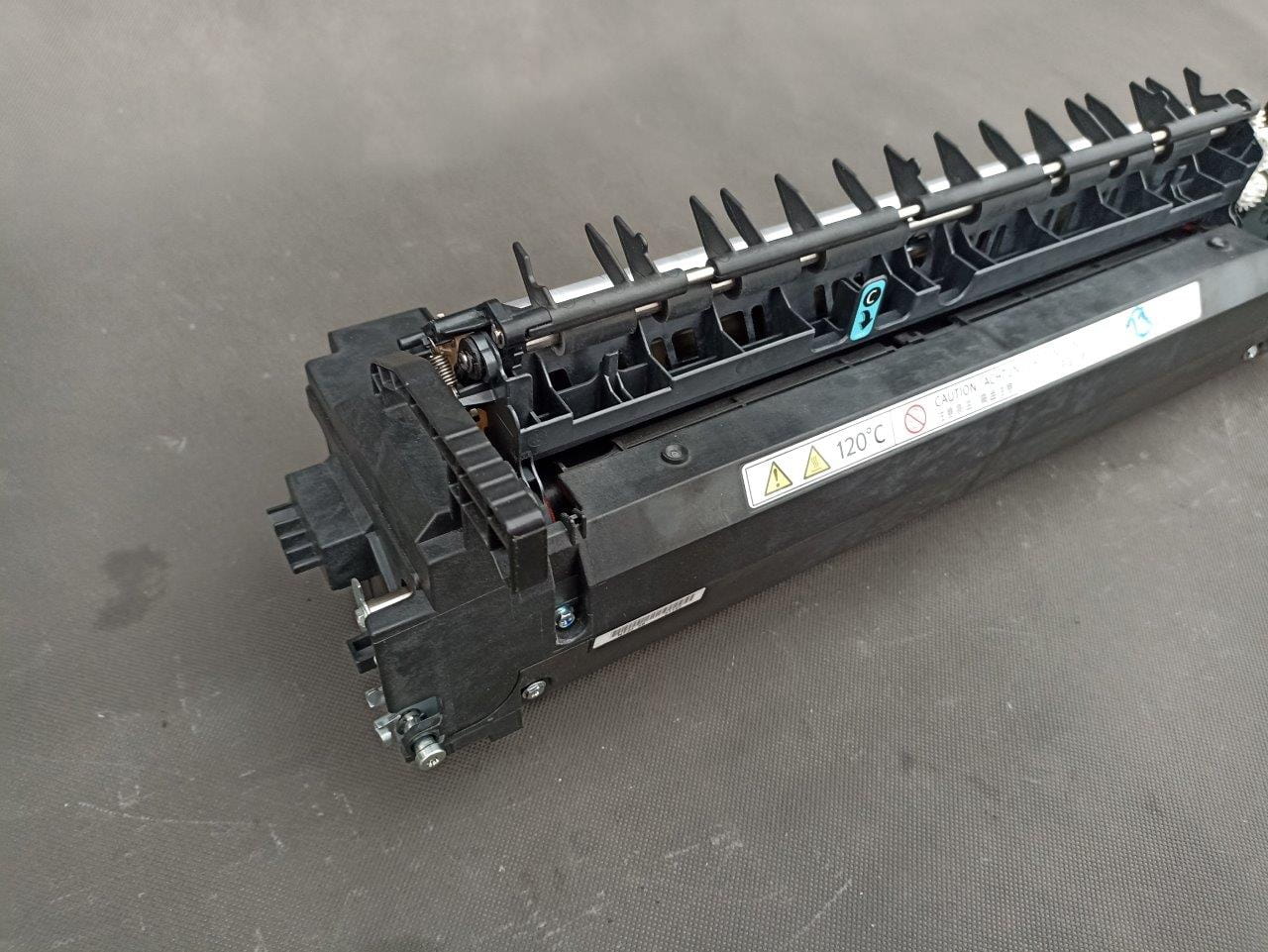

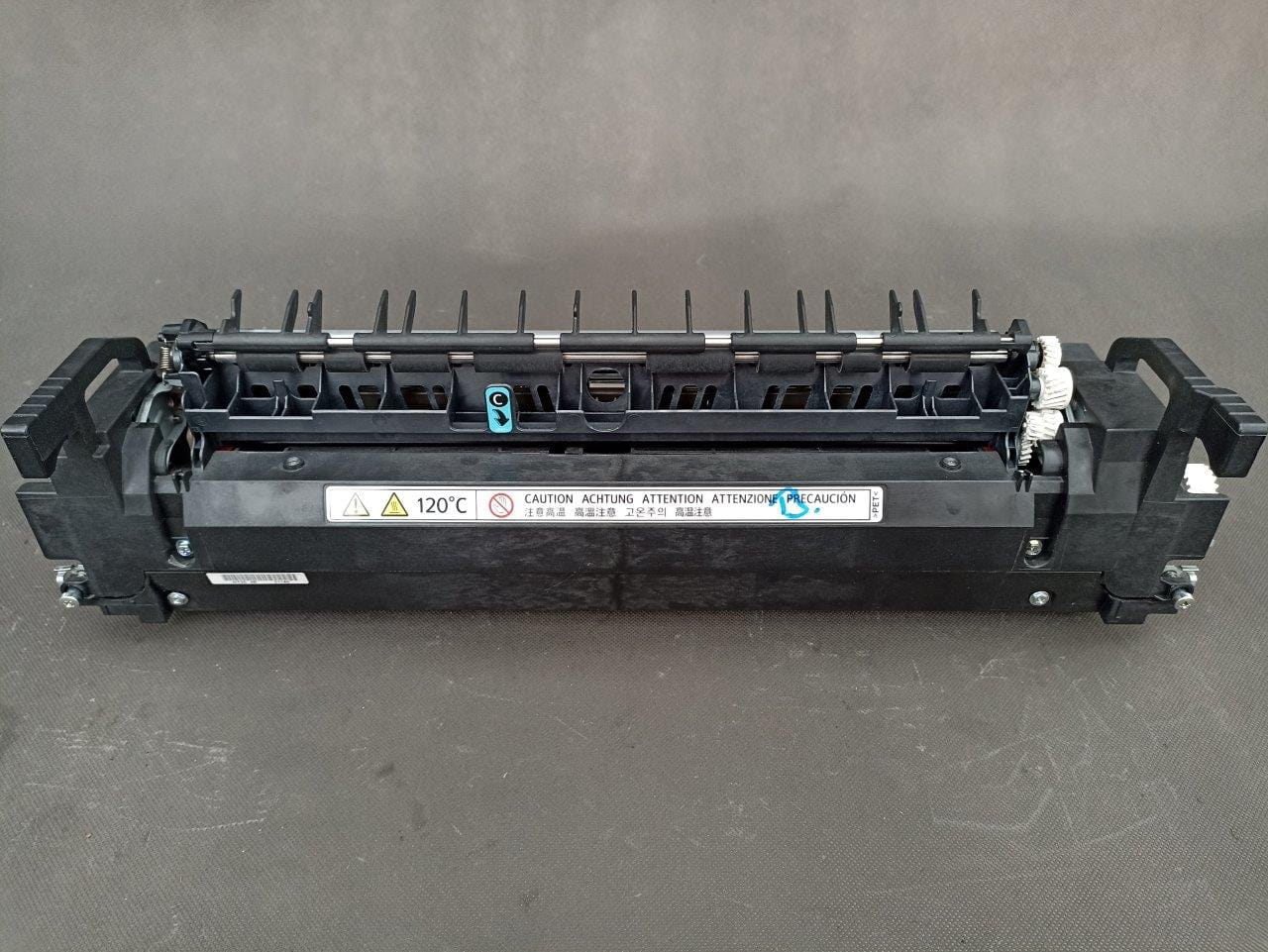

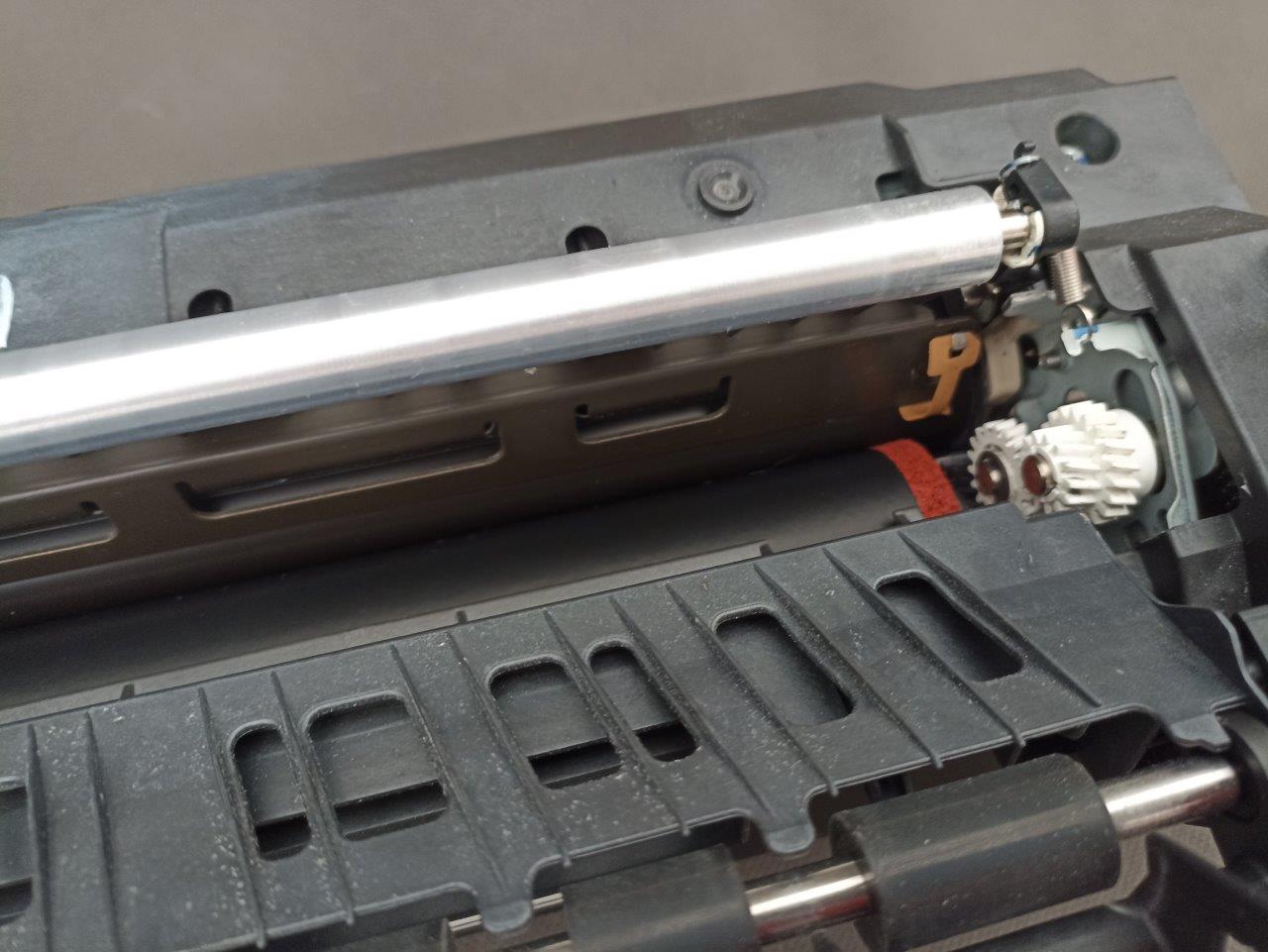

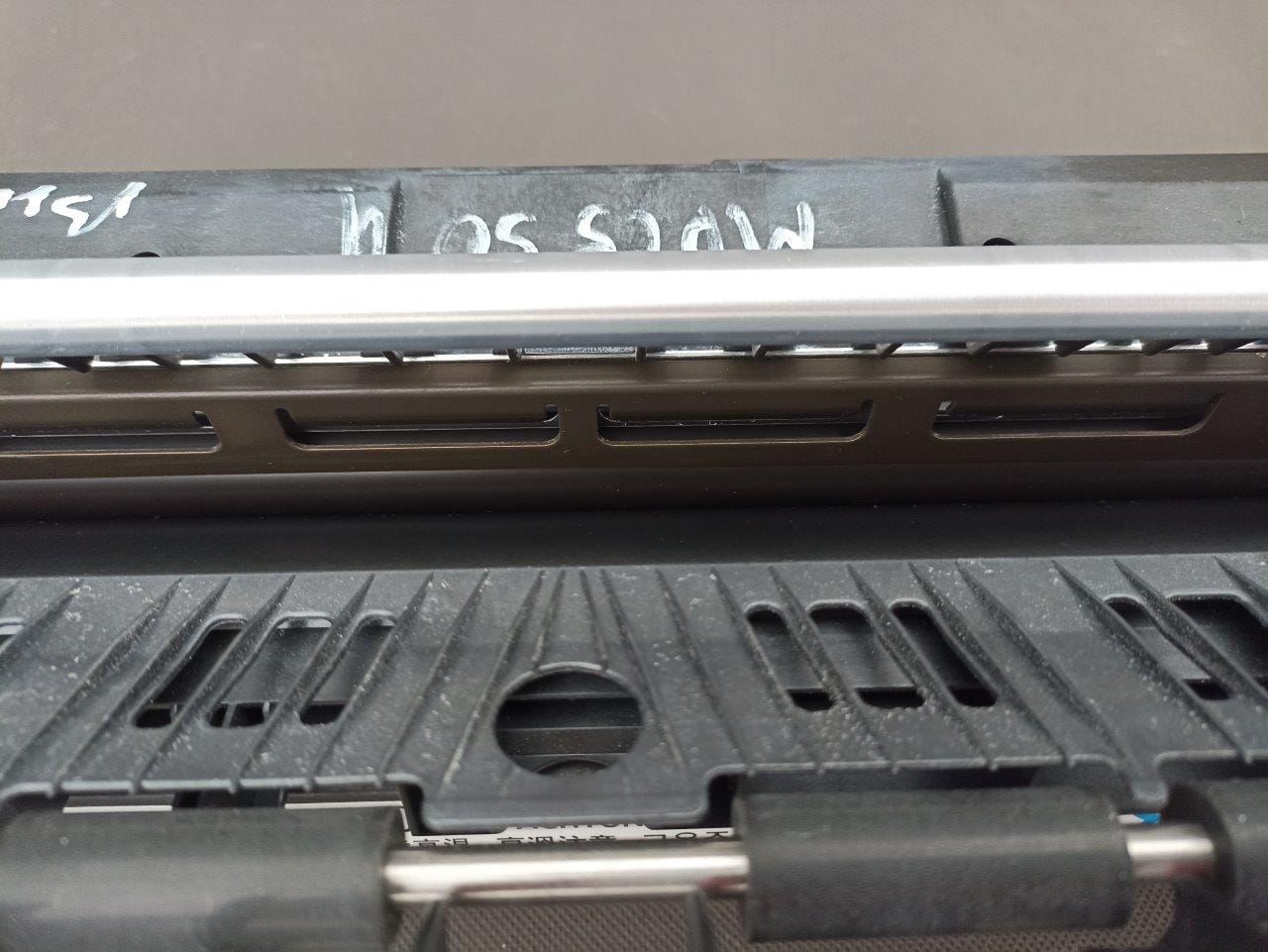

FUSER RICOH MPC5504 MPC4504 MPC6004 230V D2424012 D2424011 D2424022 D2424056

FUSER RICOH MPC5504 MPC4504 MPC6004 230V D2424012 D2424011 D2424022 D2424056

Zespół grzejny po regeneracji.

- Nowa folia grzejna METAL VERSION

- Nowy kompletny pad olejowy brązowy

- Nowy olej na pad olejowy

- Nowy wałek dociskowy

- Smar BARRIERTA S552R pod łożyska wałka

- Termistory wyczyszczone zostały stare

- Zębatki sprawdzone zostały stare

Zespół pasuje do:

Ricoh MP C4504ASP
Ricoh MP C4504ex
Ricoh MP C4504SP
Ricoh MP C4504SP
Ricoh MP C5504ASP
Ricoh MP C5504ex
Ricoh MP C5504SP
Ricoh MP C6004
Ricoh MP C6004SP
Ricoh MP C6004ex
Ricoh MP C6004SP
Ricoh MP C6004SP
Ricoh MP C6004SP

AW100180 NON-CONTACT TYPE THERMISTOR:FUSING
AW110111 THERMOSTAT:MIDDLE
AE020238 PRESSURE ROLLER:DIA32
AW110112 THERMOSTAT:REAR
AB012110 GEAR:EXIT ROLLER:FUSING EXIT:RIGHT
AW100182 THERMISTOR:PRESSURE:MIDDLE
AE030074 BALL BEARING
D1494202 ENCODER:ON-OFF:PRESSURE ROLLER
AW100181 THERMISTOR:PRESSURE:FRONT
AB012107 GEAR:IDLER:EXIT:FUSING EXIT:1
AB012108 GEAR:IDLER:EXIT:FUSING EXIT:2
AB012099 GEAR:ON-OFF:PRESSURE ROLLER
AB012118 GEAR:PRESSUREROLLER
D1124264 DECAL:WARNING (HIGH TEMPERATURE):FUSING
AB012109 GEAR:IDLER:EXIT:FUSING EXIT
AB012111 GEAR:PRESSURE ROLLER:EXIT
AB012116 GEAR:DRIVE:FUSING UNIT
AB012117 GEAR:IDLER:PRESSURE ROLLER
D2414105 GUIDE PLATE:FUSING EXIT:LEFT
SLEEVE:FUSING
D2414102 DRIVEN ROLLER:FUSING EXIT
D2414214 EXIT ROLLER:FUSING EXIT:RIGHT
D2414212 GATE PAWL:FUSING EXIT
D2414023 HOLDER:DRIVENROLLER:FUSING EXIT:FRONT
D2414122 INNER COVER:PRESSURE ROLLER:FRONT
D2414140 HOLDER:PRESSURE:FRONT
D2414137 LEVER:PRESSURE:FRONT:PEEN
D1494235 STEPPED SCREW:M3
D2414024 HOLDER:DRIVENROLLER:FUSING EXIT:REAR
D2414155 HOLDER:PRESSURE:REAR
D1494208 CAM:ON-OFF:PRESSURE ROLLER
D2414160 LEVER:PRESSURE:REAR:PEEN
D2414123 DISCHARGE BRUSH:PRESSURE ROLLER
D2414113 BRACKET:THERMISTOR:PRESSURE ROLLER
D2394262 FUSING COVER:LOWER
D1494209 SHAFT:ON-OFF:PRESSURE ROLLER
D1494335 ELECTRODE PLATE:CONNECTING:THERMOSTAT
D2414121 INNER COVER:PRESSURE ROLLER:REAR

D2414219 DECAL:C:GUIDE PLATE:FUSING EXIT
D2414221 STRIPPER PLATE:FUSING EXIT
D2414215 GUIDE:FUSING EXIT:RIGHT
D2414317 GUIDE:HARNESS:DRAWER:PRESS FIT
D2414218 LINK:GATE PAWL:FUSING EXIT
D2414342 HOUSING:NON-CONTACT TYPE THERMISTOR
D2414337 TERMINAL:THERMOSTAT:DRAWER
D2414332 HOUSING:THERMOSTAT
D2414334 COVER:HOUSING:THERMOSTAT
D2414338 TERMINAL:THERMOSTAT:HEATER
D2414252 FUSING ENTRANCE GUIDE PLATE
D2414261 FUSING COVER:UPPER
