FUSER RICOH SP5200s M0520212 220v

Dostępność: brak towaru

Cena brutto: 250,00 zł

Cena regularna:

250.00

Najniższa cena z 30 dni przed obniżką:

Cena netto: 203,25 zł

Cena regularna:

Najniższa cena z 30 dni przed obniżką:

ilość szt.

towar niedostępny

dodaj do przechowalni

Producent: RICOH

Kod produktu: M0520212

Opis

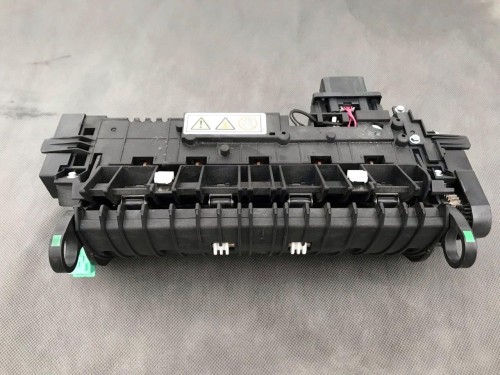

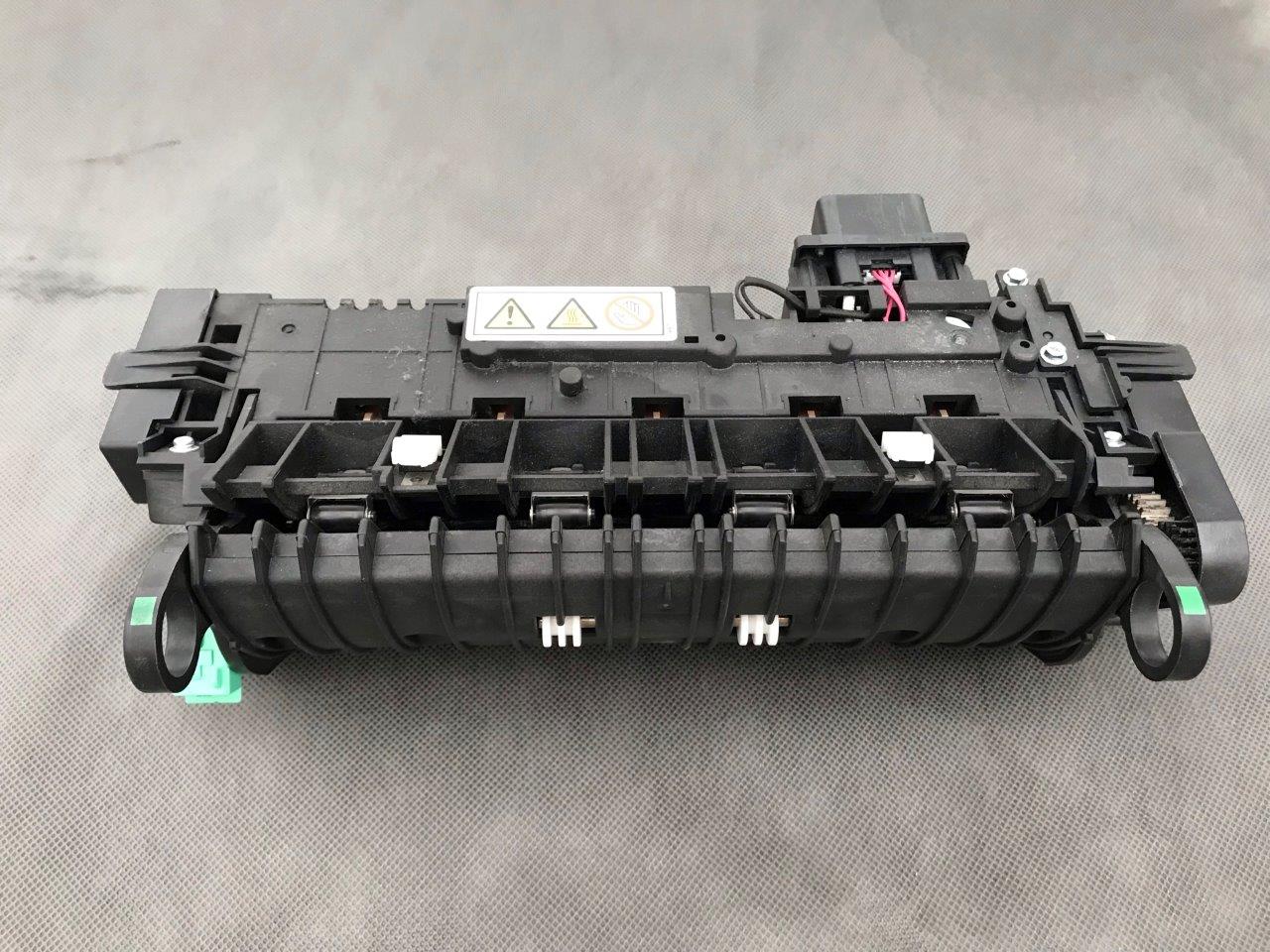

FUSER Unit do drukarki RICOH SP5200s M0520212 220v

Zawiera:

1 G0964638 Exit Roller Supporting Plate 4
2 G8004854 Exit Roller 4
3 G0524639 Exit Roller Holder 4
4 M0524200 Guide:Exit:Fusing 1
5 M0524235 Spring Plate:Fusing Exit:Ass'y 2
6 M0524227 Plate:Harness:Upper 1
7 M0524082 Ground Plate:Fusing 1
8 M0524063 Spring - Fusing Stripper 5
9 G0524624 Hot Roller Stripper 5
10 M0524225 Bracket:Heater:Left 1
11 M0524231 Bracket:Bearing:Fusing:Left 1
12 M0524310 Cover:Fusing:Left 1
13 M0524239 Electrode:Heater 1
14 M0524237 Discharge Brush:Hot Roller 1
15 M0424226 Plate:Harness:Fusing 1
16 M0525442 Drawer:Fusing:120V 1
16 M0525443 Drawer:Fusing:230V 1
17 G1754644 Entrance Guide Plate - Upper 1
18 M0524243 Thermostat:Ass'y 1
19 G1754602 Electrode Plate - Right 1
20 M0524241 Thermistor 1
21 M0524300 Cover:Fusing:Right 1
22 G0964616 Right Heater Bracket 1
23 M0524232 Bracket:Bearing:Fusing:Right 1
24 AE032027 Thermal Insulating Bushing 2
25 G0524618 Bearing 30x42x7 2
26 M0524101 Hot Roller 1
27 M0524102 Gear:Hot Roller 1
28 M0524236 End Ring:Hot Roller 2
29 M0524115 Heater:1025W:120V:QIRF 1
29 M0524116 Heater:1025W:220V:QIRF 1
30 M0524080 Upper Frame:Fuser 1
31 M0524302 Heat Shrinkable Tube:Stripper Pawls 10

1 M0524618 Driven Roller:Duplex:Drive 1
2 M0214619 Compression Spring:2N 2
3 D0104313 Bushing:MM4 2
4 M0524071 Frame:Pressure 1
5 M0524059 Pressure Roller 1
6 A2323553 Ball Bearing - 8x16x5 1
7 AA082073 Roller Busing 2
8 M0524202 Cleaning Roller:Ass'y 1
9 M0524224 Compression Spring:Cleaning Roller:Fusing 2
10 M0524066 Exit Roller:Fusing 1
11 M0524053 Discharge Brush:Pressure 1
12 M0524052 Ground Plate:Pressure 1
13 M0524182 Left Pressure Lever 1
14 M0524183 Right Pressure Lever 1
15 M0524062 Pressure Spring - Fusing 2
16 M0524061 Lever:Pressure 2
17 M0524070 Gear:28T:Fusing:Exit 2
18 M0524228 Gear:Exit Roller 1
19 M0524055 Shaft:Pressure 1
20 G1754681 Fusing Entrance Guide Plate 1
21 AA082118 Bushing - 6mm 2
22 M0524301 Decal:Bar Code Label:Fuser 1
23 M0524050 Pressure Frame:Upper 1

Element używany. Stan jak na zdjęciach.
Sprawdzony. Pomimo zużytych wałków działa i nie generuje błędów.
LOK:K122
