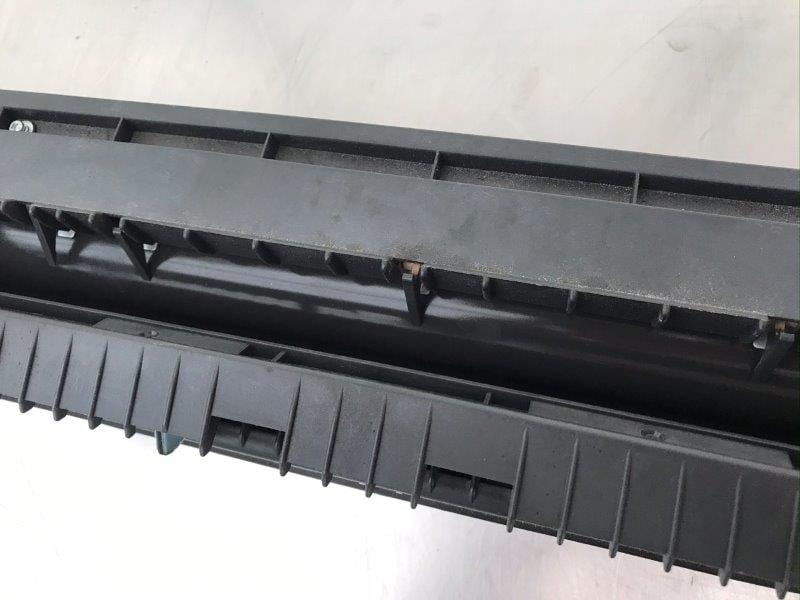

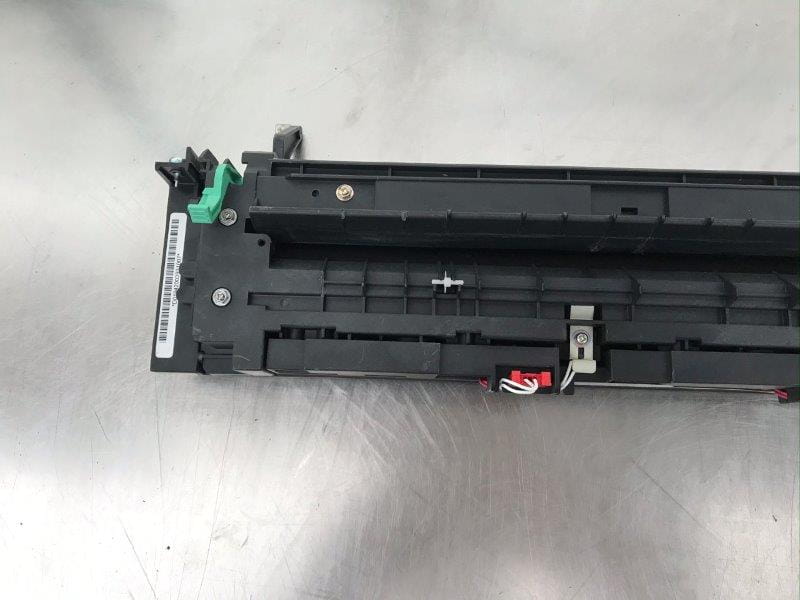

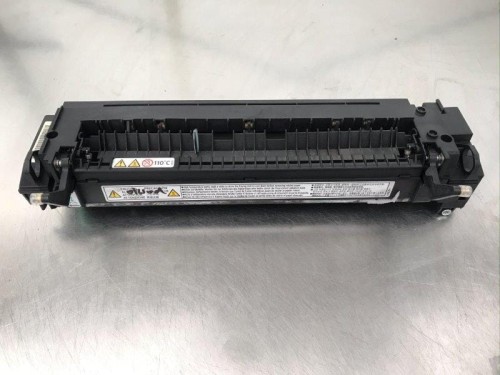

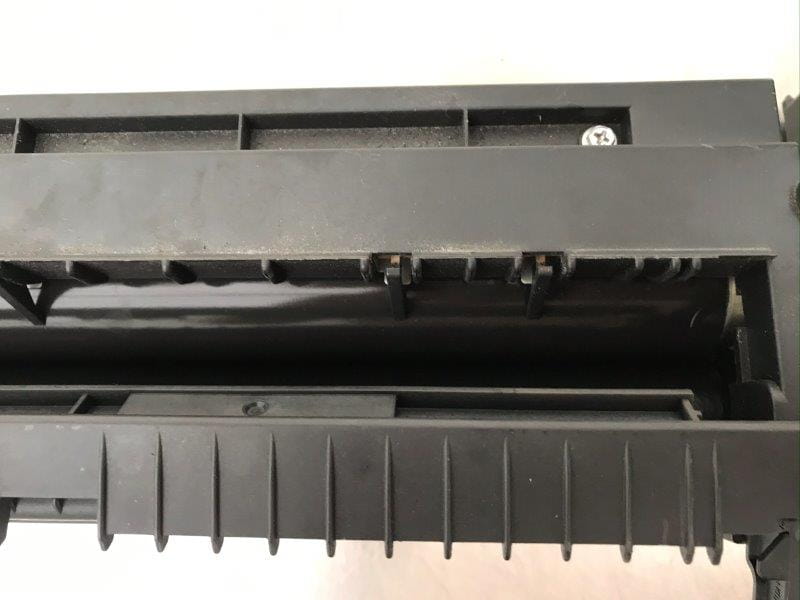

FUSER Unit RICOH MP2553 MP3053 MP3353 D1204002 220v

FUSER Unit RICOH MP2553 MP3053 MP3353 MP2352 MP2852 MP3352 D1204002 220v

Zespół grzejny do kopiarek Ricoh po regeneracji.

Zainstalowano nowe elementy:

wałek grzejny

wałek dociskowy

łożyska wałka grzejnego

łożyska wałka dociskowego

termistory dwie sztuki

nowy biały smar Beretta pod łożyska

separatory

sprężynki separatorów

Element zawiera:

1 D1204032 FRAME:FUSING:UPPER:ASS'Y 1 104 08046127 HEXAGONAL BOLT:DOUBLE SCREW:M3X8
2 D1204181 DECAL:GRIP:GUIDE PLATE:FUSING EXIT 1 105 08025320 HEXAGON HEAD TAPPING SCREW:ES:3X10
3 AA066418 SPRING:OPEN AND CLOSE:GUIDE 2 106 07200030E RETAINING RINGS-E:3
4 AE044025 PICKOFF PAWL:FUSING 5
5 AA063697 COMPRESSION SPRING:STRIPPER PAWLS 5
6 AA066412 TENSION SPRING:PRESSURE:34.2N 2
7 D1204101 BRACKET:STRIPPER PAWLS 1
8 D1205274 HARNESS:DRAWER:FUSING:120V:NA (for NA/TWN) 1
8 D1205275 HARNESS:DRAWER:FUSING:230V:EU (for EU/AA/CHN/KOR) 1
9 AX440352 HEATER:120V:MAIN (for NA) 1
9 AX440354 HEATER:230V:MAIN (for EU/AA/CHN/KOR) 1
9 AX440356 HEATER:110V:MAIN (for TWN) 1
10 AX440353 HEATER:120V:SUB (for NA) 1
10 AX440355 HEATER:230V:SUB (for EU/AA/CHN/KOR) 1
10 AX440357 HEATER:110V:SUB (for TWN) 1
11 D1204090 TERMINAL:HEATER 2
12 AB011400 GEAR:HOT ROLLER 1
13 G0524618 BALL BEARING:30X42X7 2
14 AE011128 HOT ROLLER:DIA40:T0.4 1
15 AE020161 PRESSURE ROLLER:MM27 1
16 AA063698 SPRING:FLANGE:PRESSURE ROLLER 1
17 AE030030 BALL BEARING:8*19*6 2
18 D1204161 KNOB SCREW:FIX:FUSING 2
19 D1204077 GUIDE:HARNESS:PLATE 1
20 D1204071 STOPPER:EXTERNAL CIRCLIP 1
21 AA143219 STEPPED SCREW 2
22 D1204184 DECAL:H-TEMP WARNING:SMALL 1
23 A2322374 GUIDE:PAPER:RAIL:PCU 2

1 D1204197 LEVER:LOCK:PRESSURE 2 34 AA143792 SCREW:DRAWER 2
2 D1204121 SIDE PLATE:FUSING:FRONT 1
3 D1204171 LEVER:PRESSURE RELEASE:FRONT:ASS'Y 1
4 D1204116 LEVER:PRESSURE ROLLER:FRONT:PEEN 1
5 D1204112 GRIP:PRESSURE:CHANGE 1
6 D1204191 LEVER:PRESSURE RELEASE:REAR:ASS'Y 1
7 D1204117 LEVER:PRESSURE ROLLER:REAR:PEEN 1
8 AA140794 SHAFT:PRESSURE:CHANGE 1
9 D1204093 ELECTRODE PLATE:THERMOSTAT:REAR 1
10 D1204092 ELECTRODE PLATE:THERMOSTAT:CONNECTING 1
11 D1204095 THERMOSTAT:ASS'Y 2
12 D1204094 HOUSING:THERMOSTAT 2
13 D1204079 SHEET:PLATE:HARNESS 1
14 AE042029 FUSING CLEANING ROLLER 1
15 AA082073 PLAIN SHAFT BEARING:FUSING CLEANING ROLLER 2
16 AA063699 COMPRESSION SPRING:FUSING CLEANING ROLLER:5N 2
17 D1204125 SIDE PLATE:FUSING:REAR 1
18 D1204082 LINK:RELEASE:DRIVE 1
19 D1204083 LEVER:RELEASE:DRIVE 1
20 AA066411 SPRING:RELEASE:DRIVE 1
21 D1204078 COVER:THERMOSTAT 1
22 D1204080 SHEET:THERMOSTAT 1
23 D1204072 FRAME:FUSING:LOWER 1
24 D1204183 DECAL:H-TEMP WARNING (for NA/TWN) 1
24 D1204187 DECAL:H-TEMP WARNING:EU (for EU/AA/CHN/KOR) 1
25 D1204086 GROUND PLATE:FUSING ENTRANCE GUIDE PLATE 1
26 D1204085 FUSING ENTRANCE GUIDE PLATE:RIGHT 1
27 AW100053 THERMISTOR:FUSING:INNER BACK 2
28 D1204099 HOLDER:THERMISTOR 2 101 03603006N SCREW:M3X6
29 D1204076 SPACER:SAFETY SWITCH:FUSING UNIT 1 102 08046127 HEXAGONAL BOLT:DOUBLE SCREW:M3X8
30 D1204208 PLAIN SHAFT BEARING:FUSING 2 103 11026260 CONNECTOR:3P
31 D1204091 ELECTRODE PLATE:THERMOSTAT:FRONT 1 104 09543012N SCREW:POLISHED ROUND/SPRING:M3X12
32 D1204182 DECAL:EXCHANGE INDICATION:ENVELOPE 1 105 08025320 HEXAGON HEAD TAPPING SCREW:ES:3X10
33 B2384194 ROLLER:LEVER:PRESSURE 2

LOK:REGHx1
