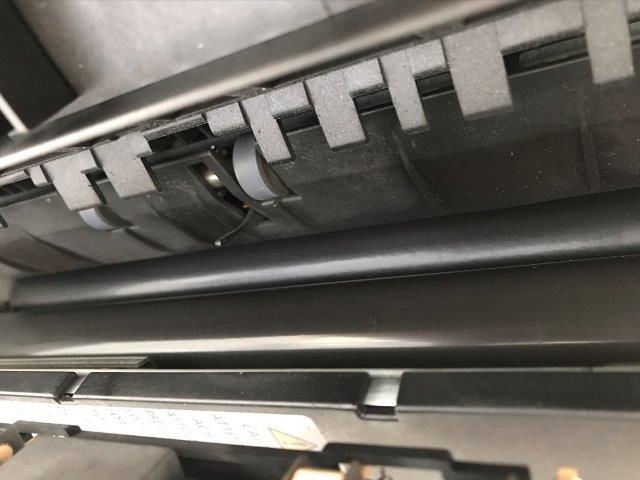

FUSING UNIT RICOH MP6001 MP7001 MP8001 MP9001 230v AE011117

FUSING UNIT RICOH MP6001 MP7001 MP8001 MP9001 230v AE011117 z maszyny MP7001

zawiera:

Fusing Unit 1
* D0624098 Cleaning Unit: Hot Roller: Ass'y ♦ 1
* D0664202 Cleaning Unit: Hot Roller: C4: E: Ass'y ♣ 1
1 B2464266 Inner Cover ♦ 1
1 G1484365 Inner Cover: Fusing/Paper Exit Unit ♣ 1
2 B0654481 Decal - Exit 1
3 B0654274 Decal - Misfeed Removal 1
4 B0654255 Insulator 1
5 B0654167 Decal - Fusing Knob 1
6 AG050098 Knob: Fusing 1
7 B0654231 Web Cover 1
8 B0654232 Feeler Guard Bracket 1
9 B0654247 Brake Pad 1
10 B1404190 Brake Spring Plate ♦ 1
10 B0654246 Spring Plate ♣ 1
11 AX040180 DC Motor: Cleaning 1
12 B0654225 Motor Plate Bracket 1
13 B2474188 Bracket: Drive: Ass'y ♦ 1
13 G1484226 Bracket: Drive ♣ 1
14 B0654222 Gear - 37Z 5
15 B0654241 Gear 1
16 B0654223 Motor Gear 1
17 B0654238 Gear - 50Z 1
18 D0624236 Bushing - 6mm 4
19 AW020145 Photointerruptor: Flat 1
20 B0654248 Web Harness 1
21 B2474235 Gear: Idler: Cleaning Unit ♦ 1
21 B0654235 Web Idle Gear ♣ 1
22 B0654234 Stopper Gear ♣ 2
22 B2474234 Gear: Stopper: Oil Supply Roller ♦ 1
23 AA063851 Pressure Spring 1
24 B0654221 Feeler Spring 1
25 B1404195 Feeler: Oil End Sensor ♦ 1
25 B0654219 Web End Feeler ♣ 1
26 B0654251 Positioning Plate - Web Unit ♣ 1
26 B1404187 Cleaning Unit Drive Positioning Plate ♦ 1
27 B0654244 Gear - 23Z ♣ 1
27 B2474244 Gear: Z23: Oil Supply Roller ♦ 1
28 B2474242 Shaft: Drive: Rolling: Ass'y 1
29 B2474239 Shaft: Drive: Oil Supply Roller: Ass'y 1
30 AE045067 Roller: Cleaning Felt: 32m: Ass'y ♦ 1
30 AE045068 Roller: Cleaning Felt: 28m: Ass'y ♣ 1
31 D0624207 Web Shaft 2
32 B1404193 Cleaning Unit Cover 1
32 B0654217 Web Bracket 1
33 D0624191 Front Oil Supply Bushing ♦ 1
33 D0624226 Bushing - Oil Supply Roller ♣ 1
34 D0624192 Inner Back: Oil Supply Bushing ♦ 1
34 B0654210 Rear Bushing - Oil Supply Roller ♣ 1
35 AA063886 Spring 2
36 AE044068 Pressure Roller: Cleaning Felt ♦ 1
36 AE040038 Cleaning Web Pressure Roller ♣ 1
37 B0654211 Pressure Roller Gear 1
38 B1404209 Bracket: Stopper: Ass'y 1
Fusing Unit 2
* D0624586 Fusing Unit: M-C4: 120V: Ass'y ♦ 1
* D0624585 Fusing Unit: M-C4: 230V: Ass'y (EU) 1
* D0664016 Fusing Unit: EXP: E: Ass'y ♣ 1
1 B2474080 Stripper Pawls: Open And Close: Ass'y ♦ 1
1 D0664080 Stripper Pawls: Open And Close: Ass'y ♣ 1
2 B0654398 Slider Cover 1
3 AA143810 Development Cover Screw 2
4 AA060539 Stripper Pawl Spring 4
5 AA060916 Slider Spring 1
6 B2474247 Screw: Slider 2
7 B0654397 Release Slider 1
8 B0654188 Front Lock Pawl 1
9 B0654189 Rear Lock Pawl 1
10 B0654184 Stripper Pawls Grip 1
11 AA080274 Bushing 2
12 B1404240 Bracket: Gde Plate: Fuse Exit: Upper: Ass'y ♦ 1
12 D0664291 Bracket: Gde Plate: Fuse Exit: Upper: Ass'y ♣ 1
13 B1404141 Fusing Exit Roller Holder ♦ 2
13 A0964319 Exit Roller Holder ♣ 2
14 AF040629 Roller: Fusing Exit: Upper 2
15 AE044060 Stripper Pawls 5
16 D1314117 Fusing Cover: Upper: Ass'y ♦ 1
16 D0664117 Fusing Cover: Upper: Ass'y ♣ 1
17 B1404113 Bracket: Cover: Connector: Ass'y 1
18 D0624174 Grip: Fusing Unit: Front: Ass'y 1
19 B0654390 Fusing Exit Guide Plate ♣ 1
19 B1404234 Upper Fusing Exit Guide Plate ♦ 1
20 B0654138 Side Plate Cover 1
21 B0654116 Lower Fusing Cover ♣ 1
21 B1404203 Lower Fusing Cover ♦ 1
22 D0624131 Fusing Entrance Guide Plate: NA: Ass'y ♦ 1
22 D0624135 Fusing Entrance Guide Plate: EU: Ass'y ♦ 1
22 B0654135 Lower Fusing Entrance Plate - 240V ♣ 1
23 B2474083 Shaft: Release: Stripper Pawls 1
24 AA066352 Spring 1
101 03604006N Screw - M4x6
102 09544008N Screw - M4x8
103 07200030E Retaining Ring - M3
Fusing Unit 3
1 AE011117 Hot Roller: MM40 1
2 B2474149 Harness - Front 1
3 B0654151 Rear Harness 1
4 B1104223 Electrode Plate: Thermostat: Coupling 1
5 B1404169 Thermostat Electrode Plate 1
6 AW110066 Thermostat- 211C 1
7 AW110064 Thermostat-192C 2
8 B2474128 Housing: Thermostat: EXP 1
9 B1404145 Bracket: Thermostat 1
10 D0624197 Bracket: Thermistor: Middle [TSB#002R] 1
11 D0624196 Bracket: Thermistor: Inner Back [TSB#002R] 1
12 AW100131 Thermistor: Fusing: Middle [TSB#002R] 1
13 AW100132 Thermistor: Fusing: Inner Back [TSB#002R] 1
14 B1404179 Plate: Thermistor 2
15 AA060894 Spring 1
16 B0654185 Exit Plate 1
17 B2474142 Upper Stay 1
18 B1404171 Front Heater Holder 1
19 B1404170 Rear Heater Holder 1
20 A4131670 Antistatic Brush 1
21 D0544172 Retaining Rings-C: Hot Roller [TSB#003] 2
22 AE032033 Thermal Insulating Bushing: DIA34 [TSB#003] 2
23 AE030054 Ball Bearing - 40x52x7 2
24 AB012062 Gear: Hot Roller 1
25 A2474249 Connector - 3P 1
26 B1404159 Harness Plate 1
27 B1404157 Drawer Bracket Ass'y 1
28 B1404167 Connector Cover Bracket 1
29 B1404164 Harness: Fusing Unit: EU 1
30 AX440306 Heater: 230V: 550W 1
31 AX440307 Heater: 230V: 650W 1
32 AE020209 Pressure Roller: DIA40 1
33 AE030053 Ball Bearing - 8x19x6
Fusing Unit 4
1 B0654150 Front Harness 1
2 B0654151 Rear Harness 1
3 D0664223 Electrode Plate: Thermostat 1
4 AW110083 Thermostat: 193C 1
5 AW110082 Thermostat: 190C 1
6 D0664221 Housing: Thermostat 1
7 B1104231 Bracket: Thermistor: Inner Back 1
8 B0654132 Middle Thermistor Cover 1
9 AW100084 Middle Thermistor 1
10 B0654130 Thermostat Housing - Middle 1
11 D0664211 Stay: Fusing: Upper: Ass'y 1
12 B0654124 Front Heater Holder 1
13 B0654170 Rear Heater Holder 1
14 A4131670 Antistatic Brush 1
15 AE032014 Bushing - 30x35x13.5 2
16 AE030017 Ball Bearing - 35x50x10 2
17 AB012316 Fusing Gear 1
18 B0654159 Harness Holder 1
19 B0654157 Connector Bracket 1
20 B1404162 Harness: Fusing Unit: NA 1
20 B1404164 Harness: Fusing Unit: EU 1
20 D0664156 Harness: Fusing Unit: EXP 1
21 AE011044 Hot Roller 1
22 AX440285 Heater: 220V: 600W 1
23 AX440301 Heater: 220V: 700W 1
24 B0654180 Spacer - 16mm 2
25 AE030018 Ball Bearing - 12x28x8 2
26 AE020178 Pressure Roller: DIA50 1
27 AA140823 Pressure Roller Shaft 1
28 A2474249 Connector - 3P 1
29 AA060894 Spring 1
30 AW100076 Thermistor: Inner Back
Fusing Unit 5
1 AF040055 Fusing Exit Roller 1
2 AB019479 Gear: Fusing Exit 1
3 B1404198 Fusing Cleaning Roller Bracket 1
4 B1404200 Pressure Cleaning Roller Spring 2
5 AE031026 Bushing - Oil Supply Roller 1
6 AE042066 Fusing Cleaning Roller 1
7 B0654129 Sheet: Fiber: Side Plate 1
8 AB012318 Idler Gear 1
9 AB012317 Fusing Drive Gear 1
10 B2474323 Lever: Front: Ass'y 1
11 B2474231 Lever: Rear: Ass'y 1
12 AE030055 Ball Bearing - 6x15x5 2
13 B1404320 Sensor Feeler 1
14 AA082101 Bushing - 6x10x6 1
15 B2474264 Gear: Pressure 1
16 B1404256 Pressure Release Eccentric Cam 2
17 AE030056 Ball Bearing - 8x16x5 2
18 B1404498 Harness - Positioning Sensor 1
19 AW020160 Paper Feed Sensor 1
20 B1404258 Sensor Bracket Ass'y 1
21 B2474131 Lever: Release: Front: Ass'y 1
22 B2474147 Lever: Release: Pressure: Rear: Ass'y 1
23 AA060946 Pressure Tension Spring 2
24 B0654139 Switch Holder 1
25 B0654141 Spring Plate - Switch 1
26 AW200010 Paper Feed Sensor 1
27 AA143810 Development Cover Screw 1
28 B1404140 Lower Fusing Exit Guide 1
29 B0654114 Left Stay 1
30 D0544254 Shaft: Turn 1
31 B1404112 Right Fusing Stay 1
32 B1404205 Pressure Oil Supply Roller Bracket 1
Fusing Unit 6
1 AF040055 Fusing Exit Roller 1
2 AB019479 Gear: Fusing Exit 1
3 B0654160 Cleaning Roller Guide Plate 1
4 B0654161 Left Support Bracket 1
5 B0654164 Right Support Bracket 1
6 AE031024 Bushing - M4x7 2
7 AE042052 Cleaning Roller 1
8 B0654129 Sheet: Fiber: Side Plate 1
9 AB012318 Idler Gear 1
10 AB012317 Fusing Drive Gear 1
11 B0654177 Front Pressure Lever 1
12 B0654178 Rear Pressure Lever 1
13 B2474131 Lever: Release: Front: Ass'y 1
14 B2474147 Lever: Release: Pressure: Rear: Ass'y 1
15 AA060893 Spring 2
16 B0654139 Switch Holder 1
17 B0654141 Spring Plate - Switch 1
18 AW200010 Paper Feed Sensor 1
19 B0654140 Lower Guide Plate - Exit 1
20 AA143810 Development Cover Screw 1
21 B0654114 Left Stay 1
22 B0654112 Right Stay 1

Element używany, przebieg kopiarki 1.350.000 kopii

LOK:R2/4x1
