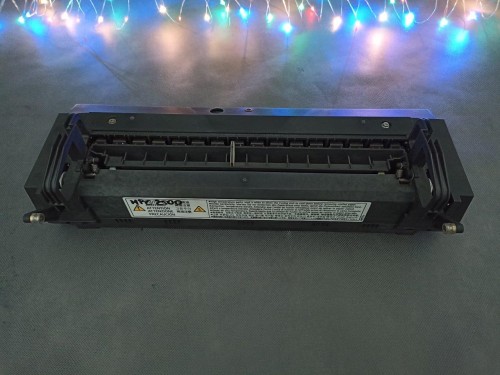

Fuser Unit RICOH MPC2000 MPC2500 MPC3000 B2374063 B2374064 B2374054

Fuser Unit RICOH MPC2000 MPC2500 MPC3000 FUSMPC2500 B2374063 B2374064 B2374054 Fusing Unit piec grzejnik do kopiarek:

Ricoh Aficio MPC2000 MPC2500SPF MPC3000 MPC3000SPF
Gestetner DSC520 DSC525 DSC525SPF DSC530 DSC530SPF MPC2000 MPC2500 MPC3000
Lanier LD420C LD425C LD425CSPF LD430C LD430CSPF
Nashuatec MPC2000 MPC2500 MPC3000

Zespół zawiera wszystkie elementy:

B2374054 B237-4054 Fusing Unit: EU: Maintenance 1
AX440255 AX44-0255 Heater - 213V 700W/500W 1 lampa grzejna
AX430174 AX43-0174 Heater - 213V 250W 1 lampa grzejna
B2384331 B238-4331 Fusing Cover: Upper 1
B2384335 B238-4335 Decal: Warning (High Temperature): FU 1
B2384281 B238-4281 Guide Plate: Fusing Exit 1
AA060989 AA06-0989 Spring: Fusing Exit: Pressure 2
B2384211 B238-4211 Stay: Fusing: Right: Peen 1
AE031061 AE03-1061 Front Bushing - Oil Supply Roller 1
AE040069 AE04-0069 Oil Supply Roller 1
AE040066 AE04-0066 Cleaning Roller - Oil Supply Roller 1
AA063953 AA06-3953 Compression Spring: Oil Supply Roller 2
B2384232 B238-4232 Bracket: Heater: Fusing: Rear 1
B2384254 B238-4254 Bracket: Frame: Rear: Peen 1
B2384257 B238-4257 Positioning Plate: Rear 1
B2384243 B238-4243 Bracket: Heater: Pressure: Rear 1
AA060990 AA06-0990 Spring: Pressure: 50n 2
B2384197 B238-4197 Lever: Lock: Pressure 2
B2384195 B238-4195 Lever: Pressure: Rear: Peen 1
B2384191 B238-4191 Lever: Pressure Release: Rear 1
B2384166 B238-4166 End Ring: Spring: Dia4 2
B2384194 B238-4194 Roller: Lever: Pressure 2
AA143792 AA14-3792 Screw: Drawer 2
B2384483 B238-4483 Screw 2
B2384175 B238-4175 Lever: Pressure: Front: Peen 1
B2384171 B238-4171 Lever: Pressure Release: Front 1
B2384241 B238-4241 Bracket: Heater: Pressure: Front 1
B2384231 B238-4231 Bracket: Heater: Fusing: Front 1
B2384252 B238-4252 Bracket: Frame: Front 1
B2384253 B238-4253 Positioning Plate: Front 1
AE031062 AE03-1062 Rear Bushing - Oil Supply Roller 1
AA143520 AA14-3520 Shoulder Screw - M3 3
B2231545 B223-1545 Sheet: B2: Lever: [TSB#029] 1
AW100105 AW10-0105 Thermistor: Fusing 1
B2384202 B238-4202 Stay: Fusing: Upper 1
B2384070 B238-4070 Fusing Belt 1
AE012030 AE01-2030 Heat Roller: Dia25: Coat [TSB#002] 1
AE010054 AE01-0054 Hot Roller 1
AE040064 AE04-0064 Belt Tension Roller 1
AE032030 AE03-2030 Bushing - 20x25 2
AE030066 AE03-0066 Ball Bearing: Mm25xmm32x7 2
AA066667 AA06-6667 Spring: Stripper Plate: Front 1
B2384291 B238-4291 Stripper Plate: Coat 1
AA066668 AA06-6668 Spring: Stripper Plate: Rear 1
AE031045 AE0-31045 Bushing - Belt Tension Roller 2
AA063952 AA06-3952 Compression Spring: Belt Tensioner 2
AE020156 AE02-0156 Pressure Roller [TSB#002] 1
AB013890 AB01-3890 Gear: Idler: Z14xz23 1
AB014278 AB01-4278 Gear: Idler: Drive 1
AB013722 AB01-3722 Gear: Hot Roller: Roller Clutch: Z22 1
AE030065 AE03-0065 Ball Bearing: Dia12xdia21x7 2
AE030067 AE03-0067 Ball Bearing: Dia17xdia26x5 [TSB#007] 2
B2384315 B238-4315 Electrode Plate:Fusing:Common 1
AW110059 AW1-10059 Thermostat:190 ﾟc 1
AW110058 AW1-10058 Thermostat:177 ﾟc 1
B2384313 B238-4313 Electrode Plate:Thermostat 1
B2384123 B238-4123 Thermostat Housing 2
GB010007 GB01-0007 Gear:Idler:Fusing Unit 1
AB013861 AB01-3861 Gear:Idler:Z14 1
AW100104 AW10-0104 Thermistor 1
B2384111 B238-4111 Thermistor Bracket 1
B2384134 B238-4134 Thermostat Housing 1
AW110055 AW11-0055 Thermostat - 146c/147c 1
B2374307 B237-4307 Harness:Fusing Unit:TWN 1
B2374305 B237-4305 Harness:Fusing Unit:EU 1
B2384271 B238-4271 Fusing Entrance Guide Plate 1
B2384311 B238-4311 Electrode Plate:Fusing:Main 1
B2384312 B238-4312 Electrode Plate:Fusing:Sub 1
B2384316 B238-4316 Electrode Plate:Pressure 1
B2384318 B238-4318 Electrode Plate:Pressure:Thermostat 1
B2384319 B238-4319 Electrode Plate:Pressure:Common 1
B2384314 B238-4314 Electrode Plate:Thermostat:Connecti 1
AA143870 AA14-3870 Stepped Screw 1
GB010011 GB01-0011 Gear:Idler:Z16 1
58942540 5894-2540 Arm Screw 3

LICZNIK: 107.000

Element używany sprzedawany jako zużyty bez gwarancji kompletny dawca części, ale pracował do ostatniej chwili w MPC2500 raz w tygodniu potrafił wywalić kod sc561.

LOK: R1/3x1
