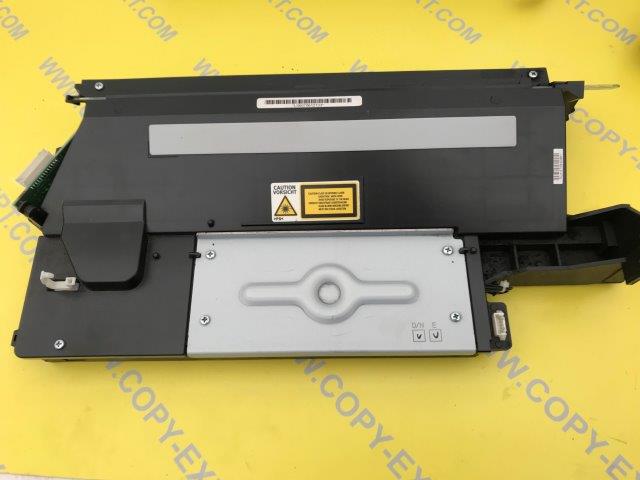

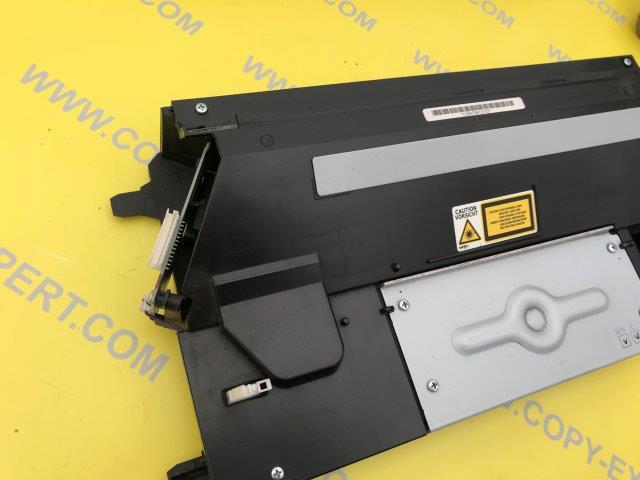

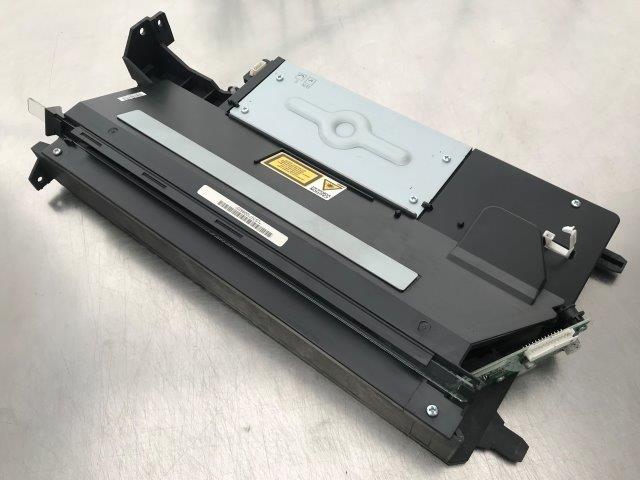

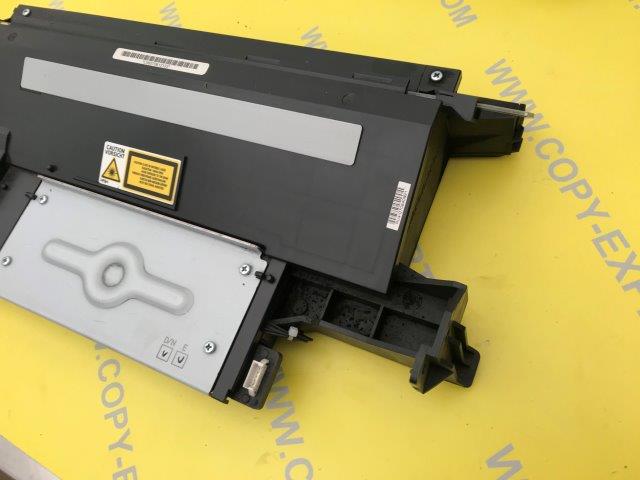

LASER UNIT RICOH AF MP2510 MP3010 3025 3030 B2091903

LASER UNIT RICOH AF MP2510 MP3010 3025 3030 B2091903 B209-1903 kompletny moduł

Gestetner DSm725 DSm730 DSm725e DSm730e
Lanier LD225 LD230 LD325 LD330
Ricoh 3025 3030 MP2510 MP3010
Savin 8025 8030 8025e 8030e

zawiera:

1 B2091903 Imaging Unit [TSB#023] 1
2 G0291980 Decal - LD 1
3 B2061971 Supporting Plate:Cover:Imaging Unit 1
4 B0901917 Cover:Polygon Scanner:Ass'y 1
5 B0901938 Cover:Optical Housing 1
6 A2671942 Mirror Holder 2
7 AC010005 Mirror 1
8 A2671941 Rear Holder - BTL 1
9 A2671944 Plate - Sync.detector Board 1
10 B2095222 Harness:Sync Detector 1
11 B2135320 PCB:Sync Detector:Sharp 1
12 A2321922 Rear Holder - F Theta Mirror 1
13 G0201968 F Theta Mirror 1
14 B2091919 B209-1919 Laser Diode Unit [TSB#023] 1
15 G0201966 Cylindrical Lens 1
16 A2321927 Cylindrical Lens Holder 1
17 G0291975 Cylindrical Lens 1
18 G0201911 Sync Detector Mirror 1
19 A2671933 Mirror Holder - Sync.detector 1
20 A2321921 Front Holder - F Theta Mirror 1
21 G0201969 BTL Lens 1
22 A2671940 Front Holder - BTL 1
23 G0201937 Shield Glass - Polygon Mirror Motor 1
24 A2321916 Collar-polygon Motor 1
25 B2095224 Harness:Polygon Mirror Motor 1
26 B2091898 B209-1898 Polygon Mirror Motor 1
27 B2061977 Shield Glass 1

POLYGON MIRROR MOTOR LASER Ricoh Aficio 3025 3030 MP2510 MP2510P MP2510SP MP2510SPI MP2550 MP2851 MP3010 MP3010P MP3010SP MP3010SPF MP3010SPFI MP3010SPI MP3350 / Gestetner DSM725E DSM725EP DSM725ESP DSM725ESPF DSM725ESPI DSM730E DSM730EP DSM730ESP DSM730ESPF DSM730ESPI / Lanier LD225 LD325 LD325SP LD330 LD330SP B209-1898

Element używany LOK:K55,K94
