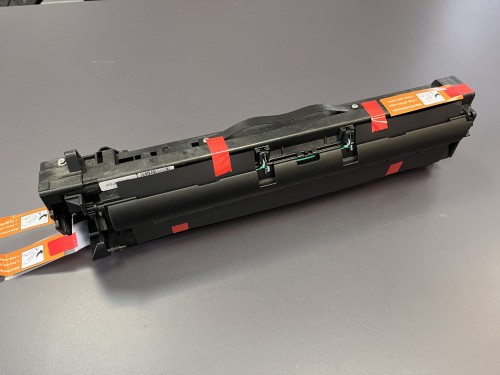

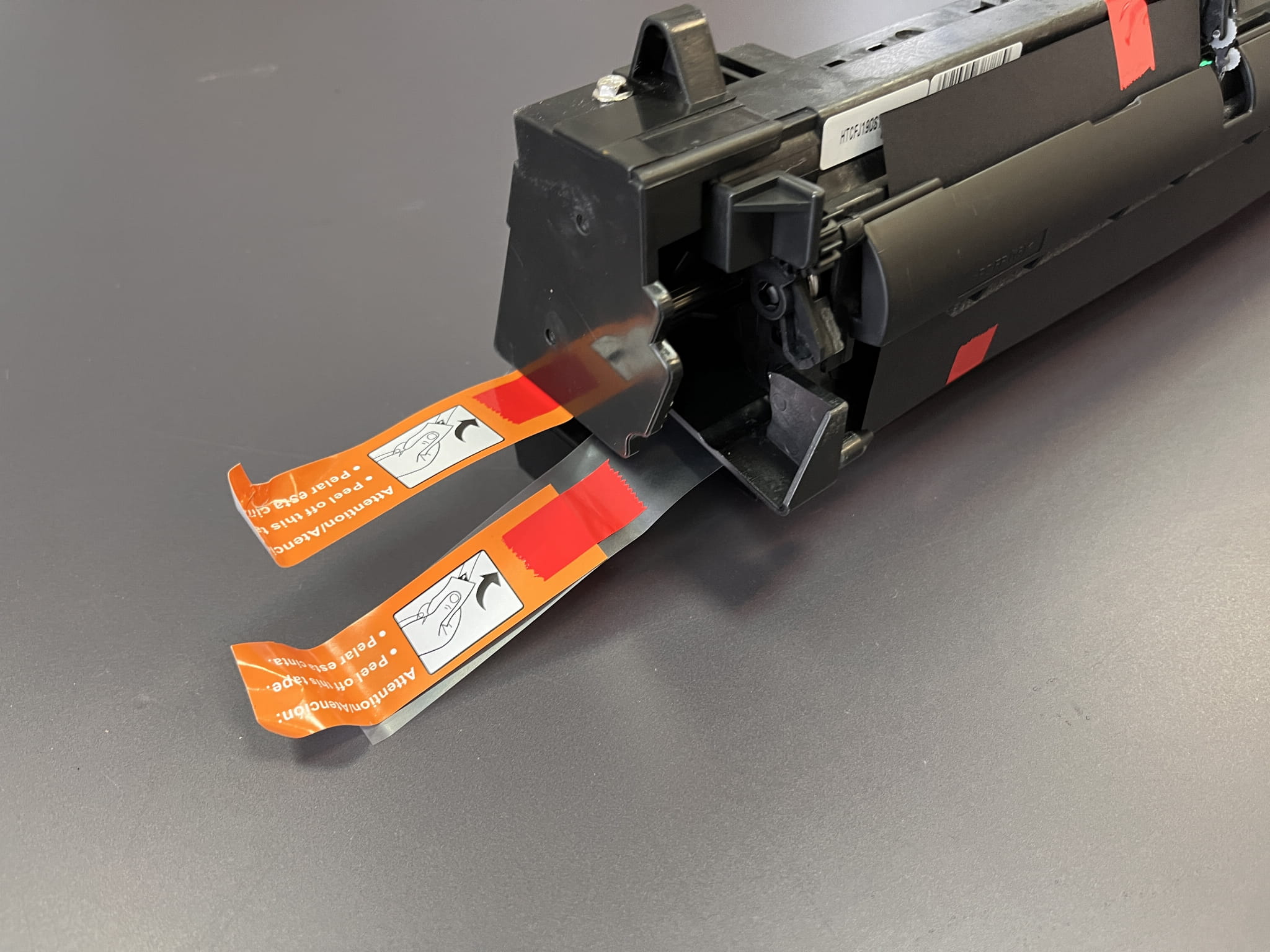

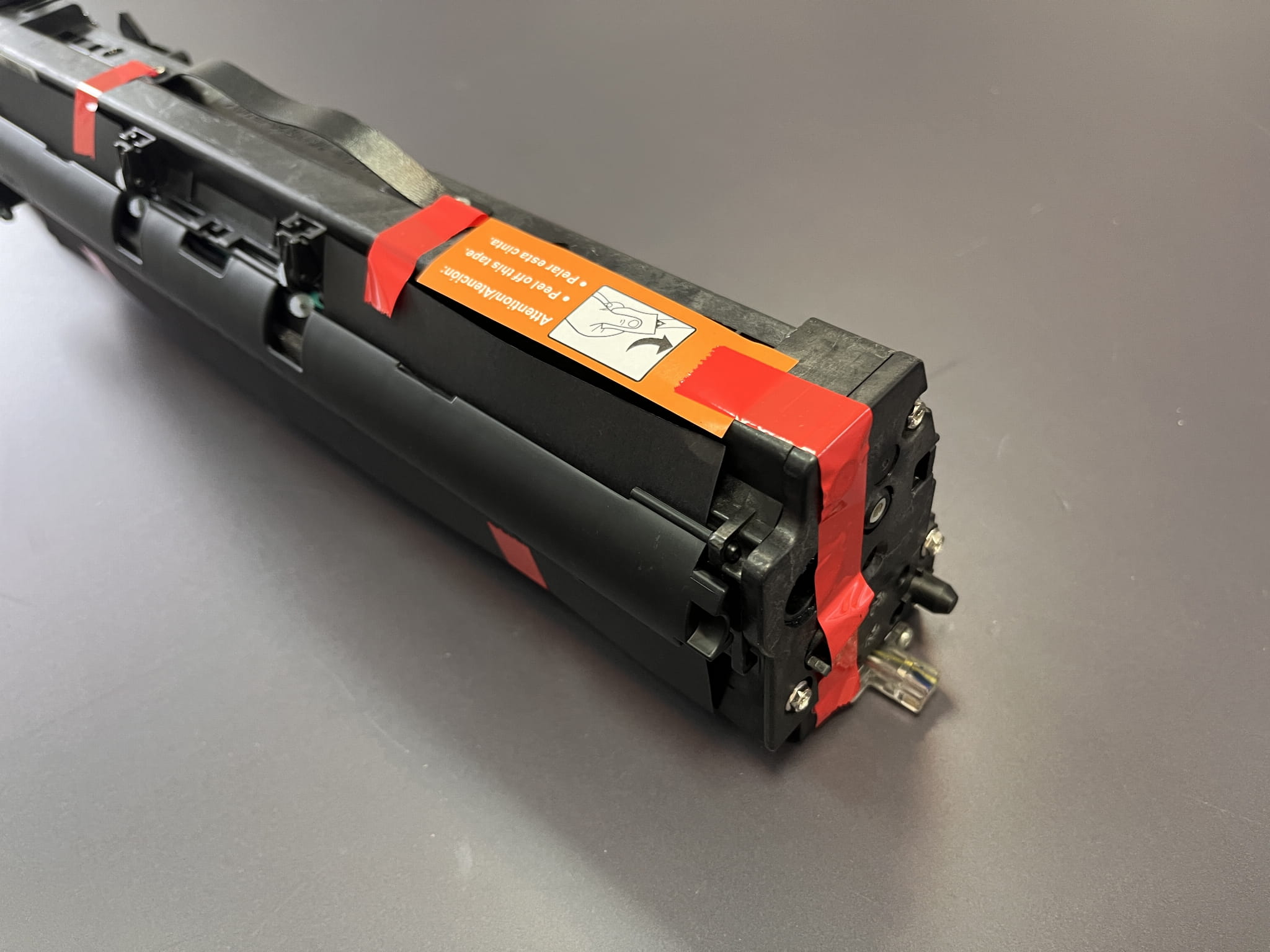

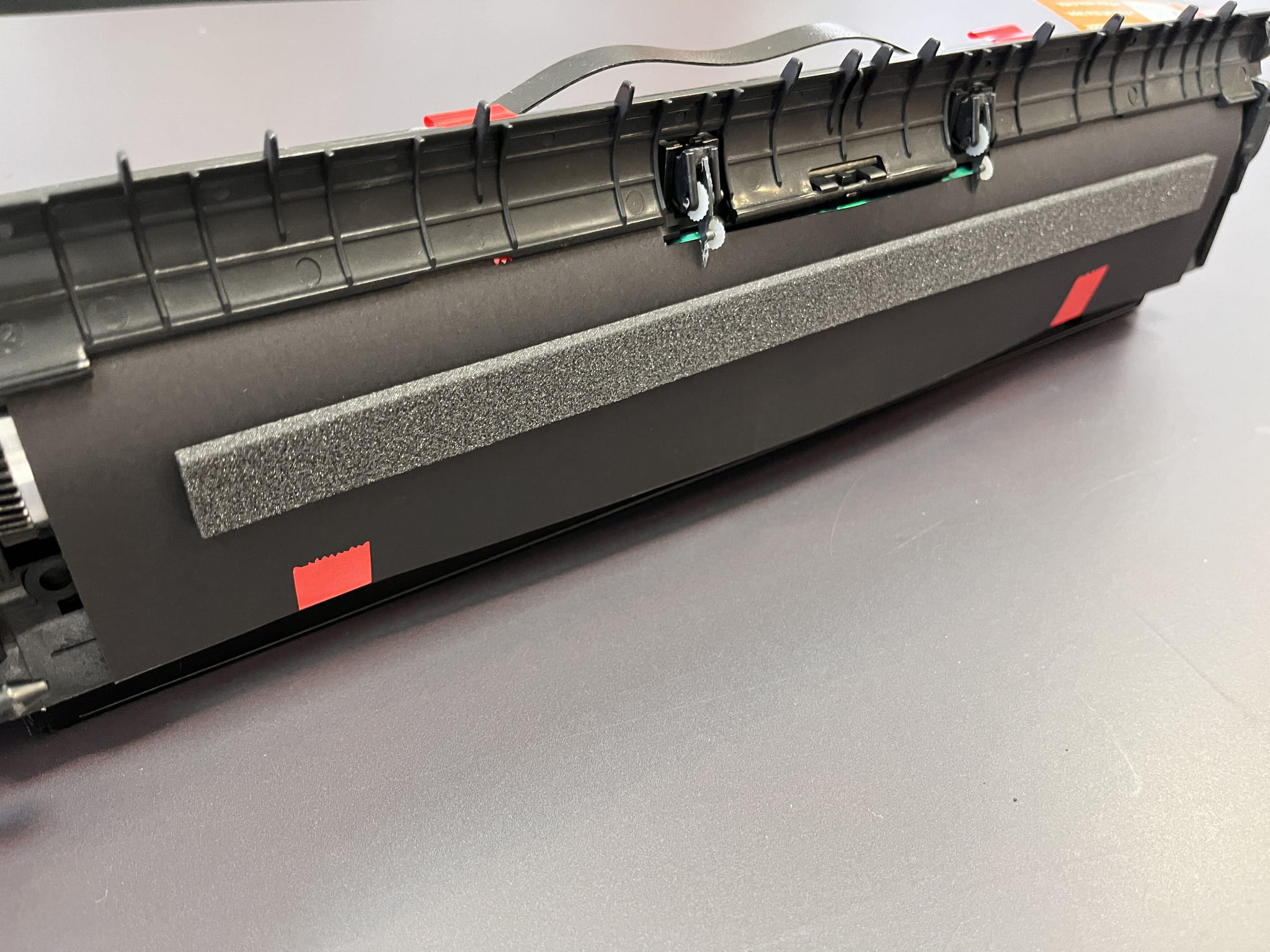

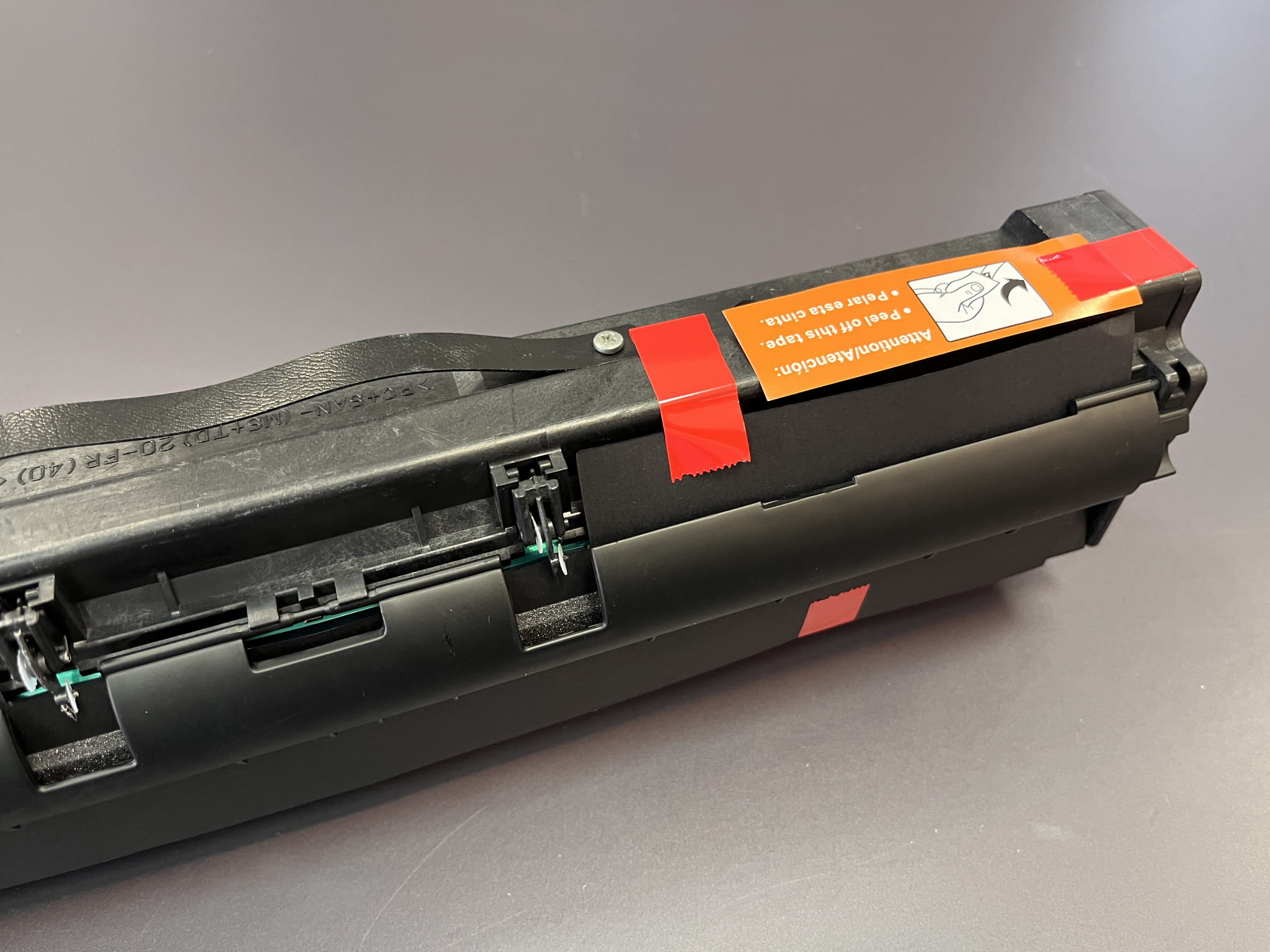

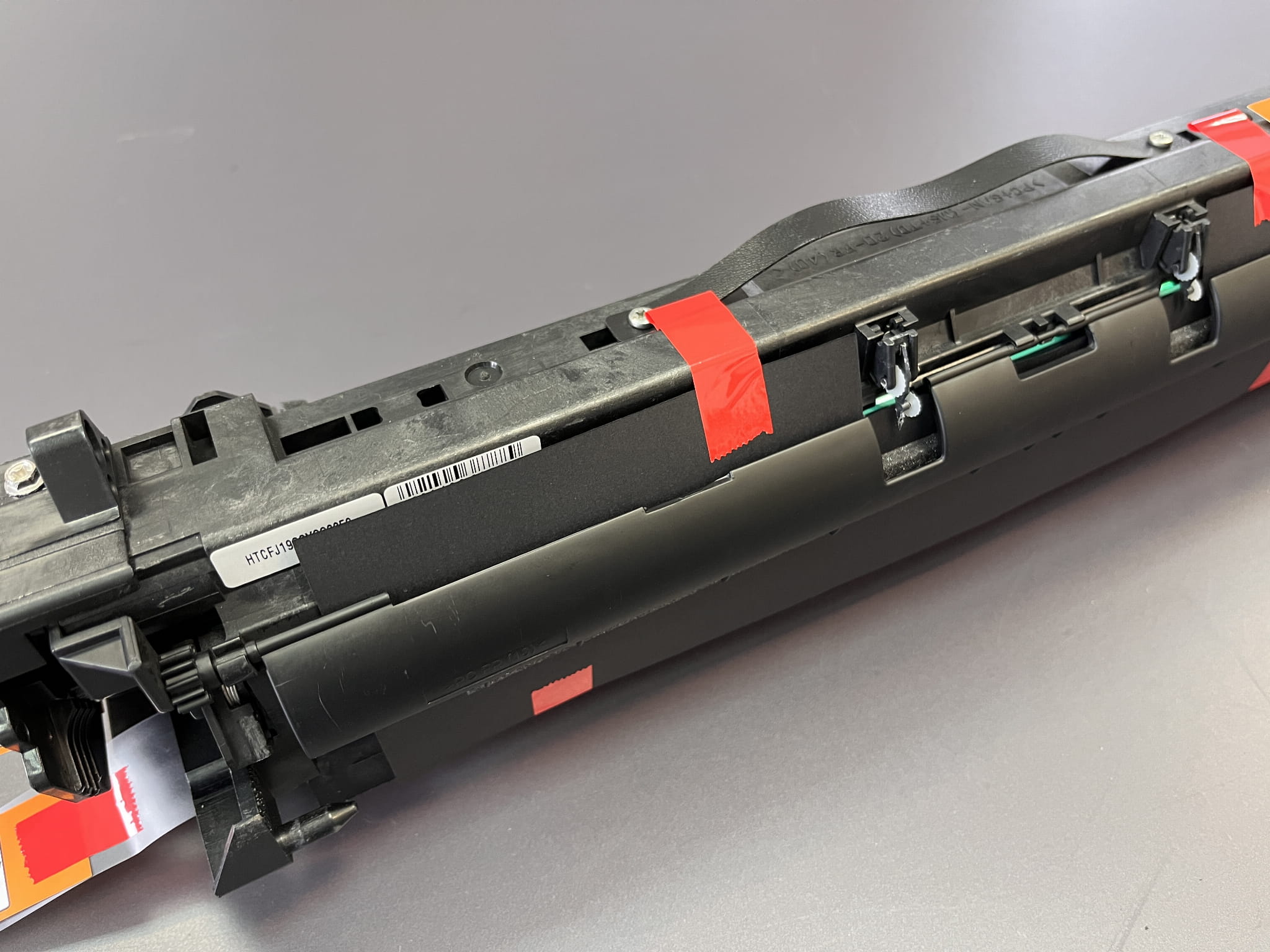

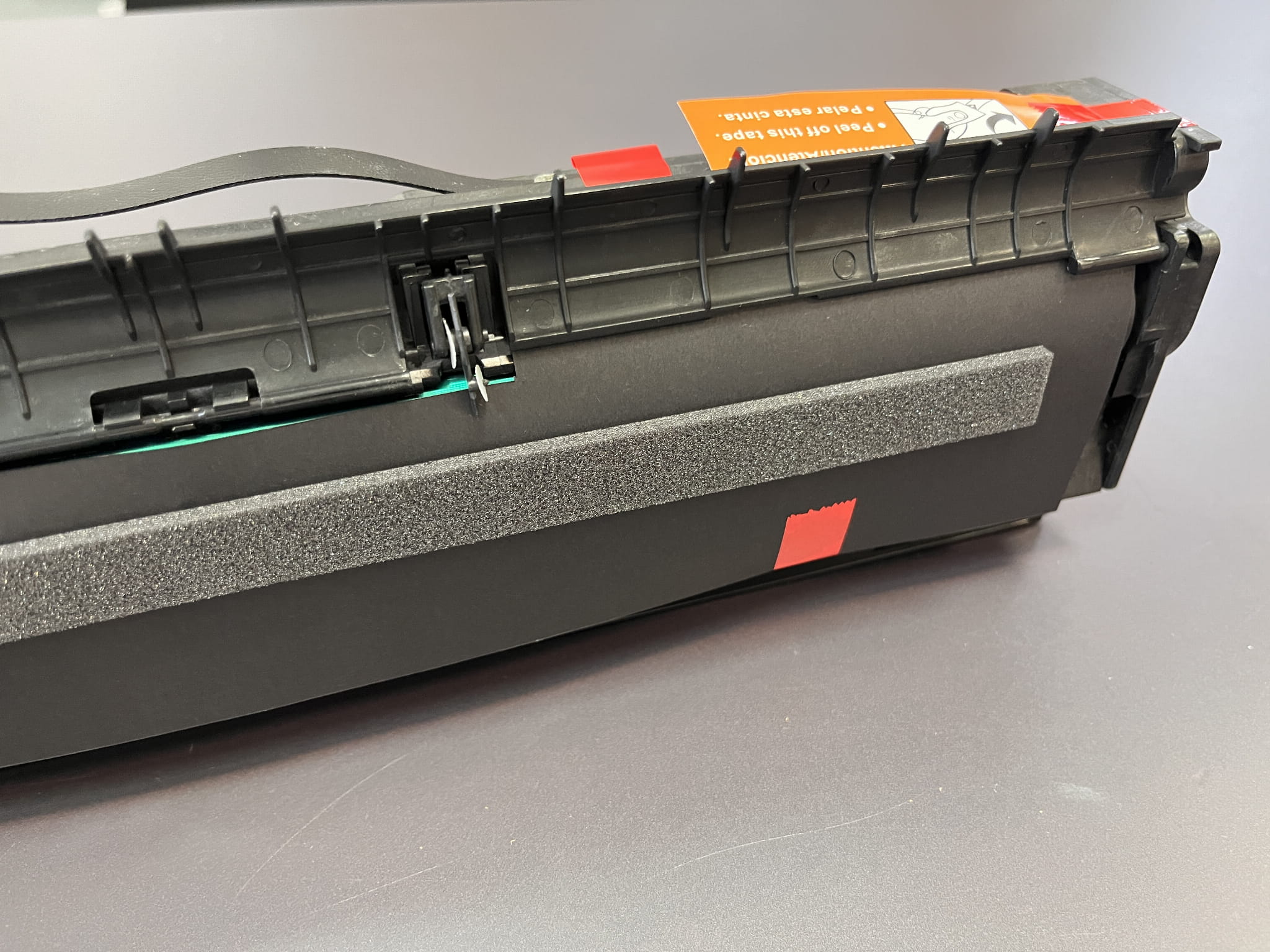

NOWY Bęben UNIT Ricoh Aficio MP2510 MP2550 MP2851 MP3010 MP3350 MP3351 3025 3030 B2050151

Bęben UNIT PCU UNIT produkt kompatybilny fabrycznie nowy

Ricoh Aficio MP2510 MP2550 MP2550B MP2550SP MP2550SPF MP2851 MP3010 MP3350 MP3350B MP3350SP MP3350SPF MP3351SP

Ricoh Aficio 3025 3025P 3025SP 3025SPF 3025SPI 3030 3030P 3030SP 3030SPF 3030SPI

Numery katalogowe: B2050153, B205-0153, B205-0151, B2050151, B209-3001, B2093001

zawiera wszystkie elementy:

* B2050151 B205-0151 PCU Unit 1
1 B0392335 B039-2335 Pickoff Pawl 2
2 AD041114 AD04-1114 Blade:Cleaning 1
3 AA143444 AA14-3444 Stepped Screw 1
4 AD027018 AD02-7018 Roller:Charge:A3 1
5 AD042058 AD04-2058 Charge Cleaner Brush Roller 1
6 B0392287 B039-2287 Charge Roller Spring 2
7 B0392292 B039-2292 Front Pressure Arm - Charge Roller 1
8 B0392293 B039-2293 Pin - Front Pressure Arm 1
9 B2093174 B209-3174 Arm:Pressure:Charge:Rear 1
10 B2093175 B209-3175 Electrode Plate:Roller:Charge:Ass'y 1
11 B0392350 B039-2350 Clip - OPC DRUM 1
12 B2093440 B209-3440 Joint:Development 1
13 B0399510 B039-9510 OPC Drum 1
14 B2093320 B209-3320 Development Roller Assembly 1
15 B0393062 B039-3062 Idler Gear 1
16 B0393060 B039-3060 Development Roller Gear 1
17 B2093370 B209-3370 Development Case 1
18 B2093196 B209-3196 Shield:Toner Supply:Entrance 1
19 B2093198 B209-3198 Shield:Toner Supply:Entrance:Rear [TSB#014] 1
20 AA152297 AA15-2297 Shield:Toner Supply:Entrance:Front [TSB#014] 1
21 B2093360 B209-3360 Development Roller Case [TSB#014] 1
22 B2093231 B209-3231 Drum Stay: Front 1
23 B2093192 B209-3192 Drum Stay: Rear 1

100% nowy zamiennik
