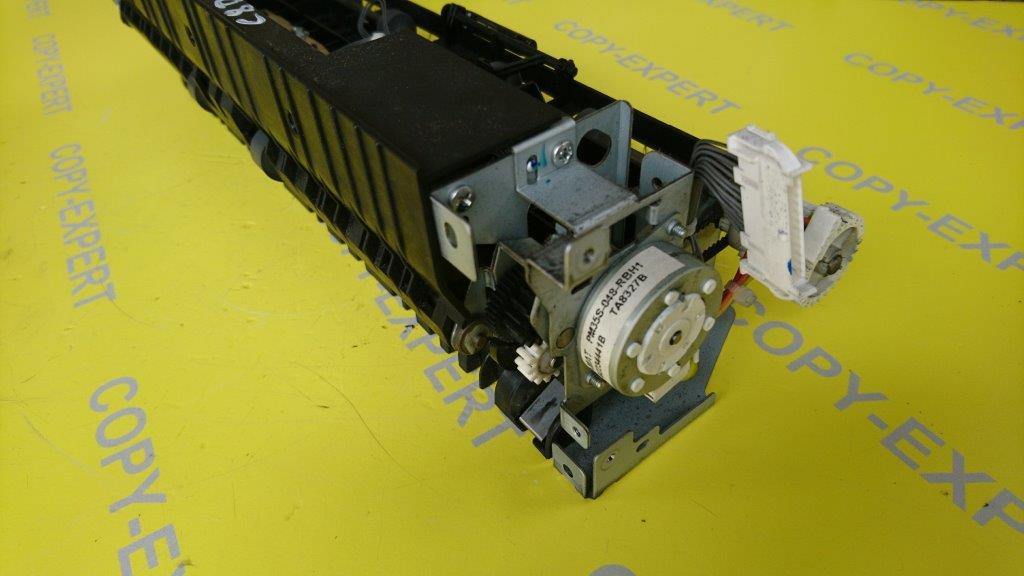

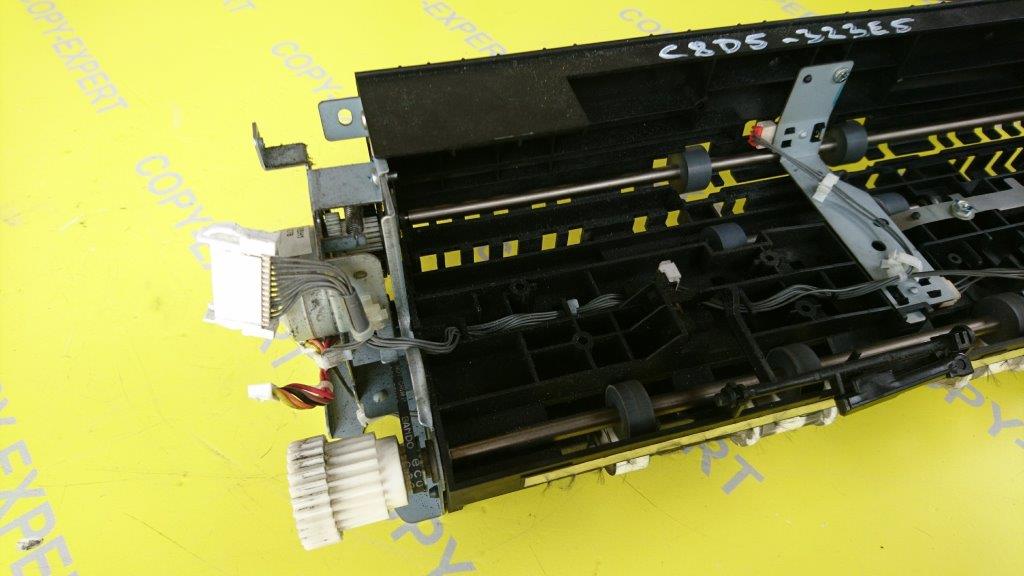

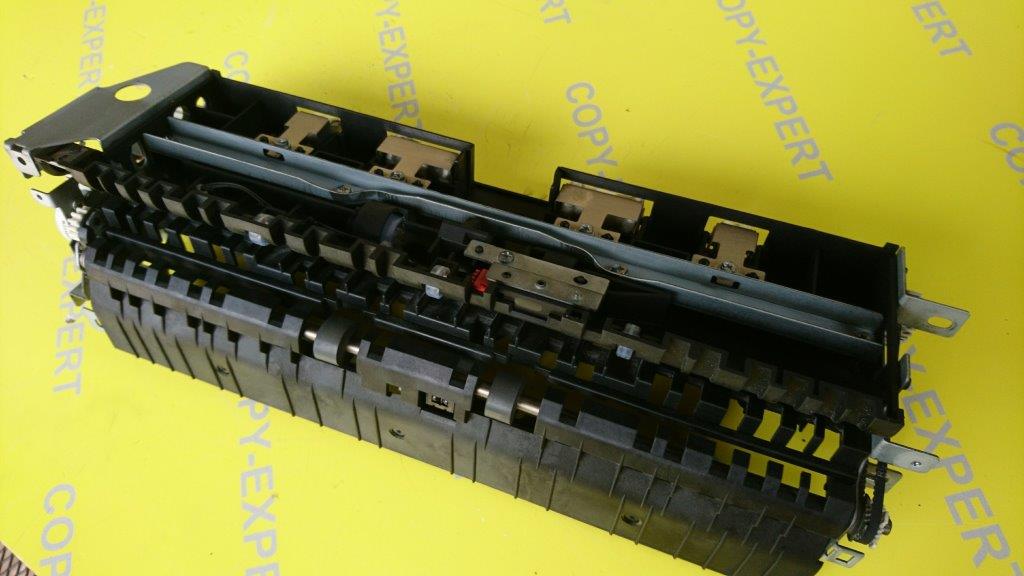

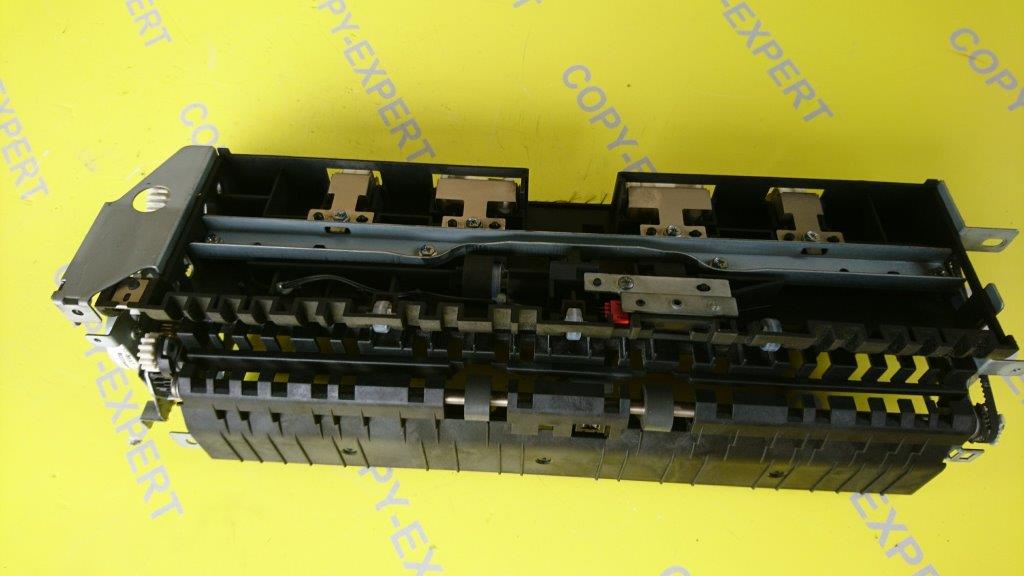

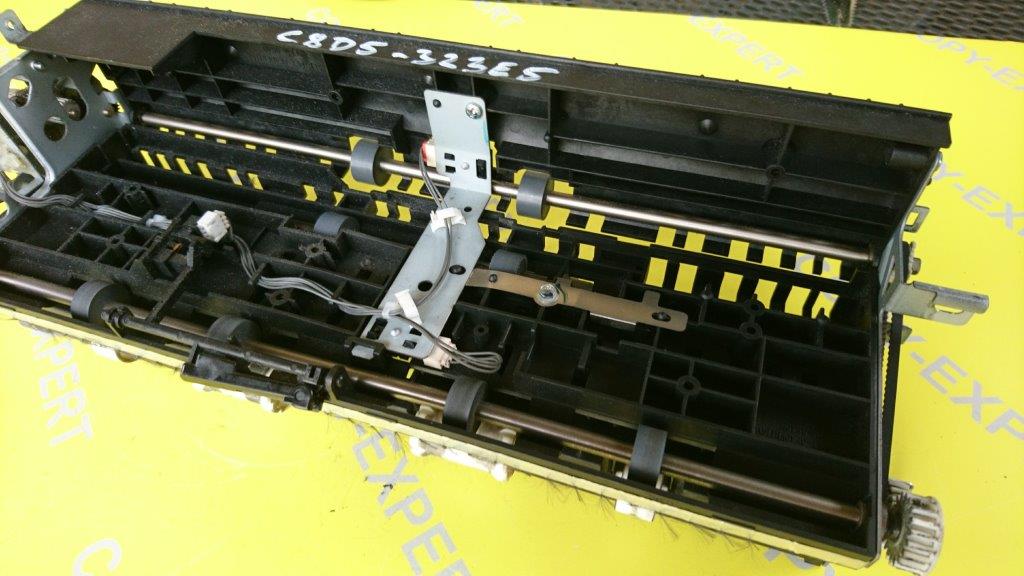

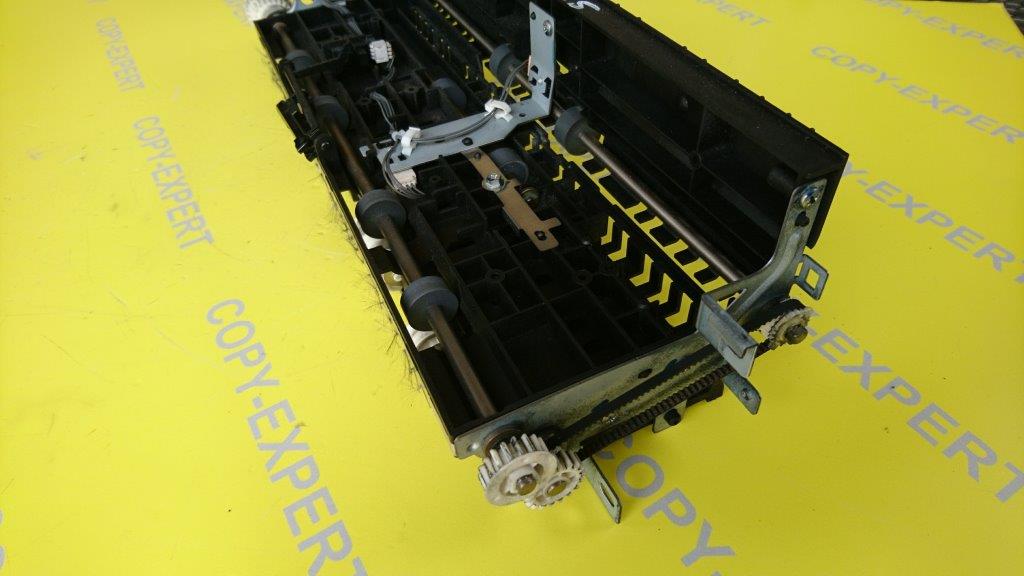

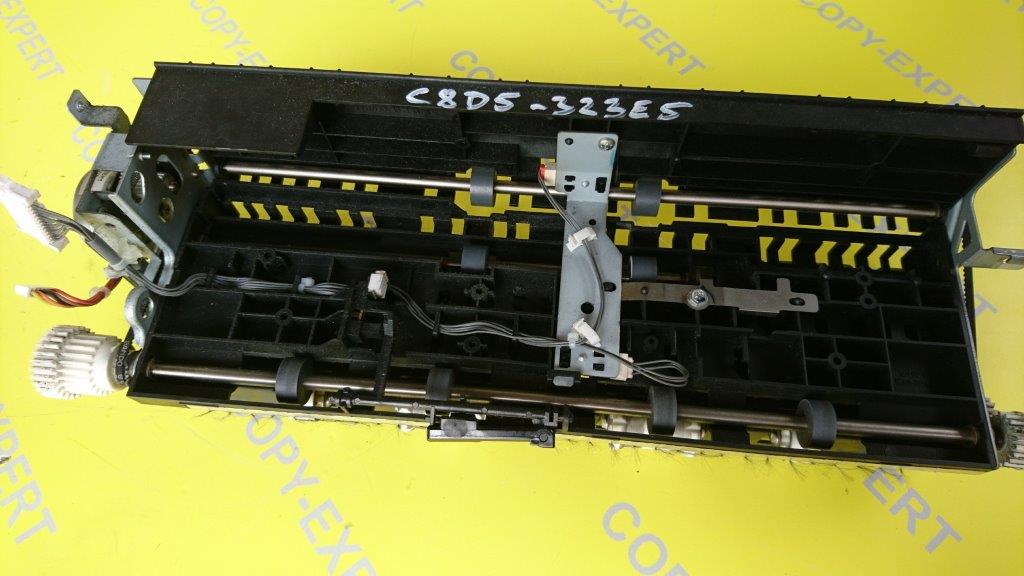

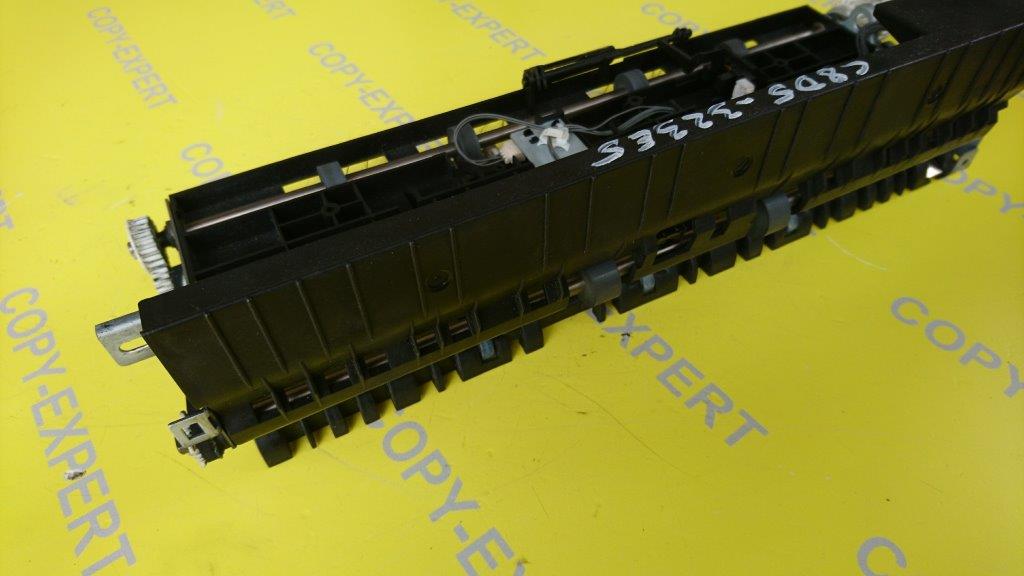

Paper Exit Section RICOH Aficio MPC3500 MPC4500 C8D5-323E5

Paper Exit Section RICOH Aficio MPC3500 MPC4500  C8D5-323E5

Zawiera:

B2234459 B223-4459 Gear:18Z
AA082101 AA08-2101 Bushing - 6x10x6
AA043969 AA04-3969 Timing Belt:30S2M216
B2234458 B223-4458 Gear:Pulley:Z18/T23
B2234456 B223-4456 Spacer:Idler
B2234464 B223-4464 Timing Pulley:23T
B2384483 B238-4483 Screw
B2234437 B223-4437 Inner Cover:Exit:Front
B2234438 B223-4438 Inner Cover:Exit:Rear
B2234439 B223-4439 Harness:IOB:Paper Exit Unit:C
B2234426 B223-4426 Bracket:Sensor
AW010107 AW01-0107 Paper Feed Sensor
B2234454 B223-4454 Transport Roller:Dia18
B2234461 B223-4461 Guide Plate:Upper Right
H0532208 H053-2208 Bushing - M4
B2234452 B223-4452 Tension Spring:1.3n
B2234447 B223-4447 Bracket:Gear:Coupling
B2234451 B223-4451 Gear:Z14/Z40
B2234467 B223-4467 Gear:Z20/Z32
B2234444 B223-4444 Bracket:Stepper Motor:Gate
B2234441 B223-4441 Stepper Motor:DC24V 70.2W
B2234468 B223-4468 Stopper
B2234450 B223-4450 Gear:Z14
B2384987 B238-4987 Overflow Feeler
B2384985 B238-4985 Overflow Feeler Shaft
B2234453 B223-4453 Exit Roller
AW020145 AW02-0145 Photointerruptor:Flat
B2234427 B223-4427 Ground Plate:Bracket:Sensor
B2234491 B223-4491 Discharge Brush:Exit
B2234421 B223-4421 Guide Plate:Upper Left
H0532208 H053-2208 Bushing - M4
B2234455 B223-4455 Transport Roller:Auxiliary
AA082101 AA08-2101 Bushing - 6x10x6
AA043968 AA04-3968 Timing Belt:30S2M160
B2234457 B223-4457 Gear:Pulley:Z27/T22
B2234463 B223-4463 Timing Pulley:22T
B2234435 B223-4435 Roller:Auxiliary:Driven:Dia16:pFA
B2234493 B223-4493 Shaft:Pressure:Auxiliary
AA080156 AA08-0156 Bushing - M4
B2384458 B238-4458 Compression Spring - Driven Roller
B2234428 B223-4428 Roller:Guide:pFA
B2234488 B223-4488 Guide Plate:Lower
AF040567 AF04-0567 Tension Roller
AF040566 AF04-0566 Tension Roller
B2384436 B238-4436 Spring Plate - Exit Roller Outer
B2234436 B223-4436 Spring Plate - Exit Roller
B2384454 B238-4454 Sensor Bracket
AW010127 AW01-0127 Paper Feed Sensor
B2234442 B223-4442 Stay:Protect

LOK:K21, K4 (jako B2234441)
