Paper Exit Section RICOH MP401SPF 3838-166CD

Paper Exit Section RICOH MP401SPF 3838-166CD

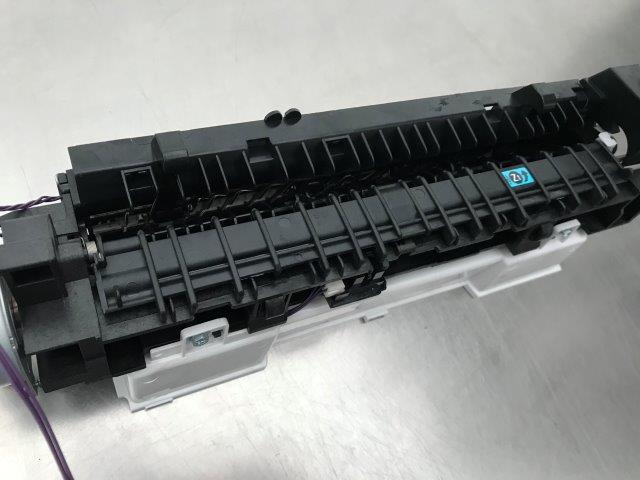

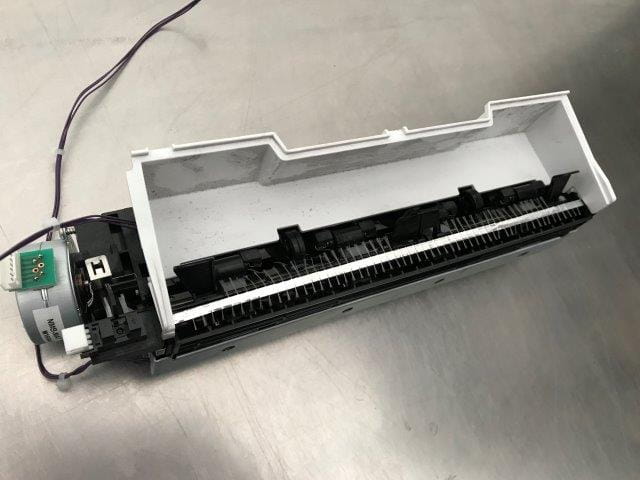

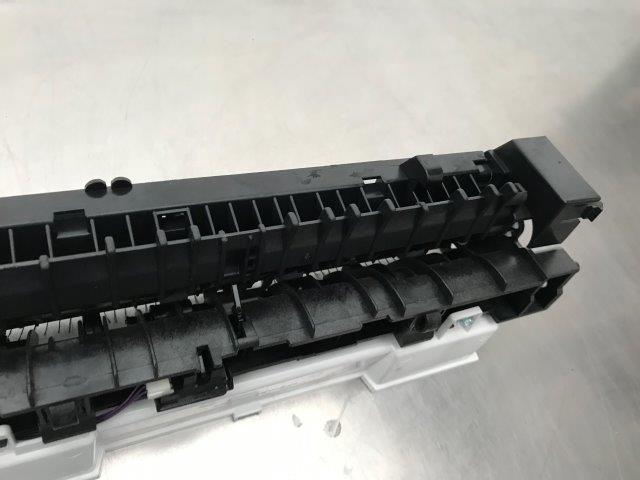

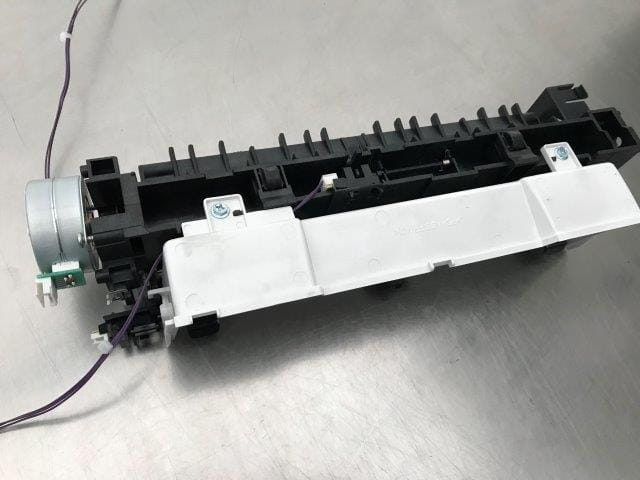

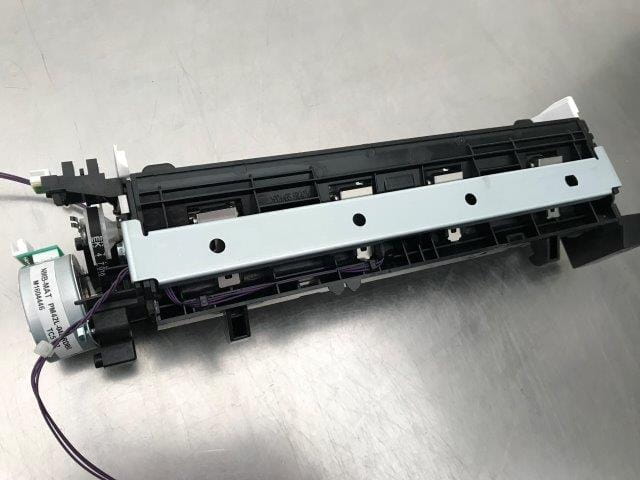

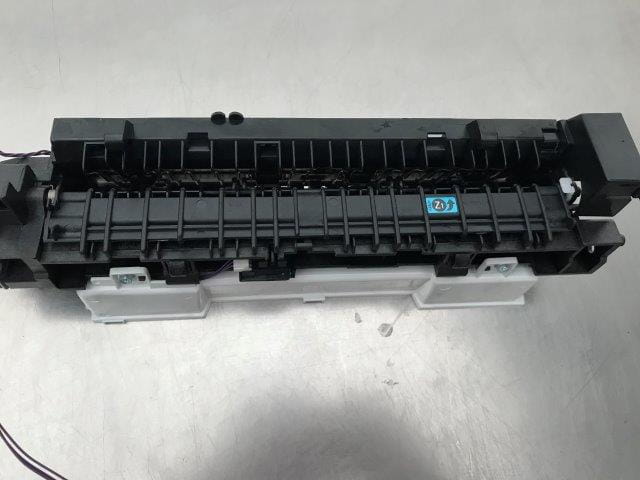

Element zawiera to co na zdjęciach:

AA082118 PLAIN SHAFT BEARING:MM6
AW020198 PHOTOINTERRUPTOR:LG2A14NL1
M1604457 ROLLER:IDLER:EXIT:MF1D
M1604459 COIL SPRING:ROLLER:EXIT:MF1D
M1604460 GUIDE:GATE
M1604461 DECAL:GATE:EXIT
M1604463 RING:DECURA:EXIT
M1604464 PRESSURE PLATE:FUSING:GUIDE
M1604465 FEELER:EXIT
M1604466 COIL SPRING:FEELER:EXIT
M1604467 COIL SPRING:GUIDE:GATE
M1604468 COIL SPRING:PRESSURE PLATE
M1604470 SHAFT:ROLLER:EXIT:MF1 D
M1604471 PULLEY:ROLLER:EXIT
M1604480 GUIDE:UPPER:EXIT
M1604481 SPRING PLATE:UPPER:EXIT
M1604482 ROLLER:IDLER:EXIT:UPPER
M1604484 GUIDE:MIDDLE:EXIT
M1604486 FEELER:OVERFLOW:PAPER FEED SENSOR:MF1D
M1604488 ANTISTATIC BRUSH:EXIT
M1604497 COIL SPRING:GUIDE:REAR:EXIT
M1604498 COIL SPRING:LEVER:DOOR:EXIT

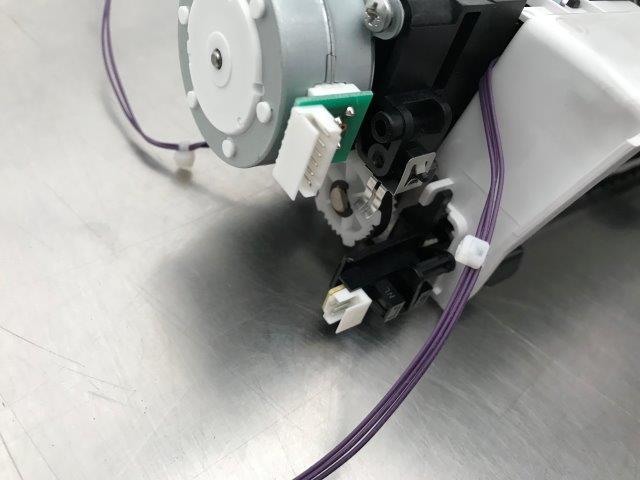

M1604446 DC STEPPER MOTOR:EXIT
M1604441 INNER COVER:EXIT:LEFT:MF1D
M1604453 COVER:UPPER:EXIT:MF1D
GW010007 REFLECTION PHOTO SENSOR:EXIT
M1604419 GUIDE_REVERSE_RIGHT
M0214620 SHEET:FIX:SENSOR
M1604483 SHEET:OPPOSED:SENSOR
M1604489 ROLLER:IDLER:MIDDLE:GUIDE
M1604452 BRACKET:REVERSE GUIDE
B0394480 STEP SCREW
M1604418 GUIDE_REVERSE_LEFT

Element używany LOK:K102
