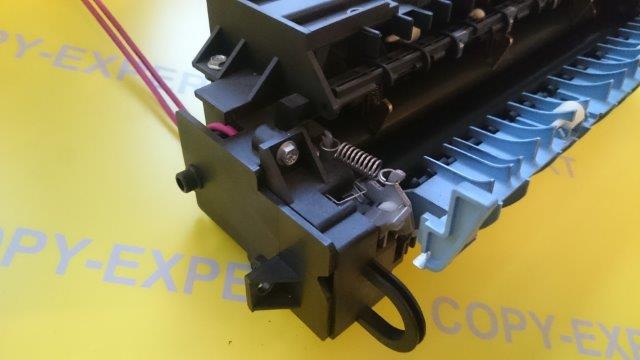

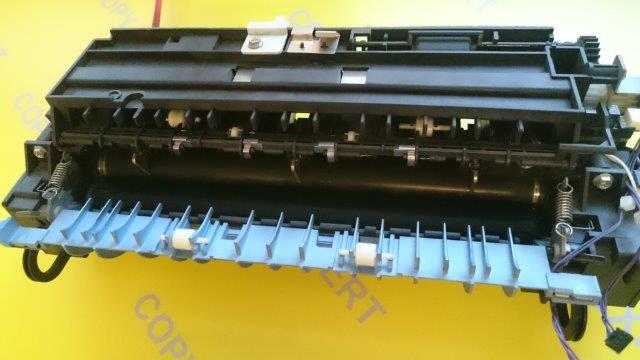

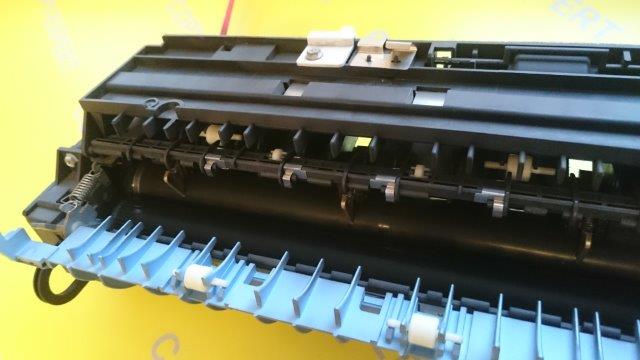

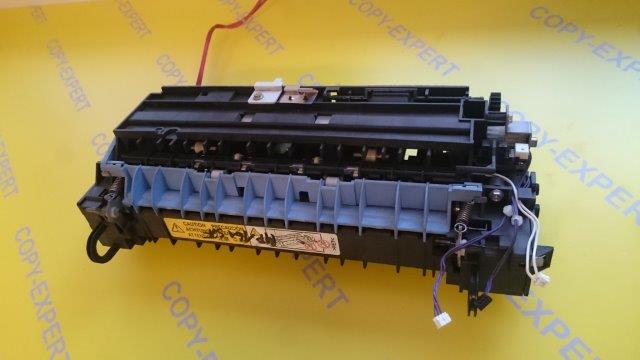

Piec FUSER UNIT Ricoh Aficio MP161F MP161SPF 1515F 1515MF FUSMP161

Piec FUSER UNIT Ricoh Aficio MP161F MP161SPF 1515F 1515MF FUSMP161

    Ricoh Aficio 1515
    Ricoh Aficio 1515F
    Ricoh Aficio 1515MF
    Ricoh Aficio MP 161F
    Ricoh Aficio MP 161SPF
    Gestetner DSM415
    Gestetner DSM415F
    Gestetner DSM415PF
    Gestetner DSM416
    Gestetner DSM416F
    Gestetner DSM416PF
    Lanier LD015
    Lanier LD015F
    Lanier LD015SPF
    Lanier LD016
    Lanier LD016F
    Lanier LD016SPF
    Nashuatec DSM415PF

Element używany. Wszystkie elementy sprawne nic nie jest wypalone lub pęknięte.

Zawiera elementy:

1 B0444165 Discharge Brush 1
2 B0444166 Spring Plate 1
3 B0444183 Feeler 1
4 B0444186 Guide Plate 1
5 B0444138 Spring 2
6 AF022141 Turn-roller 2
7 AF040603 Exit Roller 1
8 AF022142 Middle Roller 2
9 AF040588 Exit Roller 3
10 B0444154 Exit Spring 3
11 GW020020 Photointerruptor:Lg248nl1 1
12 B1295203 Harness - Paper Feed Sensor 1
13 H5562210 Gear - 19/28Z 1
14 H5562222 Stud 1
15 B1294143 Electrode Plate Cover 1
16 B1294102 Fusing Frame 1
17 AW110037 Thermostat - 160c 1
18 AW100088 Thermistor - Fusing 1
19 AW110038 Thermostat - 170c 1
20 B0444155 Spring - Pickoff Pawl 1
21 AE044059 Stripper Pawls 3
22 B0444135 Lamp Holder 1
23 B0444117 Front Spring Plate 1
24 H5562206 Guide Plate 1
25 B0444118 Rear Spring Plate 1
26 AE020149 Pressure Roller 1
27 B0444152 Pressure Spring 2
28 B0444130 Pressure Lever 2
29 B0444141 Pressure Release Lever - Front 1
30 B0444146 Pressure Release Lever - Rear 1
31 B0444132 Side Plate 2
32 AE031035 Pressure Roller Bushing 2
33 B0444200 Fusing Plate Nut 1
34 B0444201 Fusing Harness Cover 1
35 B0444161 Warning Decal 1
36 B0444104 Pressure Frame 1
37 B0444150 Hot Roller Stopper 1
38 B0444170 Fusing Gear 1
39 AE031044 Fusing Bushing 2
40 AE011086 Hot Roller 1
41 AX440203 Heater - 230v:750w 1
42 B1294294 Screw-m3x13 1
43 B0444131 Bushing-pressure Release 2
44 B0444153 Cushion 2
45 B1294134 Electrode Plate Fusing 1
46 B0444136 Ground Plate 1
47 B0444401 Paper Holder Stand 1
48 AF022142 Middle Roller 2
49 B0444156 Front Hot Roller Stopper 1
50 B0444112 Hot Roller Cap 1
51 B0444179 Holder - Pickoff Pawl 1
52 B1294195 Thermostat Plate Nut 1
53 H5562208 Gate Plate 1
54 H5562201 Reargate Plate Guide 1
55 H5562202 Front Gate Plate Guide 1
56 H5562219 Gear Bracket 1
57 H5562220 Roller 2
58 H5565106 Gate Sensor Harness 1
