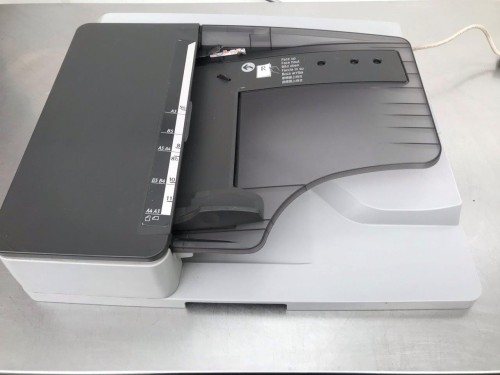

Podajnik oryginałów RICOH DF3060 MP2852 MP3352 MPC3002 MPC3502

Podajnik oryginałów DF3060 DF-3060 do RICOH Aficio MP2852 MP3352 MPC3002 MPC3502

Podajnik używany pracował do ostatniej chwili na MPC3002

Nie był testowany, po prostu kompletny RADF. Ostatnia sztuka.

Doskonały dawca części lub materiał do naprawy.

Zawiera:

A3764599 Side Fence Pad 3 - 2
A5486111 Screw:Positioning:Hinge 3 - 21
A6281225 Bushing - 8MM 5 - 28
A8584671 Roller Driven 7 - 27
A8584671 Roller Driven 3 - 7
A8592112 Drive Shaft - Paper Feed Belt 5 - 38
A8592121 Gear - 22Z 5 - 32
A8592167 Gear - 22Z 5 - 15
A8592319 Base Cushion 5 - 40
A8592352 Pressure Plate Pad 7 - 7
B3514322 Tape - Platen Sheet 15 - 10
B3514322 Tape - Platen Sheet 9 - 25
B3863320 Spring:Belt:Paper Feed:8N 5 - 37
B3871221 Exit Grounding Plate 9 - 33
B3871951 Spring - Paper Size Sensor 15 - 17
B3872113 Roller - Paper Feed Belt 5 - 39
B3872161 Pickup Roller 5 - 20
B3872316 Cushion:Stopper Pawl 7 - 18
B3872316 Cushion:Stopper Pawl 5 - 7
B3872316 Cushion:Stopper Pawl 3 - 23
B3873414 Shield - Transmited Rubber Stamp 9 - 23
B7891121 Side Plate:Front 9 - 35
B7891131 Bracket:Hinge:Left 15 - 25
B7891141 Bracket:Hinge:Right 15 - 26
B7891151 Stay:Left 11 - 28
B7891161 Stay:Separation 7 - 29
B7891222 Hinge:Right 15 - 23
B7891231 Shaft Hinge- Left 15 - 11
B7891232 Shaft Hinge - Right 15 - 19
B7891241 Compression Spring 15 - 13
B7891250 On Off Detector:Document Feeder:Ass'y 15 - 28
B7891311 Bracket - On Off Detector 15 - 20
B7891321 Bracket - On Off Detector 13 - 13
B7891322 Spring Plate - Exposure Glass 11 - 8
B7891331 Original Sensor Bracket 7 - 19
B7891336 Sensor Harness Guide 7 - 11
B7891342 Bracket:Sensor:Stopper Guide 11 - 7
B7891343 Spring Plate:Sensor:Stopper Guide 11 - 26
B7891912 Cover - Entrance Guide Plate 15 - 1
B7891913 Sheet - Scanning Entrance 15 - 3
B7891919 Lever - Entrance Driven 15 - 7
B7891920 Torsion Spring - Entrance Driven 15 - 6
B7891925 Compression Spring - Exit Driven 15 - 2
B7891942 Paper Size Sensor Feeler 15 - 18
B7891943 Cap:Registration Sensor:Base 15 - 24
B7892114 Paper Feed Belt Roller 5 - 30
B7892115 Belt Holder 5 - 36
B7892131 Paper Feed Guide - Rear 5 - 34
B7892132 Paper Feed Guide - Front 5 - 27
B7892134 Pick-Up Arm 5 - 33
B7892151 Pickup Holder 5 - 17
B7892161 Pickup Roller Shaft 5 - 18
B7892163 Collar:Pickup 5 - 21
B7896164 Timing Pulley:Pickup:S2M 5 - 22
B7892181 Torsion Spring - Pickup 5 - 29
B7892311 Guide Plate - Paper Feed 7 - 10
B7892312 Cover - Reverse 7 - 4
B7892317 Spring Plate - Exit Upper 7 - 26
B7892322 Reverse Guide Plate 7 - 3
B7892351 Pickup Lever 13 - 18
B7892357 Tension Spring - Stopper 13 - 17
B7892365 Release Lever:Stopper 11 - 20
B7892371 Pickup Guide 7 - 9
B7892372 Guide Pickup 7 - 8
B7892381 Pickup Receive Plate 7 - 5
B7892386 Compression Spring - Pickup 7 - 6
B7892411 Original Stopper 11 - 10
B7892431 Original Stopper Hook 11 - 19
B7892436 Tension Spring - Stopper 11 - 23
B7893110 Entrance Transport Roller 9 - 2
B7893120 Exit Transport Roller 9 - 3
B7893126 Timing Pulley - 25T 9 - 29
B7893131 Timing Pulley - 20T 9 - 31
B7893136 Gear - 20Z 9 - 7
B7893137 Gear - 24Z 9 - 8
B7893146 Spring Plate - Driven Roller 3 - 6
B7893152 Pull Out Roller 11 - 9
B7893211 Guide Plate:Pull Out 7 - 1
B7893213 Feeler - Paper Size Sensor 7 - 2
B7893219 Entrance Guide Plate - Upper 11 - 1
B7893220 Exit Guide Plate - Upper 9 - 9
B7893221 Guide Plate - Lower Reverse 9 - 1
B7893223 Discharge Brush - Exit 9 - 10
B7893226 Guide Plate - Upper Reverse 7 - 28
B7893315 Driven Roller Bracket 5 - 6
B7893326 Driven Roller 5 - 11
B7893331 Compression Spring - Driven Roller 5 - 10
B7893417 Spring Plate - Exit Driven 9 - 20
B7893418 Spring Plate - Exit Driven Auxiliary 9 - 21
B7893426 Tension Spring - Open And Close 9 - 22
B7893431 Cover - Exit Guide Plate 9 - 24
B7893432 Exit Guide Plate 9 - 11
B7893472 Scanning Driven Roller 9 - 14
B7893472 Scanning Driven Roller 15 - 4
B7893491 Scanning Driven Shaft 9 - 17
B7893492 Shaft - Driven Entrance 15 - 5
B7893493 Driven Exit Shaft 9 - 15
B7893510 Exposure Glass Guide 9 - 5
B7893620 Pressure Plate Ass'y 15 - 8
B7893712 Exit Driven Roller 9 - 16
B7893713 Reverse Gate Pawl 11 - 11
B7893716 Tension Spring - Gate Pawl 11 - 14
B7893717 Gate Pawl Cushion 15 - 15
B7893718 Gate Pawl Cushion - Small 11 - 12
B7893721 Lever:Gate Pawl:Reverse 11 - 15
B7894112 Bracket - Paper Feed Motor 13 - 6
B7894115 Bracket - Paper Feed Motor 13 - 11
B7894119 Tension Spring - Motor Bracket 13 - 7
B7894141 Transport Motor Bracket 13 - 30
B789 4212 Magnetic Clutch Bracket 13 - 20
B7894219 Reversal Stopper - Paper Feed 13 - 29
B7894221 Timing Pulley - 20T/48T 13 - 10
B7894236 Timing Pulley - 26T 13 - 24
B7894237 Timing Pulley - 28T 13 - 25
B7894257 Pulley Flange 11 - 25
B7894257 Pulley Flange 7 - 24
B7894261 Timing Pulley - 28T 11 - 18
B7894276 Idler Gear Shaft 13 - 21
B7894321 Timing Pulley - 30T/48T 13 - 31
B7894325 Tightener 13 - 36
B7894329 Tension Spring - Tightener 13 - 35
B7894332 Pulley - 34T 13 - 34
B7894411 DC Solenoid DC24V 11 - 16
B7894872 Original Sensor Feeler Holder 5 - 8
B7894873 Positioning Plate - Front 5 - 4
B7894874 Positioning Plate - Rear 5 - 5
B7895006 DC Solenoid DC24V 9 - 13
B7896511 Cushion - Rear Small 15 - 12
B7896514 Damping Insulation:Cover:Rear 3 - 18
B8022255 Torque Limiter Mechanical Clutch:Separator 7 - 15
B8303115 Timing Belt:B40S2M142 9 - 32
C2182046 Cushion:Bracket:Protect (D578-51) 3 - 26
C6002050 Adjusting Screw:M4x10 (C578-51) 3 - 24
C6006023 Bracket:Protect:Machine Or Copier:Assy
D3662142 Feeler:Original Sensor 5 - 9
D3662416 Pad:Stopper:Original 11 - 27
D3663131 Transport Roller - Exit 9 - 6
D3663141 Reverse Roller - Drive 11 - 13
D3664215 Shaft:Magnetic Clutch:Ass'y 13 - 16
D3664242 Torque Limiter - 24T 11 - 24
D3664264 Gear - 27Z 13 - 22
D3664265 Gear - 30Z 13 - 26
D3664266 Gear - 30Z 7 - 25
D3664268 Gear Shaft 13 - 27
D3664269 Gear & Pulley - 32Z/30T 7 - 22
D3664455 DC Solenoid - Pick-Up 11 - 22
D3664849 Cushion - Pick-Up Arm 5 - 42
D3664861 Cushion - Paper Feed Cover 5 - 41
D5406121 Full Dug Point Screw:Fix:Hinge 3 - 22
D5411271 Hinge:Left 15 - 16
D5411511 Bracket:DC Fan Motor 13 - 12
D5411952 Ground Plate:Cover 15 - 27
D5412100 Paper Feed Unit 5 - 14
D5412111 Shaft:Paper Feed:Drive 5 - 35
D5412121 Paper Feed Belt 5 - 31
D5412210 Shaft:Reverse:Press Fit 7 - 16
D5412241 Reverse Roller:Paper Feed 7 - 14
D5415400 Harness:Sensor:Registration 13 - 3
D5415405 Harness:DC Stepper Motor:Transport 13 - 37
D5415410 Harness:Sensor:Original Tray 3 - 12
D5415415 Harness:Sensor:Paper Size Sensor:
D5415420 Harness:Sensor:Exit:Connecting 9 - 19
D5415425 Harness:Sensor:Set Sensor:Connecting 11 - 3
D5415425 Harness:Sensor:Set Sensor:Connecting 7 - 21
D5415600 Stepper Motor:MM42:S2M:T20 13 - 5
D5415751 Guide:Harness 13 - 4
D5781921 Base:Behind 3 - 19
D5781931 Spacer:Pressuer Plate 15 - 9
D5783711 Holder:Data Sheet 15 - 29
D5784611 Original Table 3 - 8
D5784621 Guide:Original Insert 3 - 15
D5784631 Feeler:Original Sensor:Trailing Edge 3 - 16
D5784661 Cover:Original Table 3 - 3
D5784680 Side Fence:Ass'y 3 - 1
D5784711 Cover:Front 3 - 5
D5784811 Cover:Rear 3 - 17
D5784911 Cover:Paper Feed 5 - 3
D5784921 Cover:Paper Feed:Upper 5 - 44
D5784931 Guide Plate:Driven Roller:Pull Out 5 - 12
D5785100 PCB:Main Control:Ass'y (D578-17) 13 - 2
D5785190 PCB:Main Control:Lhotse-d:Ass'y (D578-51) 13 - 2
D5785550 Harness:Interface:Ass'y 13 - 1
D5786011 Decal:Misfeed Removal 17 - 4
D5786012 Decal:Misfeed Removal 5 - 1
D5786021 Decal:Size:Original 5 - 2
D5786021 Decal:Size:Original 17 - 2
D5786031 Decal:Original Table (D578-17) 3 - 4
D5786031 Decal:Original Table 17 - 5
D5786041 Decal:Side Fence 3 - 13
D5786041 Decal:Side Fence 17 - 6
D5786061 Decal:Caution:Original:Multi Languages 5 - 43
D5786061 Decal:Caution:Original:Multi Languages 17 - 3
D5786062 Decal:Original:Many Languages 5 - 2
D5786091 Decal:Blue 17 - 1
D5786091 Decal:Blue 9 - 12
D578 6991 Decal:Original Table:Peridot (D578-51) 3 - 4
G4123831 Pulley - 22Z 5 - 16
H5115007 Stamp
AA043620 Timing Belt - 40S2M102 5 - 23
AA043622 Timing Belt - B60S2M230 13 - 8
AA043623 Timing Belt - B40S2M180 13 - 23
AA043623 Timing Belt - B40S2M180 7 - 23
AA043625 Timing Belt - 122ST1.5-8.0 13 - 33
AA043631 Timing Belt - B60S2M168 13 - 9
AA043652 Timing Belt - B60S2M130 13 - 32
AA063435 Compression Spring:Paper Feed:Joint 5 - 26
AA082101 Bushing - 6x10x6 9 - 27
AA082101 Bushing - 6x10x6 7 - 17
AA082101 Bushing - 6x10x6 11 - 17
AA082144 Bushing - 8x12x7 5 - 24
AA082144 Bushing - 8x12x7 9 - 30
AA132013 Spacer 5 - 25
AA143129 Shoulder Screw - Front Cover 15 - 22
AA143379 Stepped Screw 9 - 34
AA143788 Pin:Guide Plate:Paper Feed 5 - 13
AA143788 Pin:Guide Plate:Paper Feed 9 - 26
AA143842 Screw:Dia6:14.5:M4 15 - 14
AG070513 Magnet Catch 7 - 12
AG070513 Magnet Catch 3 - 10
AW010109 Photo Reflection Sensor:PS117ED1 9 - 18
AW010109 Photo Reflection Sensor:PS117ED1 11 - 2
AW010129 Paper Feed Sensor 3 - 11
AW020141 Photointerruptor 7 - 20
AW020141 Photointerruptor 11 - 4
AW020141 Photointerruptor 3 - 14
AW020203 Photointerruptor:GP1A173LCS2F 15 - 21
AW020203 Photointerruptor:GP1A173LCS2F 13 - 14
AX210102 Magnetic Clutch - 30Z 13 - 28
AX640213 Fan Motor:DC:2.6W 13 - 38
GW010007 Photo Reflection Sensor:Exit 11 - 6
03530040N Screw - M3x4 11 - 102
04503008N Tapping Screw - M3x8 9 - 101
04503008N Tapping Screw - M3x8 3 - 102
04503008N Tapping Screw - M3x8 5 - 101
04503008N Tapping Screw - M3x8 15 - 101
04504008N Tapping Screw - M4x8 15 - 105
04513006N Tapping Screw - 3x6 3 - 101
04513006N Tapping Screw - 3x6 11 - 104
04513006N Tapping Screw - 3x6 15 - 102
04513006N Tapping Screw - 3x6 13 - 101
04513006N Tapping Screw - 3x6 7 - 101
04543006Q Tapping Screw - M3x6 15 - 103
04543006Q Tapping Screw - M3x6 9 - 104
04543006Q Tapping Screw - M3x6 11 - 101
06320120G Parallel Pin - 2x12 7 - 103
06320120G Parallel Pin - 2x12 13 - 107
06320120G Parallel Pin - 2x12 5 - 104
07200030E Retaining Ring - M3 15 - 104
07200040E Retaining Ring - M4 13 - 103
07200040E Retaining Ring - M4 11 - 106
07200040E Retaining Ring - M4 7 - 102
07200040E Retaining Ring - M4 5 - 102
07200040E Retaining Ring - M4 9 - 102
07200060E Retaining Ring - M6 11 - 105
07200060E Retaining Ring - M6 13 - 104
07200060E Retaining Ring - M6 5 - 103
07200060E Retaining Ring - M6 9 - 103
07423506 Ball Bearing - 6x12x4 MM 13 - 105
07423808 Ball Bearing - 8x16x5 11 - 103
08050088 Retaining Ring - M6 13 - 109
08050089 Retaining Ring - M4 11 - 107
09513006N Screw - M3x6 13 - 102
11050508 Harness Clamp - LWS-0711 13 - 106
11050519 Clamp - LWS-05 15 - 106
11050519 Clamp - LWS-05 13 - 108
11050619 Clamp:LBWS-0605S-V0 11 - 108
11050717 CLAMP:JDW-1S 13 - 110
52062686 Snap Ring 9 - 4
52152621 Snap Ring - M6 3 - 9
53041639 Bushing - 8mm 13 - 15
54472681 Snap Ring 5 - 19
54472681 Snap Ring 7 - 13
54472681 Snap Ring 9 - 28
54472681 Snap Ring 11 - 21
54472681 Snap Ring 13 - 19

LOK:NAMx1
