Rolki pobierania KYOCERA TaskAlfa 2554ci 3554ci 3553ci 4053ci 5053ci 6053ci 4003i 5003i 6003i 4004i 5004i 6004i 4054ci 5054ci 6054ci 302ND94212

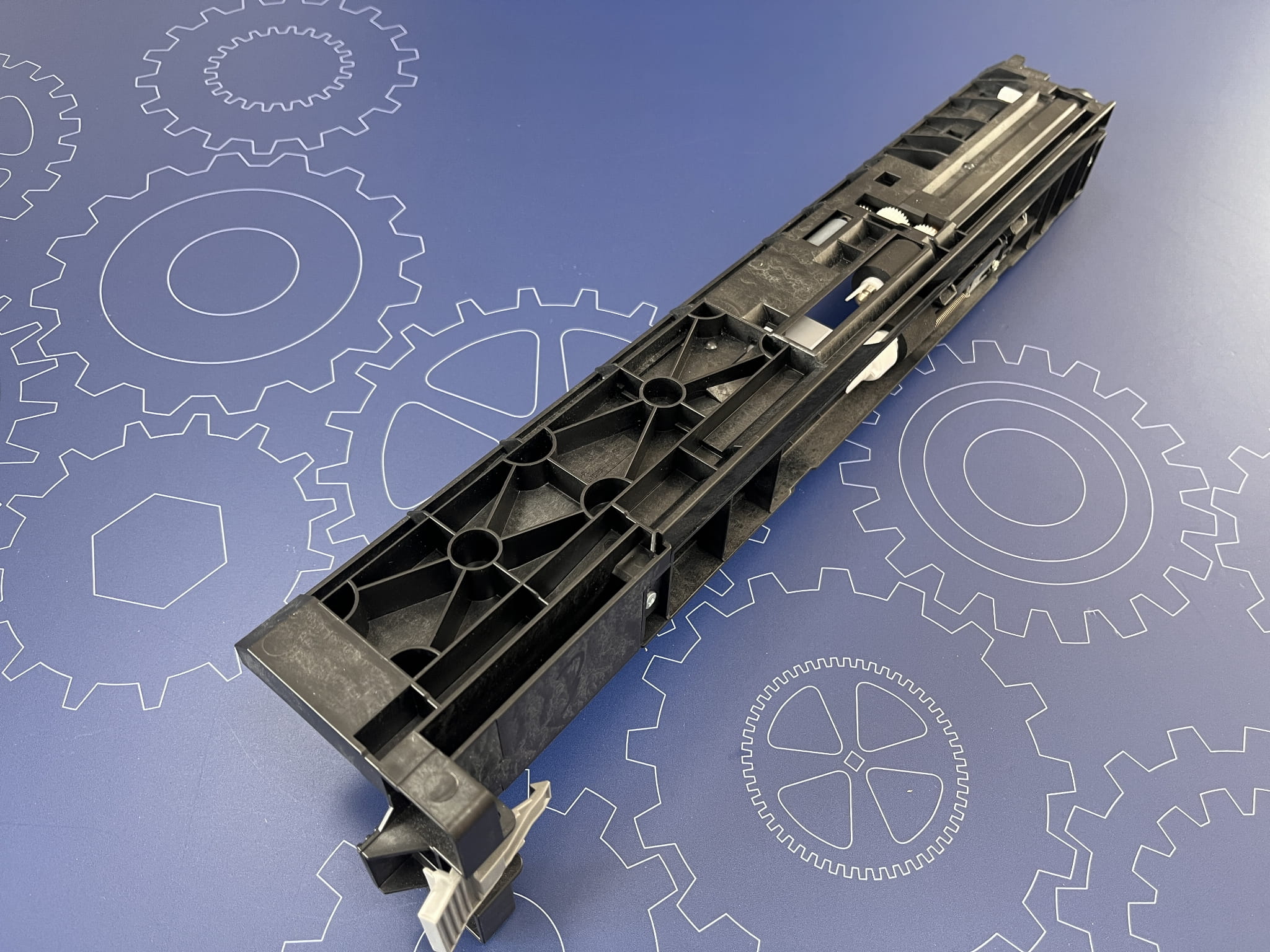

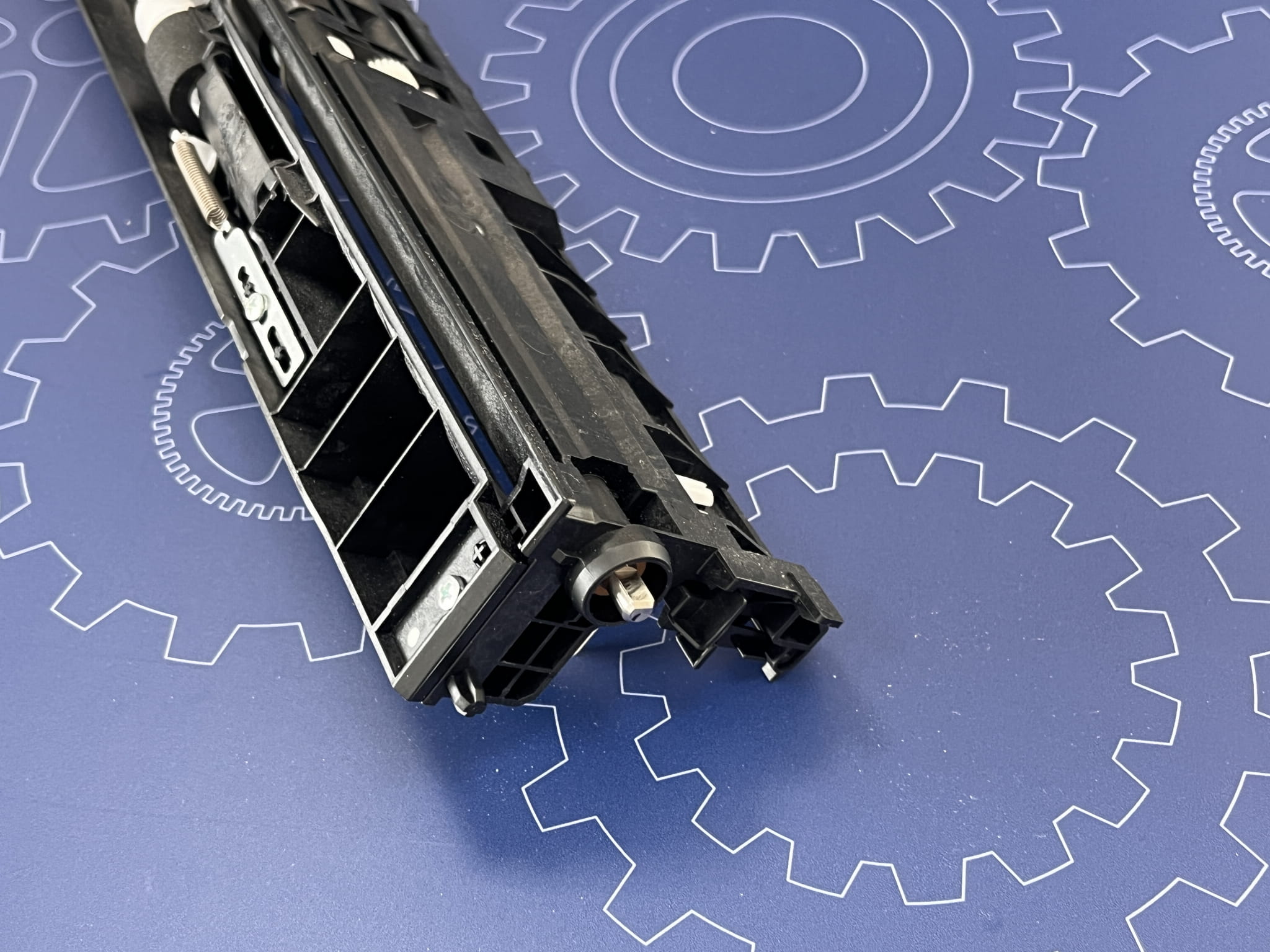

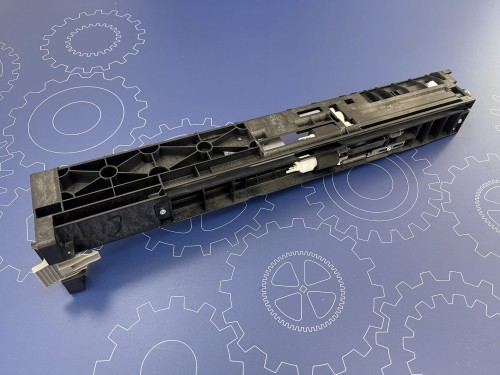

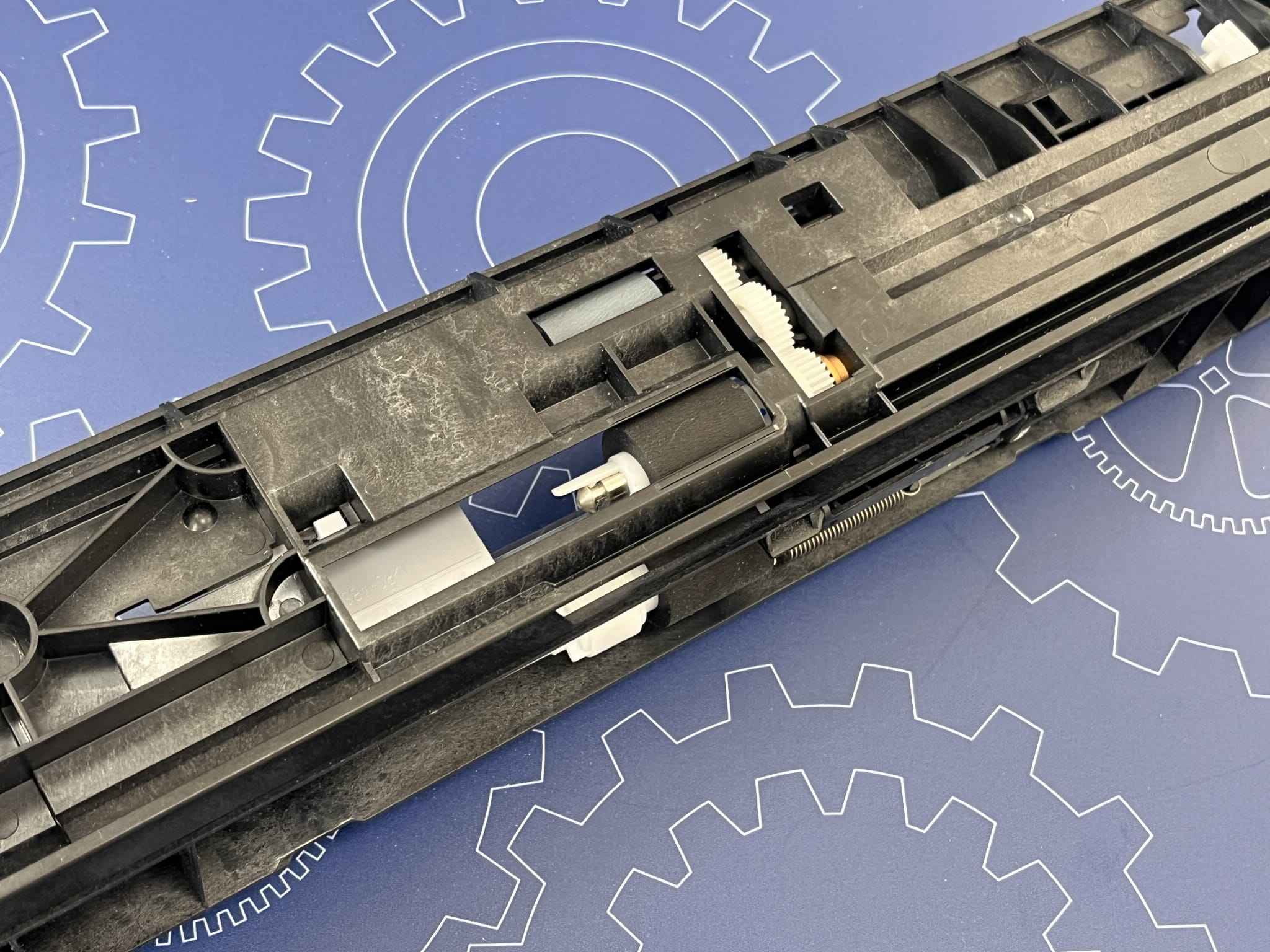

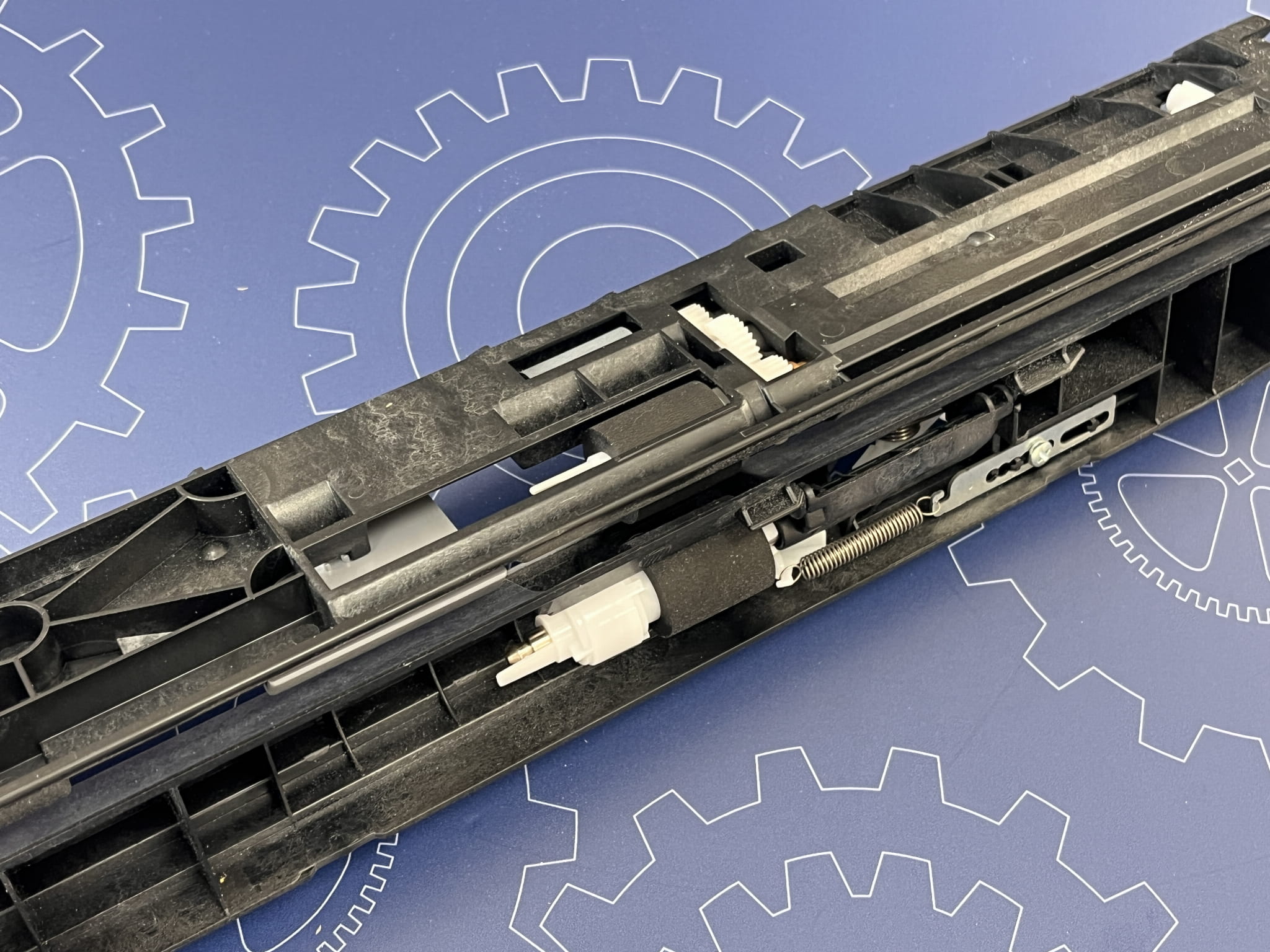

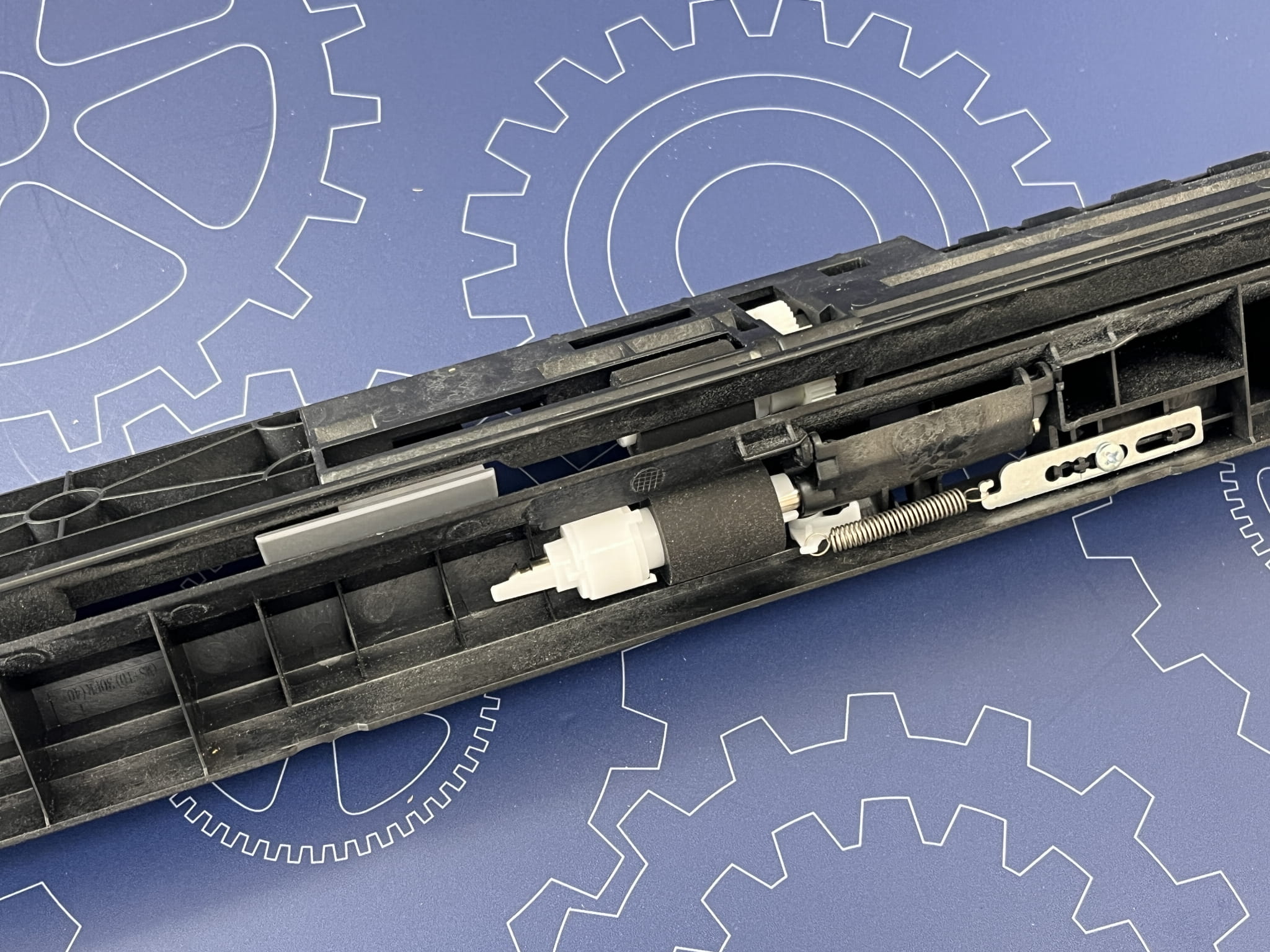

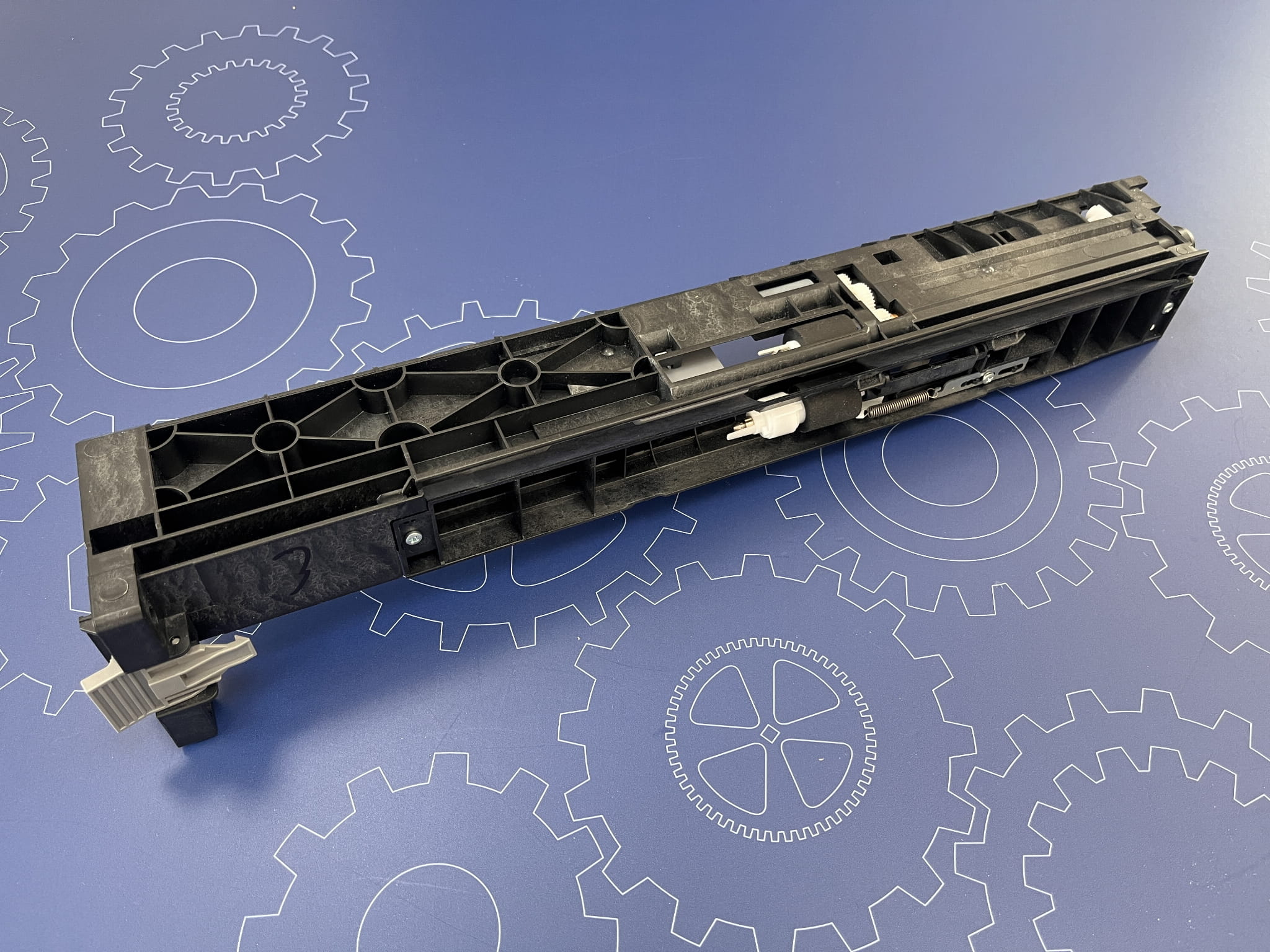

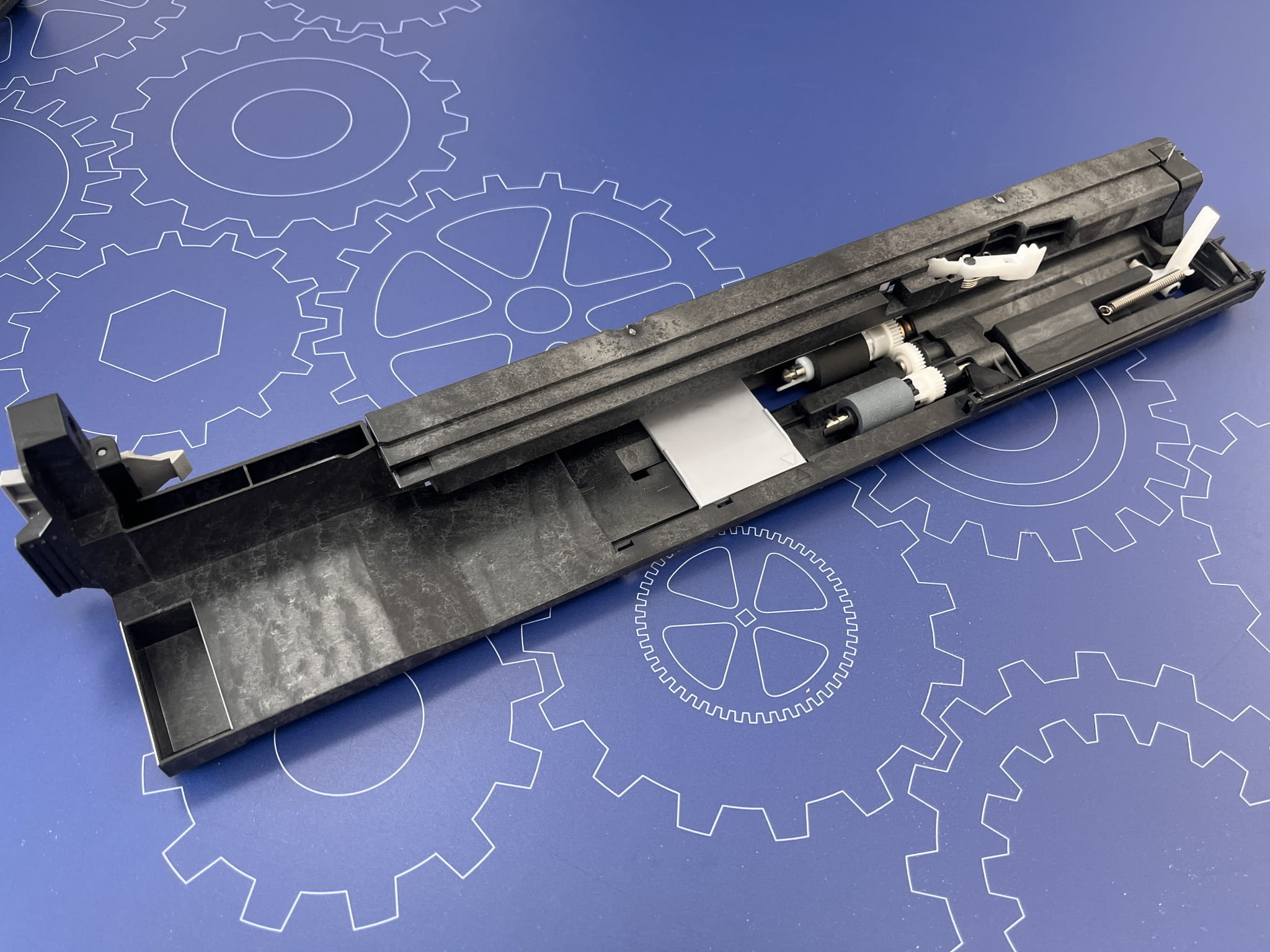

Regenerowany moduł pobierania papieru - Rolki pobierania KYOCERA TaskAlfa 2554ci 3554ci 3553ci 4053ci 5053ci 6053ci 4003i 5003i 6003i 4004i 5004i 6004i 4054ci 5054ci 6054ci 302ND94212

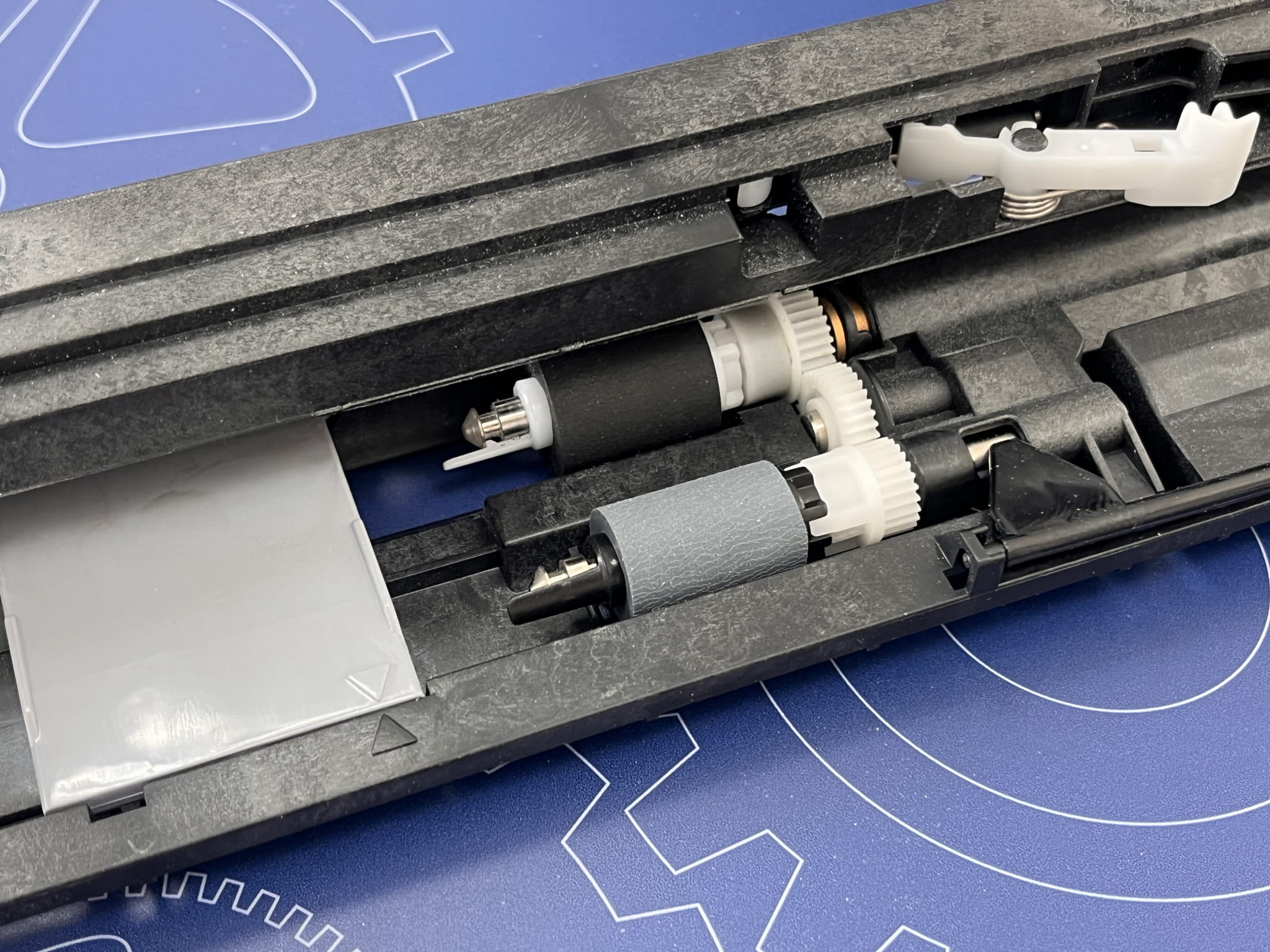

Unit regenerowany, wyczyszczony, zainstalowano nowe rolki pobierania 3 sztuki.

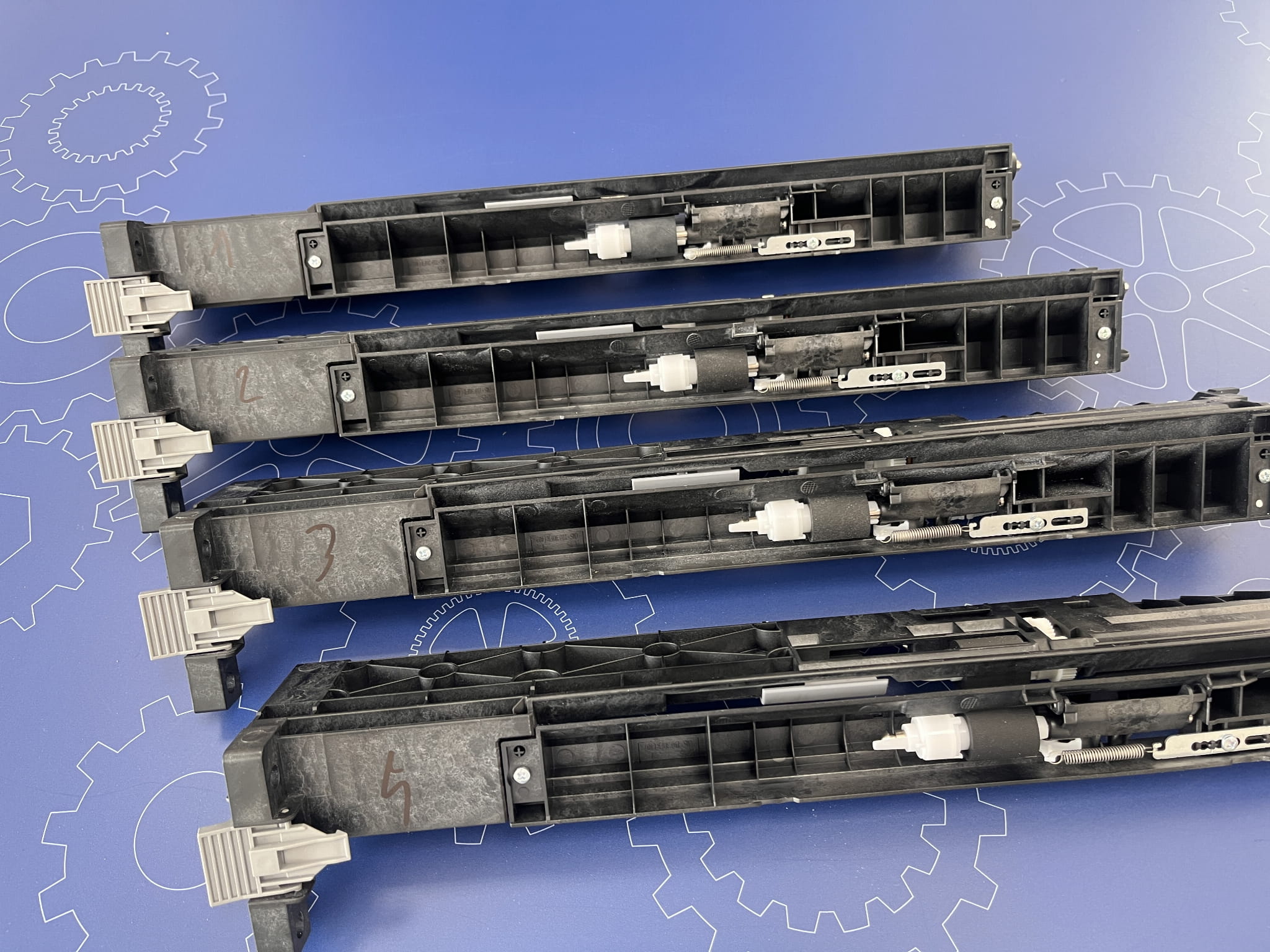

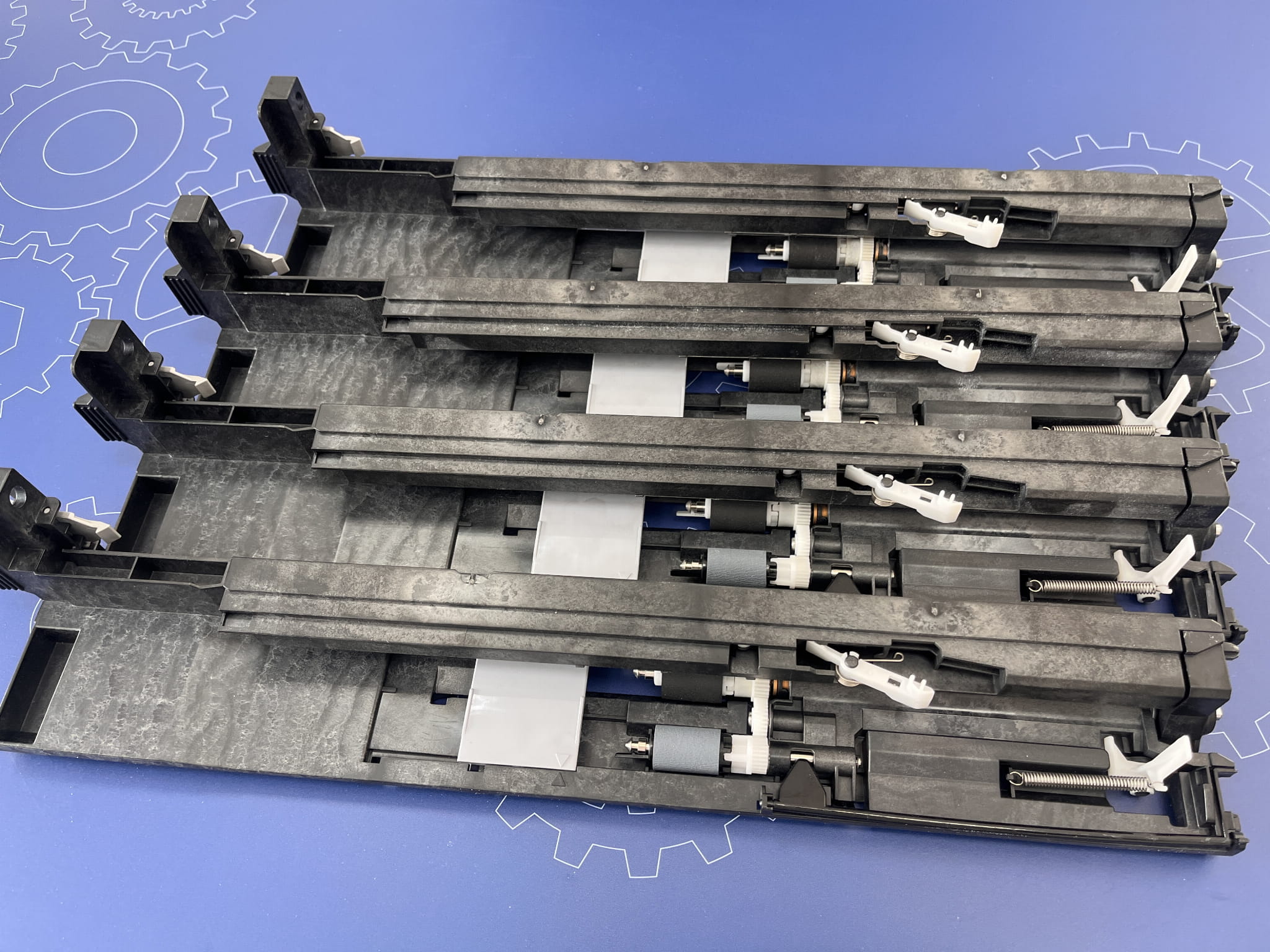

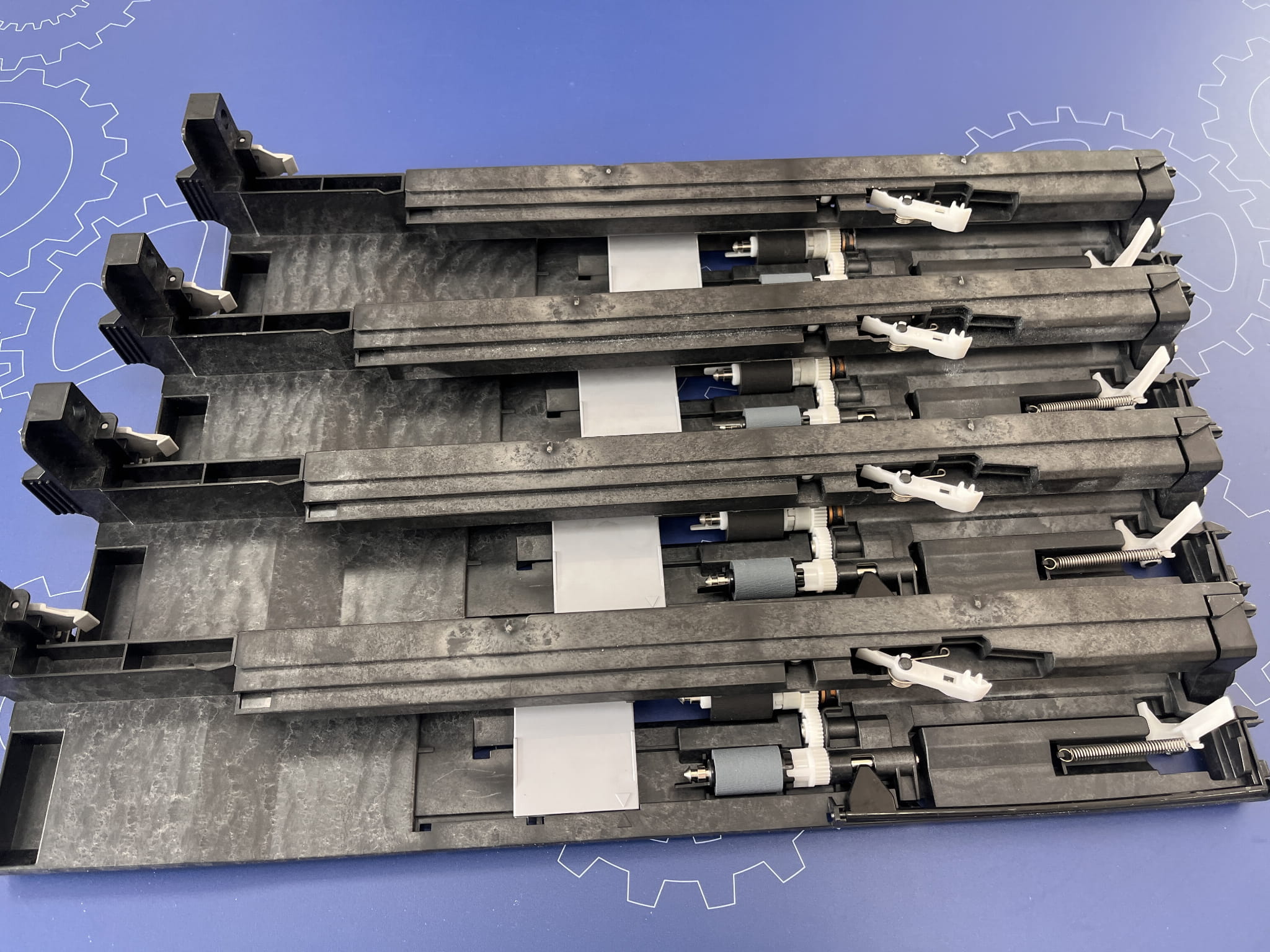

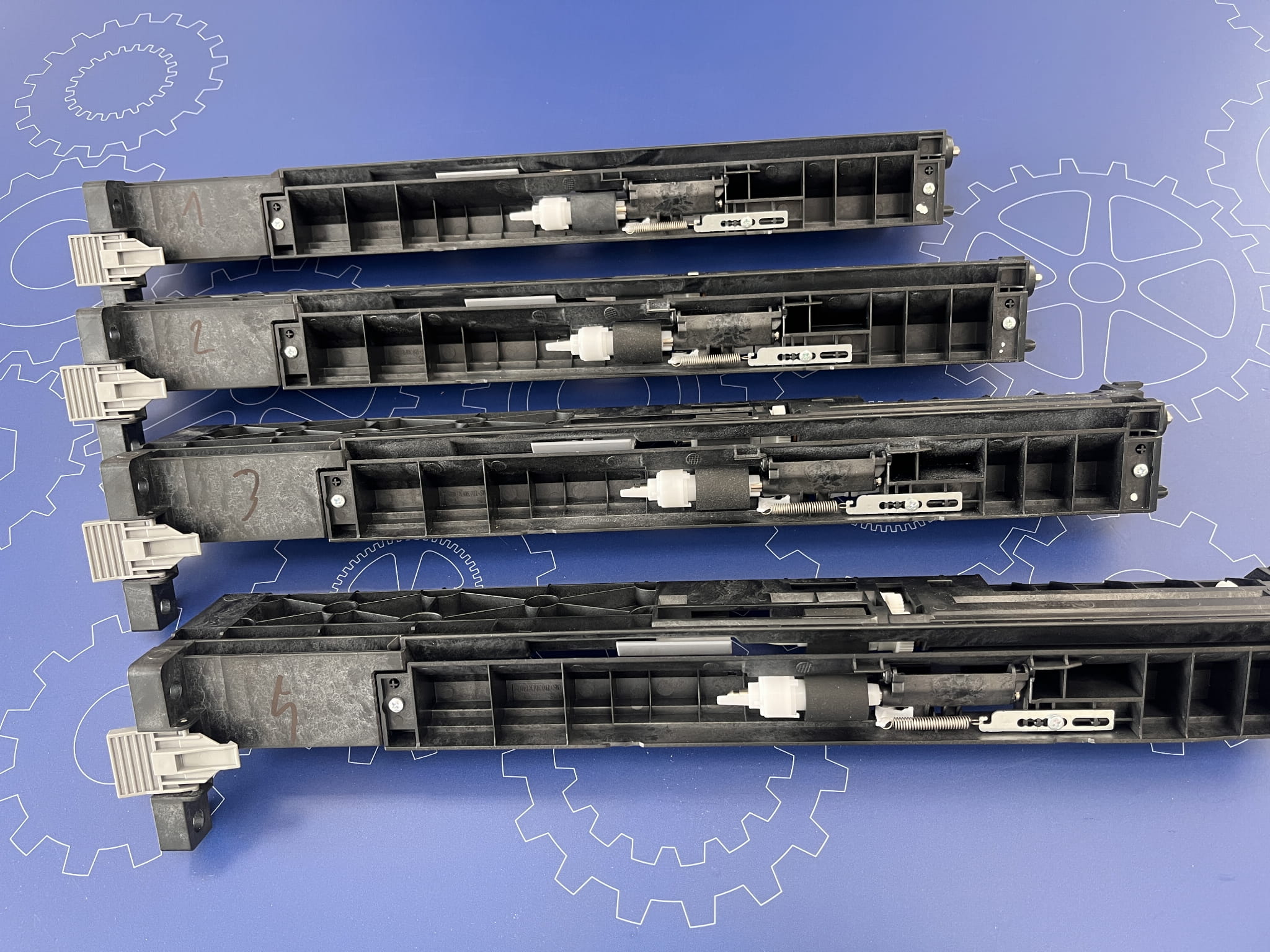

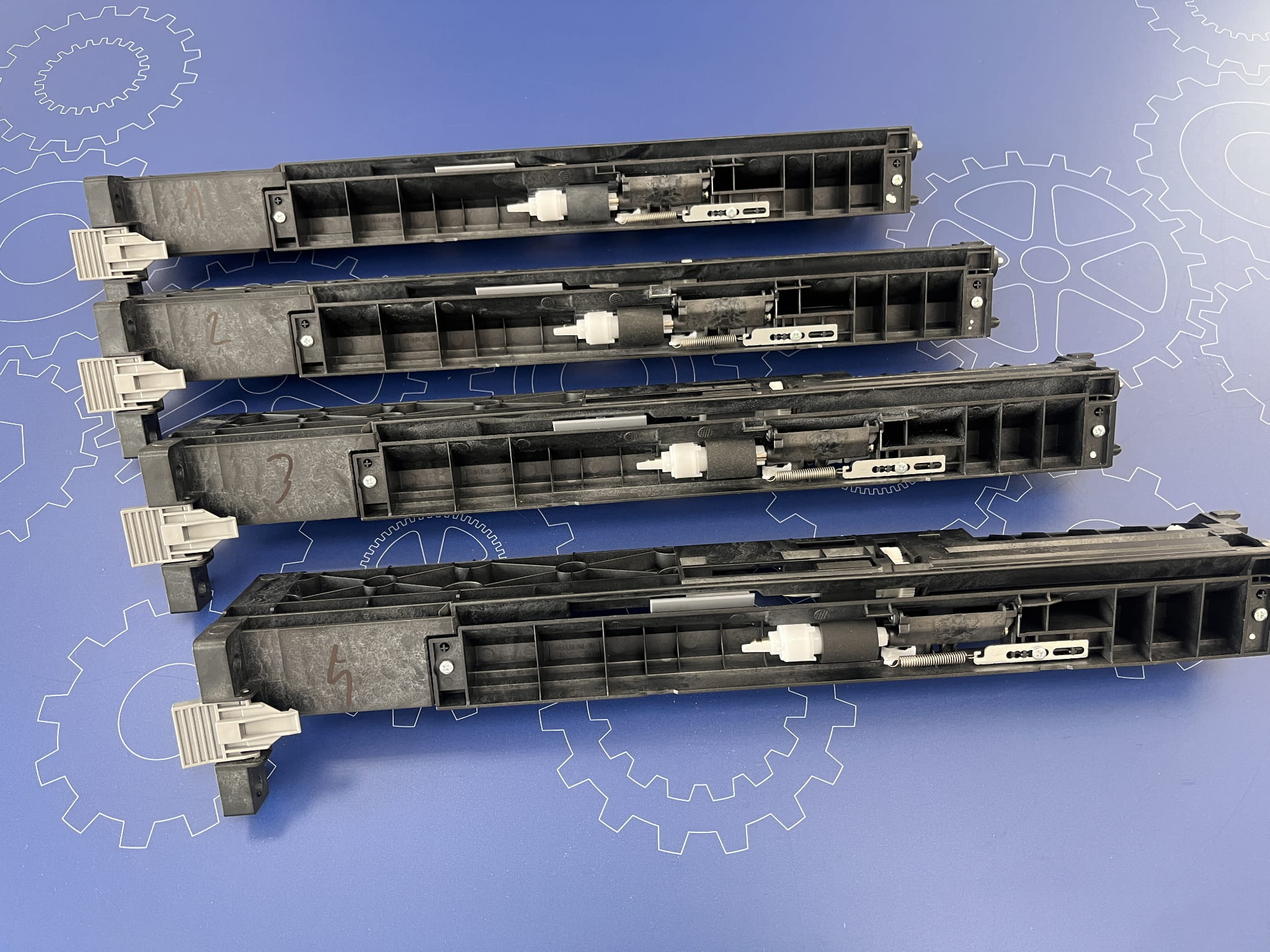

MAMY 4 moduły. Jeśli to ma dla ciebie znaczenie to możemy wysłać dedykowany z 1,2,3 lub 4 kasety.

Cena za cały, kompletny moduł pobierania papieru.

Każdy moduł zawiera:

302ND06010 FRAME FEED UPPER
302ND06030 SHAFT PRIMARY FEED
302K906080 PIN PICK UP IDLE
302ND06020 HOLDER PICKUP
302ND06040 GEAR Z30 FEED OW
302N406120 ONEWAY-CLUTCH 6
302N406030 PULLEY FEED
302ND94340 PARTS PULLEY PICKUP SP
302ND94351 PARTS ROLLER RETARD ASSY SP
302N406070 SHAFT PICKUP PRIMARY
302K924820 CUT-WASHER 4
2BC06520 BUSHING 6,REGISTRATION
302ND06060 GEAR Z32 FEED
302ND06240 GUIDE PRIMARY FEED SUB
302ND06100 SPRING PICKUP RELEASE
302ND06090 LEVER PICKUP RELEASE
302ND06220 LEVER FEED LOCK
302ND06230 SPRING FEED LOCK
302ND06160 LEVER RETARD
302ND06150 SPRING RETARD
302ND06181 LEVER RETARD RELEASE
302ND06191 SPRING RETARD RELEASE
302ND06140 SHAFT RETARD
302ND06130 HOLDER RETARD
302ND06050 GEAR Z24 PICKUP
302ND06170 PLATE RETARD ADJUST
302ND06070 ACTUATOR PAPER EMPTY
302ND06080 SPRING PICKUP
302ND06530 GUIDE PRIMARY FEED B
302ND06780 FILM FEED LOW B
302ND34270 LABEL A3
302ND06520 GUIDE PRIMARY FEED A
302ND06660 FILM FEED LOW

LOK: K63 x 6
