Rolki pobierania MINOLTA Bizhub c224e A4FMR70000 Paper Feed Assy

Rolki pobierania MINOLTA Bizhub c224e c284e c364e A161R71500 A4FMR70000 Paper Feed Assy

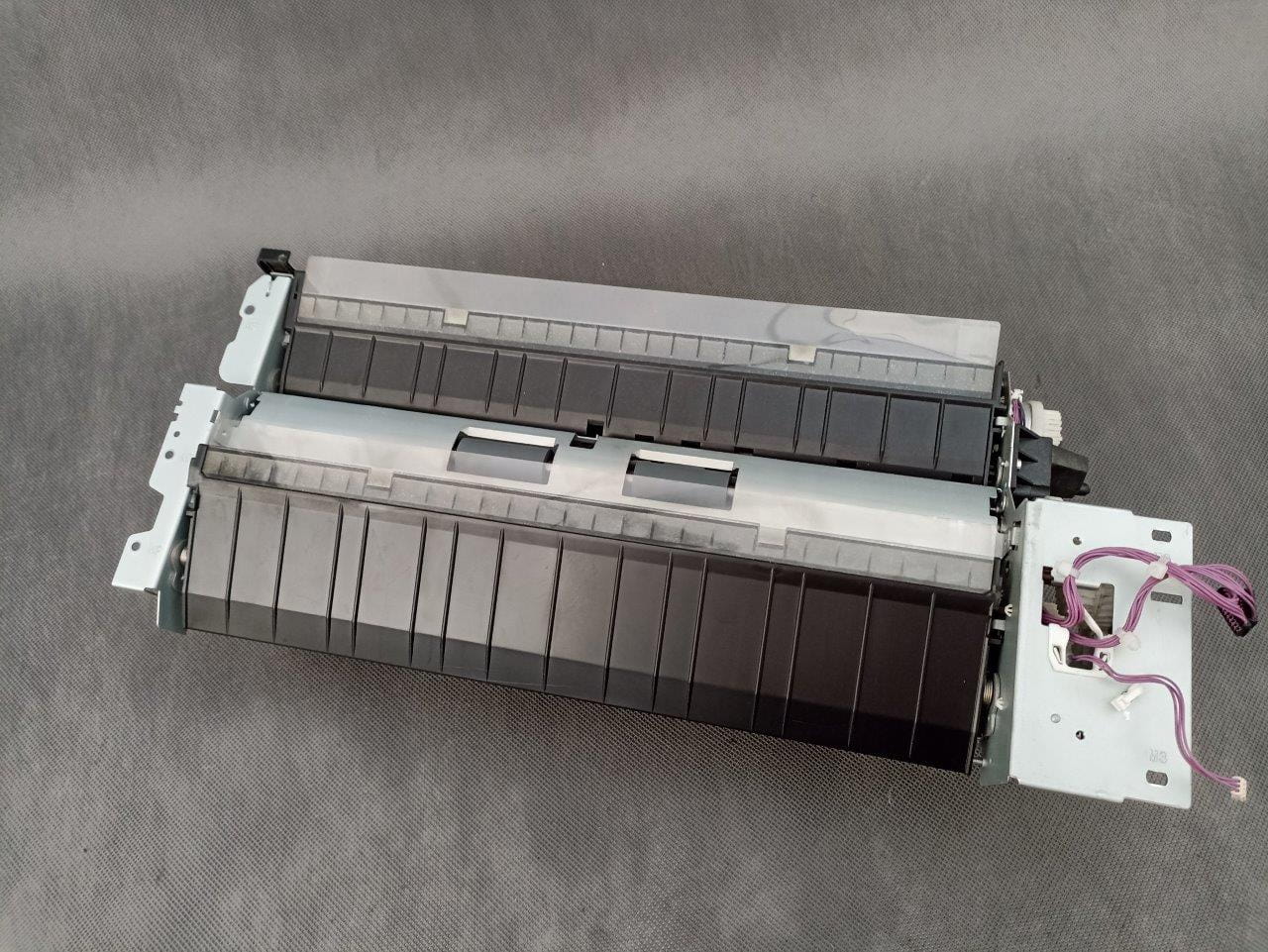

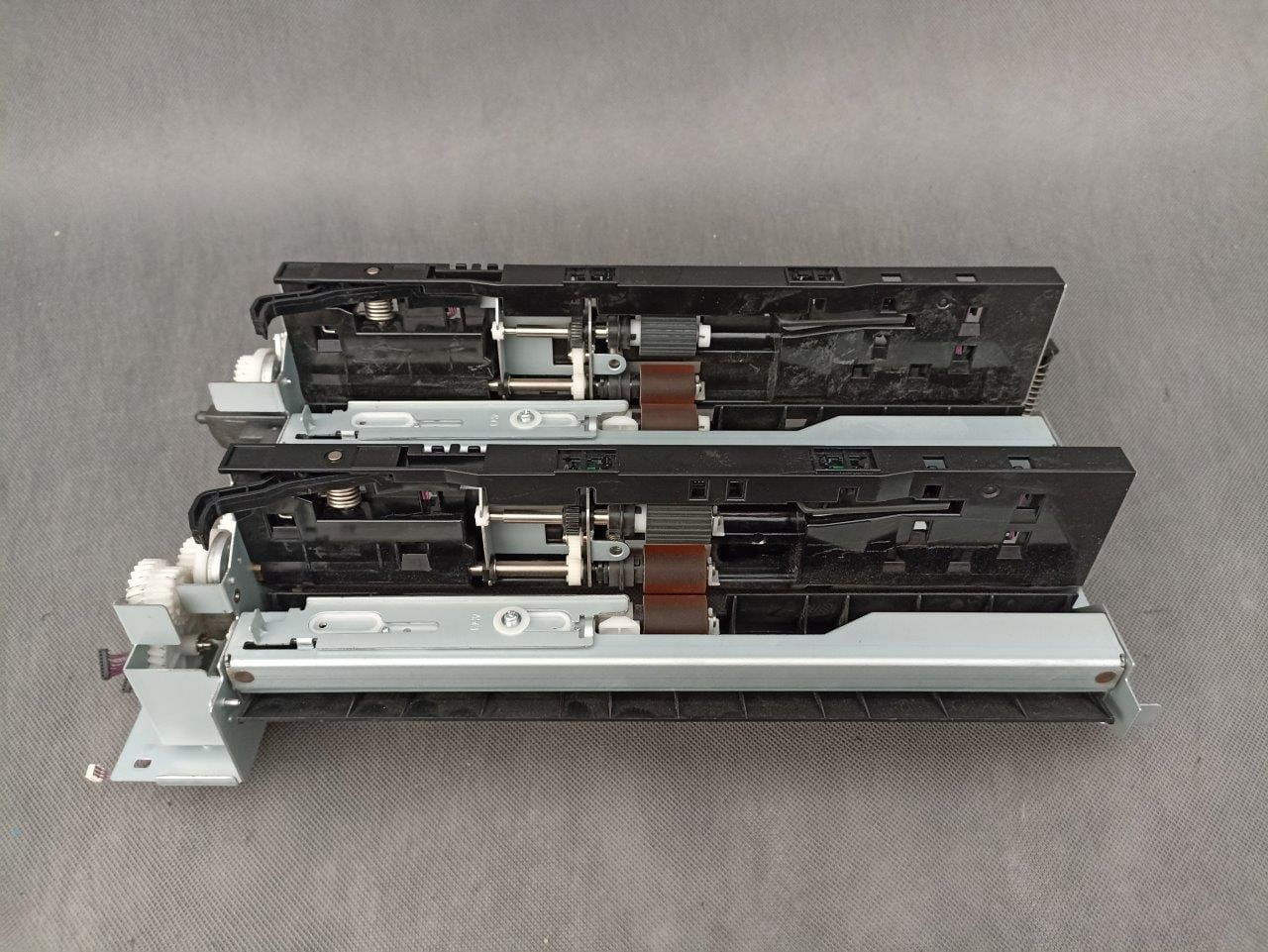

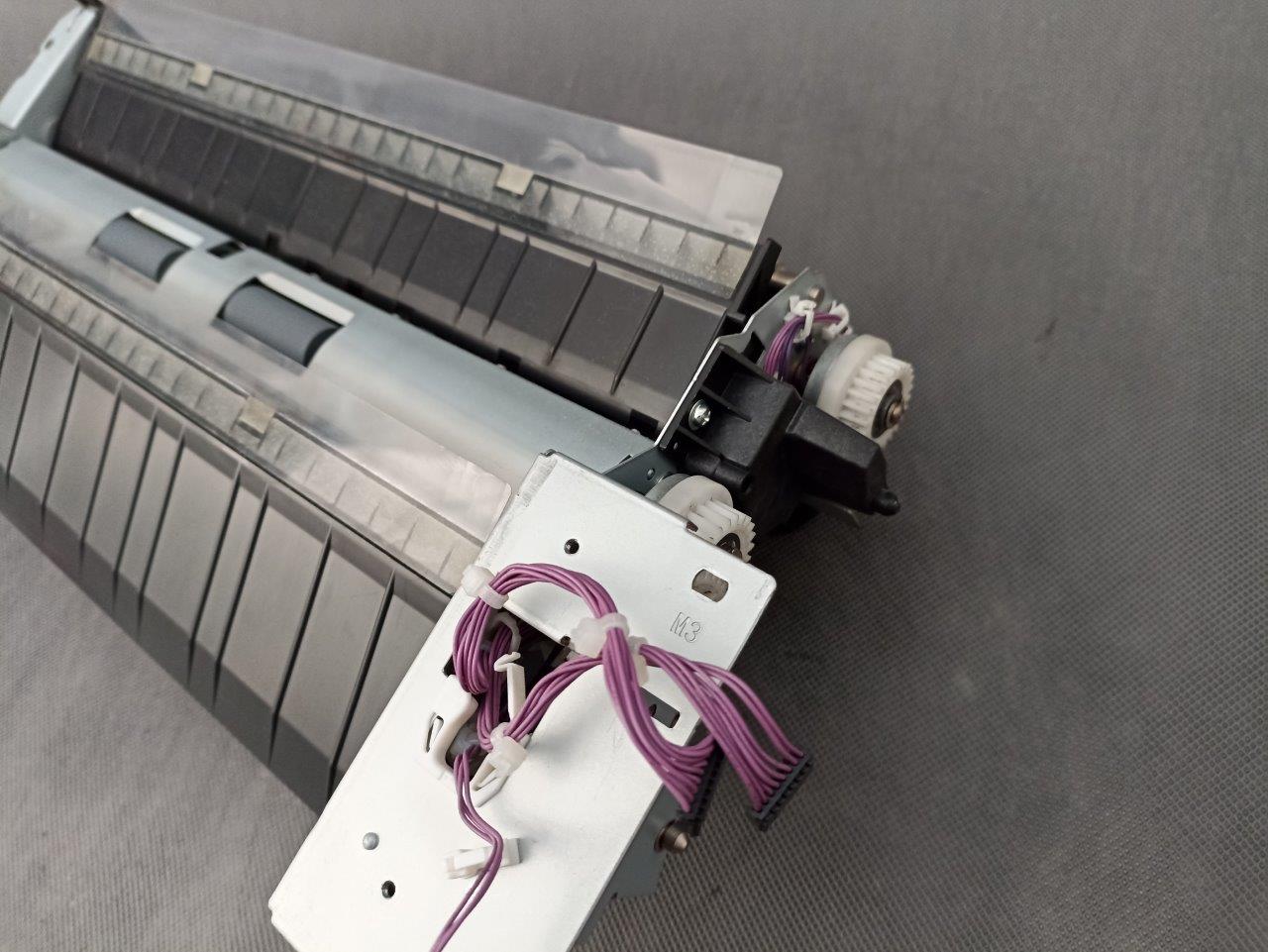

Element używany stan jak na zdjęciach. Zawiera rolki, czujniki i inne elementy.

LOK:K300

ZAWIERA:

1 A161566000 Reinforce Plate D 1 a-V153030803
b-V217050001
c-V217040001
d-V217030001
2 4034352501 ROLLER C 9
3 A161560600 Ground Plate D 1
4 A161560900 Mounting Plate {C284/C364} D 1
5 A0EDM50100 Photoreflector {C284/C364} I 1
6 A161565500 Shaft D 1
7 A161561600 Actuator C 1
8 A108M50100 Photointerrupter B 2
9 A161565300 Paper feed Frame D 1
10 A161560101 Frame /Front D 1
11 A161562800 Compressing Coil spring C 1
12 4131300301 BUSHING C 4
13 A161562400 Gear 26T C 1
14 A00J563600 Roller A 2
15 56AA40490 SHAFT STOPPER 4 C 2
16 A02E561100 Clutch C 2
17 A161562300 Gear 34T C 1
18 A161562600 Gear 28T C 1
19 A161562000 Shaft D 1
20 A161562500 Bushing C 1
21 A161562101 Holder D 1
22 A161567400 Torsion Spring C 1
23 A161567300 Lever C 1
24 A02E560800 Shaft D 1
25 A161F56002 Caulking(Frame) D 1
26 A02EM20200 Clutch C 1
27 A161N10P01 Paperfeed Wiring /1 {C284/C364} D 1
27 A4FMN10201 Paperfeed Wiring /1 {C224} D 1
28 A00J663200 Bushing

1 A161563100 Holder D 1 a-V137030803
b-V217030001
c-V217040001
d-V116030603
e-V116031003
2 A161568500 Guide C 1
3 A161568600 Pulling Coil spring C 2
4 A161563501 Guide D 1
5 A0ED563900 Torque limiter C 1
6 A00J563600 Roller A 1
7 A161568401 Guide Plate C 1
8 56AA40490 SHAFT STOPPER 4 C 1
9 A161563400 Shaft D 1
10 A161564001 Mounting Plate D 1
11 4030301703 PRESSURE SPRING C 1
12 A161563300 Shaft D 1
13 4532341001 SHOULDER SCREW D 1
14 A161563901 Mounting Plate D 1
15 A161564400 Pulling Coil spring C 1
16 A161564200 Spacer D 1
17 A161564100 Lever D 1
18 A161564300 Spacer D 2
19 A161R72500 Separation Roller Assy

1 A161561000 Reinforce Plate D 1 a-V153030803
b-V217050001
c-V217040001
d-V137030803
e-V217030001
f-V144030603
2 A161578100 Drive Roller C 1
3 A0EDM50100 Photoreflector I 1
4 A161578200 Guide Plate D 1
5 A161N12701 Conveyance Detection harness D 1
6 A161571100 Mounting Plate D 1
7 A161560900 Mounting Plate {C284/C364} D 1
8 A161561600 Actuator C 1
9 A108M50100 Photointerrupter B 2
10 A161560300 Paper feed Frame D 1
11 A161560600 Ground Plate D 1
12 A00J617900 Ball Bearing B 2
13 A161562800 Compressing Coil spring C 1
14 A161560500 Shaft D 1
15 A161562400 Gear 26T C 1
16 A00J663200 Bushing C 1
17 4131300301 BUSHING C 4
18 A00J563600 Roller A 2
19 56AA40490 SHAFT STOPPER 4 C 2
20 A02E561100 Clutch C 2
21 A161562300 Gear 34T C 1
22 A161562600 Gear 28T C 1
23 A161562000 Shaft D 1
24 A161562500 Bushing C 1
25 A161562101 Holder D 1
26 A161567400 Torsion Spring C 1
27 A161567300 Lever C 1
28 A02E560800 Shaft D 1
29 A02EM20200 Clutch C 1
30 A02EM20000 Clutch C 1
31 A161N10Q02 Paperfeed Wiring /2 {C284/C364} D 1
31 A4FMN10302 Paperfeed Wiring /2 {C224} D 1
32 A161563000 Compressing Coil spring C 1
33 A161578700 Cushion C 1
34 A0EDM50100 Photoreflector
