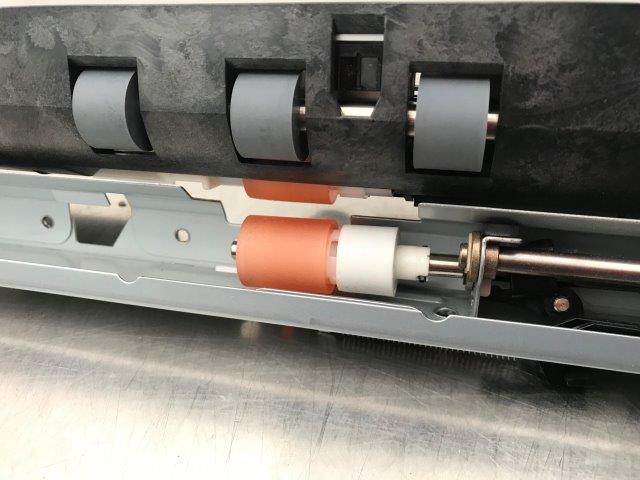

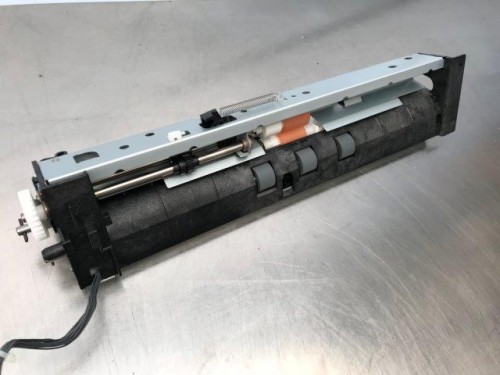

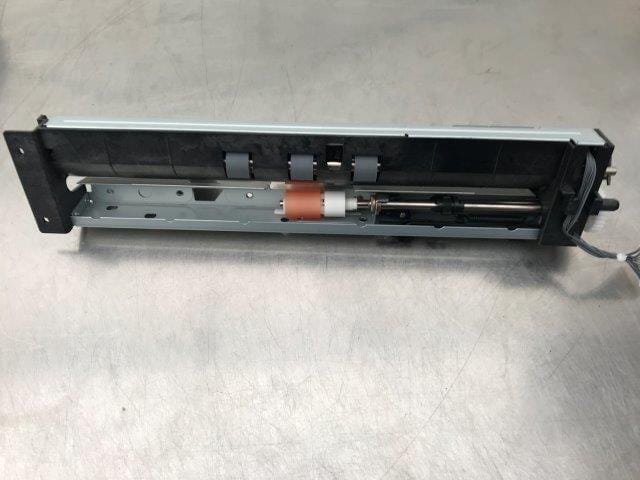

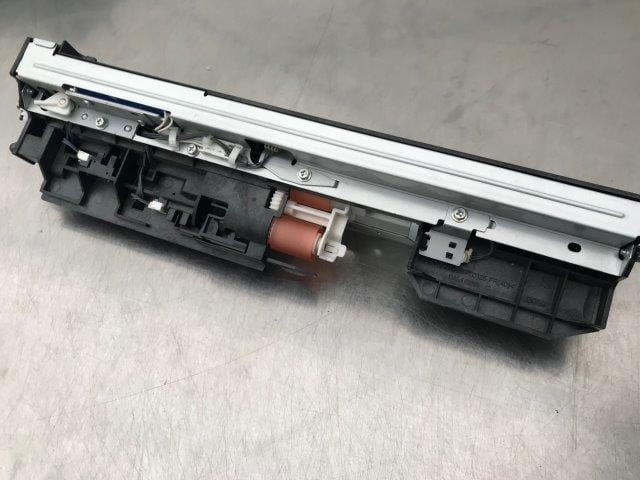

Rolki pobierania RICOH Aficio MPC3002 MPC3502 MPC4502 SPC830DN SPC831DN 1 kaseta D1442750

Rolki pobierania RICOH Aficio MPC3002 MPC3502 1,2,3 kaseta D1442750 D144-2750 Paper Feed Unit PB3120 PB-3120

Ricoh Aficio MPC3002
Ricoh Aficio MPC3502
Ricoh Aficio SPC830DN
Ricoh Aficio SPC831DN
Ricoh MP2553
Ricoh MP3053
Ricoh MP3353

Moduł rolek Paper Feed Unit zawiera:

D1442750 D144-2750 PAPER FEED UNITASSY
AA082102 AA08-2102 BUSHING 6X10X6
AA082150 AA08-2150 PLAIN SHAFT BEARING M6
AB010156 AB01-0156 GEAR SEPARATE DRIVE
AB010157 AB01-0157 GEAR SEPARATE DRIVEN
AA062259 AA06-2259 SPRING RELEASE
AA060691 AA06-0691 TENSION SPRING
07200040 0720-0040 ERETAINING RING M4
AA082143 AA08-2143 BUSHING 6X10X6
AA100014 AA10-0014 RETAINING RINGC SEPARATE
AF030085 AF03-0085 PAPER FEED ROLLER PICKUP
AA060693 AA06-0693 TENSION SPRING
AB011218 AB01-1218 GEAR ROLLER CLUTCH
AF032085 AF03-2085 PAPER FEED ROLLER SEPARATE
AB011252 AB01-1252 GEAR 20Z
AF031085 AF03-1085 PAPER FEED ROLLER FEED
B2232762 B223-2762 FEED SHAFT
D0092757 D009-2757 TRANSPORT ROLLER DRIVE ASSY
AW010122 AW01-0122 PAPER FEED SENSOR
B2232776 B223-2776 STAY
D0892781 D089-2781 BRACKET SENSOR
B2232780 B223-2780 DC SOLENOID 24V
AW020145 AW02-0145 PHOTOINTERRUPTOR FLAT
B2232815 B223-2815 SEPARATE DRIVESHAFT
D0892764 D089-2764 GEAR FEED
D0892819 D089-2819 GEAR SEPARATOR INPUT
B2232786 B223-2786 GROUND PLATE FRONT
D0892778 D089-2778 BRACKET SENSOR FEED
B2232772 B223-2772 HARNESS SHEET
AW010128 AW01-0128 PAPER FEED SENSOR
D0892829 D089-2829 GUIDE FEED
B2232810 B223-2810 SEPARATE DRIVEN SHAFT
D0892761 D089-2761 ARM PICKUP
B0042783 B004-2783 TORQUE LIMITER
B2232765 B223-2765 GROUND PLATE FEED
D0892767 D089-2767 FEELER PAPER END
G0652775 G065-2775 LINK LEVER
G0652767 G065-2767 LEVER FEED
G0652774 G065-2774 PRESSURE LEVER
G0652776 G065-2776 RELEASE LEVER

FILM JAK WYMIENIĆ ROLKI: >Wymiana rolek<

Element używany jak nowy. Rolki stan idealny.

LOK: K104 K104 K125
