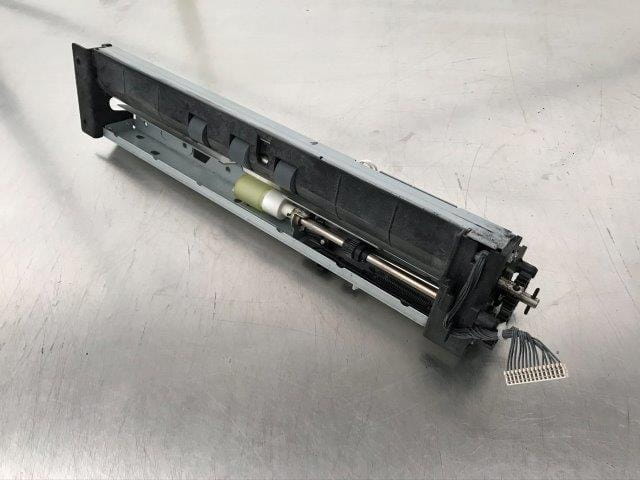

Rolki pobierania RICOH MP4002 MP5002 D1292750

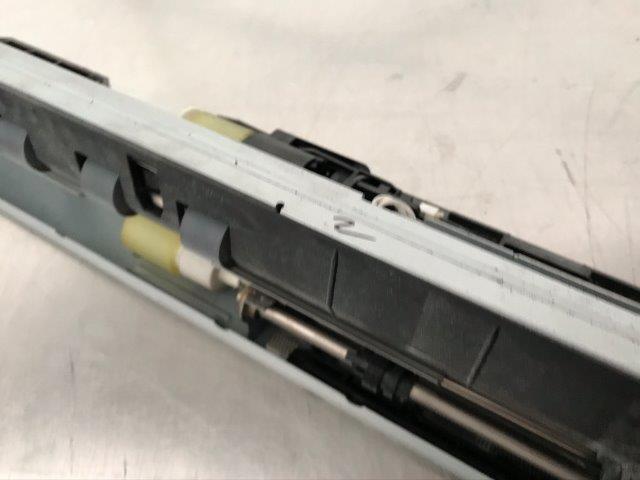

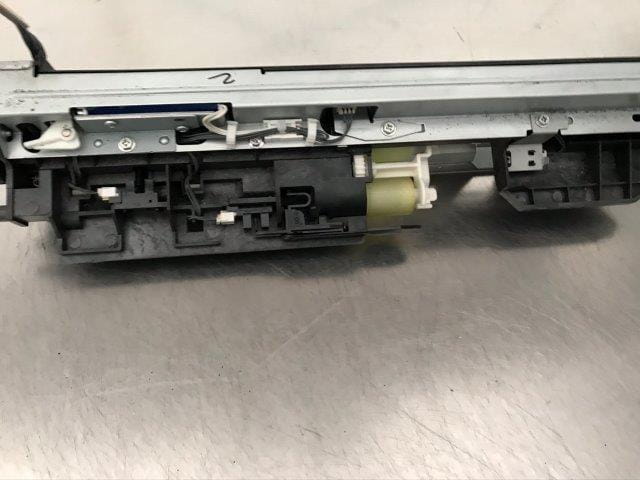

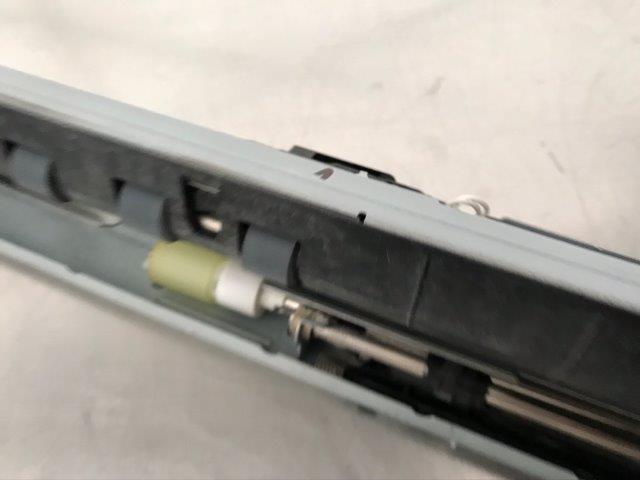

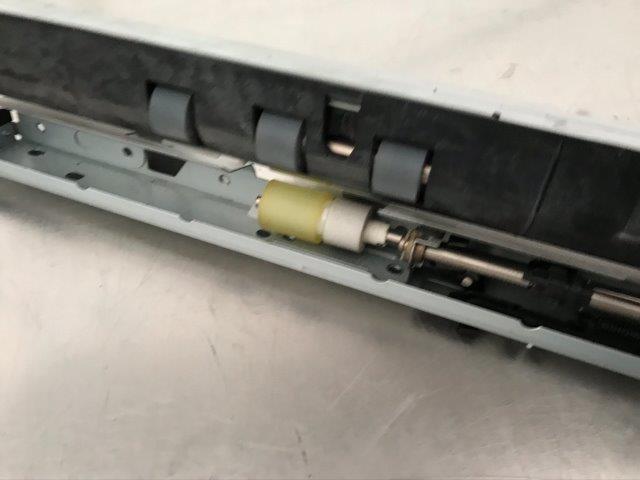

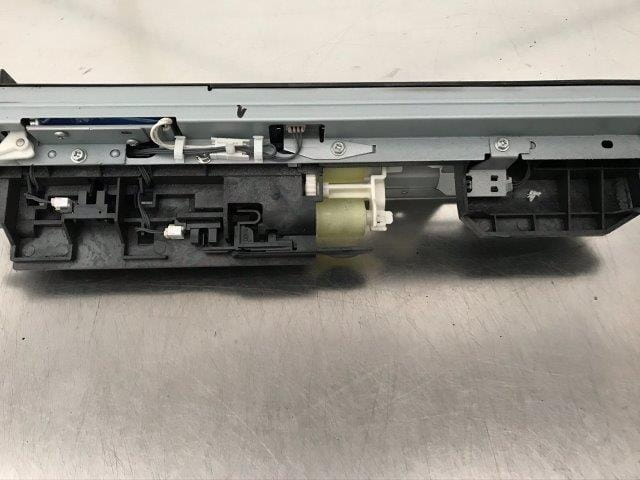

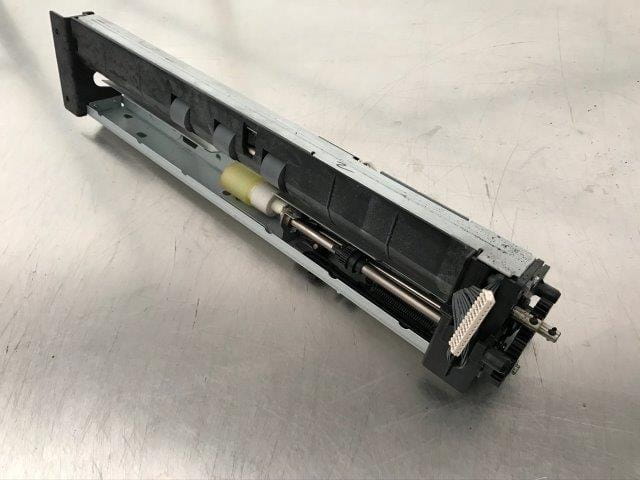

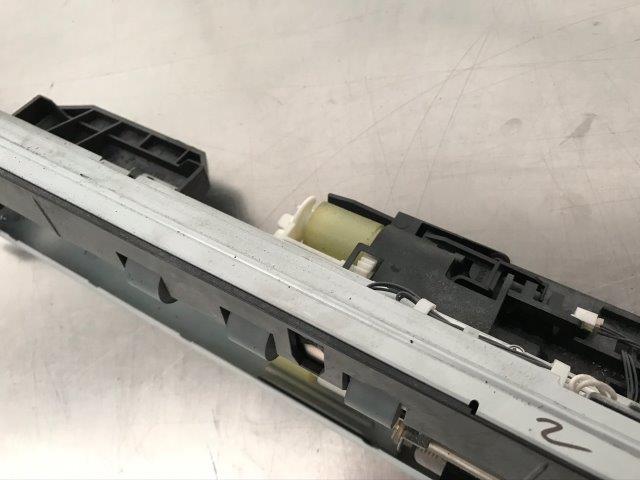

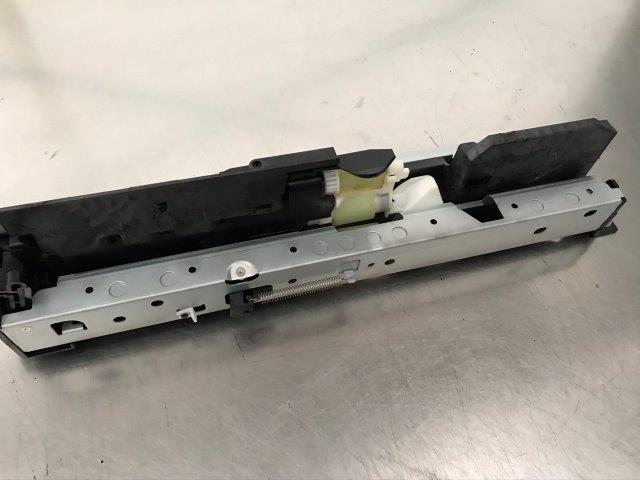

Rolki pobierania RICOH MP4002 MP5002 D1292750 kompletny unit

moduł zawiera:

* D1292750 Paper Feed Unit: Ass'y 2
1 D0892767 Feeler: Paper End 1
2 AW020145 Photointerruptor: Flat 2
3 D0292773 Harness - Paper Feed Unit 1
4 D0892778 Bracket: Sensor: Feed 1
5 AW010128 Paper Feed Sensor 1
6 D0892781 Bracket: Sensor 1
7 AW010122 Paper Feed Sensor 1
8 B2232780 DC Solenoid 24V 1
9 B2232776 Stay 1
10 D0092757 Transport Roller: Drive: Ass'y 1
11 AA082143 Bushing - 6x10x6 4
12 B2232772 Harness Sheet 1
13 B2232786 Ground Plate - Front 1
14 AF030090 Paper Feed Roller: Pickup 1
15 AB011252 Gear - 20Z 1
16 AA100014 Retaining Ring C - Separate 2
17 D0892829 Guide: Feed 1
18 AF031090 Paper Feed Roller: Feed 1
19 AB011218 Gear - Roller Clutch 1
20 AA082150 Plain Shaft Bearing: M6 1
21 B2232765 Ground Plate - Feed 1
22 D0892761 Arm: Pickup 1
23 AA060691 Tension Spring 1
24 G0652767 Lever - Feed 1
25 B2232764 Gear-24Z 1
26 B2232762 Feed Shaft 1
27 AF032090 Paper Feed Roller: Separate 1
28 D1292783 Torque Limiter Mechanical Clutch:40mnm: DIA18 1
29 B2232810 Separate Driven Shaft 1
30 AB010157 Gear: Separate: Drive 1
31 AA060693 Tension Spring 1
32 G0652774 Pressure Lever 1
33 AB010156 Gear: Separate: Drive 1
34 B2232815 Separate Drive Shaft 1
35 B2232819 Gear - 22Z 1
36 52062686 Snap Ring 1
37 G0652776 Release Lever 1
38 G0652775 Link Lever 1
39 AA062259 Spring - Release 1

Element używany LOK:K168x2
