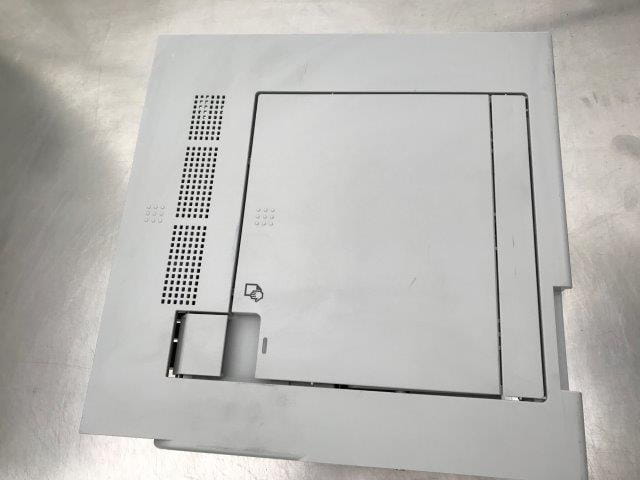

TRANSFER UNIT + DUPLEX RICOH MPC305 MPC305SP MPC305SPF D1186204

TRANSFER UNIT + DUPLEX RICOH MPC305 MPC305SP MPC305SPF

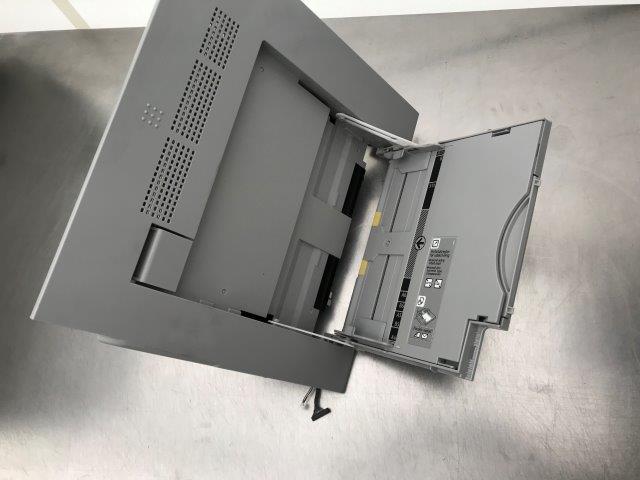

D1172762 MANUAL FEED TABLE:ASSY

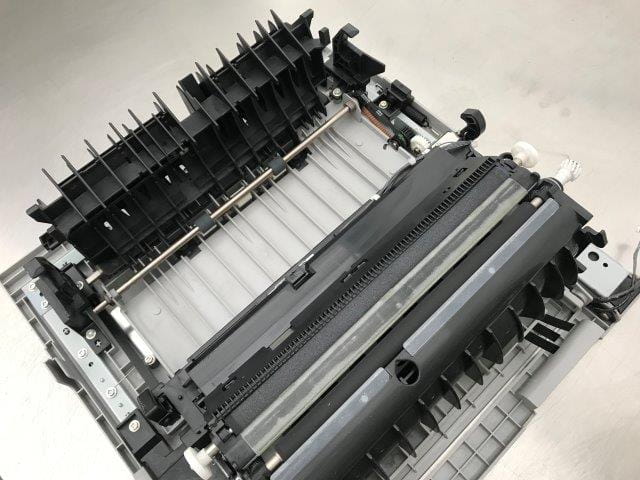

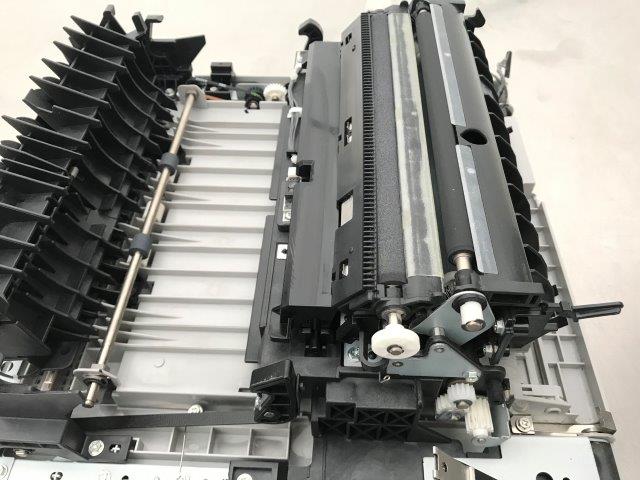

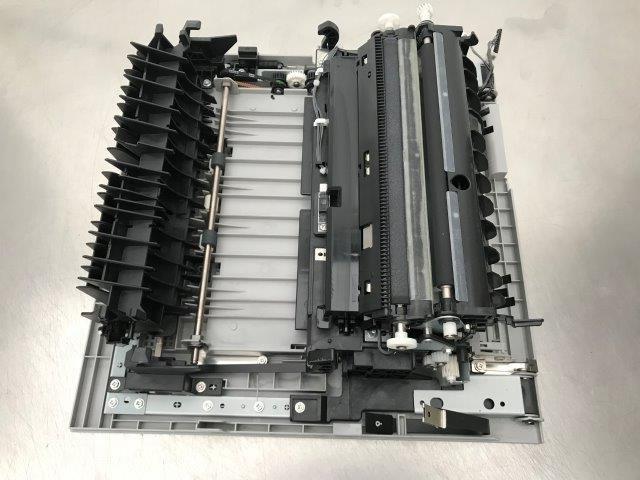

D1186204 TRANSFER/SEPARATION UNIT:SECOND:ASSY

D1172781 COIL SPRING:PINION GEAR:MANUALFEED
D1172771 EXTENSION TRAY:MANUAL FEED
D1172768 GEAR:SIDE FENCE
D1172770 COVER:MANUAL FEED TABLE
D1172792 DECAL:SCALE:MANUAL FEED
D1172772 (x2)COMPRESSION SPRING:EXTENSIONTRAY:MANUAL FEED
D1172769 (x2)RACK:MANUAL FEED
M0262993 DECAL:SIDE FENCE:MANUAL FEED
D1172767 SIDE FENCE:MANUAL FEED:REAR
D1172778 (x2)COMPRESSION SPRING:RACK:MANUAL FEED
D1172766 SIDE FENCE:MANUAL FEED:FRONT
D0392752 DISC:SIDE FENCE
D1172776 TORSION SPRING:COVER:MANUAL FEED TABLE
D1172784 (x2)LINK:COVER:FRONT REAR
M0662743 (x2)FRICTION PAD:MANUAL FEED TABLE:18X7.5
D1172773 COVER:MANUAL FEED TABLE:LOWER
D1172785 LINK:COVER:MIDDLE

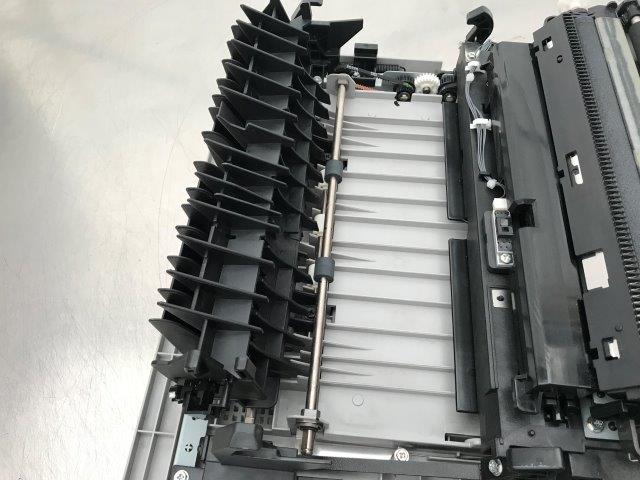

D1174520 FRAME:DUPLEX:ASSY


AW020203 PHOTOINTERRUPTOR:GP1A173LCS2F
D1174609 LEVER:FUSING:RELEASE:INNER BACK
D1174608 LEVER:FUSING:RELEASE:FRONT
B7002649 TIMING BELT:40S2M144
D1174616 TENSION SPRING:STOPPER:DOOR:RIGHT:FRONT
D1174617 COLLAR:STOPPER:COVER:RIGHT
D1174515 GROUND WIRE:DUPLEX
D1174600 COVER:RIGHT:DUPLEX
D1174612 BASE:HINGE:REAR
D1174615 SPRING PLATE:EARTH:DUPLEX
D1174514 SHAFT:STOPPER:COVER:RIGHT
D1174613 BASE:HINGE:FRONT
D1174611 (x2)SHAFT:HINGE:DUPLEX
D1174614 COVER:HARNESS:DUPLEX
D1174716 TORSION SPRING:FEELER:ENTRANCE SENSOR
D1174699 (x3)SHAFT:GUIDE PLATE:REVERSE:ENTRANCE:UPPER
D1174682 SHAFT:HOOK:STOPPER
D1964700 [A]FEELER:ENTRANCE SENSOR:REVERSE:DUPLEX201511-01 X/O
D1174717 COVER:ENTRANCE SENSOR
D1174690 GUIDE PLATE:REVERSE:ENTRANCE:LOWER
D1174698 GUIDE PLATE:REVERSE:ENTRANCE:UPPER
D1174671 TRANSPORT ROLLER:DUPLEX
D1174686 KNOB:COVER:RIGHT:DUPLEX
D1174679 PULLEY:DRIVE ROLLER
D1174712 HOLDER:BELT:COUPLING
D1174702 (x3)COMPRESSION SPRING:GUIDE PLATE:REVERSE:ENTRANCE
D1174714 BAND:HOOK:DUPLEX:COUPLING
D1174709 (x4)COMPRESSION SPRING:ROLLER:DRIVEN:DUPLEX
D1174676 (x2)SHAFT:ROLLER:DRIVEN:DUPLEX
D1174718 SHEET:COVER:RIGHT FRONT
D1174724 GEAR:IDLER:TIMING PULLEY:DUPLEX
D1174720 SHAFT:PULLEY:IDLER:COUPLING:ASSY
D1174678 PULLEY:IDLER
D1174677 (x5)ROLLER:DRIVEN:DUPLEXU02
D1174520 FRAME:DUPLEX:ASSY
D1174664 SHAFT:PULLEY:COUPLING:FRAME:ASSY
D1174678 PULLEY:IDLER
D1174633 SHAFT:HOOK:FRAME:DUPLEX
D1174635 TORSION SPRING:HOOK:FRAME:DUPLEX
D1174634 HOOK:FRAME:DUPLEX:FRONT
D1174641 BRACKET:PLATE:TRANSFER:ASSY
D1174637 HOOK:FRAME:DUPLEX:REAR
D1174645 BRACKET:PLATE:TRANSFER:INNER BACK:ASSY
D1174651 GEAR:TRANSPORT ROLLER:DUPLEX:Z14
D1174679 PULLEY:DRIVE ROLLER
AW010151 PHOTO REFIECTION SENSOR:PS122TL1-A
D1174671 TRANSPORT ROLLER:DUPLEX
D1174654 SHAFT:GEAR:SWING UNIT:Z14
D1174697 GUIDE PLATE:MIDDLE
D1964630 FRAME:DUPLEX
GA082010 (x2)BUSHING:DIA6:DIA10:9
D1174693 GUIDE PLATE:REVERSE:EXIT:UPPER
D1174691 GUIDE PLATE:REVERSE:EXIT:LOWER
D1174706 GEAR:IDLER:SWIVEL:COUPLING
D1174705 BRACKET:GEAR:SWIVEL:ASSY
D1174719 TUBE:STOPPER
D1174708 TENSION SPRING:GEAR:SWING UNIT

Element używany LOK:K114
