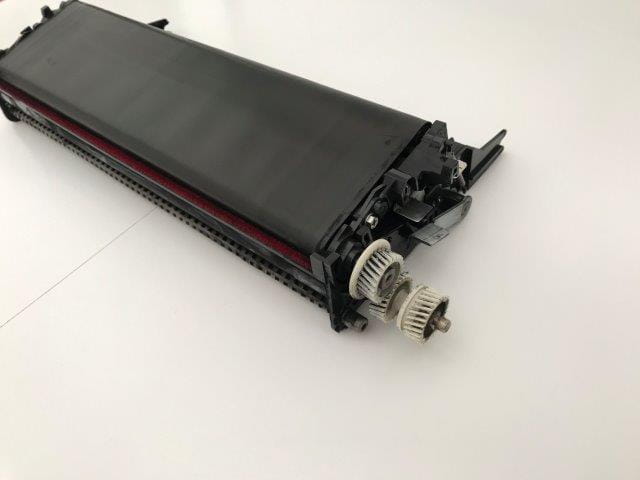

TRANSFER UNIT RICOH MP3500 MP4500 A2323880 B0043900

TRANSFER UNIT RICOH Aficio MP3500 MP4500 B0043900 zespół taśmy transferowej

Element używany, taśma i listwa tratowane są jako zużyte, zespół chodzi lekko, wszystko całe, nic nie jest połamane.

Zawiera wszystkie elementy:

1 B0043914 Mylar - Belt Drive Roller 1
2 A2323907 Seal - Transfer Exit 1
3 A2323906 Seal - Rear Transfer Exit 1
4 A2323905 Seal - Shield Plate 1
5 A2323927 Shield - Transfer Belt - Exit 2
6 B2133831 Cleaning Blade: Transfer Belt 1
7 B0823920 Cleaning Blade Bracket 1
8 A2323909 Seal - Front Case 1
9 A2323908 Seal - Rear Case 1
10 AW310011 Used Toner Sensor - Transfer Unit 1
11 B0823867 Shield: Remove Paper Dust 1
12 B2133917 Lever: Release: Pressure 1
13 A2323924 Rear Bushing - Cleaning Holder 1
14 AB014189 Gear - 27Z 1
15 AA060939 Spring: Pressure: Cleaning Blade: 4.4n 2
16 AA150401 Seal - 70x20 2
17 AA063305 Torsion Spring 2
18 A2323921 Spring Anchor 2
19 A2323935 Shaft - Transfer Unit Stopper 1
20 A2323925 Front Bushing - Cleaning Holder 1
21 B0043900 Case - Transfer Unit 1
22 A2323916 Pressure Lever - Transfer Belt 2
23 B0773914 Lever: Front 1
24 B0773913 Lever: Rear 1
25 A2323883 Spring Plate - Transfer Unit 1
26 A2323885 Driven Roller - Transfer Unit 1
27 A2323887 Rear Terminal - Transfer Belt 1
28 AA082054 Bushing - M4 1
29 AA060712 Torsion Spring 2
30 B2133889 Roller: Bias 1
31 AA080246 Bushing - Bias Roller 1
32 A2323926 Transfer Belt Roller 2
33 B2133882 Frame: Transfer Belt 1
34 A2323891 Bias Terminal 1
35 A2323893 Arm - Transfer Belt 2
36 B2133894 Roller: Drive: Dia14.5 1
37 AB011190 Gear - 25Z 1
38 A2323880 Transfer Belt 1

LOK:K144
