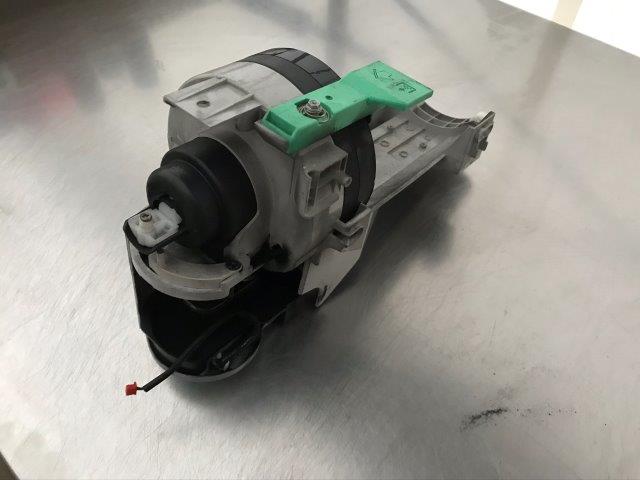

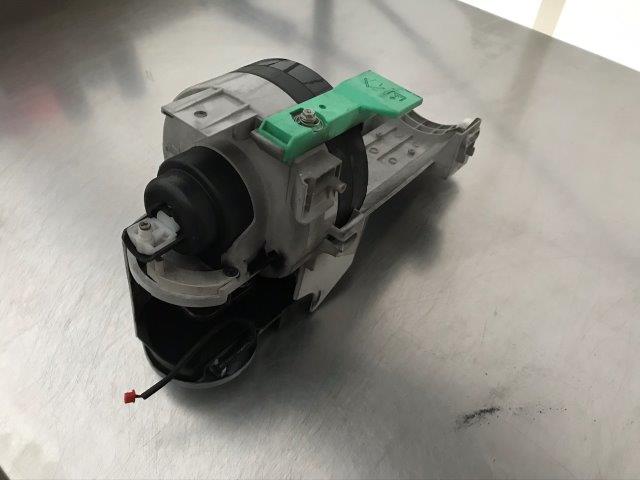

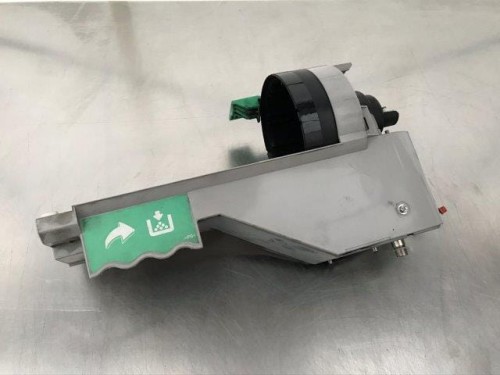

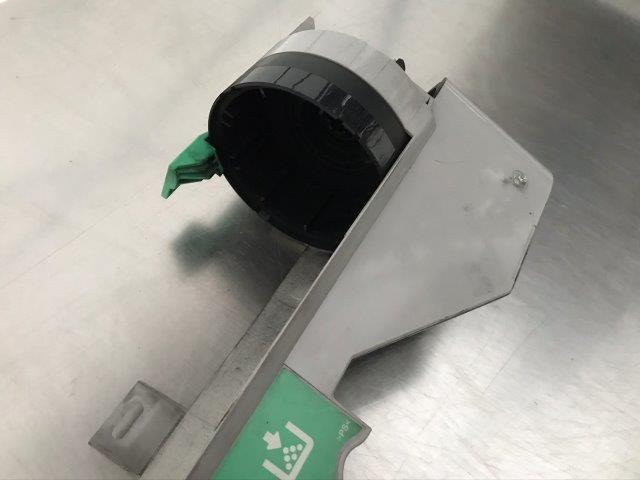

Toner Hopper Section RICOH Aficio MP6001 MP7001 MP8001 MP9001 B2473326

Toner Bottle Drive Assembly Toner Hopper Section B2473326 B247-3326

RICOH AFICIO MP5500 MP5500SP MP6000 MP6001 MP6001SP MP6500 MP6500SP MP7000 MP7001 MP7001SP MP7500 MP7500SP MP8000 MP8001 MP8001SP MP9001 MP9001SP
Gestetner MP6000 MP6001 MP7000 MP7001 MP8000 MP8001
Lanier LD260 LD270 LD280 LD360 LD360SP LD370 LD370SP LD380 LD380SP LD390SP

Zawiera:

1 B0653306 Gear: Toner Bottle: Ass'y 1
2 A2933234 Shield Plate - Toner Bottle 1
3 A2933230 Toner Bottle Chuck 1
4 A2933227 Toner Slider 1
5 AA143816 Flat Screw: Chuck: Bottle
6 B2473331 Screw 1
7 A2293232 Chuck Roller 1
8 B2473345 Shaft: Chuck 1
9 AA063366 Chuck Spring 1
10 A1343192 Seal - Toner Bottle 1
11 A2933220 Toner Bottle Stopper 1
12 B2473330 Spring 1
13 B2473282 Pawl: Toner Bottle: Fix 1
14 A0963224 Bottle Roller 2
15 AA001394 Decal - Toner Supply 1
16 A2933231 Shield Holder 1
17 AA060291 Spring 1
18 AA132024 Spacer - M6 1
19 A2293243 Motor Joint Gear 1
20 A2293242 Toner Bottle Joint Gear 1
21 B2475312 DC Motor: Toner Bottle: DC24V 5.85W 1
22 B0653309 Toner Bottle Drive Bracket 1
23 B2473332 Shaft: Idler: Drive: Toner Bottle 1
24 B2473283 Set Sensor Board: Toner Bottle 1
25 B2473311 Bracket: Turn: Toner Bottle: Sub-ass'y 1
26 A2293219 Rubber Bushing - Toner Supply Unit 1
27 A2293285 Shutter Cover 1
28 A2293264 Shutter Lever 1
29 A2293266 Upper Shutter Shield 1
30 A2293262 Inner Shutter 1
31 A2293261 Outer Shutter 1
32 A2293263 Outer Shutter Shield 1
33 B2473273 Contact Point Stay - Upper 1
34 B2473271 Contact Point Stay - Lower 1
35 B2473316 Bracket: Hinge: Open And Close: Ass'y 1
36 A2222724 External Circlip - MM8 1
37 B2473258 Toner Catchpan Bottle 1

Element używany, przebieg kopiarki 1.350.000 kopii LOK:K174
