Transfer Unit RICOH MPC2004 MPC2504 MPC3004 MPC3504 MPC4504 MPC4504 MPC5504 MPC2004 MPC2504 D2416005 D2416003 D2416001

Transfer Belt Unit RICOH MPC3004 MPC3504 MPC4504 MPC5504 MPC2004 MPC2504 + D1496370 TONER OUTLET UNIT BELT CLEANING

TRANSFER UNIT INTERMEDIATE TRANSFER zawiera:

D1496370 TONER OUTLET UNIT BELT CLEANING
GW010009 (x3)DENSITY SENSOR
11050758 (x5)CLAMP:LWSM-0306A
D1496320 (x5)TERMINAL:BIAS:INTERMEDIATE TRANSFER:MAIN
D1496321 HOLDER:TERMINAL:INTERMEDIATE TRANSFER:MAIN
AW140026 TEMPERATURE &HUMIDITY SENSOR
D1496309 SHAFT:ON-OFF:COLLAR:MAIN
AA082101 (x2)BUSHING - 6X10X6
D1496310 BRACKET:ON-OFF:COLLAR
D1496312 JOINT:ON-OFF:COLLAR
AW020224 PHOTOINTERRUPTOR:GP1A173LCSVF201605-02 X/O
04583008N (x16)HEXAGON HEAD TAPPING SCREW:3X8
D1496172 BRACKET:BELT CLEANING:FRONT
D1175916 STEPPED SCREW:M3X8:SECOND KIND
D2416141 CLEANING UNIT:BELT CLEANING:ASS'Y
04543006Q (x12)TAPPING SCREW -M3X6
D1496311 GEAR:ON-OFF:COLLAR:OUTPUT
07200040 ERETAINING RING -M4
D1496173 BRACKET:BELT CLEANING:REAR
D1496112 ROLLER:FLAT BELT-TRANSFER:FACE FRONT:ASS'Y
D1496345 CAM:SHUTTER:TMSENSOR201605-04
AA132208 (x2)SPACER - M6
B2236069 JOINT:DRIVE:INTERMEDIATE TRANSFER
D1496037 STOPPER:RIGHT:INTERMEDIATE TRANSFER
D1496038 LEVER:ON-OFF:BK
D1496036 (x2)CAM:ON-OFF:BK
D1496030 CAM:ON-OFF:COLLAR
D1496336 (x4)TRANSFER ROLLER:ASS'Y
D2416097 FLAT BELT-TRANSFER:INTERMEDIATE TRANSFER:TT

D1496177 HOLDER:DISCHARGE USED TONER:ASS'Y
D1496179 USED TONER
D1496194 SHAFT:LEVER:DISCHARGE USED TONER
D1496192 LEVER:DISCHARGE USED TONER
D1496195 CAM:DISCHARGEUSED TONER

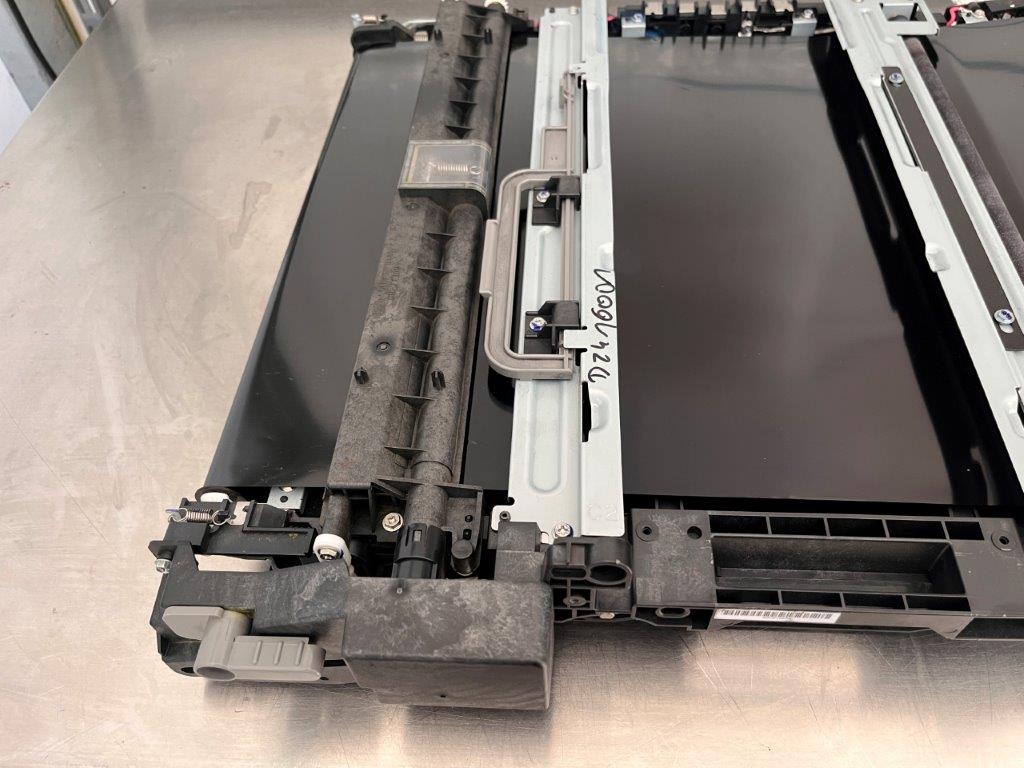

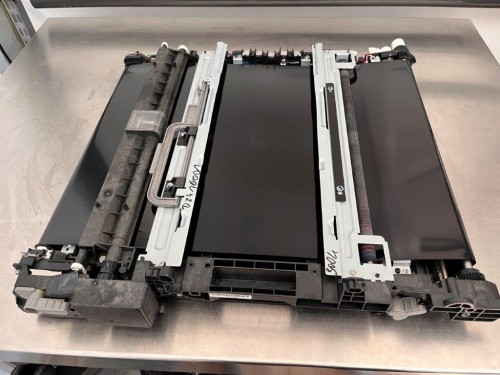

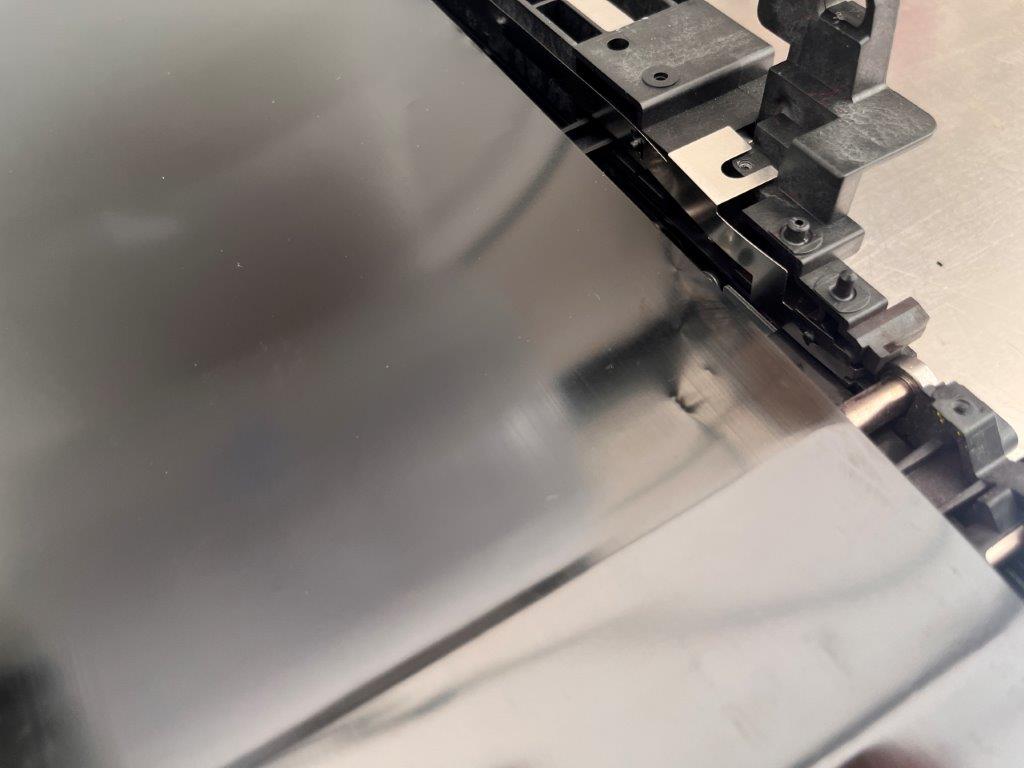

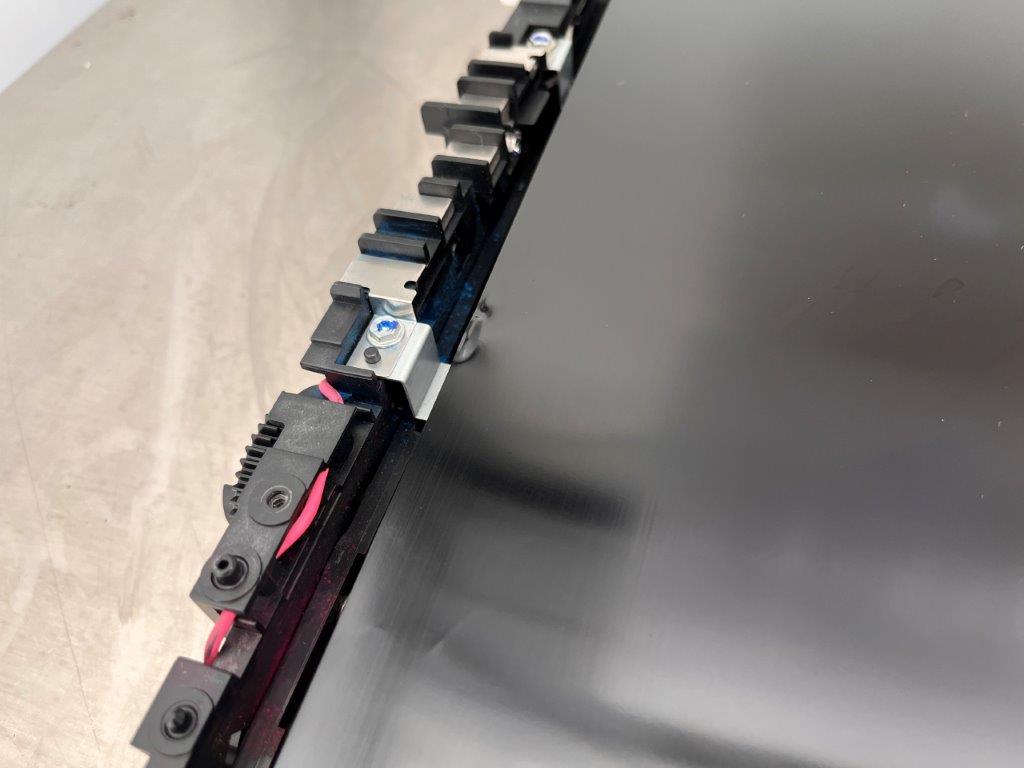

Element używany stan jak na zdjęciach

Numer katalogowy: D2416003 D2416001 D241-6003 D241-6001
