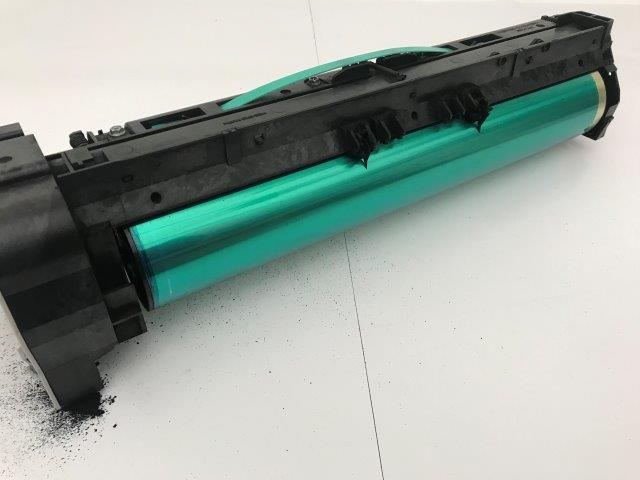

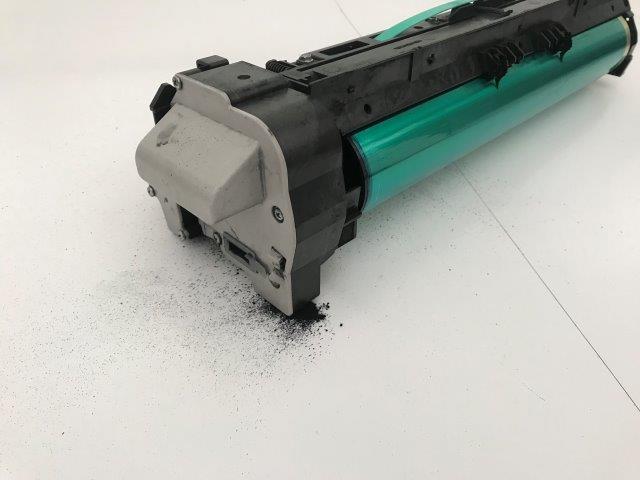

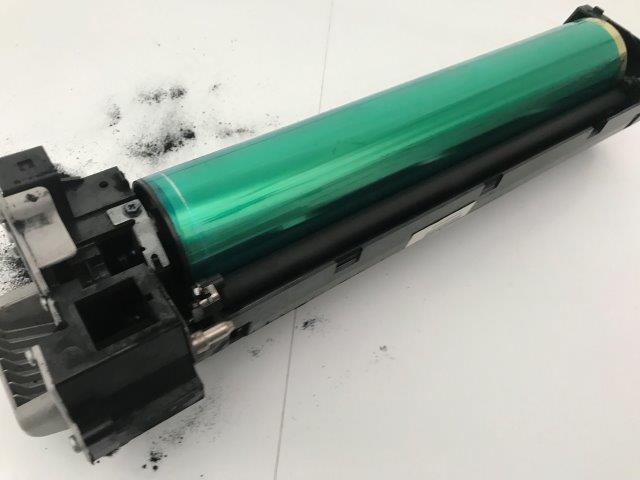

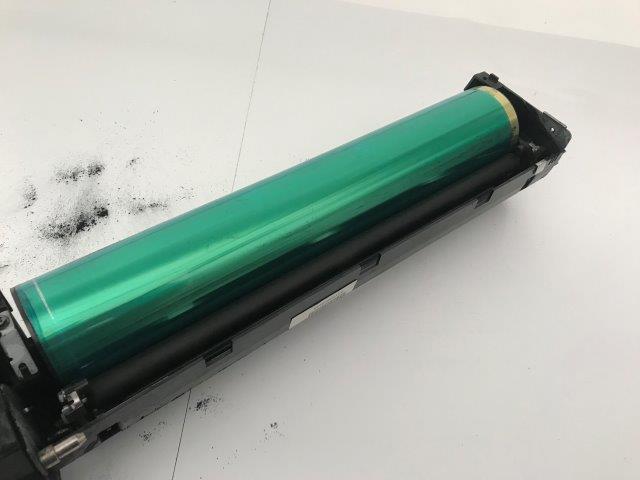

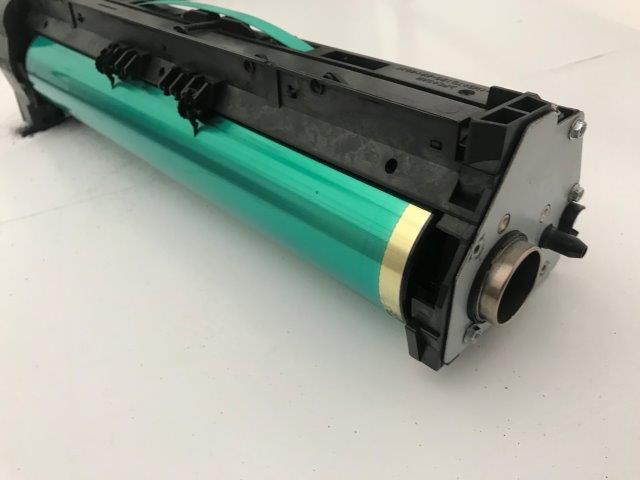

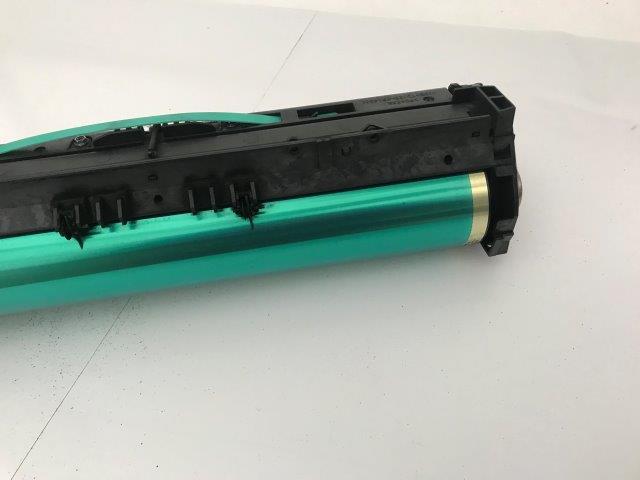

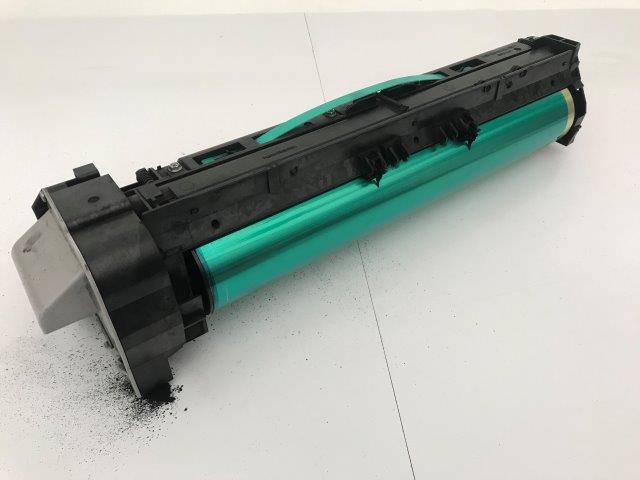

Bęben Unit RICOH Aficio MP4000 MP4001 MP5000 MP5001 D0092105 (3)

Moduł bębna Black Photoconductor Unit D009-2110, D0092110, D009-2105, D009-2200, D0092105, D0092200

RICOH Aficio MP4000 MP4000B MP4001 MP4001G MP4002 MP4002SP MP5000 MP5000B MP5001 MP5001G MP5002 MP5002SP
Lanier LD040B LD040SP LD040SPF LD050B LD050SP LD050SPF LD140G LD140SP LD150G LD150SP

Moduł bębna zawiera:

D0092211 D009-2211 Frame PCU Upper
D0092389 D009-2389 Rear Side Plate Coupling
D0092390 D009-2390 Idler Bracket
D0092317 D009-2317 Electrode Plate Charge
D0092445 D009-2445 Handle PCU
D0092380 D009-2380 Front Side Plate Coupling
D0092279 D009-2279 Seal Toner Supply Entrance Upper
D0093267 D009-3267 Seal Toner Supply Entrance Front
D0092633 D009-2633 Cap Toner Supply
A2322399 A232-2399 Seal Blade 13x9.5x3
D0092205 D009-2205 Seal Blade Upper Rear Small
D0092201 D009-2201 Seal Drum Front
D0092203 D009-2203 Seal Drum Entrance
D0092202 D009-2202 Seal Drum Rear
D0092204 D009-2204 Seal Blade Upper Case
B2132316 B213-2316 Stud: Contact Point Cleaning
G0652354 G065-2354 Electrode Plate Charge Front
G0652681 G065-2681 Snap Ring M6
D0092331 D009-2331 Front Arm Pressure/Charge
AA063648 AA06-3648 Pressure Spring
A2322421 A232-2421 Bushing 6x10x3
A2322315 A232-2315 Front Bushing Cleaning Bracket
B2132312 B213-2312 Bracket Cleaning Blade
D0092351 D009-2351 Cleaning Blade
D0092318 D009-2318 Spring Plate Electrode
AA062348 AA06-2348 Pressure Spring
AA062300 AA06-2300 Tension Spring
AB011380 AB01-1380 Cam Cleaning Blade
AB011379 AB01-1379 Gear 19Z
D0092336 D009-2336 Rear Arm Pressure/Charge
G0652308 G065-2308 Electrode Plate Charge Rear
B0822333 B082-2333 Terminal Brush Roller
A2322318 A232-2318 Collar Cleaning
D0092426 D009-2426 Seal 24.5x68.5
AD027012 AD02-7012 Roller Charge Apply
D0092303 D009-2303 Drum Hold Plate
AA143549 AA14-3549 Screw DIA10 M3x8
A2323553 A232-3553 Ball Bearing - 8x16x5
D0099510 D009-9510 OPC Drum
AA062310 AA06-2310 Pressure Spring
A2322340 A232-2340 Holder - Pick-Off Pawl
A2322339 A232-2339 Spur
G7902329 G790-2329 Brush Roller Cleaner Charge
D0093104 D009-3104 Seal Level
D0092214 D009-2214 Separation Plate Case Blade Upper

Moduł używany, do ostatniej chwili maszyna pracowała ładnie. Wszystko lekko się kręci, koła w ładnym stanie. Moduł wyczyszczony, udrożniona górna sprężyna odprowadzania toneru.
Wałek bębna, listwę i rolkę ładowania traktujemy jako zużyte. Moduł traktujemy jako dawcę części lub moduł do regeneracji.
LOK: K148
